Panasonic WV-NS202 - i-Pro Network Camera Manuale utente

Be sure to read "Precautions" before installation.

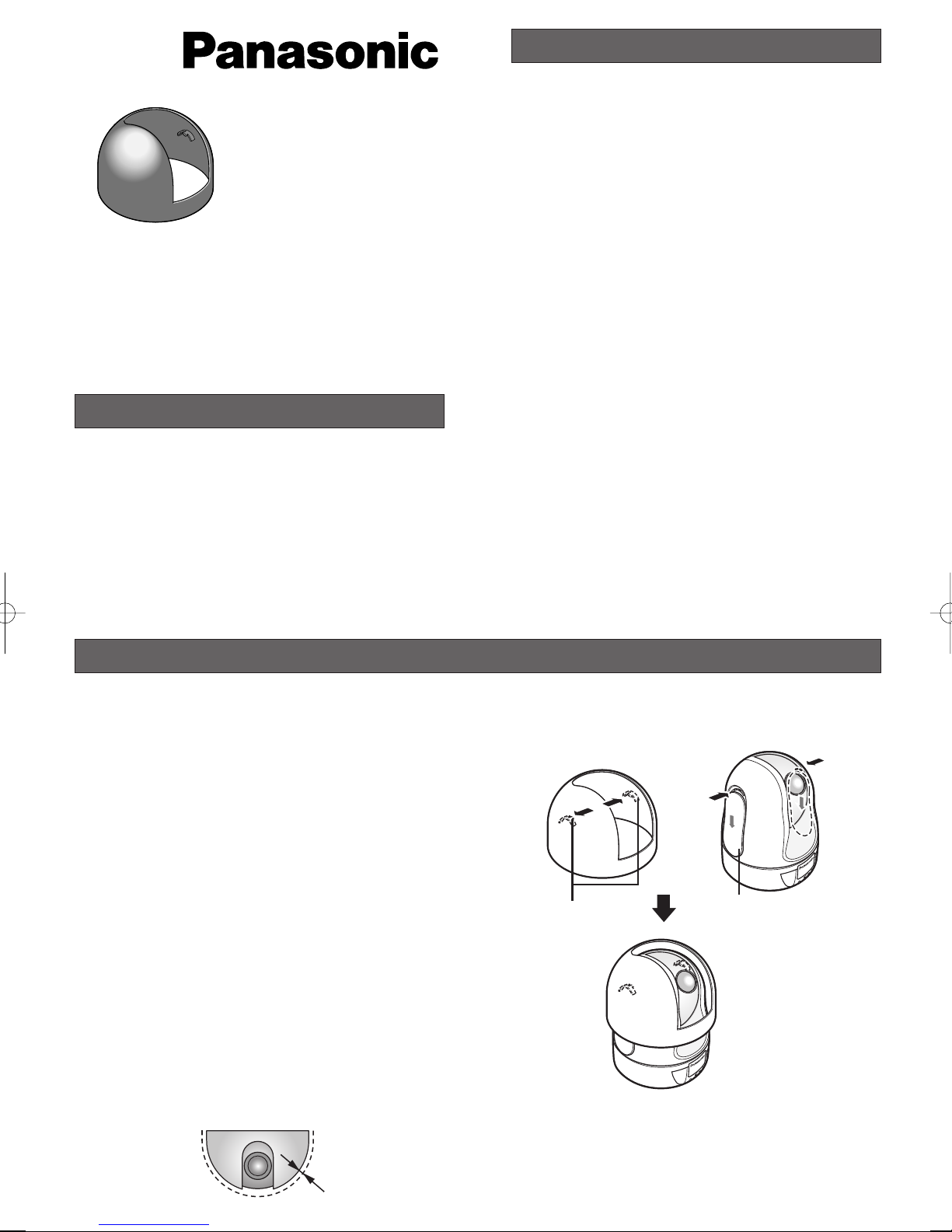

How to engage the inner cover

Slide the covers located on the both lateral sides of

the camera and put the inner cover on the camera

until the hooks inside the inner cover are engaged in

the holes of the camera (until a click is heard).

Important:

• Put the inner cover down on the camera until the

outside cover of the camera cannot be seen from

the opening (from which the camera lens is visi-

ble) of the inner cover.If this engagement work is

not successfully performed, the inner cover may

be removed or the hidden part at the top of the

screen may become larger in the wide mode.

•When the camera, WV-NS202 or WV-NS202A,

with this product and an outdoor dome housing

equipped is mounted, the clearance between this

product and the housing shall be 2 mm or more.

Inner Cover

Instructions

Model No. WV-Q153

Before attempting to connect or operate this product,

please read these instructions carefully

and save this manual for future use.

Inner cover

Put on until a click is

heard

Cover

Hook

This product is an inner cover that is exclusively

designed to be used with the network cameras, WV-

NS202 and WV-NS202A.

Features

•Refer installation work to the dealer.

Installation work requires skills and experiences.

Failure to observe this may cause fire, electric

shock, injury, or damage to the product. Be sure

to consult the dealer.

•Be sure to engage the inner cover onto the

camera main body before installation of the

camera main body.

Failure to observe this may cause a drop resulting

in injury or accidents.

Precautions

Installations

Clearance of 2 mm

or more

For U.S., Canadian and Puerto Rican fields:

Panasonic System Solutions Company,

Unit Company of Panasonic Corporation of North America

Security Systems

www.panasonic.com/security

For customer support, call 1.877.733.3689

Executive Office: Three Panasonic Way 2H-2, Secaucus,

New Jersey 07094

Zone Office

Eastern: Three Panasonic Way, Secaucus, New Jersey 07094

Central: 1707 N. Randal Road, Elgin, IL 60123

Southern: 1225 Northbrook Parkway, Suwanee, GA 30024

Western: 6550 Katella Ave., Cypress, CA 90630

Panasonic Canada Inc.

5770 Ambler Drive,Mississauga,

Ontario, L4W 2T3 Canada (905)624-5010

http://www.panasonic.ca

Panasonic Sales Company

Division of Panasonic Puerto Rico Inc.

San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina

P.R. 00985(809)750-4300

For European and other fields:

Matsushita Electric Industrial Co., Ltd.

Osaka, Japan

http://panasonic.net

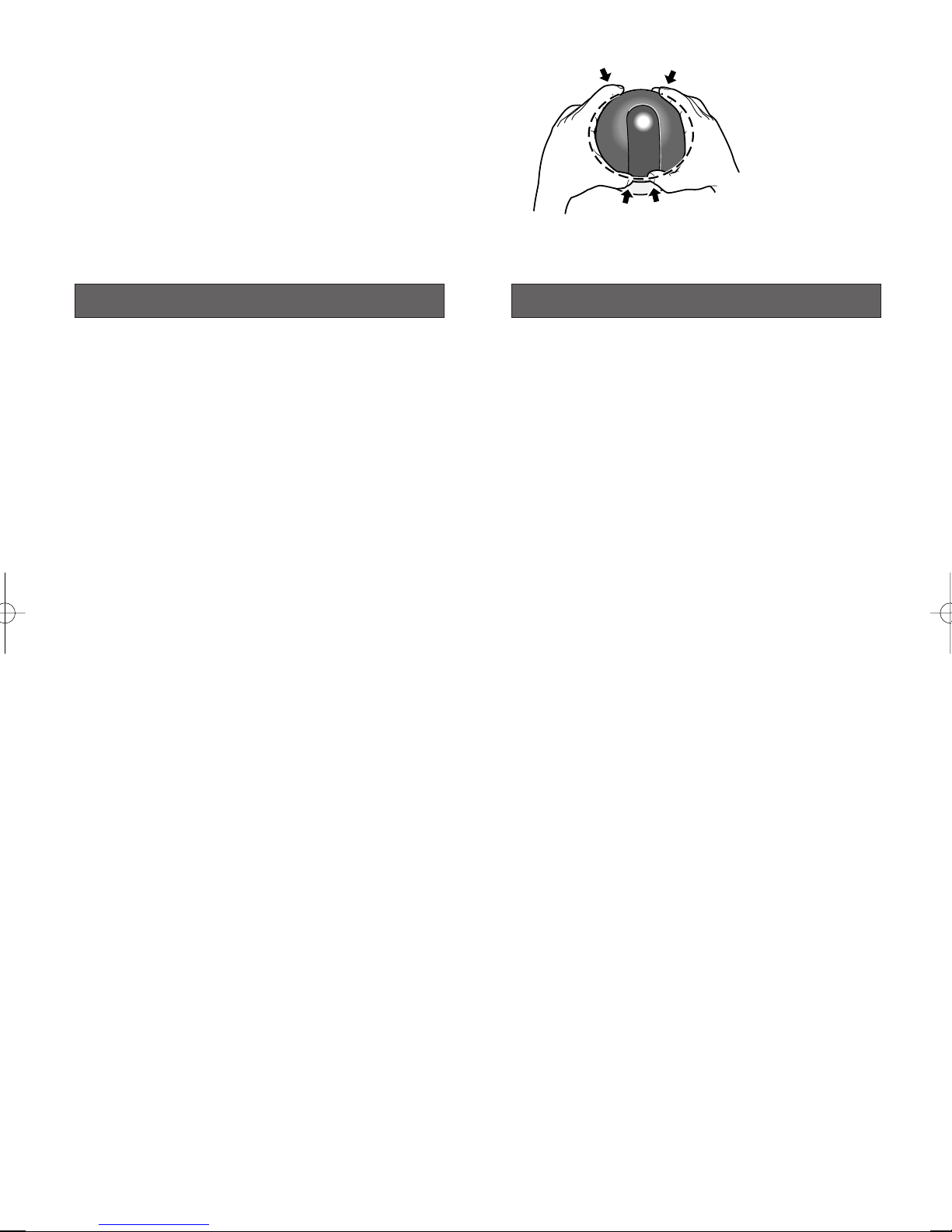

How to remove the inner cover

• Press the inner cover from the front and rear sides

inward (at the same vertical position as the hooks)

to bend the cover and remove the inner cover

from the camera.

Ambient temperature –10 °C to +50 °C

Dimensions Diameter 118 mm

Height 80.2 mm

Weight approx. 50 g

Specifications

Press from the front and rear sides

inward to bend

Operating Instructions (this document).................1 pc.

Standard Accessories
