Panasonic AW-LZ17MD9 Manuale utente

17 : 1 Motor Drive Zoom Lens

AW-LZ17MD9

for AW-E800 Series

PREFACE

Motor drive zoom lens AW-LZ17MD9 used with AW-E800

series color camera (2/3” 3CCD Bayonet mount remote

control color camera).

SPECIFICATION

Focal Length : 9 - 153 mm, 17 times

Maximum Relative

Aperture : F1.9 (9 - 115 mm) - F2.6 (153 mm)

Image Size : φ11 mm (8.8 x 6.6 mm)

Iris : F1.9 - F16, CLOSE Servo or Manual

Zoom : Servo or Manual

Focus : Servo or Manual

Focusing Range : 0.9 m (Macro:0.05m) - ∞

Field of View : Wide Tele

Horizontal : 52°06’ - 3°18’

Vertical : 40°16’ - 2°28’

Diagonal : 62°51’ - 4°07’

Flangeback : 48.0 mm (±0.4 mm Adjustable)

Mount : 2/3” Bayonet Mount

Filter (Flont frame) Size : M82 x 0.75 mm

Dimensions : 123 (W) x 120 (H) x 214 (D) mm

(with Hood)

[4-7/8” (W) x 4-3/4” (H)

x 8-7/16” (D)]

Weight : 1.3 kg (2.87 lbs) (without Hood)

Finish : Black

Input Voltage : +12 V DC

Current Consumption : 410 mA Max.

Iris Operating Time : Approx. 2 s (Full Travel)

Zoom Operating Time : Approx. 3 s (Full Travel)

Focus Operating Time : Approx. 3 s (Full Travel)

Camera Connector : HR10A-10P-12P, HIROSE

Control Connector : HR10A-10P-12S, HIROSE

Weight and dimensions shown are approximate.

Specifications are subject to change without notice.

NOTE : Refer to the operating instructions of

AW-E800 series for details.

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

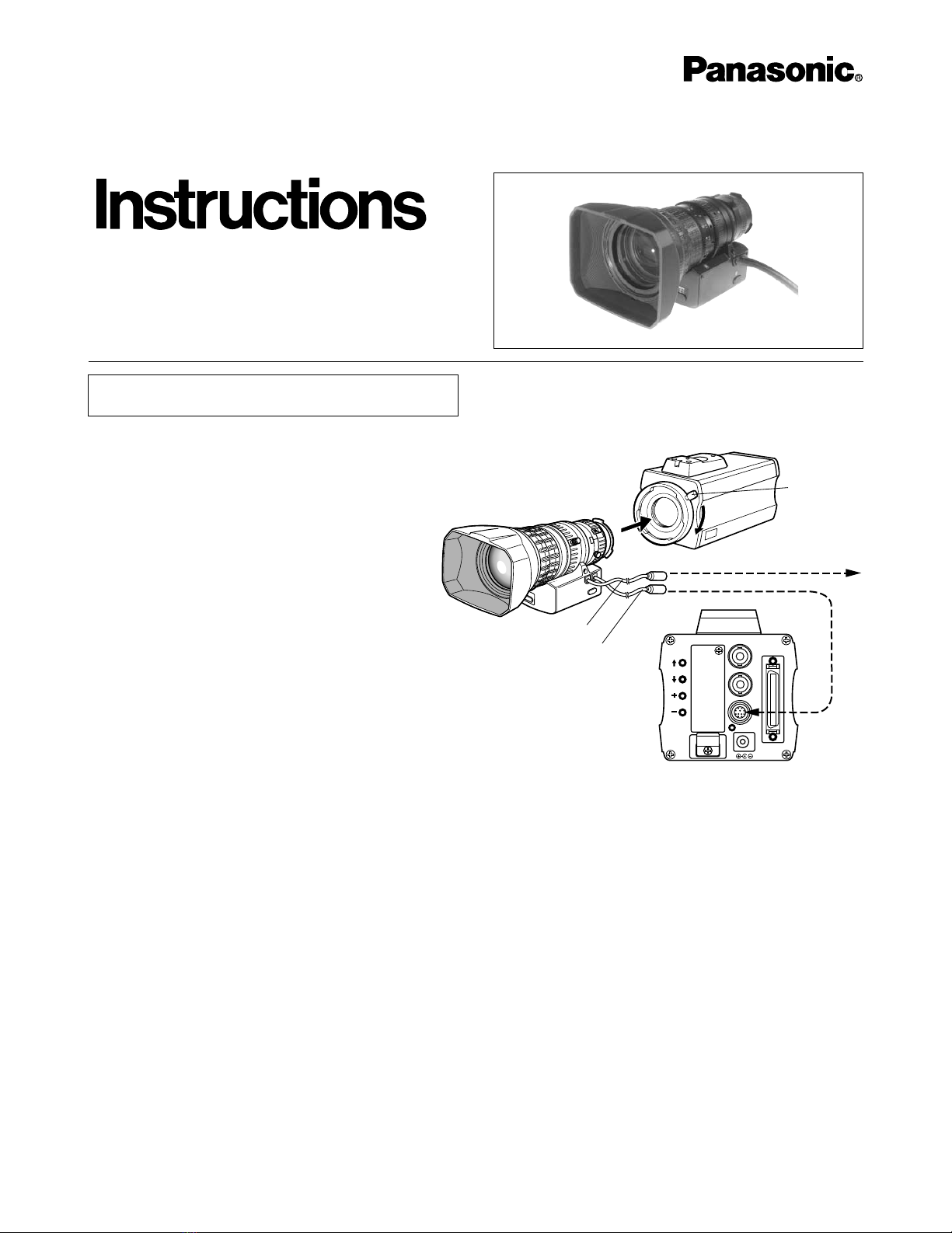

INSTALLATION

Rotate the lens fixing ring knob of camera counterclock-

wise and remove the lens mount cap. Mount the lens on

the camera and rotate the lens fixing ring knob clockwise

in order to fix the lens securely. Connect the camera

cable to the IRIS connector on the back panel of the

camera.

Connect the control cable to the lens I/F connector on

the pan/tilt unit.

VIDEO OUT

G/L IN

I/F REMOTE

OPTION CARD

IRIS

DC12V IN

ITEM/AWC

YES/ABC

NO/BAR

Control cable

To lens I/F connector

on the pan/tilt unit

To iris connector

Lens fixing

ring knob

Camera cable

We declare under our sole responsibility that the product to which this

declaration relates is in conformity with the standards or other

normative documents following the provisions of Directive EEC/89/336.

NM1199-0 7J1A431A Printed in Japan
