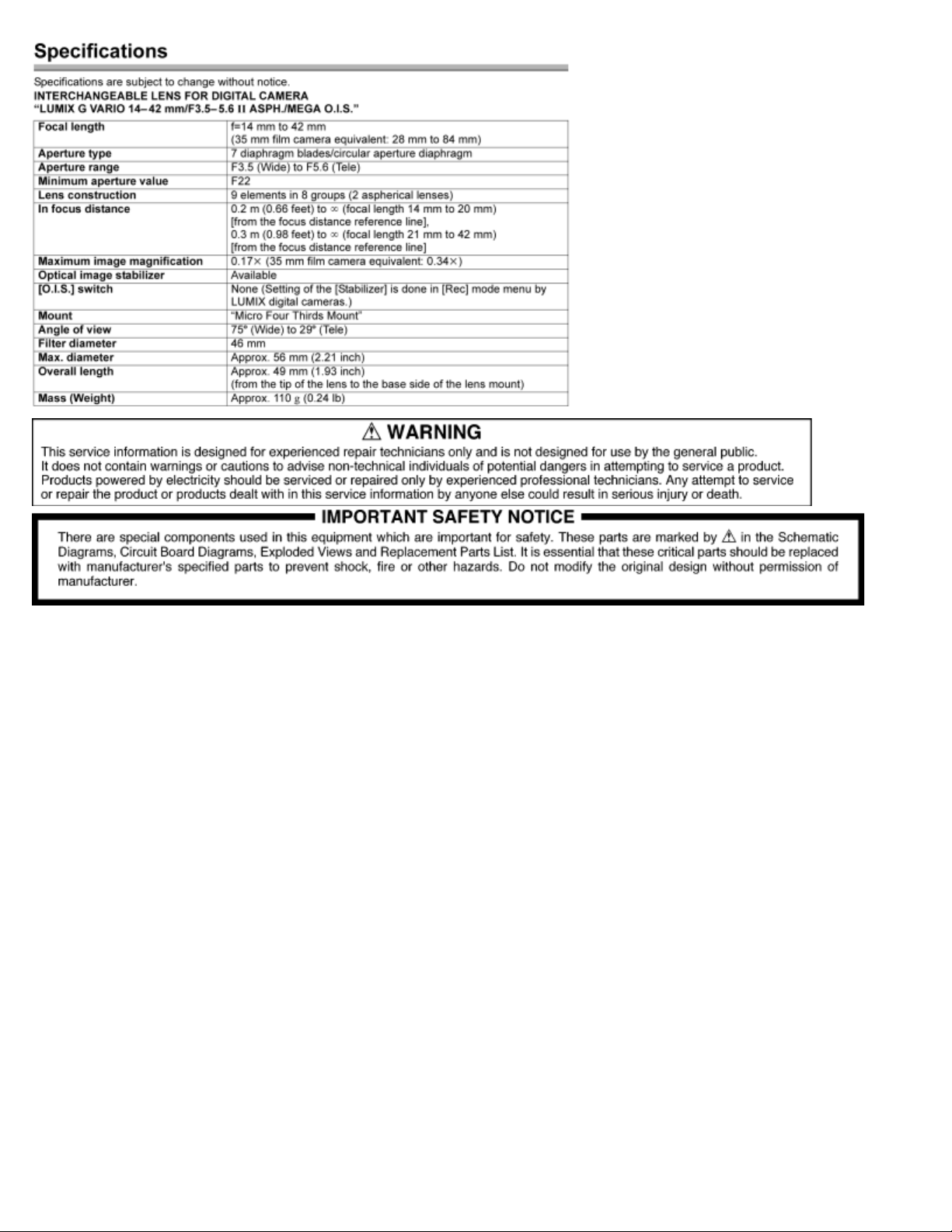

1 Service Navigation
1.1 Introduction
This service manual contains technical information, which allow service personnel’s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
1.2 Important Notice
1.2.1 About LENS MAIN UNIT (Ref. 208)
1.
critical lens adjustments.
2.
(Ref. 202), to maintain Serial number of owner's original lens.
file:///C|/U...emp/Rar$EXa0.829/viewing/SGML_VIEW_DATA/ALL/H-FS1442APP/SVC/DSC1302014CE/doc/DSC1302014CE_01.xml[11/12/2018 11:15:49 AM]

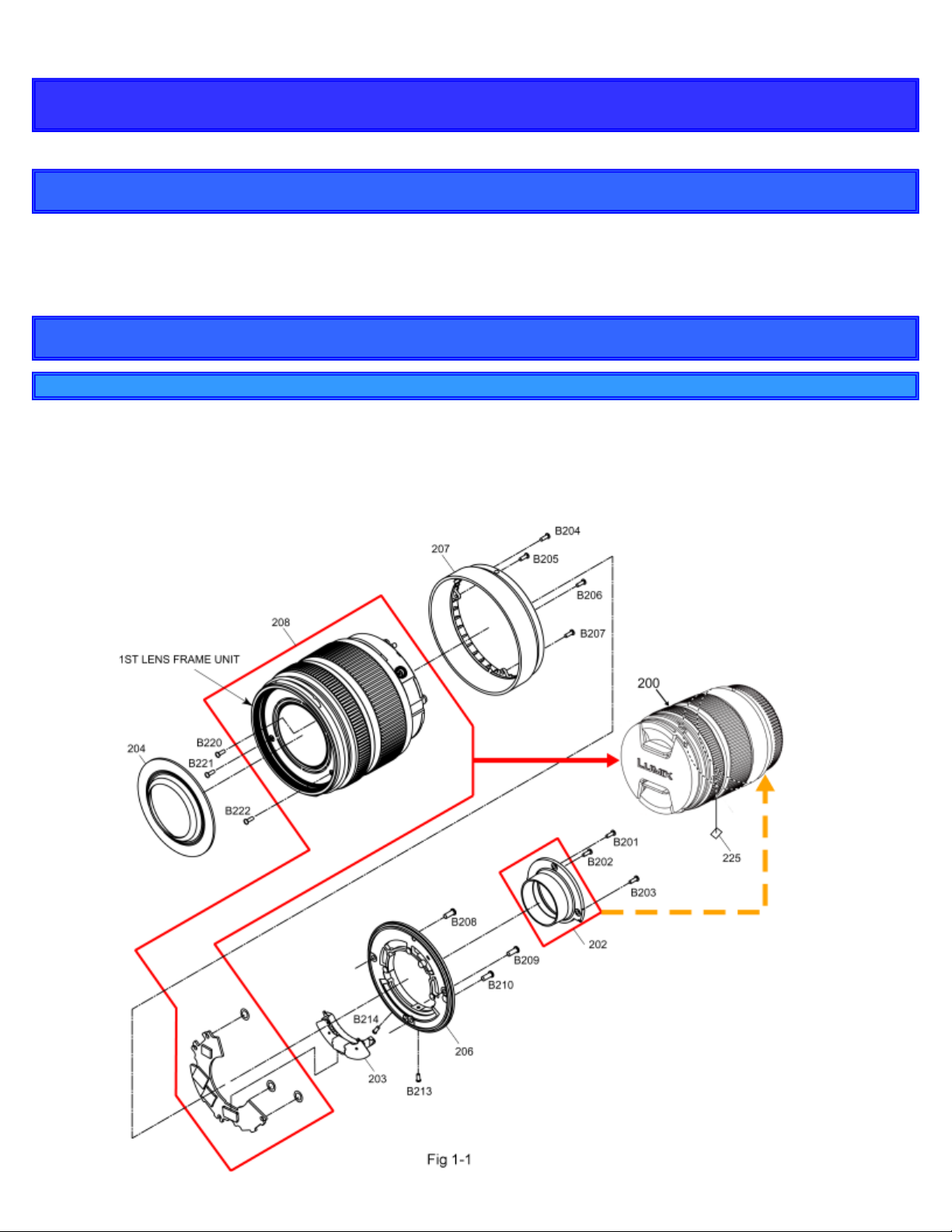

3. No adjustment is required when replacing the part mentioned on Fig.1-1. But, when tighten the concerned screws,apply proper
torque mentioned on "4. Disassembly and Assembly Instruction" section.
file:///C|/U...emp/Rar$EXa0.829/viewing/SGML_VIEW_DATA/ALL/H-FS1442APP/SVC/DSC1302014CE/doc/DSC1302014CE_02.xml[11/12/2018 11:16:56 AM]
2 Operating Guide
2.1 Before Use

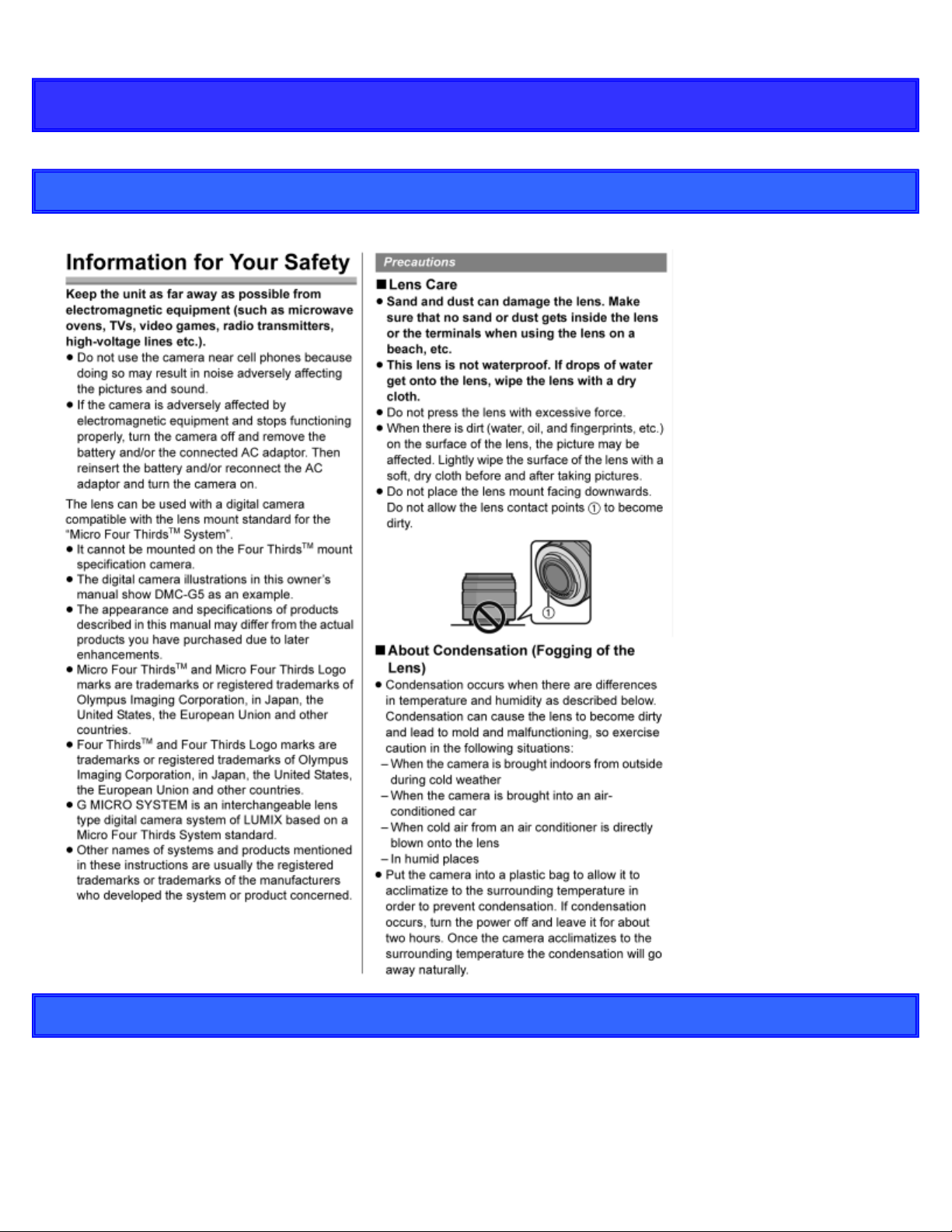

(Information for Your Safety)
2.2 Cautions For Use
file:///C|/U...emp/Rar$EXa0.829/viewing/SGML_VIEW_DATA/ALL/H-FS1442APP/SVC/DSC1302014CE/doc/DSC1302014CE_02.xml[11/12/2018 11:16:56 AM]

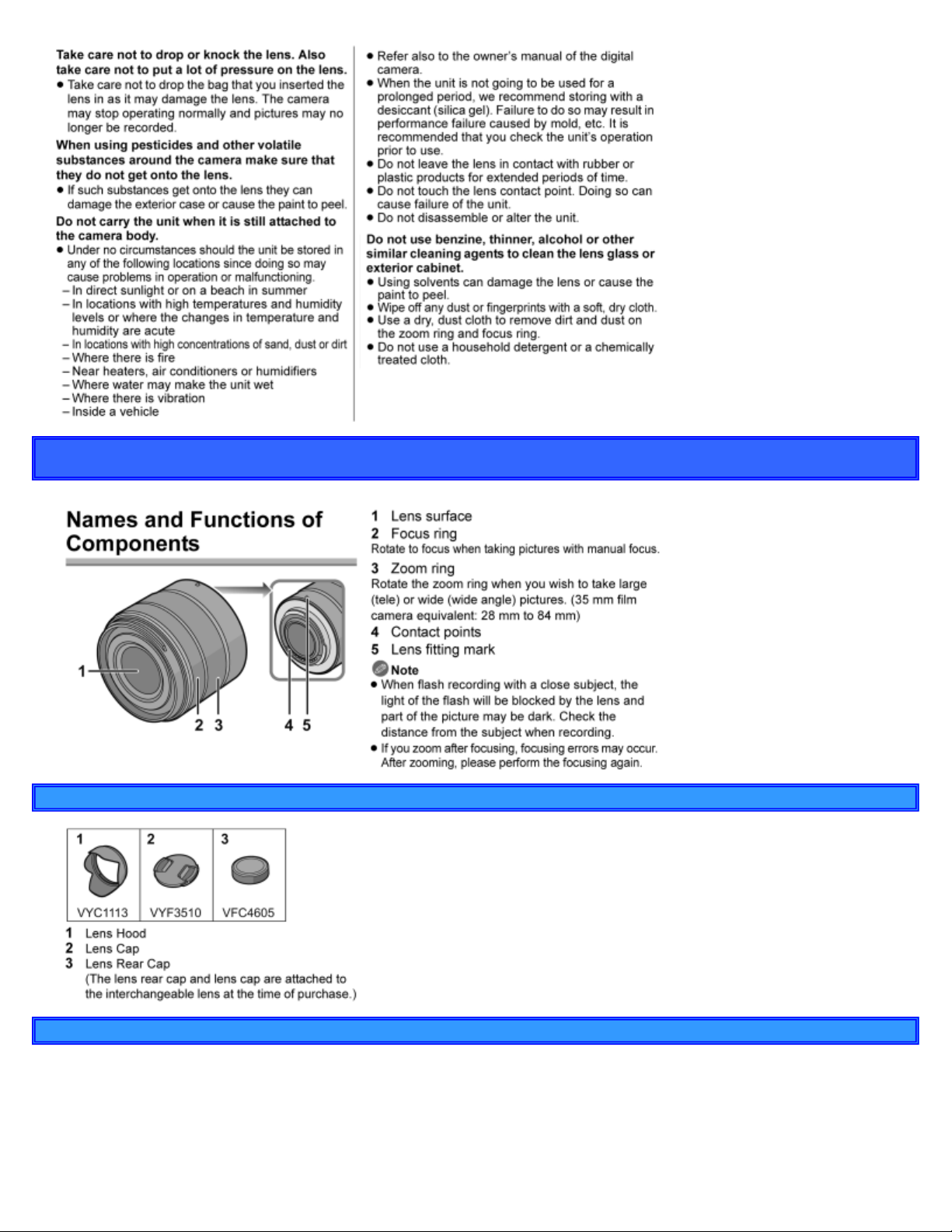

2.3 Components
2.3.1 Accessories

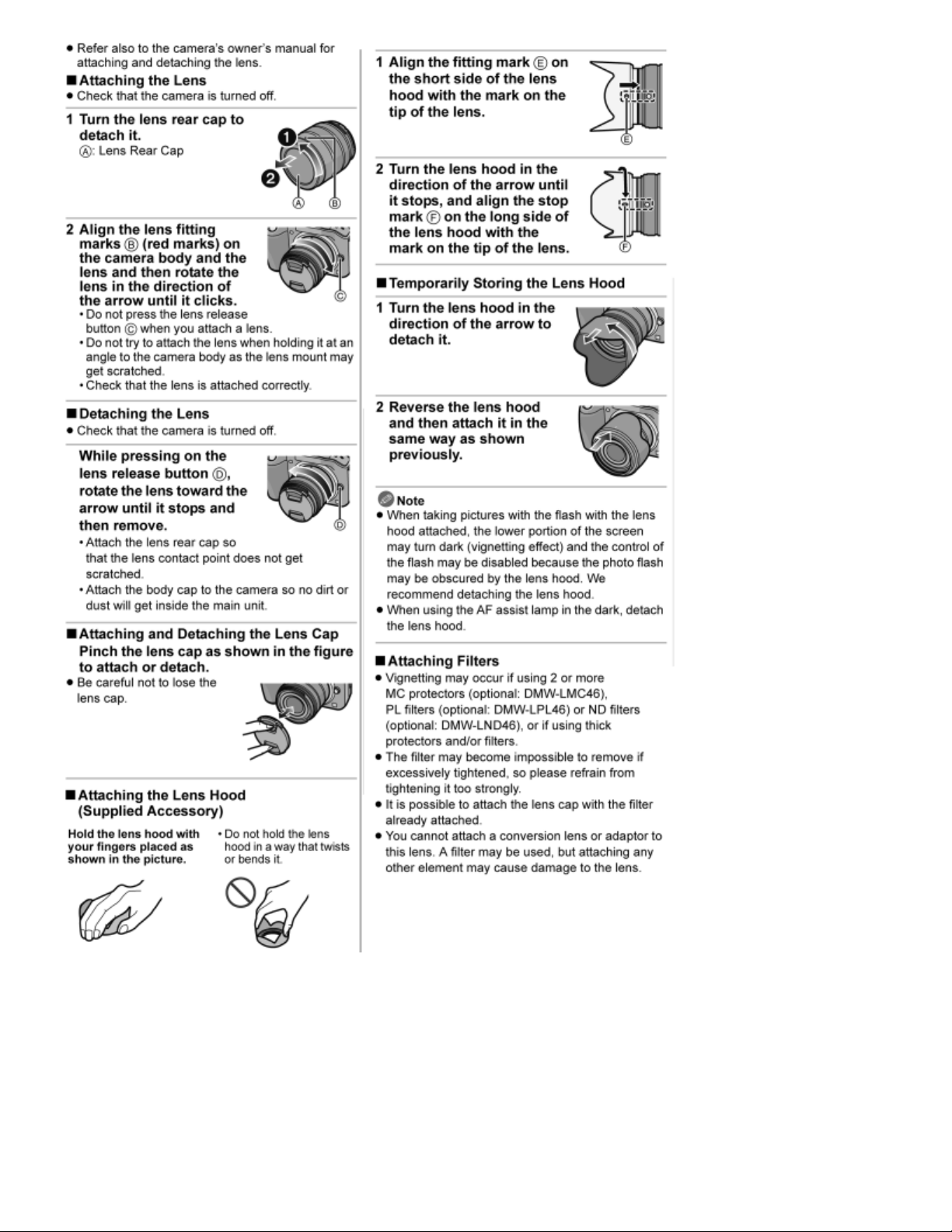

2.3.2 Attaching/Detaching the Lens
file:///C|/U...emp/Rar$EXa0.829/viewing/SGML_VIEW_DATA/ALL/H-FS1442APP/SVC/DSC1302014CE/doc/DSC1302014CE_02.xml[11/12/2018 11:16:56 AM]
file:///C|/U...emp/Rar$EXa0.829/viewing/SGML_VIEW_DATA/ALL/H-FS1442APP/SVC/DSC1302014CE/doc/DSC1302014CE_03.xml[11/12/2018 11:17:41 AM]

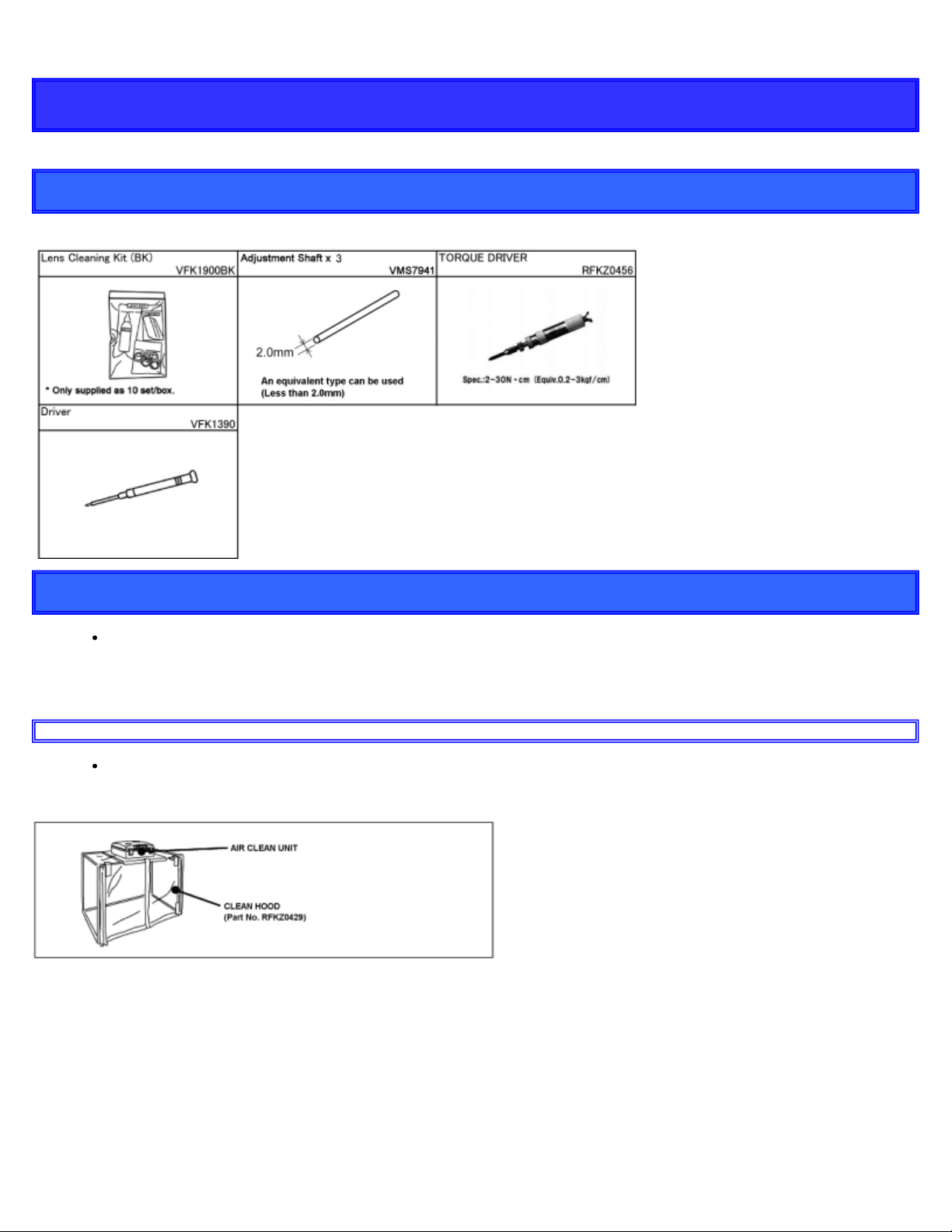

3 Service Fixture and Tools
3.1 Service Fixture and Tools
The following Service Fixture and Tools are used for Checking & Servicing for this unit.
3.2 Clean Box
10,000 (Federal Standard 209D).
(When cleaning the inside of a lens, it is indispensable.)
[NOTE]
when cleaning the inside of a lens.
file:///C|/U...emp/Rar$EXa0.829/viewing/SGML_VIEW_DATA/ALL/H-FS1442APP/SVC/DSC1302014CE/doc/DSC1302014CE_04.xml[11/12/2018 11:18:42 AM]
4 Disassembly and Assembly Procedure
4.1 Outline
It is recommended dealing with clean box, to keep maintaining the dustproof environment.
(Refer to“3.2. Clean Box”section of this service manual for details.)
Important:
1.
As for procedure, refer to the “5 Maintenance” for details.
2. To minimize the possibilities/risk of getting the dust/dirt on the lens surface, keep covering the lens unit with lens caps (front &
rear), other than necessary cases.
3.
4. Blow off the dust on the surface of the lens with a blower brush.
5. Use lens cleaning KIT (BK)(VFK1900BK).

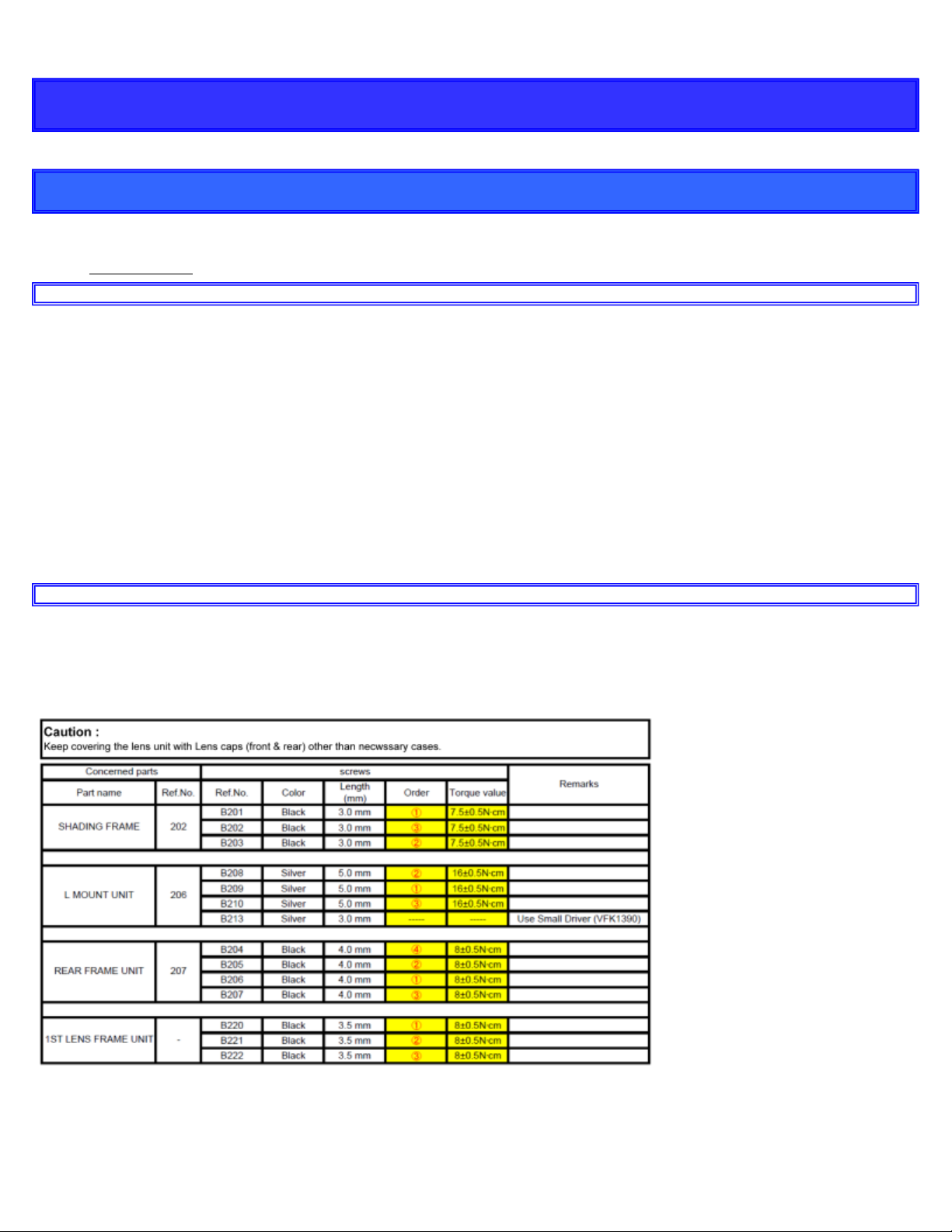

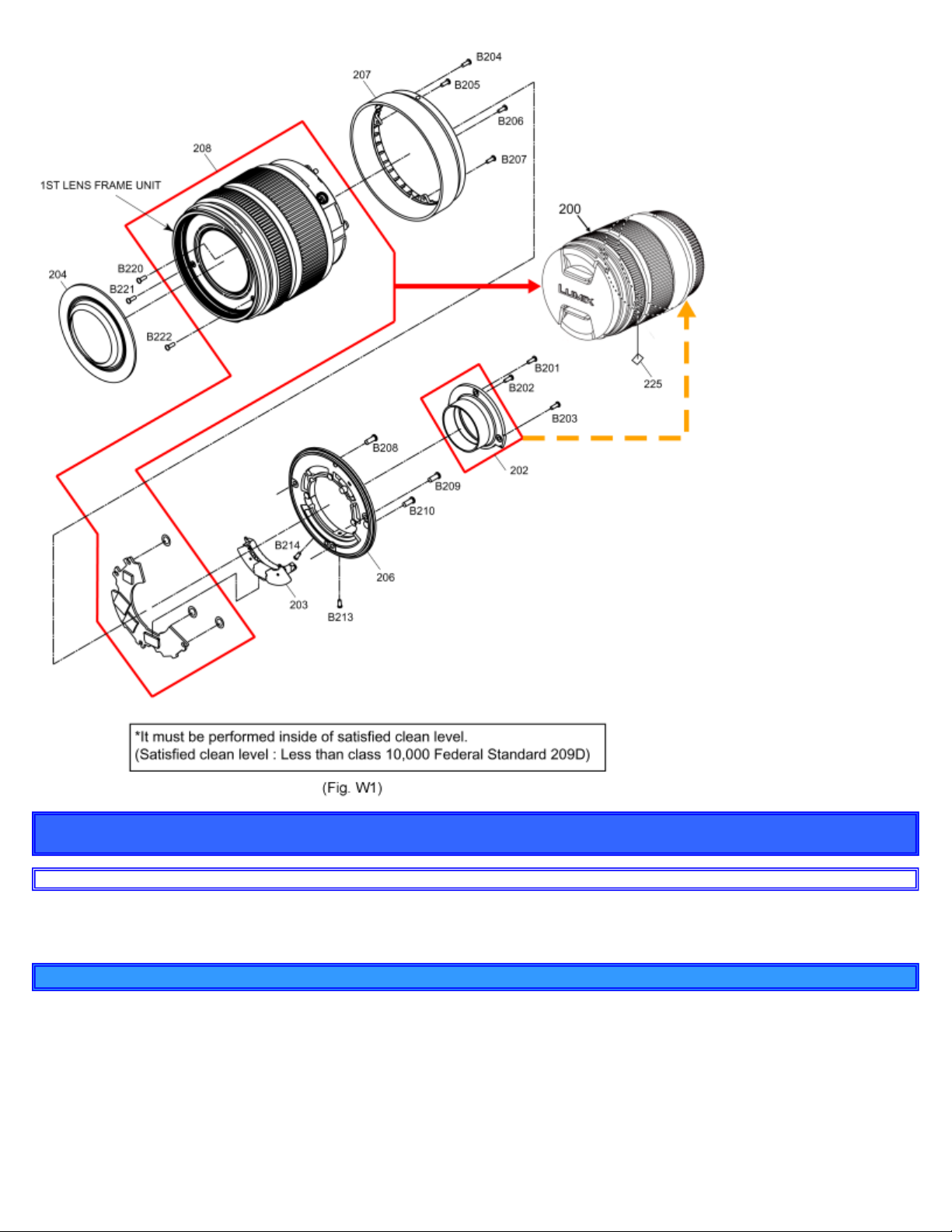

Proceed disassemble/assemble, by referring the following table and Fig. W1.
NOTE:
1.
on the following table.
2. Use VFK1390 (small driver) when screwing Ref. B213.
Interchangeable Lens (H-FS1442A)
file:///C|/U...emp/Rar$EXa0.829/viewing/SGML_VIEW_DATA/ALL/H-FS1442APP/SVC/DSC1302014CE/doc/DSC1302014CE_04.xml[11/12/2018 11:18:42 AM]
4.2 Disassembly procedure
Important:
4.2.1 Removal of the Decoration Ring
1. Decoration ring is sticked on the 1st lens frame unit.
2. Put the sheet so that the lens glass is fully covered.
3.
