Panasonic 5300U Manuale utente

Heavy Duty CD Player / Weather Band Receiver

with CD Changer Control

Heavy Duty CD player/Weather Band Receiver

CQ-5500U/5300U

Operating Instructions

Please read these instructions carefully before using this product and save this manual for future use.

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this

product will bring you many hours of enjoyment. Our reputation is built on precise electronic and

mechanical engineering, manufactured with carefully selected components and assembled by people

who take pride in their work. Once you discover the quality, reliability, and value we have built into this

product, you too will be proud to be a member of our family.

❏Use This Equipment Safely

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Washing Vehicle

Do not expose the equipment, including the speakers and CDs, to water or excessive moisture. This

could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a

chance to cool down before switching the unit on.

Use the Proper Power Supply

This equipment is designed to operate off a 12 volt, negative ground battery system (the normal system

in a North American vehicle.)

Use Authorized Service Centers

Do not attempt to disassemble or adjust this precision equipment. Please refer to the Servicenter list

included with this product for service assistance.

Protect the Compact Disc Mechanism

Avoid inserting any foreign matters to the slot of the compact disc.

Failure to observe this may cause malfunction due to sensitive mechanism of this unit.

Notes:

CQ-5500U can be connected to an optional CD changer (CX-DP801EUC, etc.) and a wired remote

control unit (CA-RC300U).

For connection and operation of CD changer and wired remote control unit, refer to the operating

instructions of that unit.

A wireless remote control unit (CA-RC500U) is optional (only for CQ-5500U).

Find the model number and serial number on either the back or bottom of the unit. Please record them

in the space below and retain this booklet as a permanent record of your purchase to aid in

identification in case of theft.

MODEL NUMBER SERIAL NUMBER

DATE PURCHASED FROM

CQ-5500U/5300U

Note: This operating instruction manual is for two models CQ-5500U and CQ-5300U.

The differences between these models are mentioned below. All illustrations throughout this manual

represent model CQ-5500U unless otherwise specified.

Model

Features

Wired remote control

Wireless remote control

AUX-IN

CD changer control

S.HDB/LOUD

preamp-out

Temperature Reading

CQ-5500U

Yes

S.HDB

Yes

CQ-5300U

None

LOUD

None

Contents

Use This Equipment Safely ...................................................................Page 2

Laser Products ......................................................................................Page 4

Part 15 of the FCC Rules ......................................................................Page 4

❏Power and Sound Controls ......................................................................5

How to adjust the volume, mute, balance, and tone for best listening

❏Radio Basics..............................................................................................7

Mode selection, manual and automatic tuning, band selection,

preset stations

❏Compact Disc Player Basics..................................................................11

Play, repeat, random and scan

❏CD Changer Basics.................................................................................13

Play, repeat, random and scan, error messages.

Note: CD changer controls are applicable to units with optional CD changer

unit (sold separeately).

❏Clock Basics............................................................................................15

Setting the time, selecting the clock display, alarm operation

❏Temperature Reading .............................................................................17

❏If abnormal operation appears...............................................................17

❏In case of Malfunction ............................................................................17

❏Installation Guide....................................................................................18

Step-by-step procedures, electrical connections

❏Troubleshooting......................................................................................27

Troubleshooting tips, where to get service help

Specifications .............................................................................................30

❏Laser Products (Applies to laser product used in the United States only.)

Caution:

This product utilizes a laser.

Use of controls or adjustments or performance of

procedures other than those specified herein may result

in hazardous radiation exposure.

Laser products:

Wave Length 780 nm

Laser Power No hazardous radiation is emitted with safety protection.

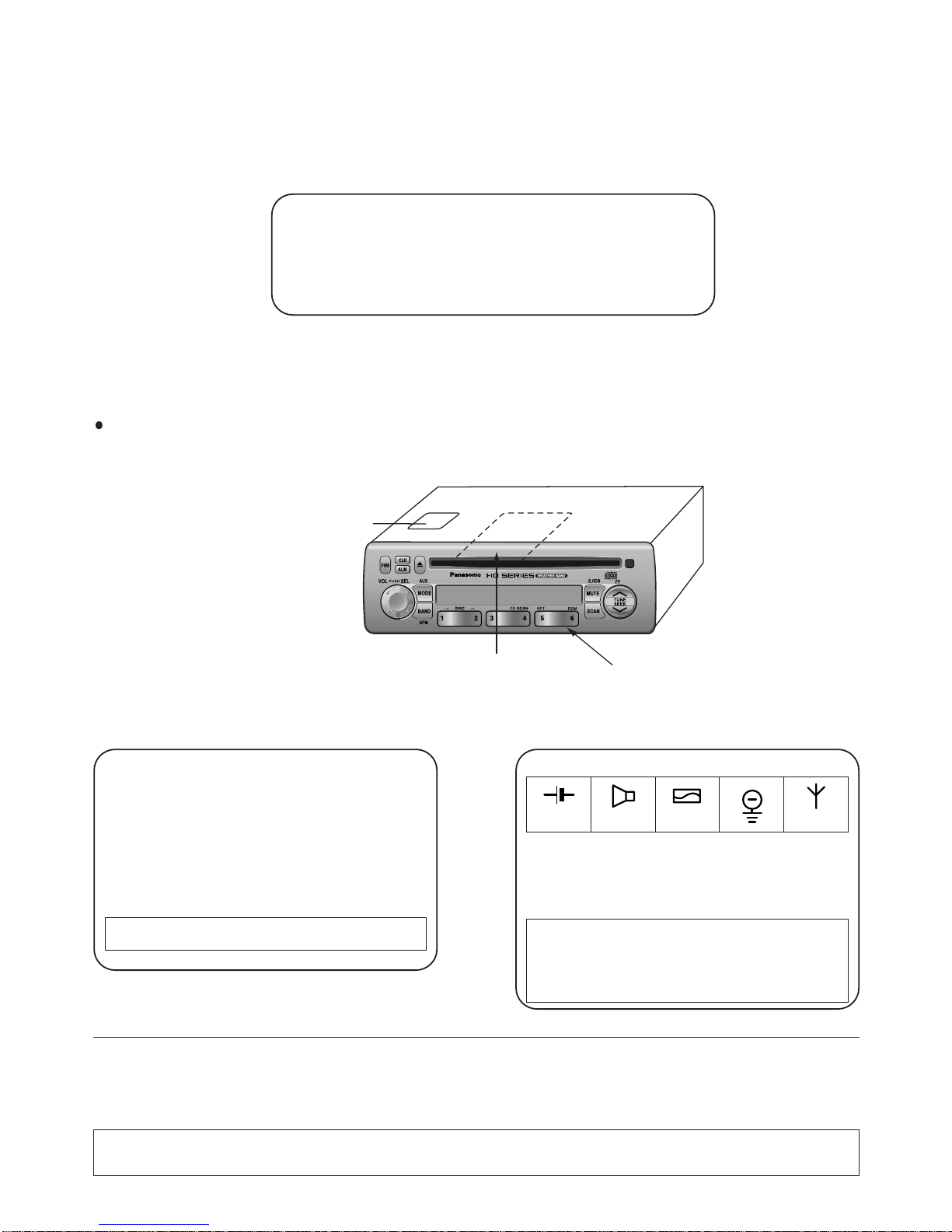

Label indications and their locations

Product complies with DHHS Rules 21

CFR, Subchapter J in effect as of date of

manufacture.

Matsushita Electric (Taiwan) Co., Ltd.

Taipei, Taiwan

MANUFACTURED

Certification Label

Model No.

Manufactrued by Matsushita Electric

(Taiwan) Co.,Ltd. Taipei Taiwan

Made in Taiwan

Serial No.

Identification Label

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

condition that this device does not cause

harmful interference.

12V 4~8Ω10A FM75Ω

CQ-5500U

Certification label

5500U

Identification label Front

BASS/TRED/BAL/FADER

FEW

This unit has been manufactured under the Part 15 of the FCC Rules.

Do not attempt to make any changes or modifications to this unit.

Part 15 of the FCC Rules

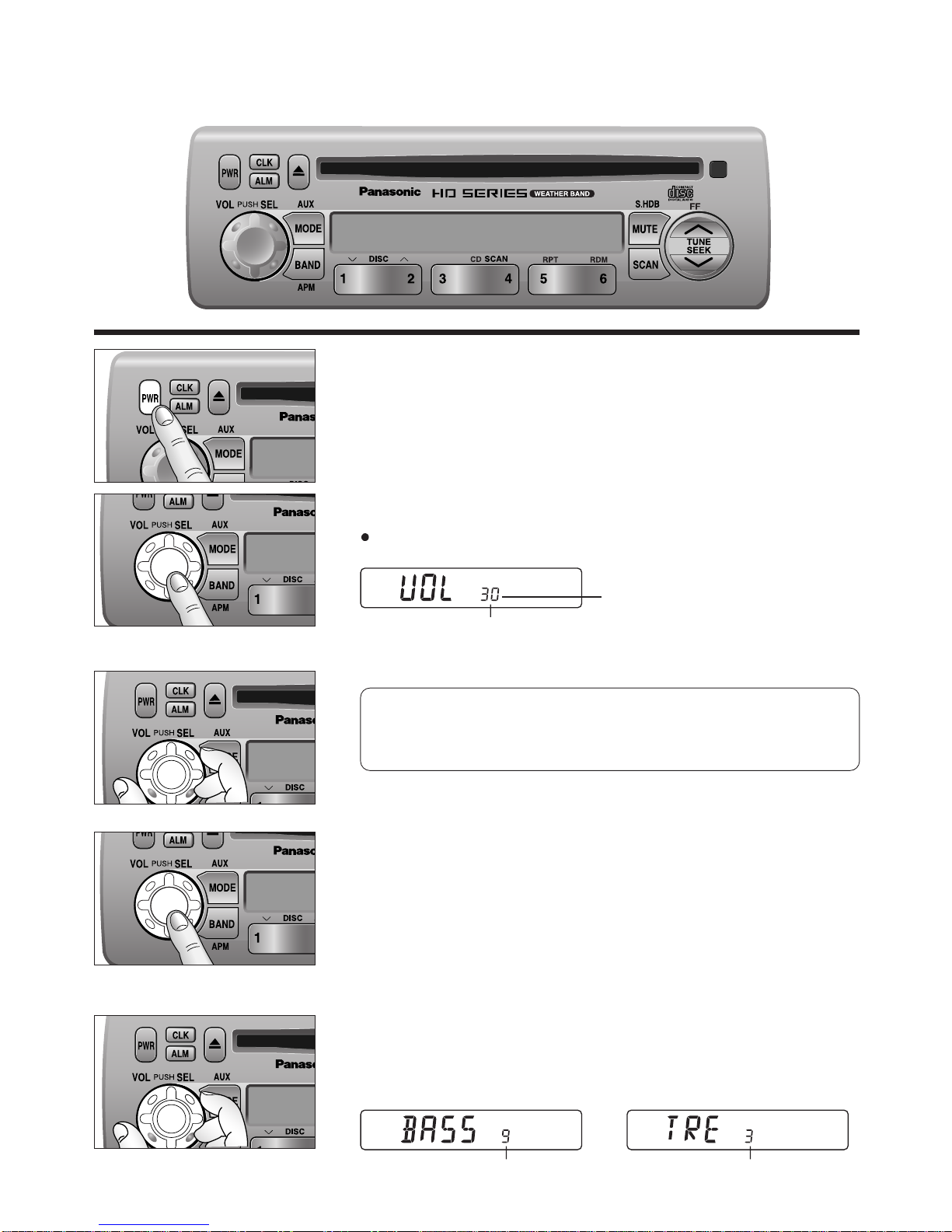

Power and Sound Controls

BASS/TREB/BAL/FADER

Power

If the vehicle is not running yet, turn the key in the ignition until the

accessory indicator lights.

Press [PWR] to switch on the power.

Changing Audio Modes

Press this knob [SEL] to change the audio mode as follows.

VOL aBASS aTRE

(Volume) (Treble)

FADE bBAL

(Fader) (Balance)

Volume

Press the knob to select the volume mode and then turn it

clockwise or counterclockwise to adjust the volume level.

Bass and Treble

Press the knob to select the BASS or TREBLE mode and then turn

it clockwise or counterclockwise to increase or decrease the

bass/treble level.

0 to 40

-12 to 12 -12 to 12

Volume Level

5500U

BASS/TREB/BAL/FADER FEW

Anti-Volume-Blast Circuit

At power on, the volume returns to the previous level slowly if

the level was at 20 or higher.

5500U

FEW

5500U

FEW

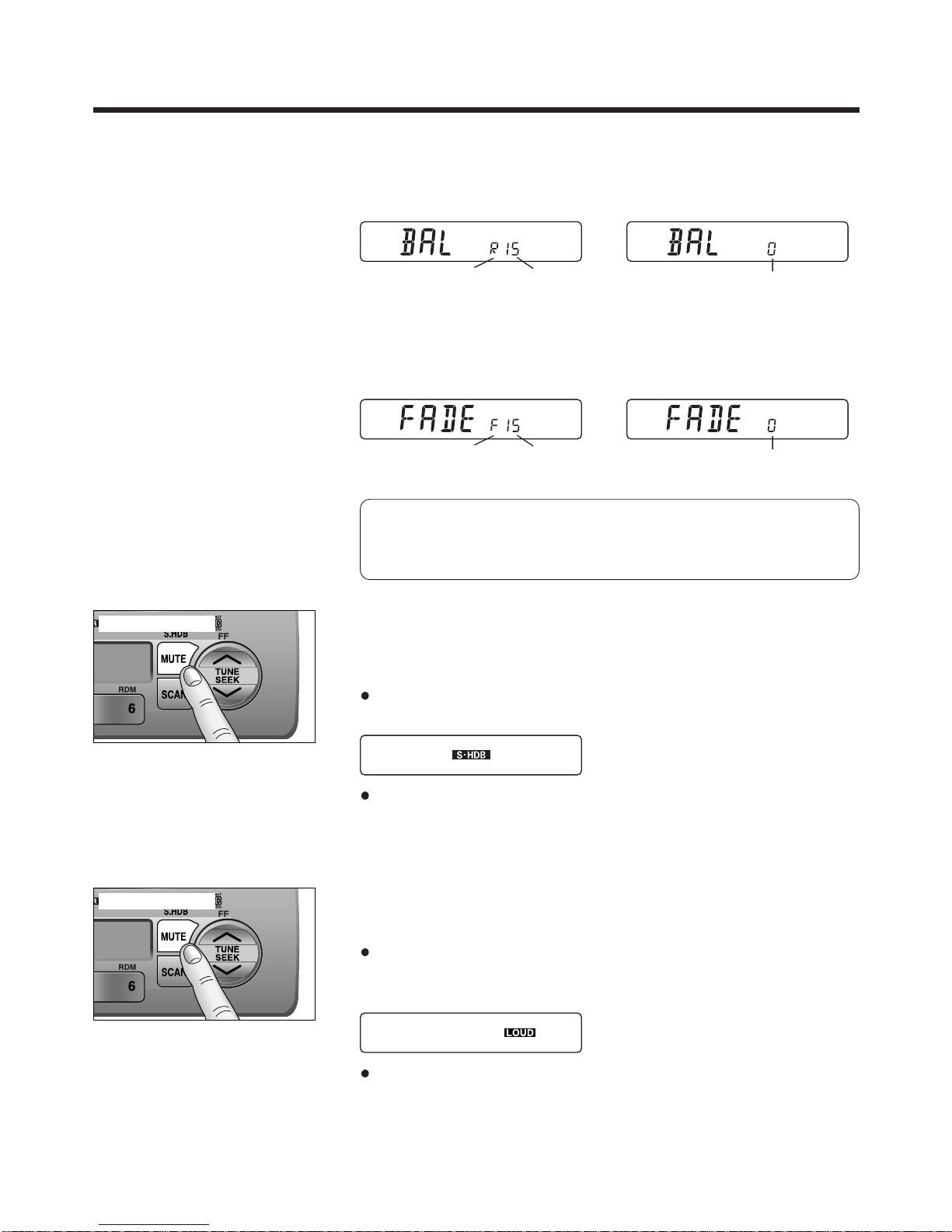

Fader

Press the knob to select the FADER mode and then turn it

clockwise or counterclockwise to shift the sound volume to the front

or rear speakers.

S•HDB (Super High Definition Bass)

(Only for CQ-5500U)

This featare enhances bass definition.

Press and hold [MUTE] (S•HDB) for more than 2 seconds to

activate high-defintion bass.

Press and hold [MUTE] (S•HDB) for more than 2 seconds to

cancel.

Note: In the audio mode (BASS/TRE/BAL/FADE), the display

will return to regular operation mode when there is no input for

more than 5 seconds (2 seconds in the VOL mode).

or R 1 to 15 Fader Center

Press and hold

Balance

Press the knob to select the BALANCE mode and then turn it

clockwise or counterclockwise to shift the sound volume to the right

or left speakers.

or L 1 to 15 Balance Center

Power and Sound Controls

(continued)

(F: Front, R: Rear)

(R: Right, L: Left)

Tone Enhancement (Loudness)

(Only for CQ-5300U)

Press and hold [MUTE] (LOUD) for more than 2 seconds to

enhance bass and treble tones when listening at low or medium

volume.

Press and hold [MUTE] (LOUD) for more than 2 seconds again to

deactivate when listening at higher volumes.

SS/TREB/BAL/FADER

Selecting Auxiliary Source

(Only for CQ-5500U)

Press and hold [MODE] (AUX) for more than 2 seconds to select

AUX Input mode.

Connect the auxiliary equipment (any other appropriate

equipment) to AUX IN Connector.

Canceling AUX Input mode

Press [MODE] (AUX) to resume the previous mode.

Press and hold

Power and Sound Controls

(continued)

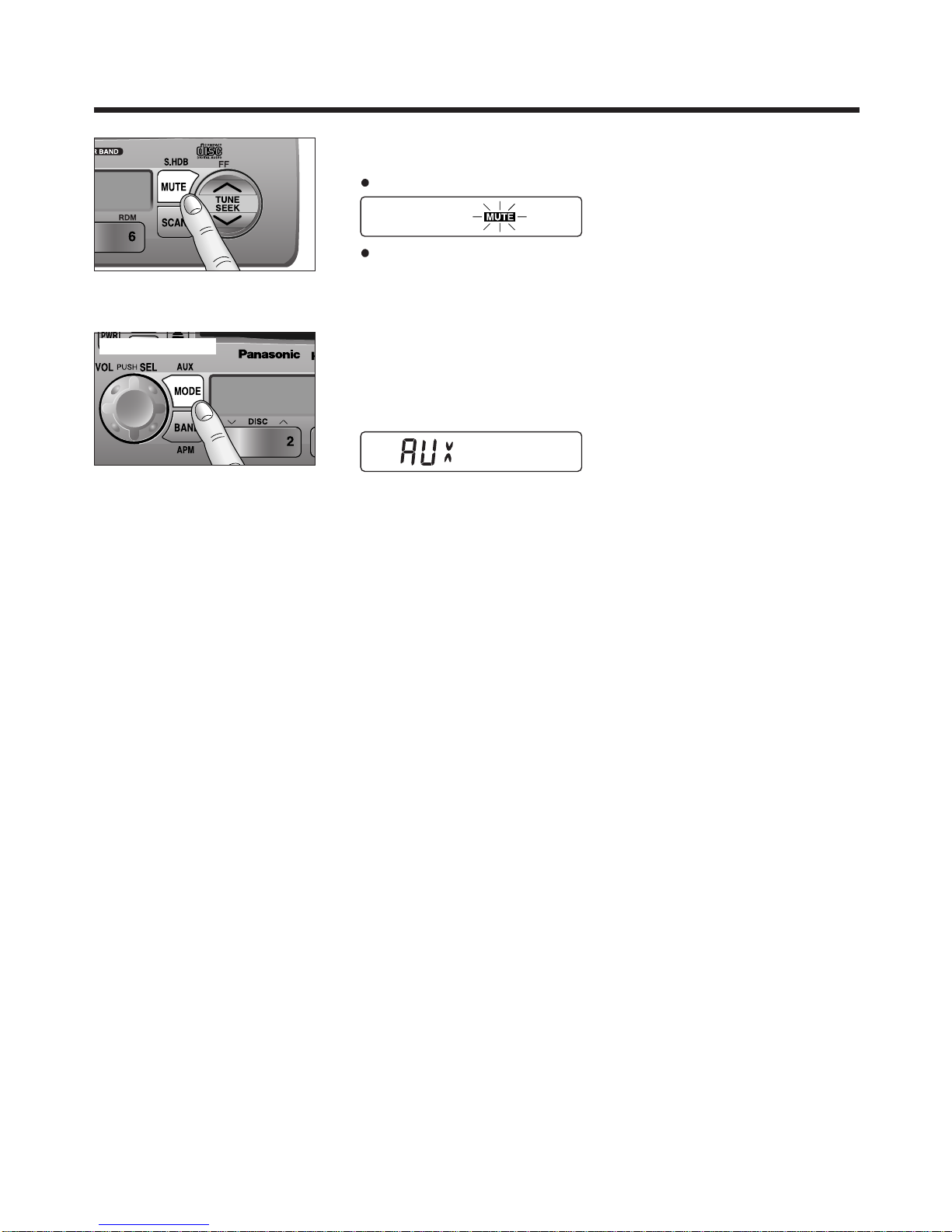

Mute

Press [MUTE] to mute the sound completely.

Press [MUTE] again to cancel.

5500U

FEW

5500U

FEW

5500U

FEW

Radio Basics

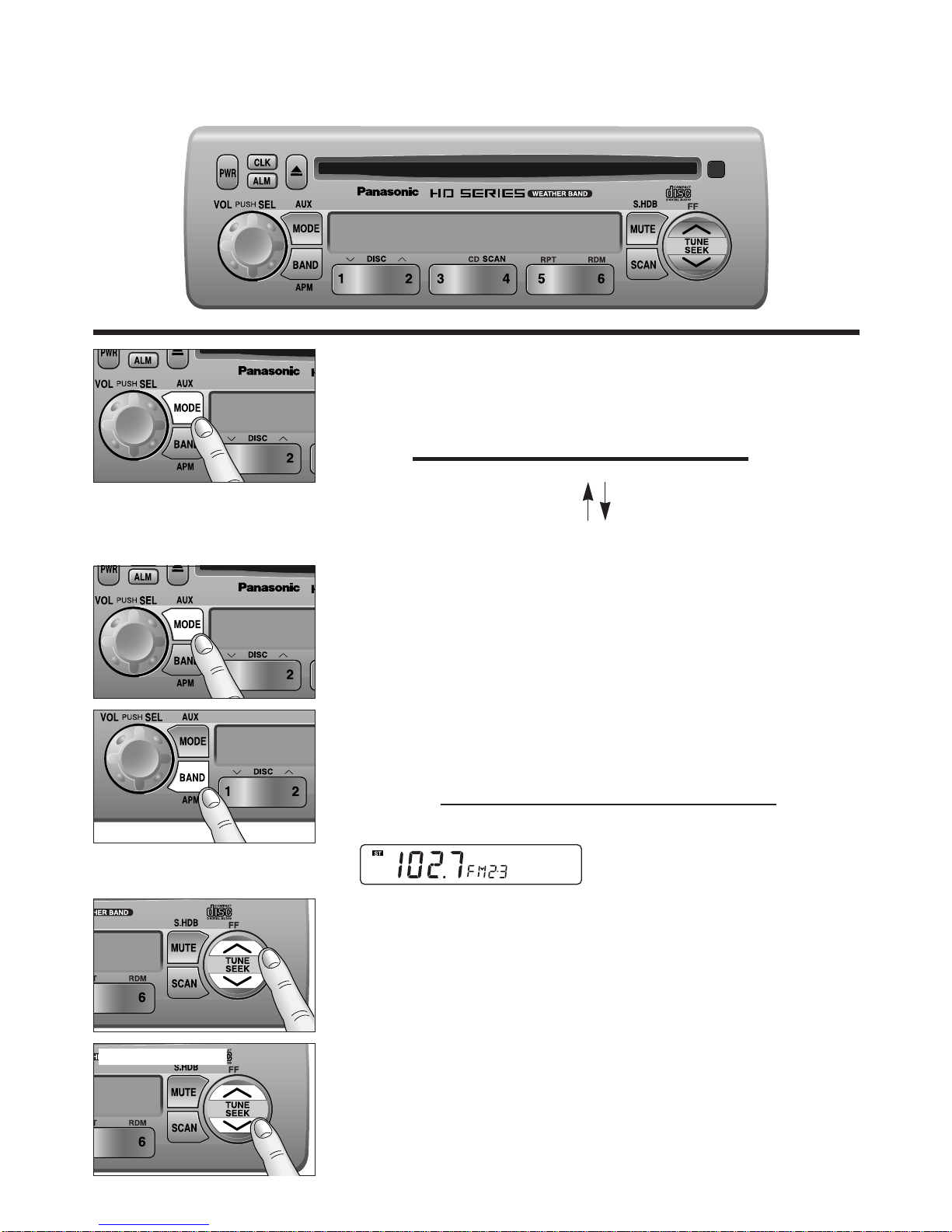

To change to the tuner mode

In case of CD changer mode or CD mode, press [MODE].

ASS/TREB/BAL/FADER

Selecting a Band

Press [BAND] to change the band setting as follows.

FM1 aFM2 aW/B aAM

(Weather Band)

"ST" indicator lights when FM stereo broadcast available.

Manual Tuning

Press [TUNE jj]or [TUNE ii]to tune in a higher or lower

frequency.

Seek Tuning

Press and hold [SEEK jj]or [SEEK ii]for more than 0.5

seconds, then release it.

Seek tuning will automatically stop when a signal of the next

broadcast station is received.

Hold and release

S/TREB/BAL/FADER

5500U

BASS/TREB/BAL/FADER FEW

Mode Selection

Press [MODE] to change the operation mode as follows.

Radio aCompact Disc aCD Changer (when connected)

(Only for CQ-5500U)

Press and hold [MODE] for more

than 2 seconds.

(Only for CQ-5500U)

AUX

5500U

FEW

SS/TREB/BAL/FADER

Station Preset

FM1, FM2 and AM can save maximum 6 stations each in their preset station memories.

Manual Station Preset

Press [BAND] to select a desired band.

Use manual or seek tuning to find a station to be stored in the

preset memory.

Press and hold one of the preset buttons [1] to [6] until the

display blinks once.

Note: You can change the memory setting by repeating the above

procedure.

Tuning in a Preset Station

Press the corresponding preset buttons [1] to [6] to tune in a preset

station.

Auto Station Preset

Select a band and press and hold [BAND] (APM: Auto Preset

Memory) for more than 2 seconds.

The 6 strongest available stations will be automatically saved in

the memory on preset buttons [1] to [6].

Once set, the preset stations are sequentially scanned for 5

seconds each.

Notes:

In the case of Auto Station Preset mode, only FM2 is available for

FM stations. (FM1 is not available.)

Auto Station Preset is not activated in Weather Band.

Any stations preset previously on the selected band will be erased.



Press and hold

Preset Number

Radio Basics (continued)

ASS/TREB/BAL/FADER





Caution: To ensure safety, never attempt to preset stations while you are driving.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Ricevitore per auto

Panasonic

Panasonic MIB3E MQB37w BTWIFI Manuale utente

Panasonic

Panasonic CQRX400U - AUTO RADIO/CD/MP3 DECK Manuale utente

Panasonic

Panasonic CQ-CM130AU Manuale utente

Panasonic

Panasonic CQ-C7703N Manuale utente

Panasonic

Panasonic CQDRX901U - AUTO RADIO/CD DECK Manuale utente

Panasonic

Panasonic CQ-RXBT490 Manuale utente

Panasonic

Panasonic CQ-C8303U - WMA/MP3/CD Player/Receiver With 4096 Color OEL... Manuale utente

Panasonic

Panasonic CQDPX95EUC - AUTO RADIO/CD DECK Manuale utente

Panasonic

Panasonic CQDF202 Manuale utente

Panasonic

Panasonic CQC800U - AUTO RADIO/CD DECK Manuale utente

Panasonic

Panasonic CQ-C7402W Manuale utente

Panasonic

Panasonic CQC8413U - CAR AUDIO-MULTI-LANG Manuale utente

Panasonic

Panasonic CQC3401U - AUTO RADIO/CD DECK Manuale utente

Panasonic

Panasonic CQ-DFX572N Manuale utente

Panasonic

Panasonic National RQ-355 Manuale utente

Panasonic

Panasonic CQ-RX420U Manuale utente

Panasonic

Panasonic CQC8803U - AUTO RADIO/CD DECK-MULTI-LANG Manuale utente

Panasonic

Panasonic CQDF402U - AUTO RADIO/CD DECK Manuale utente

Panasonic

Panasonic CQ-D1703W Manuale utente

Panasonic

Panasonic CQRX400U - AUTO RADIO/CD/MP3 DECK Manuale utente

Panasonic

Panasonic CQ-C1325N Manuale utente

Panasonic

Panasonic CR-CM120U Manuale utente

Panasonic

Panasonic CQ-VX2000 Guida rapida

Panasonic

Panasonic CQ-C1323NW Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
