Panasonic EB-X700 Manuale utente

CONTENTS

Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Phone Basics and Managing Calls . . . . . . . . . . . . 15

Entering Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Navigating the Applications . . . . . . . . . . . . . . . . . 27

Applications Menu Map . . . . . . . . . . . . . . . . . . . . 33

Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Call Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

QuickOffice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 169

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

HIGHLIGHTS

Here are just some of the things you can do with the X700 mobile

phone.

•Send colour pictures and

video clips to friends and

family via Multimedia

messaging and e-mail

messaging.

•Send pictures, video,

electronic business cards,

and more using Bluetooth,

Infrared, or USB connections

to other phones or devices..

•Swap content between

appropriate devices with the

included miniSD Card and

adapter.

•Surf the Internet using your

XHTML configured wireless

Internet browser.

•Add frames, text, and pop

art to VGA size images.

•Capture video clips.

•Play 40 tone polyphonic

ringtones.

•No more wired headset!

Use a Bluetooth®wireless

headset.

•Synchronise your Contacts

and Calendar with your

other networked devices.

•See who is calling with

picture Caller Line ID on the

X700 external display.

•Download games, images,

themes, sounds, videos,

and Java™ and Series 60

applications.

•View all your media files in

one place, the Media Gallery.

•Search for your files;

including games, images,

install packages, and video

and sound clips.

•Receive, edit, and view

Microsoft®Word, Excel, and

PowerPoint®files. Beam

documents to printers and

projectors (with appropriate

accessory).

•Speak a name or number to

dial the number using Voice

Commands.

•Say “open Messages” or

“open Camera” and your

phone will go directly to the

application using Voice

Commands.

GETTING STARTED

The Panasonic X700 GSMTM/GPRS mobile phone operates on

Global System for Mobile Communications (GSM) networks

around the world, which provide integrated voice mail, text short

message service (SMS), multimedia messaging service (MMS),

fraud protection and superior voice quality. One of the most

important GSM advantages is the removable SIM (subscriber

identity module) card, containing personal information such as

subscription information, private encryption keys, and phone

numbers.

Feature Availability

Some features are network dependent or are available only if you

subscribe to the feature. Some functions are SIM card dependent.

Note that before you can use or activate many of the network

features, you must subscribe to the desired services. For more

information, contact your wireless service provider.

Before Using Your Phone

The SIM card must be installed in your phone for it to operate on

the cellular network. Insert SIM card, then attach battery and fully

charge it.

INSTALLING AND REMOVING SIM CARD

Installing SIM Card

1. Place thumbs at outer edges

of battery cover, press down,

then slide off battery cover

towards bottom of phone.

Remove battery (see page 4).

Caution: This product contains small parts. Keep out of reach of small

children.

Take care not to scratch or bend SIM card and gold contacts.

2. Position SIM card as shown, with

gold contacts facing phone and

notched corner entering phone first.

Carefully slide the SIM card into the

SIM card pocket until it clicks.

•If SIM card is inserted incorrectly

or damaged, Insert SIM card may

display. Remove SIM card, then

install again.

•If SIM card rejected message

appears, contact your wireless

service provider.

Removing SIM Card

1. Place thumbs at outer

edges of battery cover,

press down, then slide off

battery cover towards

bottom of phone. Remove

battery (see page 4).

2. Gently push bottom edge of

SIM card forward into SIM card pocket to release SIM card.

3. After SIM card is ejected, gently remove it.

Note: If you are upgrading your phone and your previous phone did not

support new services, such as MMS (Multimedia Messaging

Service), you may need to insert a new SIM card. Contact your

wireless service provider.

SIM Card

INSTALLING AND REMOVING BATTERY

Installing Battery

1. Hold battery at a 45º

angle; insert tabs on top

edge of battery into slots

along top edge of

battery area.

2. Push bottom of battery

down until it clicks.

3. Replace battery cover

by sliding cover toward the bottom of the phone. Cover should

fit snugly with no gaps.

Removing Battery

1. Place thumbs at outer

edges of battery cover,

press down, then slide off

battery cover towards

bottom of phone.

2. Use tabs at bottom of

battery to lift and remove

battery.

3. Replace battery cover.

Caution: Using non-Panasonic accessories or accessories not

recommended by your wireless service provider may result in

poor performance of your phone, or even cause an electrical

hazard.

Note: Before you remove the battery, switch off the phone and

disconnect the phone from the charger or any other device.

CHARGING BATTERY

1. Open connector cover.

2. Insert connector into left side

(2 gold contacts) of

connector area at bottom

end of the phone. Connect

Travel Charger into mains

power socket.

3. When charging is complete,

remove from mains power

socket and press release

button to disconnect the charger from the phone.

• DO NOT force connector: it may damage phone or Travel

Charger.

Charging Icons on Main and External Display

bars scroll when charging

bars stop scrolling when charging is complete

• If the phone is switched on, Battery full message displays

when charging is complete.

Low Battery Warning

When the battery power is low, Battery low message displays

and a warning tone sounds; phone will automatically switch off.

Fully recharge the battery. If you receive the low battery warning

during a conversation, finish your call immediately.

Note: First verify that battery is installed.

INSTALLING AND REMOVING miniSD CARD

The miniSD Card is a memory card used to expand phone

memory and a way to transfer files to other devices.

Installing miniSD Card

1. On top of phone, lift up miniSD

Card cover.

2. Slide miniSD Card, with notched

corner entering phone first and

gold contacts facing up, into the

miniSD Card pocket until it clicks.

Push down miniSD Card cover

until it clicks.

Removing miniSD Card

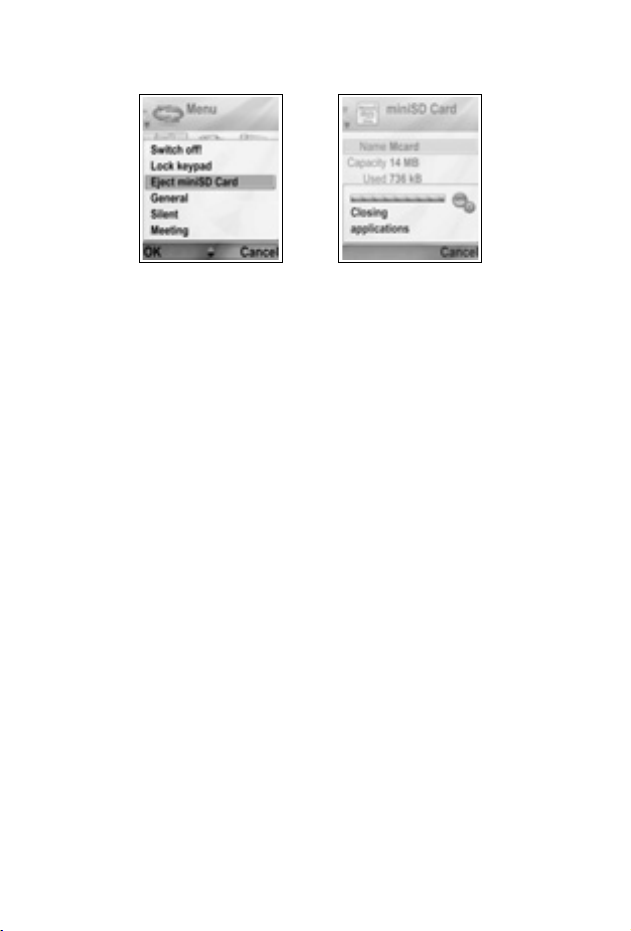

1. Press Power key , scroll to Eject miniSD Card and press

OK. Before removing miniSD Card, wait for file saving or

copying process to finish.

2. On top of phone, lift up miniSD

Card cover.

3. To release miniSD Card, gently

push bottom edge of miniSD Card

forward into pocket.

4. After miniSD Card is ejected,

gently remove it. Push down

miniSD Card cover until it clicks.

Note: Do not insert any object except a miniSD Card into the miniSD

Card pocket.

Do not place labels, etc., onto the miniSD Card. A fine difference

in card thickness may result in insertion or removal difficulty, loss

of contact or loss of data.

Take care not to scratch or bend miniSD Card and gold contacts.

MiniSD Card
