Operating Instructions

Electronic Touch Pen

for Plasma TV

Model No. TY-TP10W

ENGLISH

繁體中文

TIẾNG VIỆT

日本語

TQZJ490

ENGLISH

Thank you for purchasing a Panasonic

product.

The Electronic Touch Pen for plasma TV (hereafter referred

to as “Touch Pen”) can be used only with a Panasonic plasma

TV to which application for Touch Pen operation has been

installed.

Before using, attach the supplied Bluetooth adaptor to

a plasma TV which is not equipped with the Bluetooth®

communication function.

*For the types of plasma TV compatible with this kit, visit

Panasonic Homepage.

http://panasonic.jp/support/global/cs/tv/index.html

Up to two Touch Pen can be used at a time.

Before operating this product, please read the instructions

carefully, and save this manual for future use.

Before using this product, be sure to read “Safety Precautions”

and “Using Precautions” ( pages 2 - 5).

Safety Precautions

Danger

About Prohibition of Heating

 Do not put Touch Pen in ﬁre, heat it or leave it in

places that can get hot.

Warning

About Prohibited Place

 Do not use Touch Pen in hospital or other medical

facilities.

Radio waves from Touch Pen may cause interference of medical

equipments.

 Do not use Touch Pen nearby automatic control

equipments, like a automatic door, a ﬁre alarm

apparatus, etc.

Radio waves from Touch Pen may cause interference of automatic

control equipments.

 Keep Touch Pen more than 22 cm (9 in.) away

from the implant of cardiac pacemaker, or similar

implantable medical equipments, at all times.

Radio waves from Touch Pen may affect implantable cardiac pacemaker

or similar equipment operations.

ENGLISH

About Prohibition of Disassembly

 Do not disassemble or modify the Touch Pen.

This may cause ﬁre or unit malfunction.

Surface temperature of TV

 The TV may be hot. Do not touch it continuously.

Low temperature burn may result.

Handling of this unit

 Remove the battery from this unit when not using

for a long period of time.

Otherwise, battery leakage, heat generation, ignition, rupture, etc. may

be caused, resulting in ﬁre or damage to surrounding areas.

 Do not place at locations where temperature rises

abnormally.

The surface of the unit or parts may deteriorate, or ﬁre may result.

• Be extremely careful inside a closed car in summer, locations exposed

to direct sunlight and near a stove.

 Do not splash liquid such as water or wet the unit.

If liquid enters inside the unit, short circuit or heat generation may occur.

Caution

Battery

 Keep the battery in places out of the reach of

children. Accidentally swallowing them adversely

affect bodies.

• If a child accidentally swallows such parts, immediately seek medical

advice.

 Incorrect installation may cause battery leakage,

corrosion and explosion.

• Replace only with the same or equivalent type.

• Do not use the rechargeable battery ( Ni-Cd, etc.).

• Do not the burn or break up battery.

• Do not the expose battery to excessive heat such as sunshine, ﬁre or

the like.

• Make sure you dispose of the battery correctly.

About Touch Pen

 Store the Touch Pen in a cool and dry place.

Failure to do so may cause ﬁre or electric shock.

(continued overleaf)

ENGLISH

Operation on the screen

 Do not forcibly hit or pick the TV screen with the

Touch Pen.

The TV may fall, or scratch of the screen may result.

Falling of TV may cause injury.

• Do not allow parts other than the pen tip of Touch Pen to touch the

screen. This may cause scratch of the screen.

• Do not move the pen with its pen tip pressed to the screen with force,

or do not move the pen fast. This may cause scratch of the screen.

Using Touch Pen

 Stop using the Touch Pen immediately if your skin

feels unusual.

In rare cases, the paint or materials used in the Touch Pen may cause

an allergic reaction.

 Stop using the Touch Pen immediately if you

experience any redness, pain, or itching.

Prolonged use may cause such symptoms due to excess pressure,

which may result in the user feeling unwell.

 Use the Touch Pen taking a break sometimes.

Guideline for continuous use is approx. 1 hour.

Eyestrain or physical deconditioning may result due to continuous use

for long period of time.

ENGLISH

Using Precautions

Cautions

Do not use devices that emit strong electromagnetic waves

(such as mobile phones or personal transceivers) near

the Touch Pen. Doing so may cause the Touch Pen to

malfunction.

The Touch Pen cannot operate fully at high or low

temperatures.

Please use within the speciﬁed usage temperature range

(page 14).

Using radio waves

This unit uses the 2.4 GHz radio frequency ISM band

(Bluetooth®). However other wireless equipment may use the

same frequency. Be sure to take note of the following to prevent

radio wave interference from other equipment.

 Restriction of use

For use only in your country.

 Interference from other equipment

Due to radio interference, malfunctions may occur if the unit is placed

too close to other equipment. We recommend keeping the unit as far

away as possible from the following devices:

Bluetooth®devices other than this unit, wireless LAN, microwaves, ofﬁce

automation devices, digital cordless telephones and other electronic

devices.

The unit is designed to automatically avoid radio interference from these

household devices. However malfunctions may happen when radio

interference occurs.

Accessories

Bluetooth adapter ·······················································<1>

(N5HZZ0000136)

(This is not used with a Bluetooth built-in TV.)

R03 manganese battery ·············································<1>

< > indicates the quantity.

ENGLISH

Identifying Controls

Power button

Pen tip

Indicator lamp

Unit cover

Power button

Press the button once to turn the power on. Pressing the button

approx. 2 seconds or longer while the power is on will turn the

power off.

This is also used when registering the Touch Pen on the

television. For details on registration, refer to the Registration

page. ( page 8)

The Touch Pen automatically turns off if touching or drawing

operation is not performed for 5 minutes.

Indicator lamp

Lights or ﬂashes while using or charging to indicate the status of

battery level and Touch Pen.

• Lights for approx. 2 seconds when turned on, and then blinks

at approx 2-second intervals.

Up to two Touch Pen can be used. The indicator blinks in

red with Touch Pen 1 operation, and green with Touch Pen 2

operation.

• Also lights or blinks when registering the Touch Pen to the

TV.

For registration, see “Registration”. ( page 8)

Blinks 5 times consecutively at power-on when the battery

level is low.

Pen tip

Press the pen tip on this side of the Touch Pen against the

screen for use.

Wrong use may cause scratch of the screen.

Unit cover

See “Inserting the battery” page. ( page 7)

ENGLISH

Inserting the battery

When the battery level is low, the indicator lamp blinks 5 times

when the Touch Pen is turned on.

(Replacing the battery at an early stage is recommended.)

1. Turn and slide the unit cover until the entire shape of the

battery is visible.

Unit cover

2. Insert the battery, and slide and turn the unit cover to close it.

Unit cover

Close the unit cover until it clicks.

NOTE

• Use the speciﬁed battery (R03 manganese battery or LR03

alkaline battery).

• Do not reverse the polarity (positive and negative ) of

the battery when inserting.

• Dispose of the used battery as an incombustible waste or

according to the regulations in your area.

• The unit cover can be opened only up to the point where the

battery is placed. Do not forcibly try to open further than that.

ENGLISH

Registration

Registration to the TV for this use is required when using the Touch

Pen for the ﬁrst time after purchase or using it on another TV.

1. Turn the (plasma) TV on to start registration of the Touch

Pen by operation on the TV.

Before using, attach the supplied Bluetooth adaptor to

a plasma TV which is not equipped with the Bluetooth®

communication function. ( page 10)

• For how to start registration of the Touch Pen, see the

operating instructions of the TV.

2. Press the power button with the Touch Pen turned off.

(When performing registration on another TV again, press

the power button for 5 seconds or longer.)

• Registration of the Touch Pen to the TV will start.

• The indicator lamp blinks in red and green alternately

during registration.

• Place the Touch Pen within 50 cm from the TV during

registration.

• The Touch Pen automatically turns off if registration fails

even if 2 minutes or longer have elapsed.

3. When the indicator lamp blinks in green for approx. 3

seconds, registration is complete and the TV is connected at

the same time.

• After registration, when the Touch Pen is turned on near the

TV that is already on, it will be automatically reconnected to

the TV.

• If registration is cancelled on the TV, register it again.

ENGLISH

How to hold the Touch

Pen

Hold the Touch Pen as shown in the ﬁgure.

Hold the centre of the Touch Pen.

Lightly press the tip side of the Touch Pen vertically against

the screen of the TV so that the tip is pushed in.

If the pen is largely tilted or the tip is not pushed in, it does not

operate normally.

How to use the Touch Pen

Perform the following operations using the Touch Pen when

selecting screen operation or items, or using software for Touch

Pen.

Operation

example How to move Description

Tap

Touch the pen tip to

the panel and release

it quickly.

Select the item.

Hold/

Release

Keep touching the

pen tip to the panel./

Release the pen tip.

Select the item and

hold./Release the

selection of the item.

Drag and

drop

Move with the pen tip

touched to the panel.

Move with the item

selected.

ENGLISH

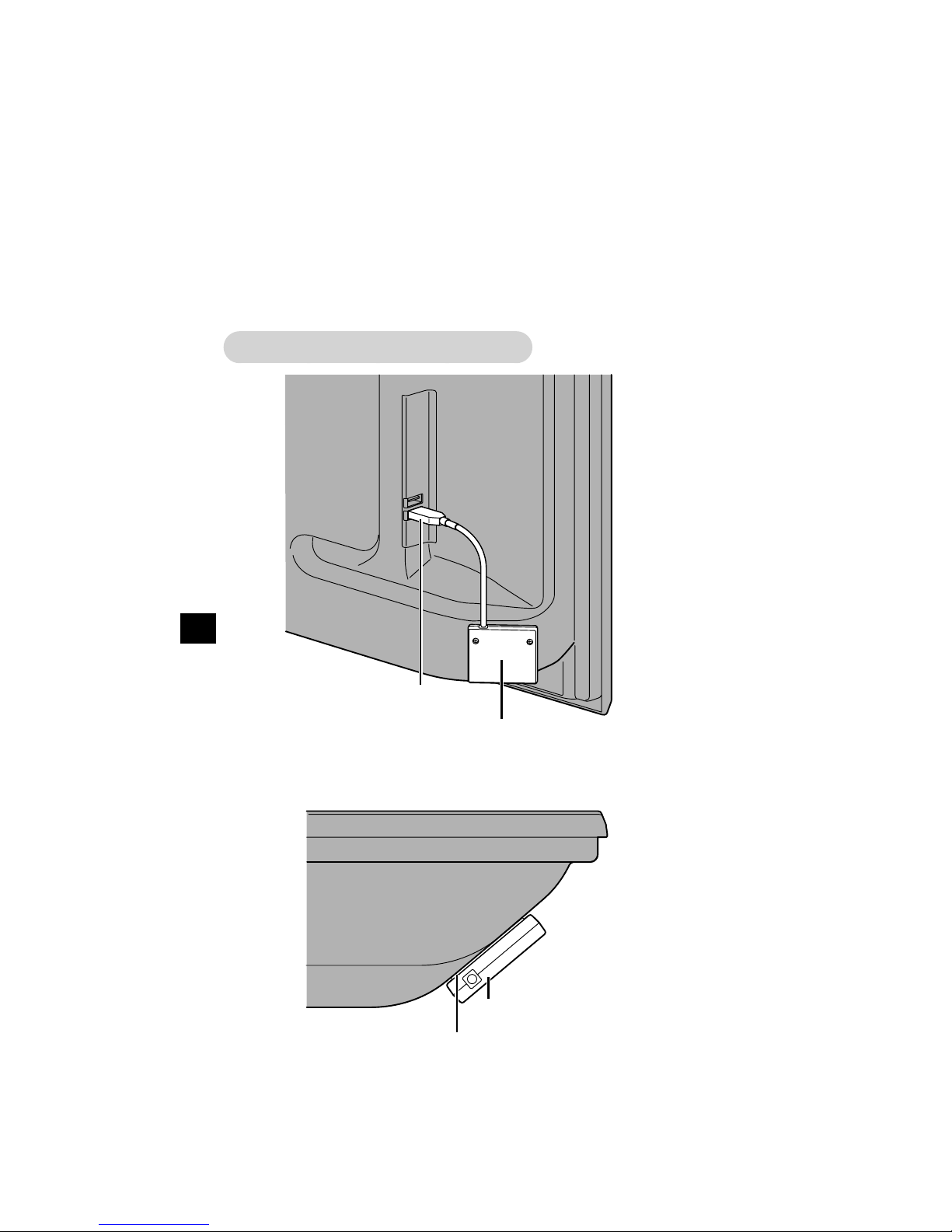

Attaching the Bluetooth adaptor

Attaching the Bluetooth adaptor is required when using the

Touch Pen with a TV which is not equipped with the Bluetooth®

communication function.

1. Press the power button on the TV to turn the TV off.

2. Insert the connector of the Bluetooth adaptor to the USB

terminal on the TV.

3. Remove the release paper of the two-sided tape attached

to the back side of the Bluetooth adaptor, and attach the

Bluetooth adaptor with the two-sided tape to the position on

the TV shown in the ﬁgure.

Attach as shown below

USB connector

Bluetooth adaptor

(Remove the release

paper and attach.)

Two-sided tape

Bluetooth adaptor

Indice

Lingue:

Altri manuali Panasonic Controllori

Panasonic

Panasonic FP7 Series Manuale elenco delle parti

Panasonic

Panasonic FP-M Hardware Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Panasonic

Panasonic AFPX-C30R Manuale utente

Panasonic

Panasonic FP7 Series Manuale utente

Panasonic

Panasonic WVCU161C - SYSTEM CONTROLLER Manuale utente

Panasonic

Panasonic ACXF60-03410 Manuale utente

Panasonic

Panasonic FP0-TC4 Manuale utente

Panasonic

Panasonic FP-X0 L14R Manuale utente

Panasonic

Panasonic CZ-256ESMC1U Manuale utente

Panasonic

Panasonic S-Link FP2 Manuale utente

Panasonic

Panasonic FP0 Series Manuale utente

Panasonic

Panasonic FPSIGMA Manuale utente

Panasonic

Panasonic KT4R Manuale utente

Panasonic

Panasonic EYFR03 Guida all'installazione

Panasonic

Panasonic AG-A850 Manuale utente

Panasonic

Panasonic LD-C60 Manuale utente

Panasonic

Panasonic CZ-256ESMC3 Manuale utente

Panasonic

Panasonic FV-WCCS1-W Manuale utente

Panasonic

Panasonic Programmable Controllers FP-X Series Manuale utente

Panasonic

Panasonic FP7 Series Manuale utente

Panasonic

Panasonic AW-RP120G Manuale utente

Panasonic

Panasonic MINAS S-series Manuale utente

Panasonic

Panasonic CZ-RELC2 Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente

3M MicroTouch EX113 Manuale utente

KUHN

KUHN TKS Manuale utente
