Panasonic KX-TCD951RUB Manuale utente

•|1•|

KX-TCD951RUB

Simplified

Digital Cordless Phone

Telephone Equipment

KX-TCD951RUB

(for Russia)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians.

Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury

or death.

Please use this manual together with the original Service Manual for model KX-TCD951GB/KX-TCD955GC order

No.KM49910781C2. This Service Manual indicates the main differences between: Original KX-TCD951GB /KX-TCD955GC

and KX-TCD951RUB.

ORDER NO. KM40005622A1

Black Version

(Handset) (Base Unit)

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

INT'

PWR

RCL

PROG

RDL

•|3•|

KX-TCD951RUB

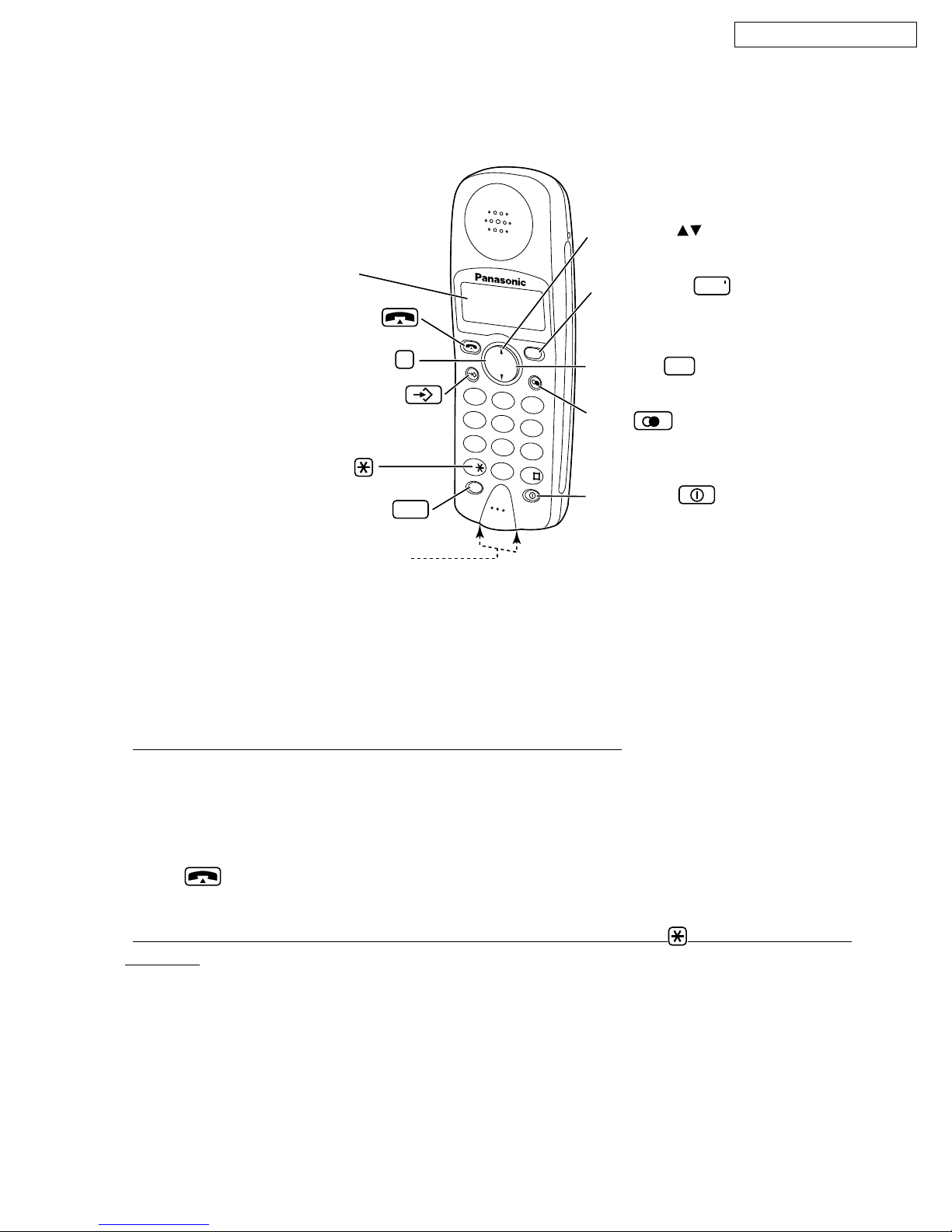

•¡LOCATION OF CONTROLS (Change from original page 3)

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

INT’

Tone Button

Display

Talk Button

Cancel Button

Program Button

Recall Button

Charge Contacts

Intercom Button

Redial/Pause

Button

OK Button

Power Button

INT

Navigator Key

The underlined parts has been added to the original.

•¡Battery Information (Change from original page 7)

•¡•¡

•¡TO REDIAL AFTER CONFIRMING THE NUMBERS IN REDIAL MEMORY (Changw from original page 11)

The underlined parts has been added to the original.

3Press .

• The number is dialed automatically.

• If your line has rotary or pluse service, any access numbers entered after pressing will not be included when

redialing.

* Nickel metal hydride (Ni-MH) rechargeable batteries (AAA size) are available.

When you replace the batteries, you must program the battery type selection.

(Model KX-TCD951RUB)

•|4•|

KX-TCD951RUB

3. Send batch file “SET FREQ nn” to set the clock frequency. The default value of nn is 80. Increase the value to

increase the frequency. The clock frequency must be 10,368.000 kHz ± 0.04 kHz.

•¡CHECK PROCEDURE (Change from original page 41)

TEST EQUIPMENT REQUIRED AND EQUIPMENT SETUP

Connect a 3.9V supply to the board J5 (+), J8 (–).

INITIAL POWER + BBIC TESTS

4. Check the 3.0V supply voltage (TP10). It must be 2.85 +/– 0.3V.

5. Connect RFCLK (TP56) to CH.1 on the scope. Send batch file RFCLK1.

6. Check if the clock waveform is 10,368.000 kHz,+/– 40Hz.

7. Send batch file “SELF TEST”. The first 4digits are FLASH ROM checksum, the next 2 digits are RAM test,

and must be 00

SET CLOCK FREQUENCY

1. Send batch file “RFCLK1”.

(Model KX-TCD951RUB)

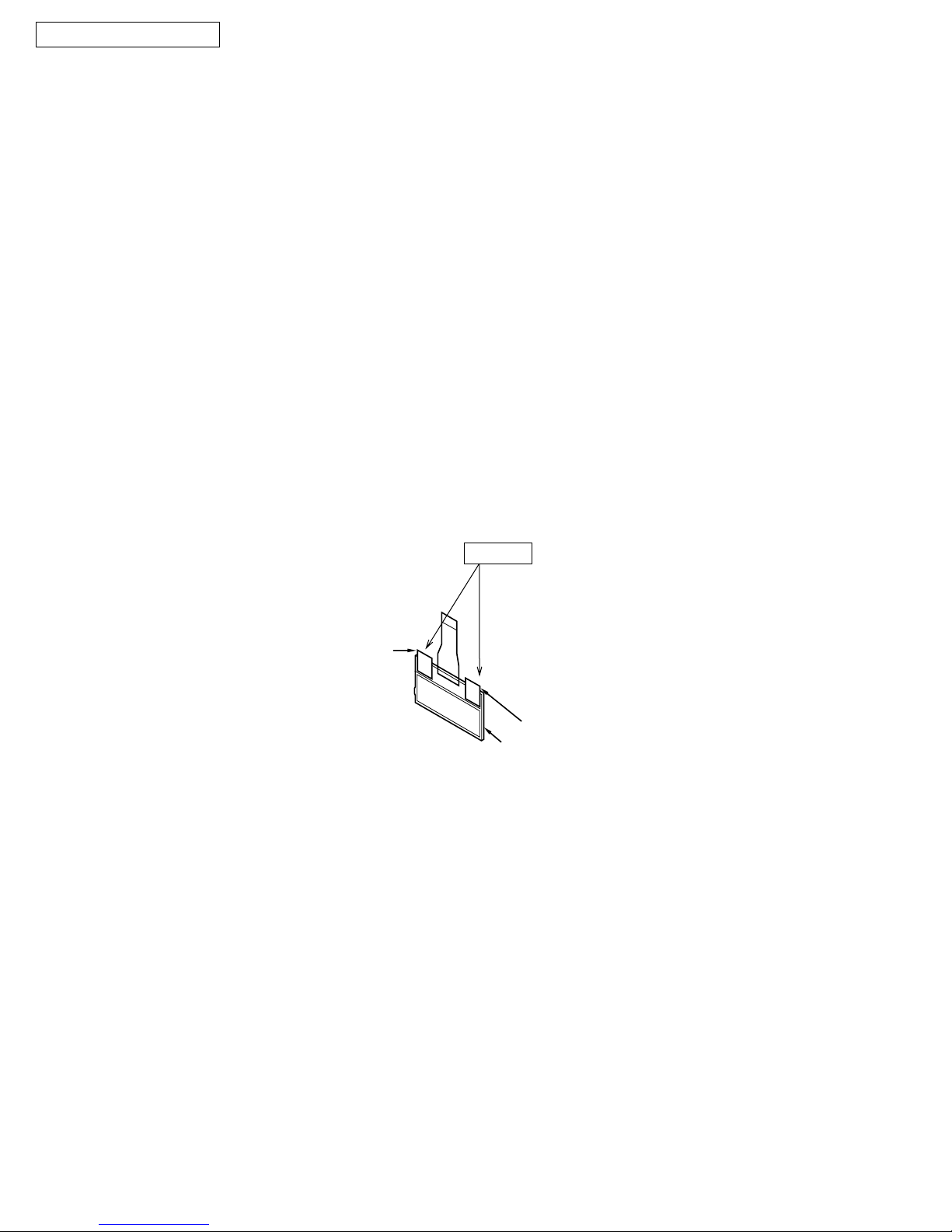

•¡CABINET AND ELECTRICAL PARTS LOCATION (HANDSET) [Change from original page 54]

Addition

LCD121

121

•|7•|

12345678 9 10 11 12

KX-TCD951RUB KX-TCD951RUB

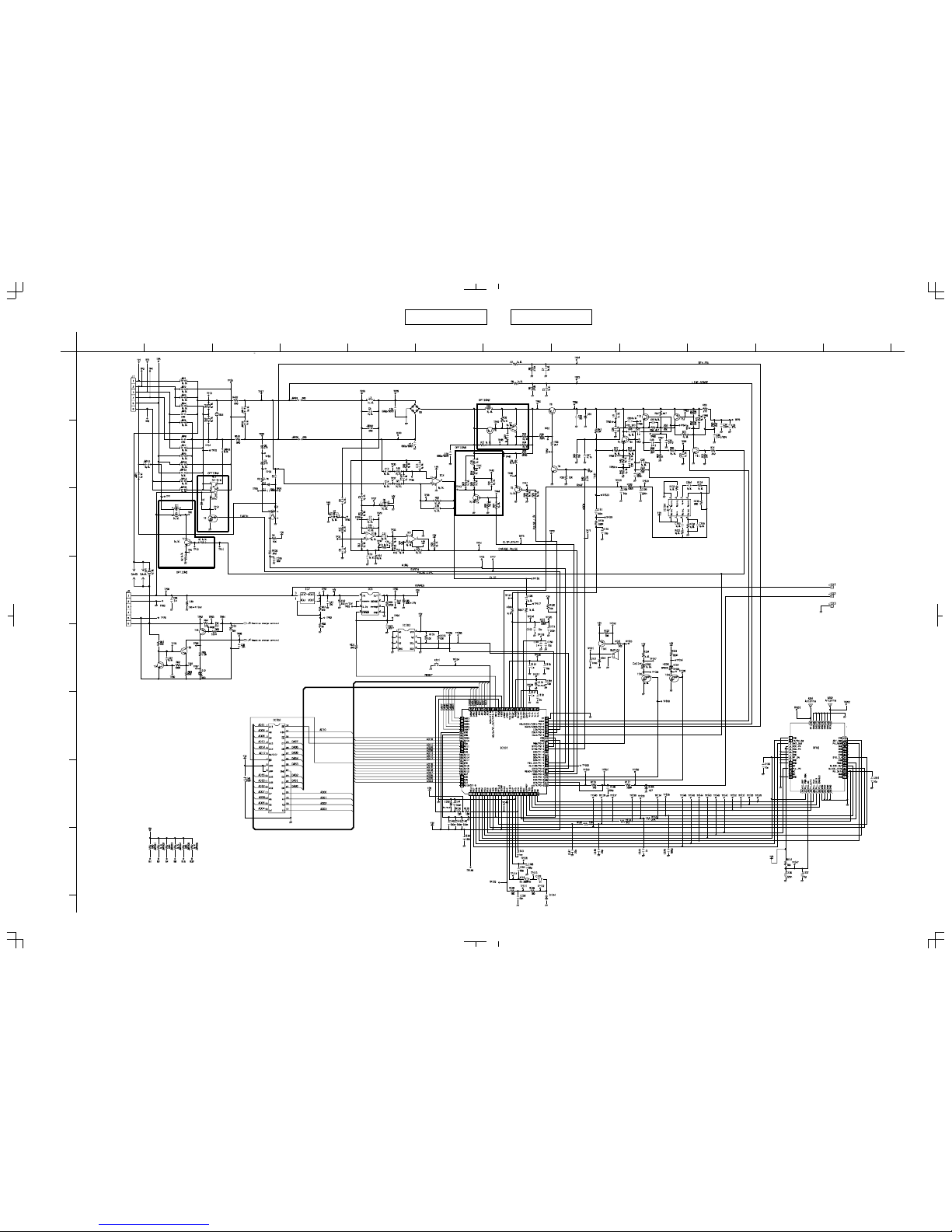

SCHEMATIC DIAGRAM (Base Unit) [Change from original page 17]

KX-TCD951RUB

•|8•|

12345678 9 10 11 12

KX-TCD951RUB

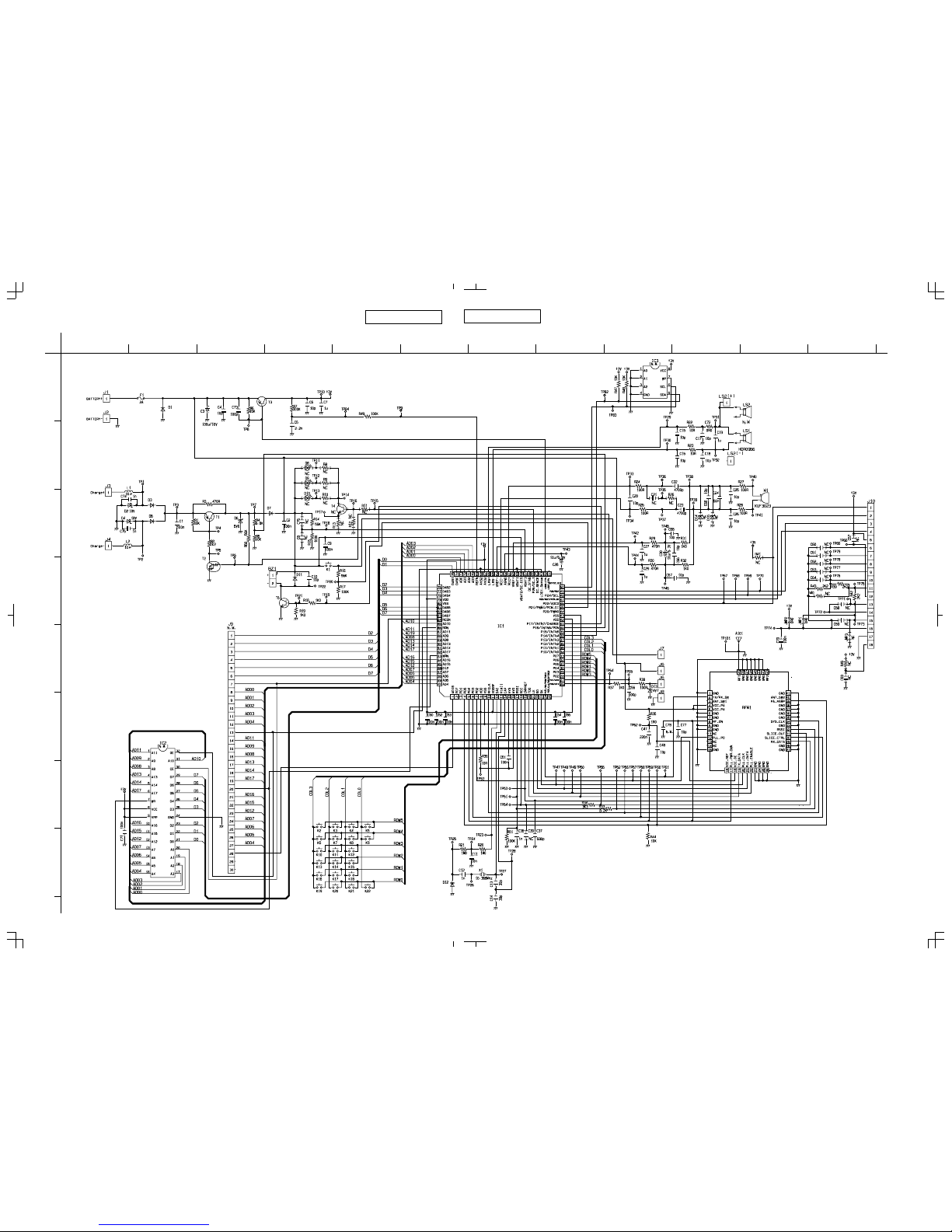

SCHEMATIC DIAGRAM (Handset) [Change from original page 18]
