Panasonic CF-H1 Series Manuale utente

Reference Manual

Personal Computer

Model No. CF-H1 Series

We recommend that this Reference Manual be printed.

Introduction

zDo not set [Command Prompt] to “Full Screen”.

Terms and illustrations in this manual

Î: Page in this Manual.

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

Click : Touch the screen with the digitizer pen or finger.

Right-click :

Touch and hold with the digitizer pen.

You can also perform “Right-click” by pressing and holding the button of the digitizer pen, and then tapping the

object.

[start] - [All Programs] :

Click [start], and then click [All Programs].

: Press [ ] (Enter) key.

Ctrl

Press and hold

Ctrl

key, and then press

key.

Regarding Windows XP

Touch Screen Operation

You can use Windows by touching the screen in the same way as you use a mouse.

The screen of this computer has following two pointing device functions.

zDigitizer: can be operated with the digitizer pen (included)

zTouchscreen: can be operated with your finger etc.

If you touch the screen with the digitizer pen and your finger at the same time, the operation by the digitizer pen is enabled.

zTo right-click

You can perform “Right-click” with either of operation below.

zTouch and hold with the digitizer pen.

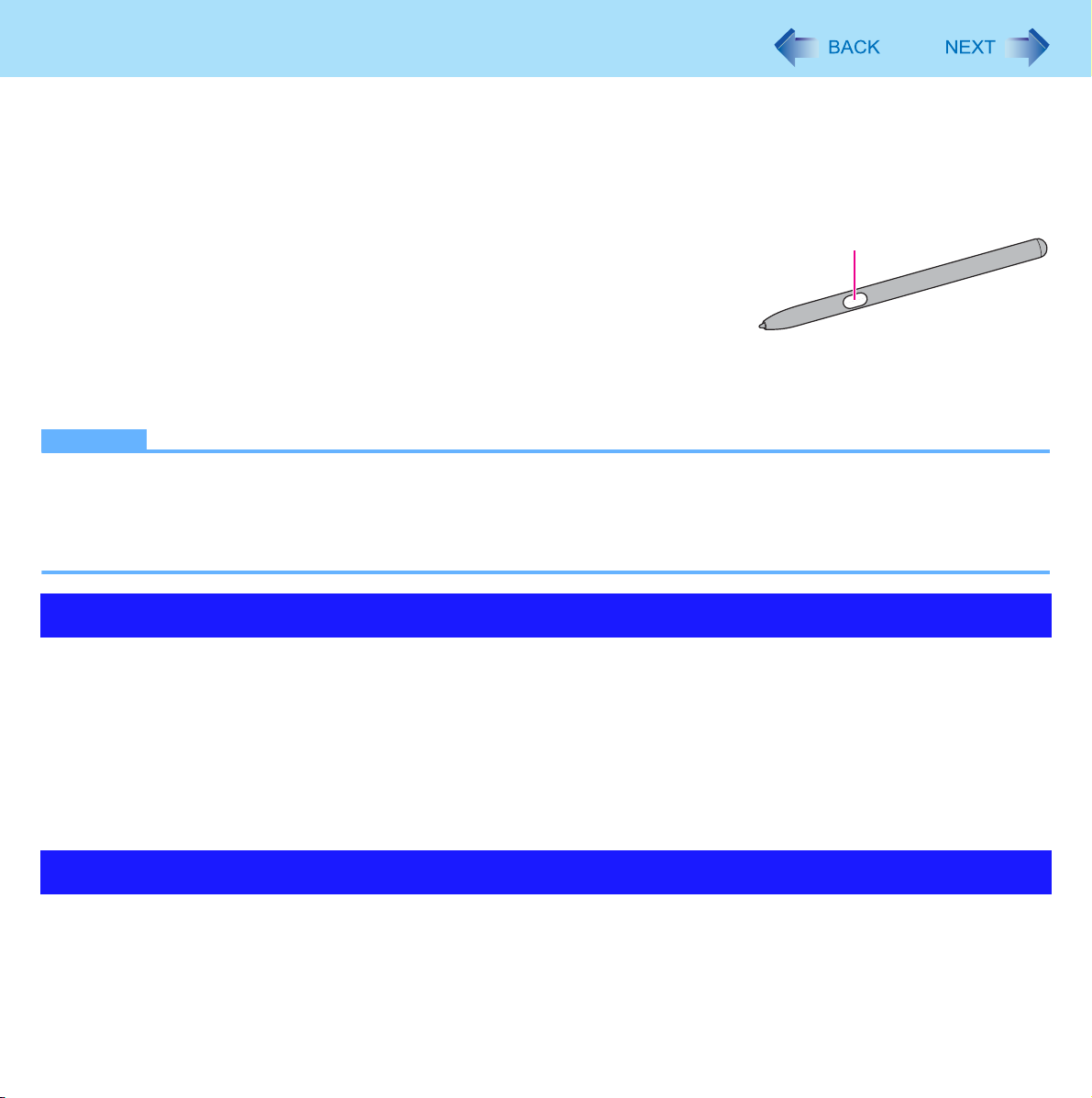

zPress and hold the button (A) of the digitizer pen, and then touch the object.

zPlace the mouse pointer on the object, then press [A3] button.

NOTE

zThe operation by touching the screen does not work in the Setup Utility.

zIf you do not use the digitizer pen, we recommend to assign [Right Click] to the application button [A1] or [A2].

(Îpage 11)

zTouch the screen with the digitizer pen (included) or your finger

When touching the screen, use only the digitizer pen (included) or your finger on the surface.

Touching the screen with an object other than the digitizer pen (included) or your fingertip may scar or stain the surface,

causing the malfunction.

zDo not apply too much pressure when touching the screen

Only a light touch is required to touch the screen. Applying too much pressure may damage the surface.

zWhen the screen becomes dirty, wipe it with a soft cloth

The screen is specially treated to prevent dirt from adhering to the surface, so dirt can be removed easily using a dry

cloth. If the dirt does not come off easily, breathe on the surface and try again.

Do not apply water or solvents to the soft cloth.

Operation by touching the screen

Maintaining the performance of the screen

Touch Screen Operation

zCheck the following to prevent the surface of the screen from being scratched

zAre you using the digitizer pen or your finger to operate the screen?

zIs the surface clean?

zIs the cloth clean?

zIs the tip of the digitizer pen clean?

zIs your finger clean?

zDo not touch the screen outside of the LCD display area

The input area is defined by the LCD display screen. Touching the screen outside of the display area may result malfunc-

tions or damage to the screen.

zDo not apply excessive force to the screen

Do not lift the computer while holding the LCD screen, or allow the screen to be twisted. Do not place any objects on the

LCD screen. Any of the above may cause the screen glass to break, or may damage the LCD screen.

zOperation response may be slower in low temperature environments

The screen may respond to operations more slowly when using the computer in temperatures less than 5°C, but this is

not a malfunction. Response time will return to normal when the computer is returned to room temperature.

zIf the cursor jumps to a location other than where the screen was touched, or if the LCD reso-

lution changes, perform the calibration

Perform the procedure of “Calibration” (Îpage 5).

Things to keep in mind when using the screen

Touch Screen Operation

Digitizer Calibration

To calibrate the digitizer, use the digitizer pen and follow the steps below.

1Click [start] - [Control Panel] - [Printers and other Hardware].

2Click [Tablet and Pen Settings].

3Click [Calibrate...] in [Settings].

4Using the digitizer pen, touch each of 4 “+” target marks one by one, and then click [OK].

Touchscreen Calibration

To calibrate the touchscreen, use your finger or other objects and follow the steps below. Do not use the digitizer pen.

1Click [start] - [All Programs] - [InPlay] - [Calibration].

2Using your finger or other objects, touch each of 9 “+” target marks one by one, and then

click [OK].

NOTE

zPerform the following calibration for each user.

Calibration

Hardware Buttons

*1 Only for model with the Barcode Reader

Button Function

Camera Button

Take still pictures. (Îpage 30)

RFID Reader Button

Read the data from RFID tags. (Îpage 31)

Barcode Reader Button

Read the barcode.

Application Buttons

Start the registered function or application. (Îpage 11)

Security Button

Works as

Ctrl

Alt

Del

RFID

Application

Buttons

RFID

Camera

Security

Barcode RFID

Application

Buttons

Barcode

RFID

Camera

Security

Hardware Buttons

*2 Only for model without the Barcode Reader

NOTE

zThe Hardware buttons work when the Windows screen is displayed.

zThe Hardware buttons may not work immediately after Windows is started up or the Windows logon screen (or the

Welcome screen) is displayed.

Panasonic Dashboard

You can perform the following operations by using Panasonic Dashboard.

zCheck the remaining battery charge

zChange the LCD brightness

zChange the camera light settings

zChange the screen color of Cleaning Utility

zEnable or disable the touchscreen operation

zStart the application software which you registered

zChange the settings of cleaning reminder, RFID, touchscreen, button assignment of Panasonic Dashboard and applica-

tion buttons

1Press the application button [A2]*1 (A).

You can also start Panasonic dashboard by clicking icon on the

notification area and click [Settings...].

Panasonic Dashboard starts up.

*1 You can change the setting of application button (Îpage 11).

2Make the operation.

[Battery] (B)

You can check the remaining battery charge.

[Brightness] (C)

You can change the LCD brightness.

The brightness can be changed by clicking the desired position of the

bar.

The brightness for battery operation and AC power operation can be

set separately.

[Camera Light] (D)

zTo display the light switch while using the camera, add a check

mark for [Automatically display the light switch while using the

camera].

zTo turn on the light when the preview starts, add a check mark for

[Always turn the light ON when the preview starts].

[Cleaning Utility] (E)

You can change the screen color of Cleaning Utility. When a check

mark for [Half transparent] is added, Windows screen seems to be transparent of the screen color.

Panasonic Dashboard

[Touchscreen] (F)

When a check mark for [Enable digitizer pen only] is added, you can use only the digitizer pen (included) to operate

by touching the screen. You cannot use the other stylus or the finger. We recommend to add a check mark for this,

when you place the palm on the screen and touch the screen by using the digitizer pen.

This setting is stored for each user.

Software buttons (G)

You can start the application software which you registered. You can change the registered application by using

[Advanced] menu. (Îbelow)

[Advanced...] (H)

You can select [Advanced] only if you logged on to Windows as an

administrator.

[Advanced Settings] menu is displayed. You can change the following

settings.

After making settings in [Advanced Settings], click [OK] to exit

[Advanced Settings].

[Cleaning Reminder] (I)

You can regularly display the message to remind cleaning. Some of following conditions can be selected.

z[Periodically]

When the defined time has passed since the last cleaning was performed.

z[At the time of log on]

When you log on to Windows.

z[When the battery is exchanged]

When you change the battery.

z[Undocked]

When you undock this computer from the Cradle.

[RFID] (J)

When a check mark is added, the data will be read only when RFID reader button is pressed.

When the check mark is removed, the RFID reader reads the data constantly.

[Touchscreen] (K)

When a check mark for [Enable digitizer pen only] is added, you can use only the digitizer pen (included) to operate

by touching the screen. You cannot use the other stylus or the finger. We recommend to add a check mark for this,

when you place the palm on the screen and touch the screen by using the digitizer pen.

This setting affects all users.

[Button Assignment] (L)

You can register the executable files or the applications to the buttons displayed on Panasonic Dashboard screen.

Panasonic Dashboard

AClick any button.

BSelect the application from [Action].

You can select [Display Rotation], [Cleaning Utility], [Reference Manual] or [Launch Application]. To restore the

default setting, click [Restore Default].

When you select [Launch Application], input the label to [Label] box, and select a file you wish to execute.

zYou can also select files with extensions .pdf, .jpeg, .wma, etc. other than .exe.

zWhen you select a file with extension .exe, you can specify the parameter into [Program parameter].

zTo disable the application, make the text box blank.

[Application Button Settings] (M)

“Application Button Settings” (Îpage 11)

3Click [OK] to close Panasonic Dashboard.
