Panasonic CF-Y2 Series Manuale utente

Personal Computer

Reference Manual

Model No. CF-Y2/CF-W2 Series

For backup proposes Panasonic recommends that this Reference

Manual be printed.

To magnify the screen

display of this

Reference Manual

To magnify all the icon

display (for example, )

etc.

To magnify the one part

of the screen display

Read Me First

zSome of the illustrations in this manual may differ slightly in shape from the actual items

on your computer. This should make the explanations easier to understand

zIf a user has logged on to Windows without the administrator authority, some functions

may not be executable, and some screens may not be displayed as shown in this manual.

If this happens, log-on to Windows with the administrator authority to enable these

functions

zIn this manual, “Microsoft®Windows®XP Professional Service Pack 2 with Advanced

Security Technologies” is indicated as “Windows” or “Windows XP”

zIn this manual, the following software packages are described as follows:

• "WinDVD™ 5 (OEM Version)" as "WinDVD"

• "B's Recorder GOLD7 BASIC" as "B's Recorder"

• "B's CLiP 6" as "B's CLiP"

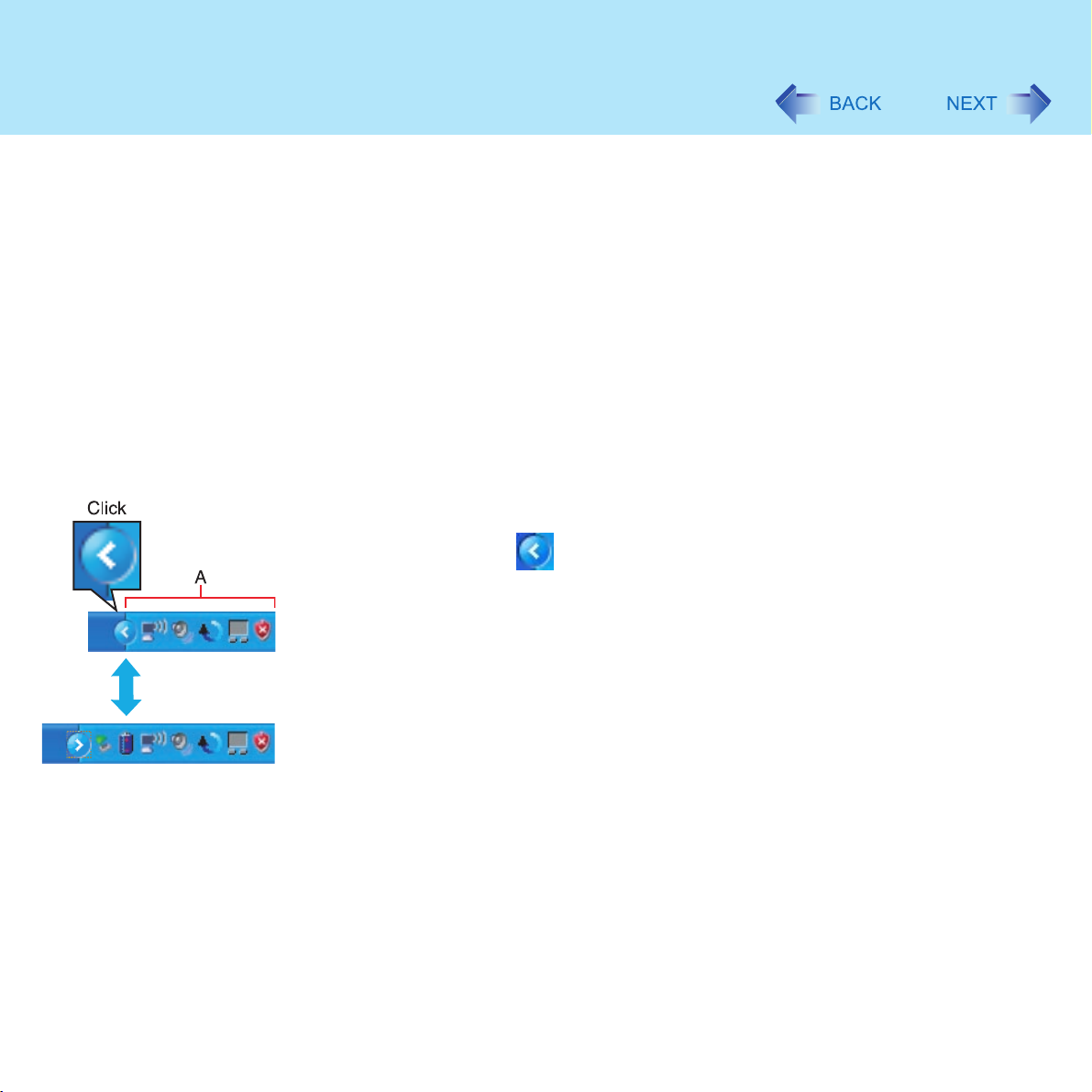

zIf the icon on the notification area (A) being explained in this manual is hidden and not

displayed, click on the icon to display all icons

(The icons on the notification area used in this manual are only examples. The actual

types and order of icons may differ depending on your operating environment; for

example, settings of various functions and connected devices.)

zOptional Products or Accessories

Confirm the latest information on optional products or accessories from various sources

Read Me First

Illustrations and Terminology in this Reference Manual

NOTE NOTE provides a useful fact or helpful information.

CAUTION CAUTION indicates a condition that may result in minor

or moderate injury.

Enter

This illustration means to press the Enter key.

This illustration means to press and hold the Fn key,

then press the F5 key.

When using with the

and

Ctrl

functions

interchanged, read with the

key and the

Ctrl

key

reversed.

[start] - [Run] This illustration means to click [start], then to click [Run].

For some applications, you may need to double-click.

Îor ⇒These symbols indicate related pages.

Î: If this is clicked, it will jump to the page correspond-

ing Reference Manual

⇒: Refer to the Operating Instructions

xxxx*1 If *1 is clicked, it will jump to a related topic.

Read Me First

The terminology in ( ) is the one used in [Intel(R) 82852/82855 GM/GME Graphics Controller

Properties].

To display [Intel(R) 82852/82855 GM/GME Graphics Controller Properties]:

<CF-Y2 series>

Click [start] - [Control Panel], from the [See Also] area click [Other Control Panel Options],

and then click [Intel(R) Extreme Graphics 2 M].

<CF-W2 series>

Click [start] - [Control Panel], from the [See Also] area click [Other Control Panel Options],

and then click [Intel(R) Extreme Graphics].

About Display Mode

Internal LCD (Notebook) This computer's display

External Display (Monitor) External display connected to this computer

Simultaneous Display

(Intel(R) Dual Display Clone)

To display the same screen on both the LCD and

external display

Extended Desktop To use both the internal LCD and the external display as

an extended display domain. You can drag a window

between the internal LCD and the external displays

How to Use this Reference Manual

In this Reference Manual, you can use the following method to display the desired page, or

search for a page using a text string. (The screen shown is only an example.)

How to Use this Reference Manual

If the characters, icons, etc. in the Reference Manual are too small

and too difficult to see, you can magnify them as follows.

1Click to use Zoom In Tools.

2To magnify the display and make it easier to see, position

the cursor and click on the segment you want to expand.

zIf it is magnified too much, click on the same segment while

holding down the

Ctrl

key to reduce the size.

3When required, click on and drag it to the screen to

display the segment you want to see.

This Reference Manual is displayed using Adobe Reader. Adobe Reader uses the following

methods to magnify and reduce the display size.

zTools for magnifying/reducing the display

A. Zoom In Tool: Click to enlarge the display in the area around the position that was

clicked. Drag to magnify the display in the area selected.

B. Zoom Out: Display size is reduced each time this button is clicked.

C. Enter the percentage for magnification/reduction, and press the

Enter

key to

change the display to the specified size. (You can click on the Tand select from

the values displayed.)

D. Zoom In: Display size is magnified each time this button is clicked.

Magnify this Reference Manual Display

How to Use this Reference Manual

zTools for displaying contents at a selected magnification

E. Actual Size: Click to display contents at the size used when the Reference

Manual is opened from the [start] menu.

F. Fit Page: Click to display the contents for a single page.

G. Fit Width: Click to magnify or reduce the size of the display to match the width of

the screen.

NOTE

zA printer (sold separately) is required to print out this Reference Manual

zDepending on the printer, the illustrations and screen samples may not be printed

clearly

1Confirm the page to be printed.

zTo print out only the page currently being displayed: Leave that page on the

display

zTo print out a specified page: Confirm the page number

2Click on .

3Set [Printer], [Print Range], and other settings, and click [OK].

zIf the page is printed with a different orientation: Remove the check mark from

[Auto-Rotate and Center]

Print this Reference Manual

Using the Touch Pad

Use the touch pad to move the cursor on the screen and perform computer operations.

A. Work Surface (touch pad)

B. Left Button

C. Right Button

Function Operation (Following illustrations are CF-Y2 series)

Moving the Cursor

Move the tip of your finger lightly over the work

surface.

Tapping/Clicking

tapping or clicking

To right-click: Can only be performed by clicking the right button.

Double-Tapping

/Double-Clicking

double-tapping or double-clicking

Dragging

Two quick taps, but on the second tap leaving your finger down

(applying pressure) and moving it on the work surface.

While holding down the button, moving your finger on the work

surface.

Vertical/Horizontal Scroll Trace a circle around the touch pad. (Îpage 9)

Using the Touch Pad

NOTE

zYou can change the speed of the double-click or the operations of mouse buttons

using [Mouse Properties] screen

To display [Mouse Properties]:

Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse]

zWhen an external mouse is connected and the cursor does not operate properly:

In the [Main] menu of the Setup Utility, set [Touch Pad] to [Disable]. When you want to

use the touch pad again, return the setting to [Enable] (Îpage 151)

zWhen using an external mouse: Îpage 125

When the cursor doesn’t move the way you want it to

zSensitivity when touching the touch pad can be adjusted (Îpage 15)

There are two ways of scrolling with the touch pad: the Touch Pad utility, and the Virtual Scroll

function. You cannot use both functions at the same time.

The Touch Pad utility is enabled at the time of purchase.

zThe Touch Pad utility

• You can scroll continuously by tracing a circle on the touch pad.

• This is designed for ease of use, in keeping with the shape of the touch pad.

zThe Virtual Scrolling Function (Îpage 14)

• You can scroll vertically (or horizontally) by tracing repeatedly in the desired direction.

• This is the same operation as that used on square touch pads installed in other

computers.

Scroll

Vertical scroll It can be used at the time of purchase.

Horizontal scroll A setting is required to use the horizontal scroll. (Îpage 10)

Using the Touch Pad

zYou can use separate settings for each account regarding whether to use the Touch Pad

utility or the Virtual Scroll function.

Using the Touch Pad Utility

You can scroll easily by tracing a circle on the touch pad.

NOTE

zIn some cases, such as when using an external mouse or installing a driver for an

external mouse, or when using certain applications, the operations may differ, or the

scroll function may not operate properly.

zOn screens that can only scroll in one direction, either vertical or horizontal, the scroll

function will only work in that direction regardless of the operation of the touch pad.

(For example, on a screen that will only scroll horizontally, even if you execute a

vertical scroll, the screen will scroll horizontally.)

1Make the following settings to use the horizontal scroll.

Once the settings have been made, it is not necessary to make the same settings

the next time.

AClick on the Scroll Icon on the notification area at the bottom right of the

screen, and click [Settings].

If the icon is not displayed, click on [start] - [All programs] - [Panasonic] -

[Touch Pad utility settings].

BAdd a check mark for [Use horizontal scroll function] in the [General settings]

screen, and click [OK].

2Display the scrollable screen.

Vertical scroll The virtual scroll function must be set to enable.

Horizontal scroll
