Panasonic Aw-he40 series Manuale utente

★ AW-HE40 camera can superimpose the audio signal from an external microphone onto the video signal and can

output it.

Also, it can superimpose the audio onto SD output through AW-HS50 switcher.

To allow the audio to pass through, both AW-HE40 camera and AW-HS50 switcher require changing the settings.

1．AW-HE40 Audio Settings

(Example 1) Using AW-RP50 Cont olle

* Below is the explanation about the audio settings of a camera registered as [CAM1].

① Press the button 1 at <CAMERA STATUS/SELECT ON>. – (Fig.1-A)

② Hold down CAMERA OSD button – (Fig.1-B) for 2 seconds to open the on-screen menu. (Hold it down again for 2

seconds to close the menu.)

③ Use F1 dial – (Fig.1-C) to set the item “Audio” to [On].

【Location】 System ＞ Others ＞ Others 4/4 ＞ Audio ⇒ [On] – (Figure 2 of next page) * Default: Off

* When “Audio” is [On], the audio-related setting items are available. Set them according to the installation

environment of your cameras. – (Figure 3 of next page)

(*) The HDM model requires an SD converter

in order to connect with AW-HS50.

HDMI Connection (*)

(AW-HE40 Rear Panel)

(AW-HS50)

(AW-HE40)

SDI Connection SDI Connection

AW-HE40 & AW-HS50 – Audio (Passing Th ough) Settings

（A）

（B）

（C）

(Figure 1: AW-RP50 Control Panel)

Recorder

(Video & Audio Recording)

Schematic View

Specifications of External Audio nput Connector [AUD O N]

- Stereo mini-jack (φ3.5mm)

- Mic input: nput level -60dBV±3dBV

* Supported mic: Stereo mic (plug-in power), Supplied voltage: 2.5V±0.5V

- Line input: nput level -10dBV±3dBV

Microphone

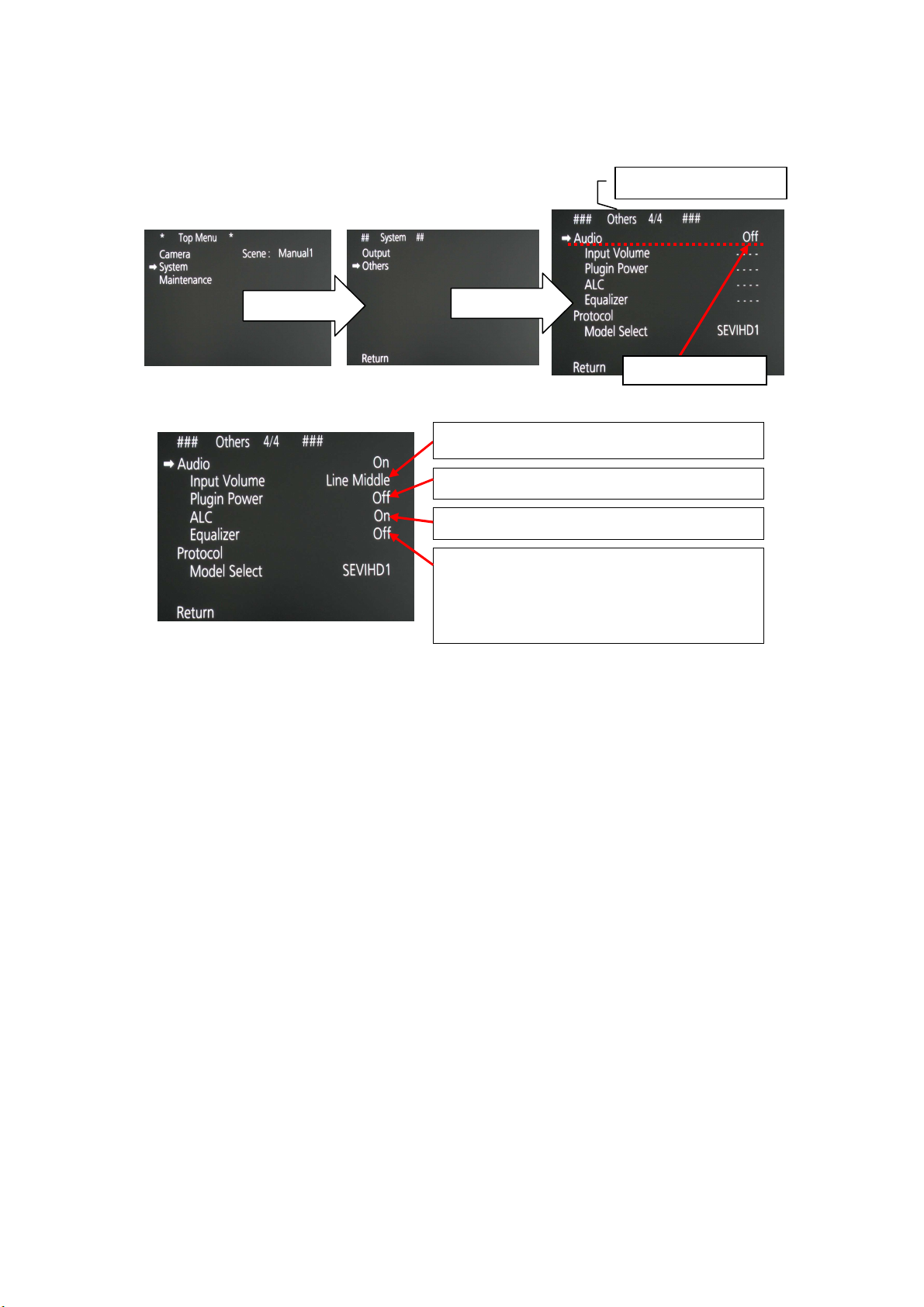

(Figure 3: AW-HE40 On-Screen Menu)

(Figure 2: AW-HE40 On-Screen Menu)

Equalizer: Setting for the equalizer function * Default: Off

・Off: Equalizer function is disabled.

・Low Cut: Low frequencies are cut to reduce noise levels of air

conditioning units, projectors or other equipment.

・Speech Enhancement: Low and high frequencies are cut to

enhance human voices so that they

sound more clearly.

Plugin Power: Setting for the plugin power * Default: Off

ALC: Automatic adjustment of audio level * Default: On

Select “System”

and press F1.

Select “Others”

and press F1.

Turn F1 to display “Others 4/4”.

nput Volume: Setting for Mic/Line and its volume

* Default: Line Middle

Turn F1 to select [On].

(Example 2) Using Web Sc een

① Start the Web screen. – (Figure 4)

② Follow the procedure below to enable the audio input from the device connected to the external input connector.

Procedure: ［Setup］＞［mage/Audio］＞［Audio］＞ Audio ⇒ [On] * Default: Off

* f the login screen is displayed, please enter the user name and password.

③ When “Audio” is [On], the audio-related setting items are available. Set them according to the installation

environment of your cameras.

* To determine the settings, be sure to press [Set] button after having changed them.

(Figure 4: Web Screen)

Audio: Setting for enabling/disabling the audio input from the

device connected to the audio input connector

* Default: Off

Equalizer: Setting for the equalizer function * Default: Off

・Off: Equalizer function is disabled.

・Low Cut: Low frequencies are cut to reduce noise levels of air

conditioning units, projectors or other equipment.

・Speech Enhancement: Low and high frequencies are cut to

enhance human voices so that they

sound more clearly.

nput Volume: Setting for Mic/Line and its volume

* Default: Line Middle

Plugin Power: Setting for the plugin power * Default: Off

ALC: Automatic adjustment of audio level * Default: On

2．AW-HS50 Audio Settings

* n order that the audio superimposed on an SD input signal is can pass through, the setting change below is required.

① Hold down OSD ON button – (Fig.5-A) for 2 seconds to open the menu. (Hold it down again for 2 seconds to

close the menu.)

② Use OSD/T ME dial – (Fig.5-B) to set the settings for individual output signals you want to allow to pass through.

Menu: ［14］SYSTEM Menu – (Figure 6) ＞［Set the settings for output signals individually. – (Figure 7)］

<Note>

・You cannot fix and continue to output the audio of a specific input. When the video is switched, the audio is

also switched together.

・Even if an SD signal is input in DbyD or UC mode while AW-HS50’s format setting is 1080/59.94i, 720/59.94p

or 1080/50i, the audio is not allowed to pass through.

(*1) f PGM bus or others are selected for the AUX output signal, only the [On] setting of “4. AUX Anci” is not enough

for the audio to pass through.

When the following buses are selected, please change their settings in addition to “4. AUX Anci [On]”.

・PGM is selected as a source. ⇒ 5．PGM Anci ［On］

・PVW is selected as a source. ⇒ 6．PVW Anci ［On］

・MV is selected as a source. ⇒ 7．MV Anci ［PGM or PVW］

* f a selected source is KEY_OUT or CLN, the audio will not pass through.

* Screen shows default settings

(Figure 5: AW-HS50 Control Panel)

（A）

（B）

(Figure 6: AW-HS50 Menu Display Screen)

4．For allowing the audio of a source selected at AUX buss to pass through: ［On］(*1)

5．For allowing the audio of a source selected at PGM buss to pass through: ［On］

6．For allowing the audio of a source selected at PVW buss to pass through: ［On］

7．Setting for the output signal for Multi View Display

For allowing the audio of a source selected at PGM bus to pass through: ［PGM］

For allowing the audio of a source selected at PVW bus to pass through: ［PVW］

(Figure 7)
