Panasonic D-Snap SV-AS10 Manuale utente

For USA assistance, please call: 1-800-211-PANA(7262) or send e-mail to:[email protected]

For Canadian assistance, please call: 1-800-561-5505 or visit us at www.panasonic.ca

SD Multi Camera

Operating Instructions

Model No. SV-AS10

Before use, please read these instructions

completely.

VQT0F01

SV-AS10_PP.book 1 ページ２００３年７月３０日　水曜日　午後９時２４分

Contents

Preparation

Standard Accessories . . . . . . . . . . . . . . . . . . . . 4

Information for Your Safety . . . . . . . . . . . . . . . . . 6

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Insert the Battery . . . . . . . . . . . . . . . . . . . . . . . 10

Remove the Battery . . . . . . . . . . . . . . . . . . . . . 11

Charging the Battery . . . . . . . . . . . . . . . . . . . . 12

Charging Information . . . . . . . . . . . . . . . . . . . . 13

Insert the Card . . . . . . . . . . . . . . . . . . . . . . . . . 14

Remove the Card . . . . . . . . . . . . . . . . . . . . . . . 15

About Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Basic Menu Operation . . . . . . . . . . . . . . . . . . . 17

About the Setup Menu . . . . . . . . . . . . . . . . . . . 18

Setting the Date/Time . . . . . . . . . . . . . . . . . . . 19

Basic (Recording)

Taking a Picture (Still Picture) . . . . . . . . . . . . . 20

Recording Still Picture with Audio . . . . . . . . . . 23

Taking Pictures in Burst Mode . . . . . . . . . . . . . 24

Recording Motion Images . . . . . . . . . . . . . . . . 25

Recording Voice . . . . . . . . . . . . . . . . . . . . . . . . 26

Basic (Play back)

Playing Back Still Pictures . . . . . . . . . . . . . . . . 27

Playing Back Still Picture with Audio . . . . . . . . 28

Playing Back Motion Images . . . . . . . . . . . . . . 29

Playing Back Voice . . . . . . . . . . . . . . . . . . . . . . 30

Playing Back Music . . . . . . . . . . . . . . . . . . . . . 31

Multi File Playback (Thumbnail display) . . . . . . 35

Erasing Files . . . . . . . . . . . . . . . . . . . . . . . . . . 36

SV-AS10_PP.book 2 ページ２００３年７月３０日　水曜日　午後９時２４分

Advanced (Recording)

Setting Flash . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Changing the Quality and Size of Picture . . . . . 39

Taking Pictures with the Self Timer . . . . . . . . . 40

Setting the White Balance . . . . . . . . . . . . . . . . 41

Setting the White Balance (Manual) . . . . . . . . . 42

Setting the Application Menu . . . . . . . . . . . . . . 43

Advanced (Play back)

Using the Playback Zoom . . . . . . . . . . . . . . . . . 45

Marking the Picture as a “Favorite” . . . . . . . . . 46

Playing back Still Pictures on the Slide Show

. . . . . 47

Setting the Still Pictures to be Printed

(DPOF print) . . . . . . . . . . . . . . . . . . . . . . . . . 48

Preventing Accidental Erasure of Files

(Lock setting) . . . . . . . . . . . . . . . . . . . . . . . . . 50

Adding Audio to the Still Picture

(Audio dubbing) . . . . . . . . . . . . . . . . . . . . . . . 51

Resizing the Still Picture . . . . . . . . . . . . . . . . . . 52

Altering the Color of the Still Picture

(Color Creator) . . . . . . . . . . . . . . . . . . . . . . . 53

Connecting to PC . . . . . . . . . . . . . . . . . . . . . . . 54

Others

LCD Monitor Display . . . . . . . . . . . . . . . . . . . . 64

Menu Screen Display . . . . . . . . . . . . . . . . . . . . 65

Cautions for Use . . . . . . . . . . . . . . . . . . . . . . . 68

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . 76

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Limited Warranty (For U.S.A. Only) . . . . . . . . . 82

Customer Services Directory

(For U.S.A. Only) . . . . . . . . . . . . . . . . . . . . . . 84

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Spanish Quick Use Guide/

Guía rápida para el usuario en español . . . . 86

SV-AS10_PP.book 3 ページ２００３年７月３０日　水曜日　午後９時２４分

Standard Accessories

Before using your camera, check the

contents.

_SD Memory Card (8MB)

RP-SD008BVE0

Battery Pack

CGA-S003

_.USB Cradle

VSK0643

_AC Adaptor

VSK0626

_Remote Controller

VYC0902

_Stereo Earphones

L0BAB0000173

_USB Cable

K1HA09BD0001

SV-AS10_PP.book 4 ページ２００３年７月３０日　水曜日　午後９時２４分

_CD-ROM

VFF0206

_Neck Lanyard

VFC4028

_Carrying Case

VFC4013

_Cleaning Cloth

VFC1792

SV-AS10_PP.book 5 ページ２００３年７月３０日　水曜日　午後９時２４分

Information for Your Safety

Dear Customer,

We would like to take this opportunity to

thank you for purchasing this Panasonic

SD Multi Camera. Please read these

Operating Instructions carefully and keep

them handy for future reference.

Carefully observe copyright laws.

Recording of pre-recorded tapes or

discs or other published or broadcast

material for purposes other than your

own private use may infringe

of private use, recording of certain

material may be restricted.

• Please note that the actual controls

and components, menu items, etc. of

your SD Multi Camera may look

somewhat different from those shown

in the illustrations in these Operating

Instructions.

WARNING

TO REDUCE THE RISK OF FIRE

OR SHOCK HAZARD AND

ANNOYING INTERFERENCE, USE

ONLY THE RECOMMENDED

ACCESSORIES AND DO NOT

EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE. DO NOT

REMOVE THE COVER (OR BACK);

THERE ARE NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

Notice:

This product has parts that contain a

small amount of mercury. It also

contains lead in some components.

Disposal of these materials may be

regulated in your community due to

environmental considerations. For

disposal or recycling information

please contact your local authorities,

or the Electronics Industries

Alliance: <http://www.eiae.org.>

A lithium ion/polymer

battery that is recyclable

powers the product you

have purchased. Please

call 1-800-8-BATTERY for

information on how to

recycle this battery.

RBRC

Li-ion

SV-AS10_PP.book 6 ページ２００３年７月３０日　水曜日　午後９時２４分

FCC Note: (U.S. only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface

cables with ferrite core when connecting to computer or peripheral devices.

Any changes or modifications not expressly approved by the party responsible for compliance could void the

user’s authority to operate this equipment.

Trade Name: Panasonic

Model No.: SV-AS10

Responsible party: Matsushita Electric Corporation of America One Panasonic Way, Secaucus, NJ 07094

Support Contact: Panasonic Consumer Electronics Company 1-800-211-PANA(7262)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

This Class B digital apparatus

complies with Canadian ICES-003

SV-AS10

SV-AS10_PP.book 7 ページ２００３年７月３０日　水曜日　午後９時２４分

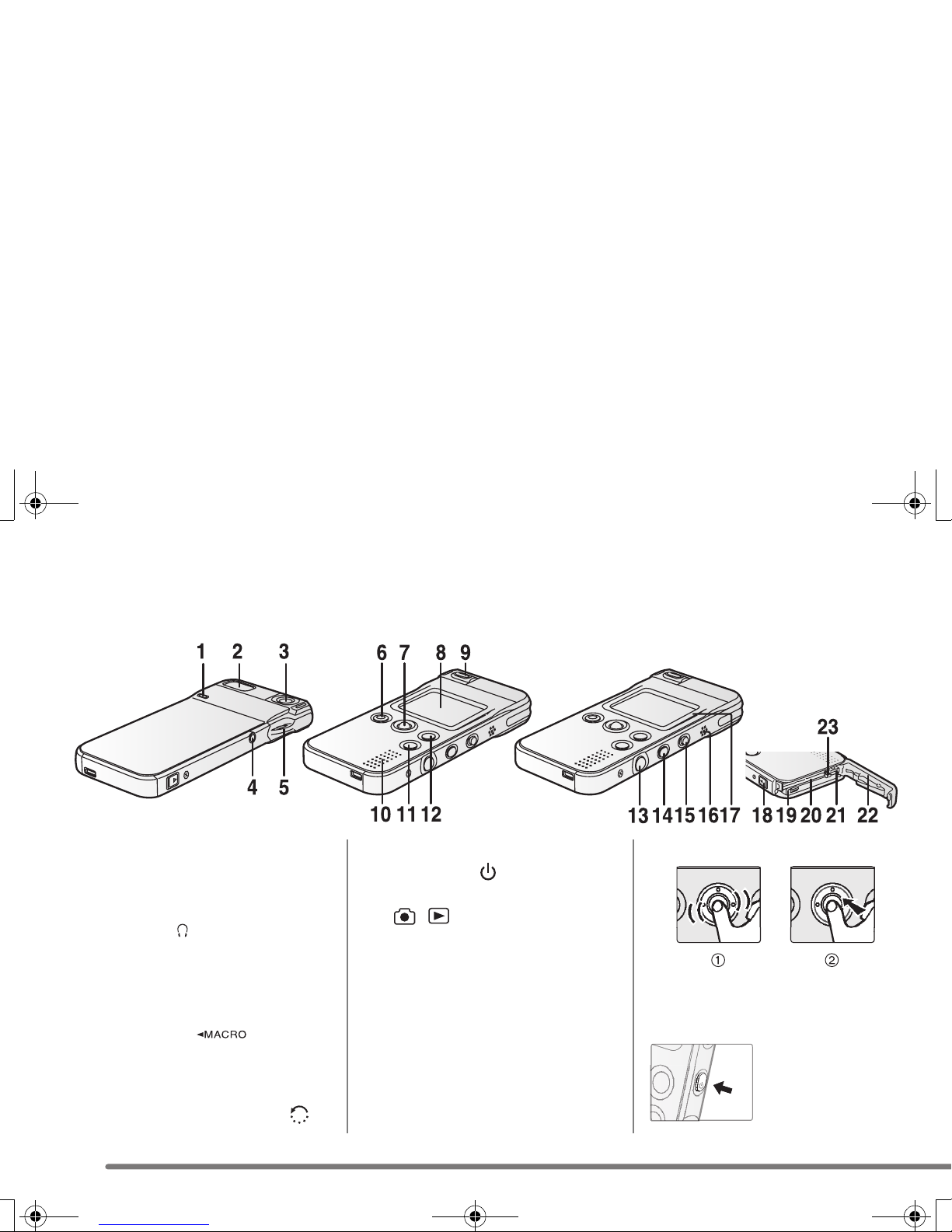

Components

_Body

1Self timer Lamp

2Flash

3Lens

4Terminal (Headphone/Remote

Controller) [ ]

5Strap Attachment

6Shutter Button [[]

7Jog Ball

8LCD Monitor

9Macro Switch [ ]

10 Speaker

•For confirming voice and music.

11 Screen Reversal Button/HOLD

Button (when playing music) [ ]

12 MENU Button [MENU]

13 Shutter Button [[]

14 Power Button [ ]

15 Record/Playback mode Switch

[/]

16 Microphone

17 Power/Card Access Lamp

18 Lock Release Lever

19 Battery Slot

20 Card Slot

21 Connector for USB Cradle

22 Card/Battery Door

23 Battery Lock

_Operating Jog Ball

Roll the ball to select items. 1

Press to select items. 2

_Operating Power Button

Hold for about 1

second to turn the

power on.

Hold for about 2

seconds to turn the

power off.

SV-AS10_PP.book 8 ページ２００３年７月３０日　水曜日　午後９時２４分

_USB Cradle

Insert SV-AS10 into cradle to charge the

battery. When you connect the cradle to

your PC using the supplied USB cable,

you can view pictures, edit music or listen

to voice recordings.

1Charge Lamp [CHG]

2Connector

3Release Button [RELEASE]

4USB Socket [USB]

5DC Input Socket [DC IN 4.8V]

_Remote Controller

You can play back pictures, sounds and

music, and control the volume of the

sound and music. You can also take

pictures by using this remote controller.

1Stereo Earphone Socket

2Volume Button [j VOL i]

3Playback/Stop/Shutter Button

[1/∫/µ]

4Fast-forward Button [9]

5Fast-rewind Button [:]

6Clip

7Hold Switch [HOLD]

8Equalizer Button [EQ]

_Stereo Earphones

When using earphones, be sure to

connect to the supplied remote controller.

1Stereo Earphones

2Remote Controller

• If you use earphones other than the

ones supplied, use 9.84 feet (3 m) or

less length of earphones (including the

remote controller).

SV-AS10_PP.book 9 ページ２００３年７月３０日　水曜日　午後９時２４分

Insert the Battery

Slide the door while releasing the

lock. 1

Open the door. 2

Insert the battery all the way.

• Confirm the direction of the battery.

Close the door. 1

Lock the door while sliding it. 2

SV-AS10_PP.book 10 ページ２００３年７月３０日　水曜日　午後９時２４分

Altri manuali per D-Snap SV-AS10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Macchina fotografica digitale

Panasonic

Panasonic LUMIX DC-GF10K Specifiche tecniche

Panasonic

Panasonic Lumix DMCFX700EP Manuale utente

Panasonic

Panasonic Lumix DMC-TZ70 Specifiche tecniche

Panasonic

Panasonic PalmCam PV-DC2090 Manuale utente

Panasonic

Panasonic SVAV30U - SD MULTI MEDIA TERMI Manuale utente

Panasonic

Panasonic Lumix DMC-ZR3 Specifiche tecniche

Panasonic

Panasonic LUMIX DMC-FZ100 Specifiche tecniche

Panasonic

Panasonic Lumix DMC-GF5K Manuale di istruzioni

Panasonic

Panasonic DMC FX10 - Lumix Digital Camera Manuale di istruzioni

Panasonic

Panasonic AK-HC5000G Manuale utente

Panasonic

Panasonic GPUS522H - COLOR CAMERA Manuale utente

Panasonic

Panasonic Lumix DMC-FZ18P Manuale utente

Panasonic

Panasonic Lumix DMC-ZS10 Manuale utente

Panasonic

Panasonic Lumix GH5 2 Manuale di servizio

Panasonic

Panasonic DMCGF2 - DIGITAL CAMERA-ADV FEATURES Manuale utente

Panasonic

Panasonic Lumix DMC-FS62 Manuale utente

Panasonic

Panasonic Lumix DMC-ZS8 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic Lumix DC-GH5M2 Manuale utente

Panasonic

Panasonic DMC-TZ6EB Manuale utente

Panasonic

Panasonic LUMIX DMC-GM1K Specifiche tecniche

Panasonic

Panasonic Lumix DC-G110 Manuale utente

Panasonic

Panasonic DMC-FX70EB Manuale utente

Panasonic

Panasonic Lumix DMC-GH1 Manuale utente

Panasonic

Panasonic LUMIX DMC-FX500 Manuale di istruzioni

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
