Panasonic LUMIX DMC-FH20 Specifiche tecniche

Basic Operating Instructions

Digital Camera

Model No. DMC-FH20

DMC-FH3

DMC-FH1

Before connecting, operating or adjusting this product,

please read the instructions completely.

Please also refer to Operating

Instructions (PDF format)

recorded on the CD-ROM

containing the Operating Instructions

(supplied).

You can learn about advanced operation methods

and check the Troubleshooting section.

until

2010/1/30

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: [email protected]

VQT2K51

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 1 ページ２００９年１２月２２日　火曜日　午後５時１７分

VQT2K51 (ENG)

Dear Customer,

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on

the market today. Used properly, we’re sure it will bring you and your family

years of enjoyment. Please take time to fill in the information on the below.

The serial number is on the tag located on the underside of your Camera. Be

sure to retain this manual as your convenient Camera information source.

Please note that the actual controls and components, menu items, etc. of

your Digital Camera may look somewhat different from those shown in the

illustrations in these Operating Instructions.

Carefully observe copyright laws.

•Recording of pre-recorded tapes or discs or other published or broadcast

material for purposes other than your own private use may infringe copyright

laws. Even for the purpose of private use, recording of certain material may be

restricted.

A lithium ion battery that is recyclable powers the product

you have purchased. Please call 1-800-8-BATTERY for

information on how to recycle this battery.

Model No.

Serial No.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 2 ページ２００９年１２月１６日　水曜日　午後１０時４０分

(ENG) VQT2K51

Information for Your Safety

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT

DAMAGE,

•DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING

OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH

AS VASES, SHALL BE PLACED ON THE APPARATUS.

•USE ONLY THE RECOMMENDED ACCESSORIES.

•DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE

EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

Product Identification Marking is located on the bottom of units.

This Class B digital apparatus complies with Canadian ICES-003.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 3 ページ２００９年１２月１６日　水曜日　午後１０時４０分

VQT2K51 (ENG)

∫About the battery pack

•Do not heat or expose to flame.

•Do not leave the battery(ies) in an automobile exposed to direct sunlight for a

long period of time with doors and windows closed.

∫About the battery charger

CAUTION

Battery pack (Lithium ion battery pack)

•Use the specified unit to recharge the battery pack.

•Do not use the battery pack with equipment other than the specified unit.

•Do not get dirt, sand, liquids, or other foreign matter on the terminals.

•Do not touch the plug terminals (iand j) with metal objects.

•Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or clothes,

wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub the

eyes. Rinse eyes thoroughly with water, and then consult a doctor.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose

of used batteries according to the manufacturer’s instructions.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC

(140 oF) or incinerate.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN

CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT

IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK

OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT

CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE

VENTILATION VENTS.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 4 ページ２００９年１２月１６日　水曜日　午後１０時４０分

(ENG) VQT2K51

∫Cautions for Use

•Always use a genuine Panasonic AC adaptor (DMW-AC5PP; optional).

•Do not use any other AV cables except the supplied one.

•Do not use any other USB connection cables except the supplied one.

Keep the camera as far away as possible from electromagnetic

equipment (such as microwave ovens, TVs, video games etc.).

•If you use the camera on top of or near a TV, the pictures and sound on the

camera may be disrupted by electromagnetic wave radiation.

•Do not use the camera near cell phones because doing so may result in noise

adversely affecting the pictures and sound.

•Recorded data may be damaged, or pictures may be distorted, by strong

magnetic fields created by speakers or large motors.

•Electromagnetic wave radiation generated by microprocessors may adversely

affect the camera, disturbing the pictures and sound.

•If the camera is adversely affected by electromagnetic equipment and stops

functioning properly, turn the camera off and remove the battery or disconnect

AC adaptor (DMW-AC5PP; optional). Then reinsert the battery or reconnect AC

adaptor and turn the camera on.

Do not use the camera near radio transmitters or high-voltage lines.

•If you record near radio transmitters or high-voltage lines, the recorded pictures

and sound may be adversely affected.

Battery charger

This battery charger operates on AC between 110 V and 240 V.

But

•In the U.S.A. and Canada, the battery charger must be connected to a 120 V

AC power supply only.

•When connecting to an AC supply outside of the U.S.A. or Canada, use a

plug adaptor to suit the AC outlet configuration.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 5 ページ２００９年１２月１６日　水曜日　午後１０時４０分

VQT2K51 (ENG)

-If you see this symbol-

Information on Disposal in other Countries outside

the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your

local authorities or dealer and ask for the correct

method of disposal.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 6 ページ２００９年１２月１６日　水曜日　午後１０時４０分

(ENG) VQT2K51

Contents

Information for Your Safety ........................................................................... 3

Standard Accessories ................................................................................... 8

Names of the Components ........................................................................... 9

Charging the Battery ................................................................................... 11

About the Built-in Memory/the Card ............................................................ 13

Inserting and Removing the Card (optional)/the Battery ............................. 14

Setting Date/Time (Clock Set)..................................................................... 15

• Changing the clock setting.................................................................... 15

Setting the Menu ......................................................................................... 16

Selecting the [REC] Mode........................................................................... 17

Taking pictures using the automatic function (ñ:Intelligent Auto Mode)... 18

• Scene detection .................................................................................... 19

Motion Picture Mode ................................................................................... 20

Playing back Pictures ([NORMAL PLAY])................................................... 21

Deleting Pictures ......................................................................................... 21

Reading the Operating Instructions

(PDF format) ............................................................................................... 22

Specifications.............................................................................................. 24

Digital Camera Accessory System.............................................................. 27

∫About illustrations in these operating instructions

The procedure is described for DMC-FH1 as an example.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 7 ページ２００９年１２月１６日　水曜日　午後１０時４０分

VQT2K51 (ENG)

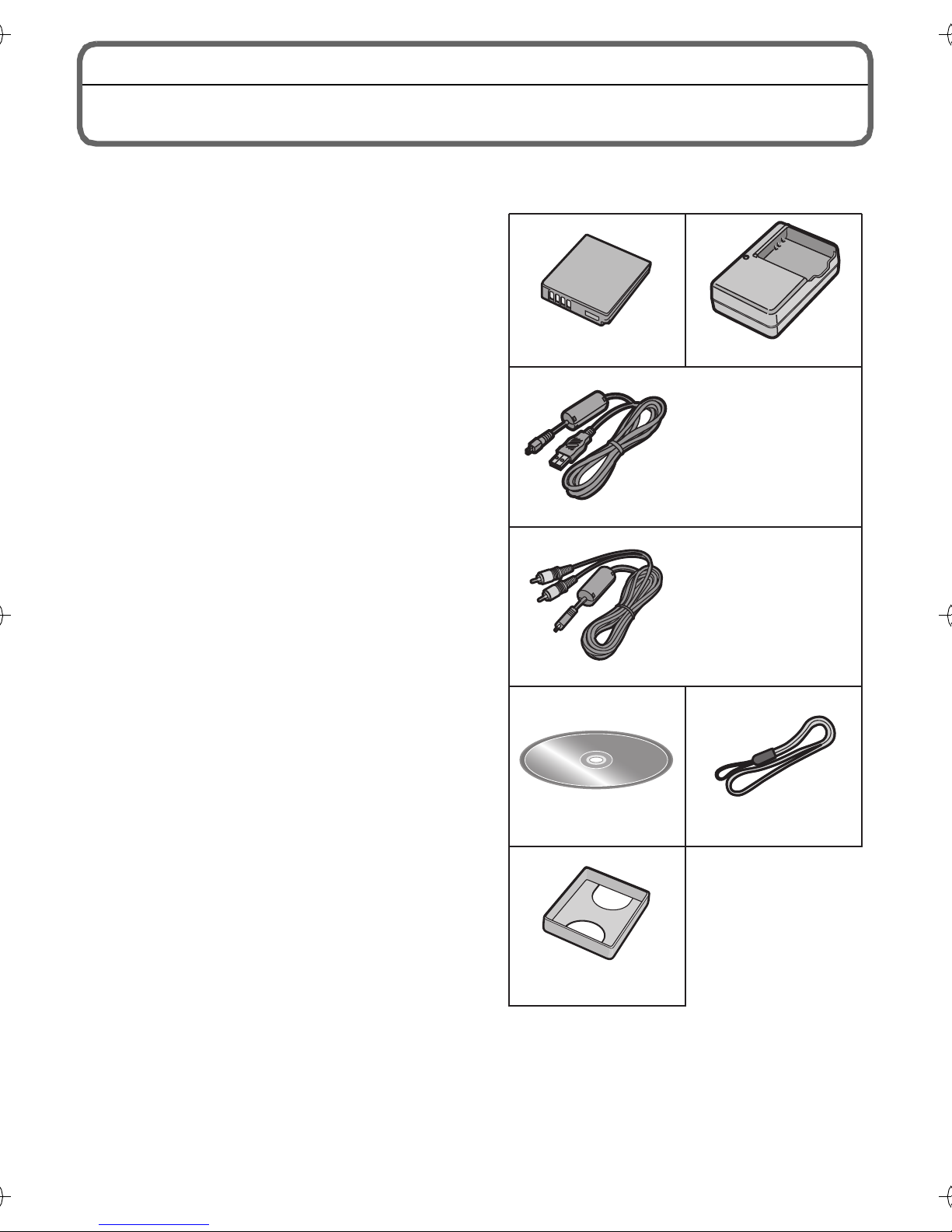

Standard Accessories

Check that all the accessories are included before using the camera.

Product numbers correct as of January 2010. These may be subject to change.

1 Battery Pack

(Indicated as battery pack or

battery in the text)

Charge the battery before use.

2 Battery Charger

(Indicated as battery charger or

charger in the text)

3 USB Connection Cable

4AVCable

5 CD-ROM

•Software:

Use it to install the software to your

PC.

•Operating Instructions

6 Hand Strap

7 Battery Case

•SD Memory Card, SDHC Memory Card

and SDXC Memory Card are indicated

as card in the text.

•The card is optional.

You can record or play back pictures

on the built-in memory when you are

not using a card.

•For information about optional

accessories, refer to the “Digital

Camera Accessory System”.

•If any accessories are lost, customers in

Canada should contact 1 800 99-LUMIX

(1-800-995-8649) for further information

about obtaining replacement parts.

5 6

CGA-S/106B

K1HA08CD0027

VFC4297

DE-A59B

VFF0554

VGQ0D56

K1HA08AD0001

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 8 ページ２００９年１２月２１日　月曜日　午後２時９分

(ENG) VQT2K51

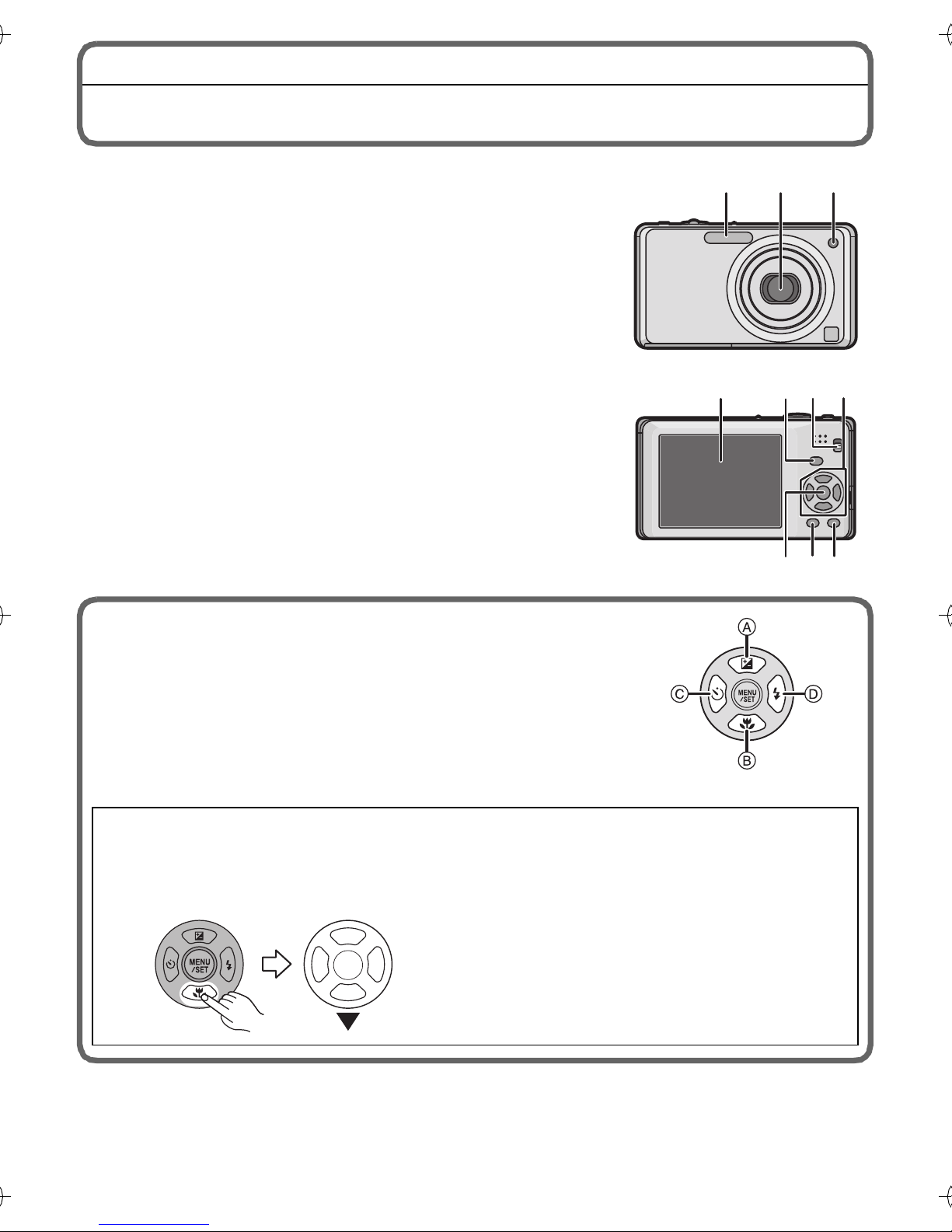

Names of the Components

1Flash

2 Lens

3 Self-timer indicator

AF assist lamp

4LCDmonitor

5 [MENU/SET] button

6 [DISPLAY] button

7 [Q.MENU]/Delete button

8 [MODE] button

9 [REC]/[PLAYBACK] selector switch

10 Cursor buttons

A: 3/Exposure compensation

B: 4/Macro Mode

C: 2/Self-timer button

D: 1/Flash setting button

In these operating instructions, the cursor buttons are described as shown

in the figure below or described with 3/4/2/1.

e.g.: When you press the 4(down) button

or Press 4

1 2 3

4109

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 9 ページ２００９年１２月１６日　水曜日　午後１０時４０分

VQT2K51 (ENG)

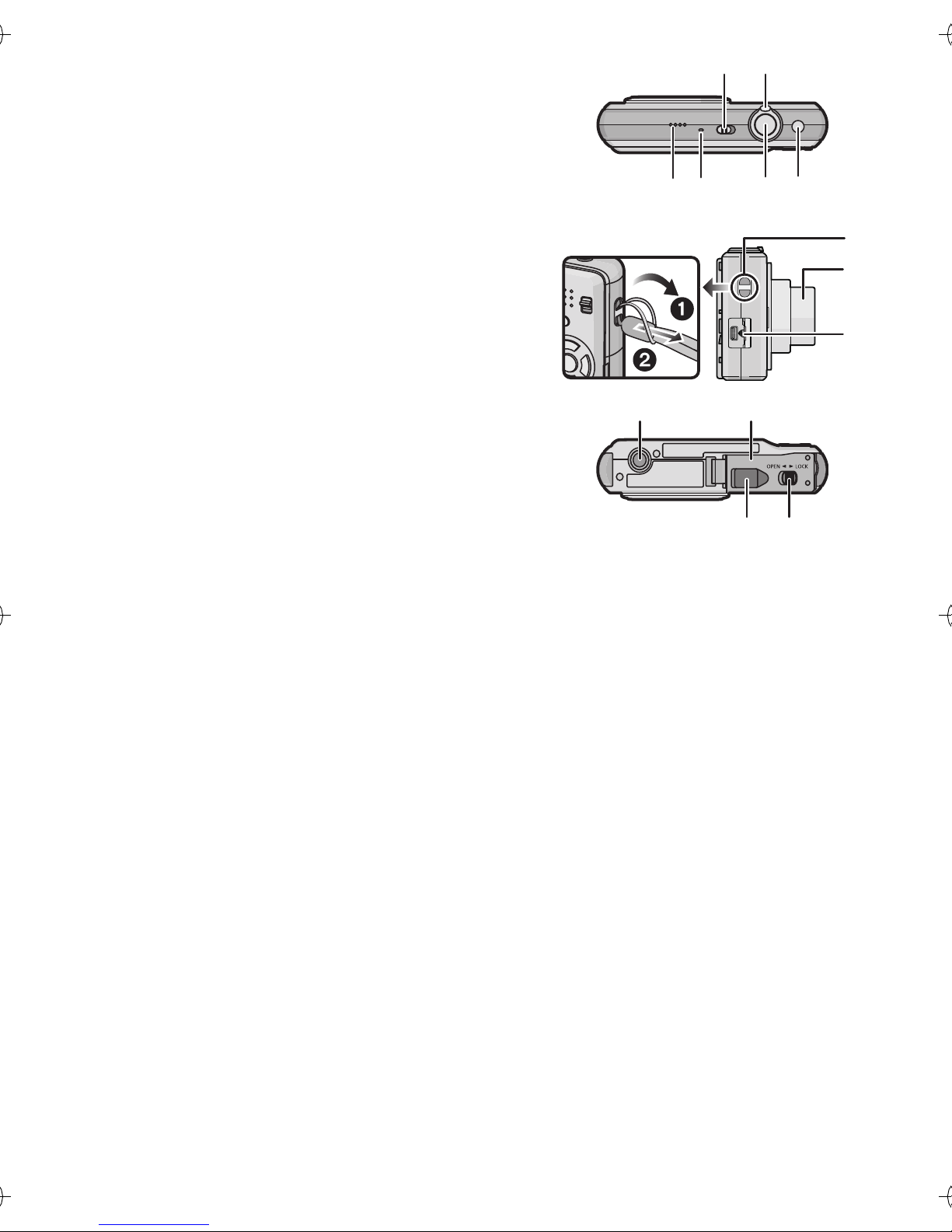

11 Camera ON/OFF switch

12 Zoom lever

13 Speaker

14 Microphone

15 Shutter button

16 Intelligent auto button

17 Hand strap eyelet

•Be sure to attach the hand strap when

using the camera to ensure that you will

not drop it.

18 Lens barrel

19 [AV OUT/DIGITAL] socket

20 Tripod receptacle

•When you use a tripod, make sure the

tripod is stable when the camera is

attached to it.

21 Card/Battery door

22 Release lever

23 DC coupler cover

•When using an AC adaptor, ensure that

the Panasonic DC coupler (DMW-DCC4;

optional) and AC adaptor (DMW-AC5PP;

optional) are used.

•We recommend you use a battery with

sufficient battery power or the AC adaptor

when recording motion pictures.

•If while recording motion pictures using the

AC adaptor and the power supply is cut off

due to a power outage or if the AC adaptor

is disconnected etc., the motion picture

being recorded will not be recorded.

13 14 15 16

2223

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 10 ページ２００９年１２月１６日　水曜日　午後１０時４０分

Altri manuali per LUMIX DMC-FH20

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Macchina fotografica digitale

Panasonic

Panasonic DMC-F2K Specifiche tecniche

Panasonic

Panasonic DMC-L1K - Lumix Digital Camera SLR Manuale utente

Panasonic

Panasonic Lumix DMC-FT20 Manuale utente

Panasonic

Panasonic DMCFZ20 Manuale utente

Panasonic

Panasonic Lumix DMC-GF2KPP Manuale utente

Panasonic

Panasonic AW-HN130KP Manuale utente

Panasonic

Panasonic Lumix DMC-FZ1000 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic DMC-FX07PP Manuale utente

Panasonic

Panasonic Lumix DMC-LZ20 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic Lumix DMC-LX5 Specifiche tecniche

Panasonic

Panasonic AU-V35C1G Manuale utente

Panasonic

Panasonic LUMIX DMC-FZ2EN Manuale utente

Panasonic

Panasonic Lumix DMC-TZ37EC Manuale utente

Panasonic

Panasonic Lumix DMC-TS5D Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic GPRV301FL - REAR VIEW CAMERA Manuale utente

Panasonic

Panasonic DMC-FT3 Manuale utente

Panasonic

Panasonic Lumix DMC-G3K Specifiche tecniche

Panasonic

Panasonic Lumix DMC-FZ35 Manuale utente

Panasonic

Panasonic Lumix DMC-LC50 Manuale utente

Panasonic

Panasonic DMC-SZ9 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic LUMIX DMC-FZ1000B9 Manuale utente

Panasonic

Panasonic LUMIX DMC-LX1EB Manuale utente

Panasonic

Panasonic LUMIX DMC-TZ4 Manuale utente

Panasonic

Panasonic DMC-ZS5K Specifiche tecniche

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
