Basic Operating Instructions

Digital Camera

Model No. DMC-FH22

VQT2K91

H0110HM0

Before connecting, operating or adjusting this product,

please read the instructions completely.

Please also refer to

Operating Instructions (PDF

format) recorded on the

CD-ROM containing the Operating Instructions

(supplied).

You can learn about advanced operation methods

and check the Troubleshooting.

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: [email protected]

VQT2K91DMC-FH22PCEN.indd1VQT2K91DMC-FH22PCEN.indd1 2010/01/0819:35:112010/01/0819:35:11

2VQT2K91 (ENG)

Dear Customer,

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on

the market today. Used properly, we’re sure it will bring you and your family

years of enjoyment. Please take time to ﬁll in the information in the box below.

The serial number is on the tag located on the underside of your Camera. Be

sure to retain this manual as your convenient Camera information source.

Please note that the actual controls and components, menu items, etc. of

your Digital Camera may look somewhat different from those shown in the

illustrations in these Operating Instructions.

Model No.

Serial No.

Carefully observe copyright laws.

• Recording of pre-recorded tapes or discs or other published or broadcast material

for purposes other than your own private use may infringe copyright laws. Even for

the purpose of private use, recording of certain material may be restricted.

A lithium ion battery that is recyclable powers

the product you have purchased. Please call

1-800-8-BATTERY for information on how to recycle

this battery.

Information for Your Safety

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

*DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING

OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS,

SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

*USE ONLY THE RECOMMENDED ACCESSORIES.

*DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO

USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE

EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

Product Identiﬁcation Marking is located on the bottom of units.

VQT2K91DMC-FH22PCEN.indd2VQT2K91DMC-FH22PCEN.indd2 2010/01/0819:35:112010/01/0819:35:11

(ENG) VQT2K91

This Class B digital apparatus complies

with Canadian ICES-003.

About the battery pack

CAUTION

Battery pack (Lithium ion battery pack)

• Use the speciﬁed unit to recharge the battery pack.

• Do not use the battery pack with equipment other than the speciﬁed

unit.

• Do not get dirt, sand, liquids, or other foreign matter on the

terminals.

• Do not touch the plug terminals (+ and –) with metal objects.

• Do not disassemble, remodel, heat or throw into ﬁre.

If any electrolyte should come into contact with your hands or clothes,

wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub

the eyes. Rinse eyes thoroughly with water, and then consult a doctor.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only

with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s

instructions.

• Do not heat or expose to ﬂame.

• Do not leave the battery(ies) in an automobile exposed to direct

sunlight for a long period of time with doors and windows closed.

Warning

Risk of ﬁre, explosion and burns. Do not disassemble, heat above

60°C (140°F) or incinerate.

VQT2K91DMC-FH22PCEN.indd3VQT2K91DMC-FH22PCEN.indd3 2010/01/0819:35:112010/01/0819:35:11

4VQT2K91 (ENG)

About the battery charger

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-

IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE

UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC

SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE

THAT CURTAINS AND ANY OTHER MATERIALS DO NOT

OBSTRUCT THE VENTILATION VENTS.

Battery charger

This battery charger operates on AC between 110V and 240V.

But

• In the U.S.A. and Canada, the battery charger must be connected to

a 120V AC power supply only.

• When connecting to an AC supply outside of the U.S.A. or Canada,

use a plug adaptor to suit the AC outlet conﬁguration.

Cautions for Use

• Always use a genuine Panasonic AC adaptor (DMW-AC5PP:

optional).

• When using an AC adaptor, use the AC cable supplied with the AC

adaptor.

• Do not use any other AV cables except the supplied one.

• Do not use any other USB connection cables except the supplied

one.

– If you see this symbol –

Information on Disposal in other Countries outside the

European Union

This symbol is only valid in the European Union. If you

wish to discard this product, please contact your local

authorities or dealer and ask for the correct method of

disposal.

VQT2K91DMC-FH22PCEN.indd4VQT2K91DMC-FH22PCEN.indd4 2010/01/0819:35:112010/01/0819:35:11

(ENG) VQT2K91

Keep the camera as far away as possible from electromagnetic

equipment (such as microwave ovens, TVs, video games etc.).

• If you use the camera on top of or near a TV, the pictures and sound

on the camera may be disrupted by electromagnetic wave radiation.

• Do not use the camera near cell phones because doing so may result

in noise adversely affecting the pictures and sound.

• Recorded data may be damaged, or pictures may be distorted, by

strong magnetic ﬁelds created by speakers or large motors.

• Electromagnetic wave radiation generated by microprocessors may

adversely affect the camera, disturbing the pictures and sound.

• If the camera is adversely affected by electromagnetic equipment and

stops functioning properly, turn the camera off and remove the battery

or disconnect AC adaptor (DMW-AC5PP: optional). Then reinsert the

battery or reconnect AC adaptor and turn the camera on.

Do not use the camera near radio transmitters or high-voltage

lines.

• If you record near radio transmitters or high-voltage lines, the

recorded pictures and sound may be adversely affected.

VQT2K91DMC-FH22PCEN.indd5VQT2K91DMC-FH22PCEN.indd5 2010/01/0819:35:112010/01/0819:35:11

6VQT2K91 (ENG)

Contents

Information for Your Safety....................................................................2

Before Use

Standard Accessories...........................................................................7

Names of the Components...................................................................8

How to Use the Touch Panel.................................................................9

Preparation

Charging the Battery ..........................................................................10

About the Built-in Memory/the Card ...................................................12

Inserting and Removing the Card (optional)/the Battery ....................13

Setting Date/Time (Clock Set) ............................................................14

Setting the Menu ................................................................................15

Selecting the [REC] Mode ..................................................................16

Basic

Taking Pictures Using the Automatic Function

(4: Intelligent Auto Mode) ............................................................17

• Scene Detection...........................................................................18

Motion Picture Mode...........................................................................19

Playing Back Pictures ([NORMAL PLAY]) ..........................................20

Deleting Pictures ................................................................................20

Others

Reading the Operating Instructions (PDF format) ..............................21

Speciﬁcations .....................................................................................23

Digital Camera Accessory System .....................................................26

VQT2K91DMC-FH22PCEN.indd6VQT2K91DMC-FH22PCEN.indd6 2010/01/0819:35:112010/01/0819:35:11

(ENG) VQT2K91

Before Use

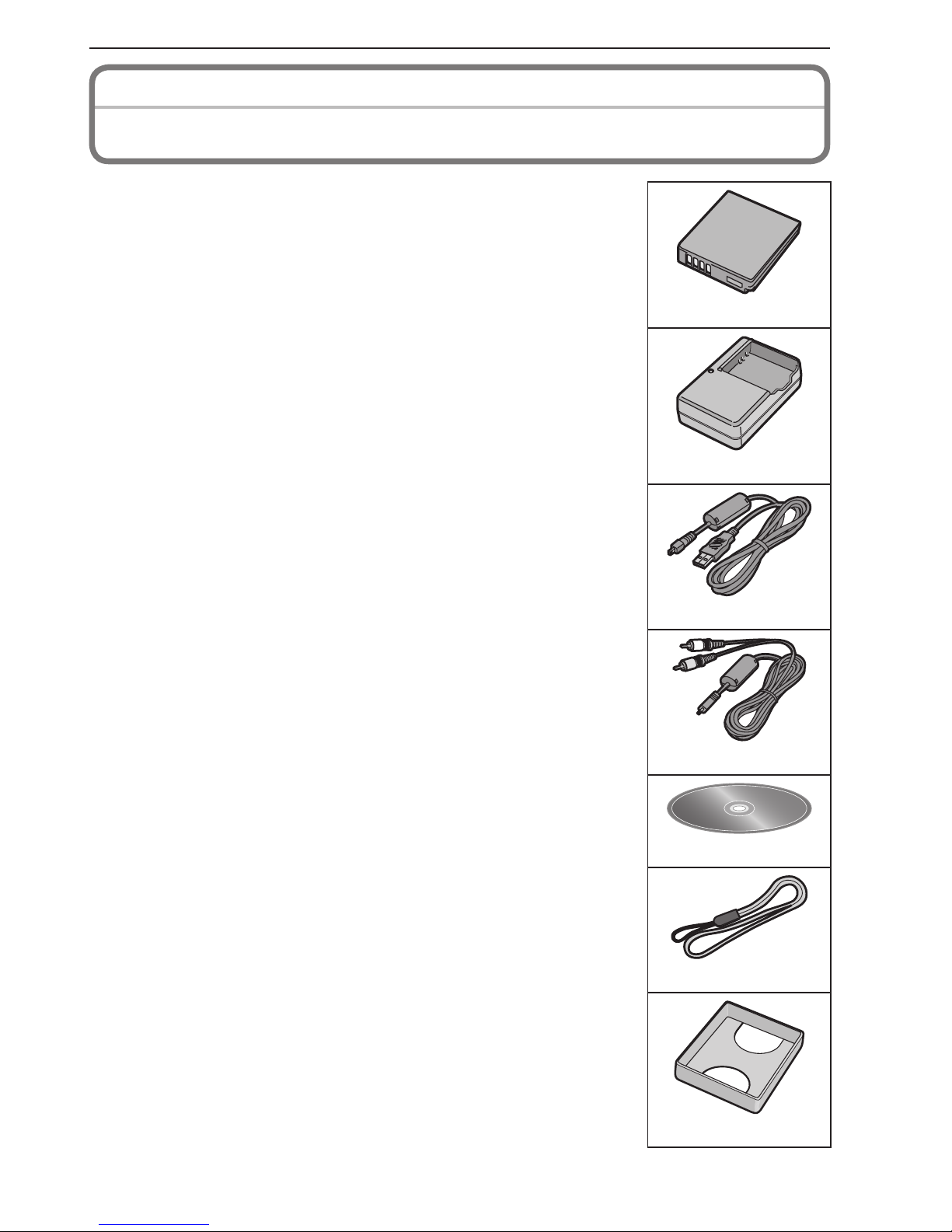

Check that all the accessories are included before

using the camera. Product numbers are correct as

of January 2010. These may be subject to change.

1 Battery Pack

(Battery Pack is indicated as battery pack or

battery in the text.)

Charge the battery before use.

2 Battery Charger

(Battery Charger is indicated as battery

charger or charger in the text.)

3 USB Connection Cable

4 AV Cable

5 CD-ROM

• Software:

Use it to install the software to your PC.

• Operating Instructions

6 Hand Strap

7 Battery Case

• SD Memory Card, SDHC Memory Card and

SDXC Memory Card are indicated as card in the

text.

• Card is optional.

You can record or play back pictures on the

built-in memory when you are not using a

card.

• For information about optional accessories,

please refer to “Digital Camera Accessory

System”.

• If any of the accessories are lost, customers in

Canada should contact 1 800 99-LUMIX (1-800-

995-8649) for further information about obtaining

replacement parts.

Standard Accessories

1 CGA-S/106B

2 DE-A59B

K1HA08AD0001

K1HA08CD0027

5 VFF0563

6 VFC4297

7 VGQ0D56

VQT2K91DMC-FH22PCEN.indd7VQT2K91DMC-FH22PCEN.indd7 2010/01/0819:35:112010/01/0819:35:11

8VQT2K91 (ENG)

Before Use

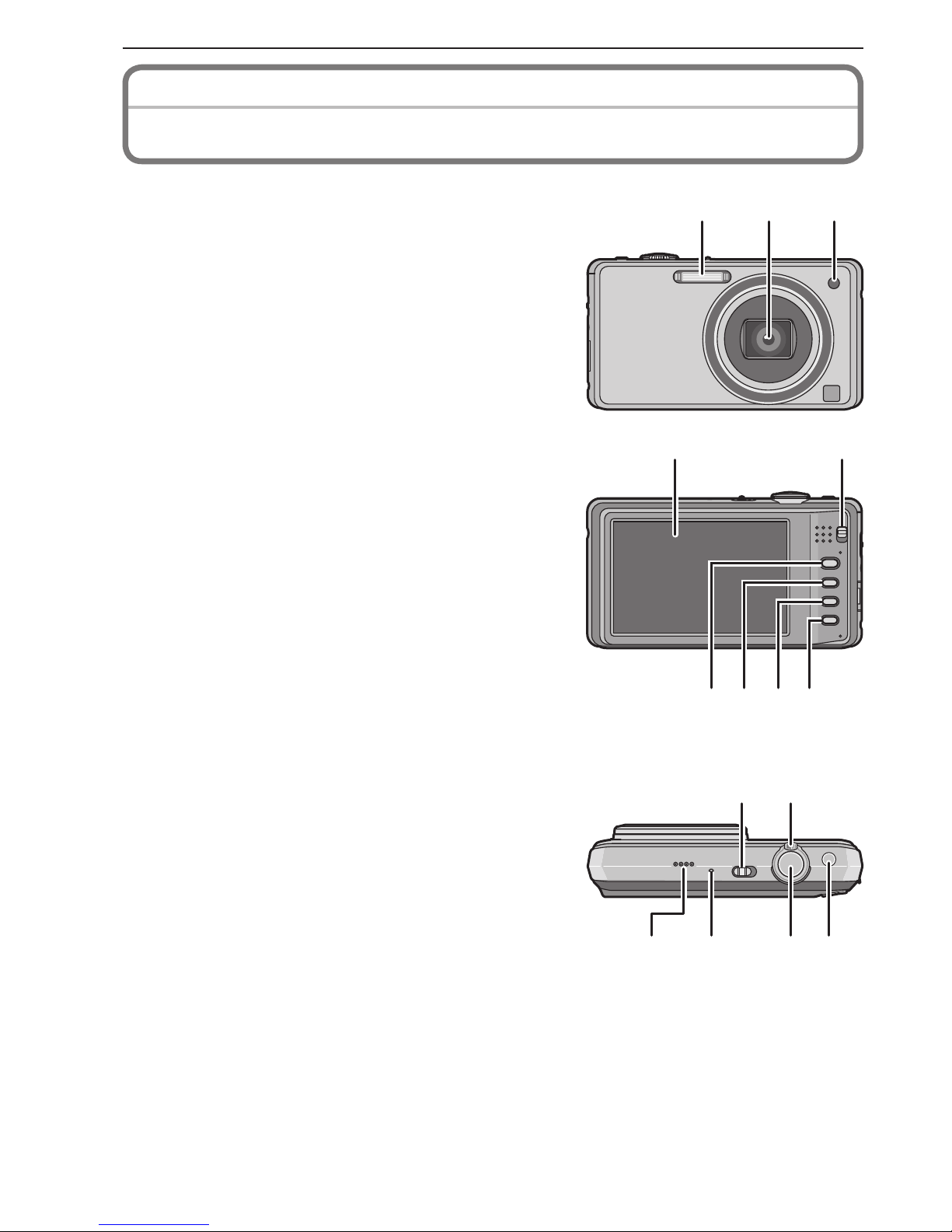

1 Flash 213

2 Lens

3 Self-timer indicator

AF assist lamp

8769

4 Touch Panel/LCD Monitor

5 [REC]/[PLAYBACK] selector switch

6 [MODE] button

7 [DISPLAY] button

8 [MENU] button

9 [Q.MENU]/Delete button

12 13 14 15

10 Camera ON/OFF switch

11 Zoom lever

12 Speaker

13 Microphone

14 Shutter button

15 Intelligent auto button

Names of the Components

VQT2K91DMC-FH22PCEN.indd8VQT2K91DMC-FH22PCEN.indd8 2010/01/0819:35:122010/01/0819:35:12

9(ENG) VQT2K91

Before Use

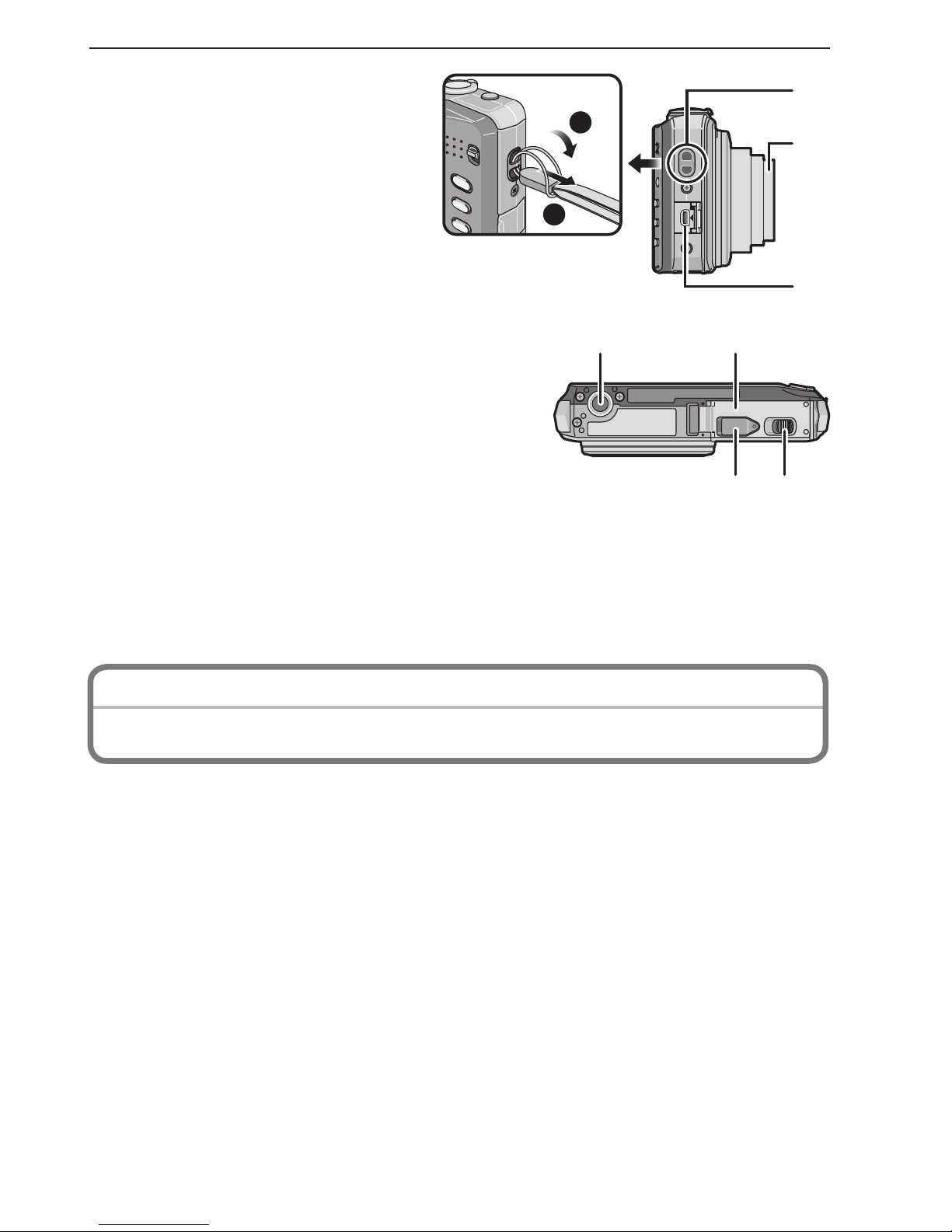

16 Hand strap eyelet

• Be sure to attach the

hand strap when using

the camera to ensure that

you will not drop it.

17 Lens barrel

18 [AV OUT/DIGITAL] socket

19 20

22 21

19 Tripod receptacle

• When you use a tripod, make sure

the tripod is stable when the camera

is attached to it.

20 Card/Battery door

21 Release lever

22 DC coupler cover

• When using an AC adaptor, ensure

that the Panasonic DC coupler (DMW-DCC4; optional) and AC

adaptor (DMW-AC5PP; optional) are used.

You can operate by directly touching the LCD Monitor (Touch Panel)

with your ﬁnger.

 Touch

To touch and release the Touch Panel.

It is used to select icon or picture.

 Drag

A movement performed without releasing the Touch Panel. It is used to

forward or rewind the image during playback.

How to Use the Touch Panel

VQT2K91DMC-FH22PCEN.indd9VQT2K91DMC-FH22PCEN.indd9 2010/01/0819:35:122010/01/0819:35:12

10 VQT2K91 (ENG)

Preparation

Charging the Battery

 About batteries that you can use with this unit

Supplied battery or dedicated optional batteries (DMW-BCF10PP)

can be used with this camera.

It has been found that counterfeit battery packs which look very

similar to the genuine product are made available to purchase in

some markets. Some of these battery packs are not adequately

protected with internal protection to meet the requirements of

appropriate safety standards. There is a possibility that these

battery packs may lead to ﬁre or explosion. Please be advised

that we are not liable for any accident or failure occurring as

a result of use of a counterfeit battery pack. To ensure that

safe products are used we would recommend that a genuine

Panasonic battery pack is used.

• Use the dedicated charger and battery.

• The camera has a function for distinguishing batteries which

can be used safely. The dedicated battery supports this function.

The only batteries suitable for use with this unit are genuine

Panasonic products and batteries manufactured by other

companies and certiﬁed by Panasonic. (Batteries which do not

support this function cannot be used.) Panasonic cannot in any

way guarantee the quality, performance or safety of batteries

which have been manufactured by other companies and are not

genuine Panasonic products.

• The battery is not charged when the camera is shipped. Charge

the battery before use.

• Charge the battery with the charger indoors.

• Charge the battery in a temperature between 10 oC to 35 oC (50 oF to

95 oF). (The battery temperature should also be the same.)

VQT2K91DMC-FH22PCEN.indd10VQT2K91DMC-FH22PCEN.indd10 2010/01/0819:35:122010/01/0819:35:12

Altri manuali per Lumix DMC-FH22

Indice

Altri manuali Panasonic Macchina fotografica digitale

Panasonic

Panasonic Lumix DMC-F7 Manuale utente

Panasonic

Panasonic GP-MF852PT Manuale utente

Panasonic

Panasonic DMC-F3P Manuale utente

Panasonic

Panasonic DMC-ZR3S Specifiche tecniche

Panasonic

Panasonic Lumix DMC-TS3 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic Lumix DC-G95 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic LUMIX DMC-GF1K Manuale utente

Panasonic

Panasonic LUMIX DMC-FS12 Manuale utente

Panasonic

Panasonic LUMIX DC-GH6 Manuale utente

Panasonic

Panasonic DMC FX150K - Lumix Digital Camera Manuale di istruzioni

Panasonic

Panasonic Lumix DMC-TS20 Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic Lumix DMC-LC43A Manuale utente

Panasonic

Panasonic Lumix DC-G100 Manuale utente

Panasonic

Panasonic NV-DCF1A Manuale utente

Panasonic

Panasonic PVDC3000A Manuale utente

Panasonic

Panasonic Lumix DMC-TZ50 Manuale utente

Panasonic

Panasonic Lumix DMC-LC33PP Manuale utente

Panasonic

Panasonic DMC-FX90K Istruzioni per l'installazione e la manutenzione

Panasonic

Panasonic Lumix DMC-G2K Manuale utente

Panasonic

Panasonic LUMIX DMC-LZ8 Manuale utente

Panasonic

Panasonic Lumix DMC-FS37 Specifiche tecniche

Panasonic

Panasonic LUMIX DMC-LX100GN Specifiche tecniche

Panasonic

Panasonic DMCFZ5K - Lumix Digital Camera Manuale utente

Panasonic

Panasonic LUMIX DMC-FX50 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
