Panasonic Lumix DMC-LX15 Specifiche tecniche

SQT1395

M0916KZ0

Basic Operating Instructions

Digital Camera

Model No. DMC-LX15

Please read these instructions carefully before using this product, and

save this manual for future use.

More detailed operating instructions are available in “Operating

Instructions for advanced features (PDF format)”. To read it, download

it from the website. (→50)

Web Site: http://www.panasonic.com

Model number suffix “EB” denotes UK model.

2SQT1395 (ENG)

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic

Digital Camera. Please read these Operating Instructions carefully and keep them

handy for future reference. Please note that the actual controls and components,

menu items, etc. of your Digital Camera may look somewhat different from those

shown in the illustrations in these Operating Instructions.

Carefully observe copyright laws.

• Recording of pre-recorded tapes or discs or other published or broadcast

material for purposes other than your own private use may infringe copyright

laws. Even for the purpose of private use, recording of certain material may be

restricted.

Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.

• Use only the recommended accessories.

• Do not remove covers.

• Do not repair this unit by yourself. Refer servicing to qualified service

personnel.

The socket outlet shall be installed near the equipment and shall be easily

accessible.

■ Product identification marking

Product Location

Digital camera Bottom

SQT1395 (ENG)

■ About the AC adaptor (supplied)

CAUTION!

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in

another confined space. Ensure this unit is well ventilated.

• The unit is in the standby condition when the AC adaptor is connected. The

primary circuit is always “live” as long as the AC adaptor is connected to an

electrical outlet.

■ About the battery pack

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace only with the

type recommended by the manufacturer.

• When disposing of the batteries, please contact your local authorities or dealer

and ask for the correct method of disposal.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period

of time with doors and windows closed.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 °C or

incinerate.

4SQT1395 (ENG)

■ Cautions for Use

• Do not use any other USB connection cables except the supplied one.

• Use a “High Speed HDMI micro cable” with the HDMI logo. Cables that do not

comply with the HDMI standards will not work.

“High Speed HDMI micro cable” (Type D-Type A plug, up to 2 m (6.6 feet) long)

Keep this unit as far away as possible from electromagnetic equipment (such

as microwave ovens, TVs, video games etc.).

• If you use this unit on top of or near a TV, the pictures and/or sound on this unit

may be disrupted by electromagnetic wave radiation.

• Do not use this unit near cell phones because doing so may result in noise

adversely affecting the pictures and/or sound.

• Recorded data may be damaged, or pictures may be distorted, by strong

magnetic fields created by speakers or large motors.

• Electromagnetic wave radiation may adversely affect this unit, disturbing the

pictures and/or sound.

• If this unit is adversely affected by electromagnetic equipment and stops

functioning properly, turn this unit off and remove the battery or disconnect AC

adaptor (supplied)/AC adaptor (DMW-AC10E: optional). Then reinsert the battery

or reconnect AC adaptor and turn this unit on.

Do not use this unit near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded pictures

and/or sound may be adversely affected.

SQT1395 (ENG)

Declaration of Conformity (DoC)

Hereby, “Panasonic Corporation” declares that this product is in

compliance with the essential requirements and other relevant provisions

of Directive 1999/5/EC.

Customers can download a copy of the original DoC to our R&TTE

products from our DoC server:

http://www.doc.panasonic.de

Contact to Authorized Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Germany

This product on purpose to connect to access point of 2.4 GHz WLAN.

These symbols indicate separate collection of

waste electrical and electronic equipment or

waste batteries.

More detailed information is contained in

“Operating Instructions for advanced features

(PDF format)”.

6SQT1395 (ENG)

Contents

■

Information for Your Safety ...................... 2

Preparations

■

Before use.................................................. 7

■

Standard accessories ............................... 8

■

Names and Functions of Main Parts ..... 10

■

Inserting and removing the battery

or SD memory card (optional) ................ 12

■

Charging the battery ............................... 13

■

Setting the clock ..................................... 15

Basics

■

Basic operations ..................................... 16

■

Setting the menu ..................................... 23

Recording

■

Taking pictures with automatic settings

(Intelligent Auto Mode) ........................... 24

■

[Self Shot] ................................................ 25

■

Recording 4K photos .............................. 26

■

[Post Focus] / [Focus Stacking] ............ 30

■

Taking Pictures While Adjusting

a Setting Automatically

(Bracket Recording) ................................ 33

■

Recording Motion Picture/

4K Motion Picture .................................... 34

■

[4K Live Cropping] .................................. 36

Playback

■

Viewing your pictures ............................. 38

■

[Light Composition] ................................ 39

■

Menu list ................................................... 41

Wi-Fi

■

What you can do with the

Wi-Fi® function ........................................ 44

■

Operating the camera by connecting

it to a smartphone ................................... 45

Others

■

Downloading software ............................ 48

■

Reading the Operating Instructions

(PDF format) ............................................ 50

■

List of monitor displays .......................... 51

■

Q&A Troubleshooting ............................ 55

■

Specifications .......................................... 57

■

Digital Camera Accessory System ........ 61

■ About the symbols in the text

Indicates that the menu can be set by pressing [MENU/SET] button.

In this Operating Instructions, steps for setting a menu item are described as

follows:

→ [Rec] → [Quality] → [ ]

SQT1395 (ENG)

Preparations

Before use

■ Camera handling

● Keep the camera away from excessive vibration, force, or pressure.

● The camera is not dust resistant, splash resistant, or waterproof.

Avoid using the camera in places with excessive dust or sand, or where water can come into

contact with the camera.

● Do not allow camera to come into contact with pesticides or volatile substances (can cause

surface damage or coating to peel).

■ Condensation (When the lens or the monitor is fogged up)

● Condensation may occur when the camera is exposed to sudden changes of temperature or

humidity. Avoid these conditions, which may make the lens or monitor dirty, cause mould, or

damage the camera.

● If condensation does occur, turn off the camera and wait about two hours before using it. Once

the camera adjusts to the surrounding temperature, the fogging will clear naturally.

■ Caring for your camera

● To clean your camera, remove the battery, the DC coupler (DMW-DCC15A: optional) or a

card, or disconnect the power plug from the outlet, and wipe with a soft, dry cloth.

● Do not press the monitor with excessive force.

● Do not press the lens with excessive force.

● Do not keep rubber or plastic products in contact with the camera for a long period of time.

● Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the

camera, since it may deteriorate the external case or the coating may peel off.

● Do not leave the camera with the lens facing the sun, as rays of light from the sun may cause

it to malfunction.

● Do not extend the supplied cord or cable.

● While the camera is accessing the card (for an operation such as picture writing, reading,

deletion, or formatting), do not turn off the camera or remove the battery, card, AC adaptor

(DMW-AC10E: optional) or DC coupler (DMW-DCC15A: optional).

● The data on the card may be damaged or lost due to electromagnetic waves, static electricity

or breakdown of the camera or the card. We recommend storing important data on a PC etc.

● Do not format the card on your PC or other equipment. Format it on the camera only to ensure

proper operation.

Preparations

SQT1395 (ENG)

Standard accessories

Check that all the accessories are supplied before using the camera. Part numbers

are as of October 2016. These may be subject to change.

Battery pack

DMW-BLH7E

• Charge the battery before

use.

• Battery pack is indicated as battery

pack or battery in the text.

AC adaptor

SAE0012F

Hand strap

VFC4297

USB connection cable

K1HY04YY0106

SQT1395 (ENG)

Preparations

• Cards are optional. (SD Memory Card, SDHC Memory Card and SDXC

Memory Card are indicated as card in the text.)

– This unit is compatible with UHS- UHS Speed Class 3 standard SDHC/SDXC

memory cards.

– The following SD standard-based cards can be used.

SD Memory Card (512 MB to 2 GB)/SDHC Memory Card (4 GB to 32 GB)/

SDXC Memory Card (48 GB to 128 GB)

– Depending on recording conditions, the required card differs.

• Consult the dealer or your nearest Service Centre if you lose the supplied

accessories. (You can purchase the accessories separately.)

• Please dispose of all packaging appropriately.

• The illustrations and screens in this manual may differ from the actual product.

Preparations

SQT1395 (ENG)

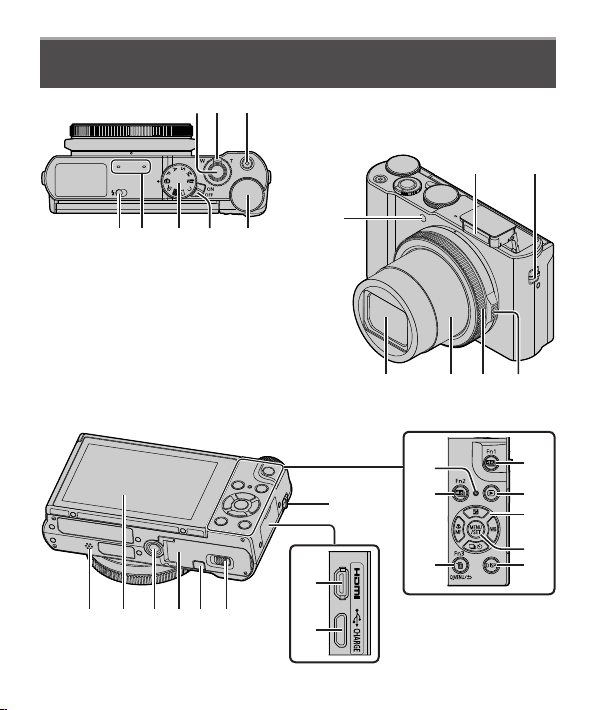

Names and Functions of Main Parts

1 2 3

4 5 6 7 8

12 13 14

26 27 28 29 30 31

Altri manuali per Lumix DMC-LX15

Indice

Altri manuali Panasonic Macchina fotografica digitale

Panasonic

Panasonic Lumix DMC-TZ8 Manuale utente

Panasonic

Panasonic Lumix DMC-SZ1P Manuale utente

Panasonic

Panasonic Lumix DMC-FH27 Manuale utente

Panasonic

Panasonic LUMIX DC-GH5M2GA Manuale utente

Panasonic

Panasonic AU-V35C1G Manuale utente

Panasonic

Panasonic DMC-FZ70P Manuale utente

Panasonic

Panasonic Lumix DMC-GF2KPP Manuale utente

Panasonic

Panasonic Lumix DMC-TZ70GN Manuale del proprietario

Panasonic

Panasonic DMC-FZ150K Specifiche tecniche

Panasonic

Panasonic DMC-SZ9 Specifiche tecniche

Panasonic

Panasonic Lumix DMC-FX180 Manuale utente

Panasonic

Panasonic Lumix DMC-FH27 Specifiche tecniche

Panasonic

Panasonic DMC LS85K - Lumix Digital Camera Manuale di istruzioni

Panasonic

Panasonic Lumix DMC-L10 Manuale utente

Panasonic

Panasonic DMCFH3 - DIGITAL STILL CAMERA Manuale utente

Panasonic

Panasonic Lumix DMC-TZ5; Lumix DMC-TZ4 Manuale utente

Panasonic

Panasonic lumix DMC-LX10 Manuale utente

Panasonic

Panasonic DMC-GF6 Manuale utente

Panasonic

Panasonic Lumix DMC-TZ40 Specifiche tecniche

Panasonic

Panasonic Lumix DMC-TZ25EB Manuale utente

Panasonic

Panasonic DMC-L10K - Lumix Digital Camera SLR Manuale utente

Panasonic

Panasonic DMCFX30 - DIGITAL STILL CAMERA PC... Manuale utente

Panasonic

Panasonic Lumix DMC-GF7K Specifiche tecniche

Panasonic

Panasonic DMC-GF3XK Specifiche tecniche

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
