DVD-ROM DRIVE UNIT

SR-8585-B / SR-8585-C

INSTRUCTION MANUAL

Please read through these instructions before operating this unit.

Interface : ATAPI

iii

ENGLISH

DVD-ROM DRIVE UNIT

SR-8585-B / SR-8585-C

INSTRUCTION MANUAL

Please read through these instructions before operating this unit.

Interface : ATAPI

TABLE OF CONTENTS

IMPORTANT SAFETY NOTICE

1. PRECAUTIONS WHEN OPERATING................................................................... A-5

1.1 PRECAUTIONS WHEN TRANSPORTING...................................................... A-5

1.2 INSTALLATION LOCATION ............................................................................ A-5

1.3 PRECAUTIONS FOR USE .............................................................................. A-5

1.4 PRECAUTIONS FOR OPERATION ................................................................ A-5

1.5 PRECAUTIONS WHEN HANDLING DISCS.................................................... A-5

2. PARTS AND FUNCTIONS .................................................................................... A-7

2.1 FRONT VIEW................................................................................................... A-7

2.2 REAR VIEW ..................................................................................................... A-7

3. CONNECTIONS..................................................................................................... A-8

3.1 CONNECTING VIEW....................................................................................... A-8

4. GUIDE TO OPERATION ....................................................................................... A-8

4.1 INSTALLATIONS ............................................................................................. A-8

5. GENERAL DESCRIPTION .................................................................................... A-9

5.1 FEATURE SUMMARY ..................................................................................... A-9

5.2 SYSTEM SET UP ............................................................................................ A-9

5.3 POWER SAVING ............................................................................................. A-9

6. SPECIFICATION SUMMARY................................................................................ A-9

6.1 PERFORMANCE ............................................................................................. A-9

6.2 ERROR RATES ...............................................................................................A-10

6.3 AUDIO PERFORMANCE.................................................................................A-10

6.4 GENERAL PERFORMANCE ...........................................................................A-11

6.5 ENVIRONMENTAL CONDITIONS...................................................................A-11

6.6 PICK UP LASER ..............................................................................................A-11

7. BEFORE REQUESTING SERVICE.......................................................................A-11

7.1 TROUBLESHOOTING .....................................................................................A-11

IMPORTANT SAFETY NOTICE

NOTICE

(1) You may not reproduce or transcribe any part of this publication without permission.

(2) We reserve the right to revise this document at any time without notice.

(3) If you have any questions about this document, contact your sales representative.

SAFETY NOTICE

(1) To prevent fire or electric shock, do not expose this appliance to rain or moisture.

(2) To avoid electric shock or damage to the eyes due to laser beam, do not attempt to

disassemble the cabinet.

FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO

FREQUENCY INTERFERENCE STATEMENT

Class B Computing Device

NOTE : This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and , if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures :

- - Reorient or relocate the receiving antenna.

- - Increase the separation between the equipment and receiver.

- - Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- - Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING : Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

For USA (Model SR-8585-B only)

A-1

ENGLISH

LASER SAFETY INFORMATION

Class 1 LASER Product

This equipment is certified to comply with DHHS Rule 21 CFR Chapter 1, Subchapter J in

effect as of date of manufacture.

Elsewhere, the drive is certified to conform to the requirements of the International

Electrotechnical Commission (IEC) 825 and CENELEC EN60825 for Class 1 laser

products.

Class 1 laser products are not considered to be hazardous. To ensure continued product

safety, the following precautions should be heeded. This equipment has the Optical Pickup

which has the Dual Lasers (DVD & CD).

Caution :

(1) The use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

(2) The drive is designed to be incorporated into a computer-based system or unit which

has an enclosing cover. The drive may not be used as a stand-alone unit.

(3) Do not open the drive unit; no user adjustments or serviceable parts are inside.

• This label is attached to the upper shield at the top of the drive unit.

• Märkningen återfinns på den översta kåpan överst på drivenheten. (For Sweden)

• Denne merkelappen er festet til det øverste dekselet på toppen av spilleren. (For Norway)

• Denne etiket er sat fast på den øverste skærm på drev-enhedens top. (For Denmark)

• Tämä etiketti on liimattu voimayksikön yläosan suojalevyyn. (For Finland)

CAUTION–

Laser radiation when open.

DO NOT STARE INTO BEAM.

• This label is attached to the inner side of the rear wall on the Mechanism chassis in the drive

unit.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

APPAREIL A LASER DE CLASSE 1

EN60825

A-2

VAROITUS! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla

saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle

lasersäteilylle.

VARNING! Om apparaten används på annat sätt än i denna bruksanvisning

specificerats, kan användaren utsättas för osynlig laserstrålning, som

överskrider gränsen för laserklass 1.

For Finland

For Sweden

• This label is attached to the bottom of the drive unit.

• Märkningen återfinns på drivenhetens undersida. (For Sweden)

• Denne merkelappen er festet til undersiden av spilleren. (For Norway)

• Denne etiket er sat fast i bunden af drev-enheden. (For Denmark)

• Tämä etiketti on liimattu laitteen pohjaan. (For Finland)

CAUTION – INVISIBLE

LASER RADIATION WHEN OPEN

DO NOT STARE INTO BEAM OR VIEW

DIRECTLY WITH OPTICAL INSTRUMENTS

VORSICHT– UNSICHTBARE

LASERSTRAHLUNG, WENN ABDECKUNG

GEOFFNET NICHT IN DEN STRAHL BLICKEN

AUCH NICHT MIT OPTISCHEN INSTRUMENTEN

ADVARSEL– USYNLIG

LASERSTRALING VED ABNING.

SE IKKE IND I STRALEN – HELLER

IKKE MED OPTISKE INSTRUMENTER.

ADVARSEL – USYNLIG

LASERSTRALING NAR DEKSEL APNES.

STIRR IKKE INN I STRALEN ELLER SE

DIREKTE MED OPTISKE INSTRUMENTER.

VARNING – OSYNLIG LASERSTRALNING

NAR DENNA DEL AR OPPNAD.

STIRRA EJ IN I STRALEN OCH BETRAKTA

EJ STRALEN MED OPTISKA INSTRUMENT.

VARO ! NAKYMATONTA AVATTAESSA

OLET ALTTIINA LASERSATEILYLLE.

ALA TUIJOTA SATEESEEN ALAKA

KATSO SITA OPTISEN LAITTEEN L API.

CAUTION–

LASER RADIATION WHEN OPEN

DO NOT STARE INTO BEAM

VORSICHT– LASERSTRAHLUNG,

WENN ABDECKUNG GEOFFNET

NICHT IN DEN STRAHL BLICKEN

ADVARSEL–

LASERSTRALING VED ABNING

SE IKKE IND I STRALEN

ADVARSEL – L ASERSTRALING

NAR DEKSEL APNES

STIRR IKKE INN I STRALEN

VARNING – LASERSTRALNING

NAR DENNA DEL AR OPPNAD

STIRRA EJ IN I STRALEN

VARO ! AVATTAESSA OLET

ALTTIINA LASERSATEILYLLE

ALA TUIJOTA SATEESEEN

.. ..

.. .. ..

ºº

.. .. .. ..

.. .. .. .. .. ..

....

.. .. ..

ººº

ºº

A-3

ENGLISH

for DVD

LASER Specification

Type: Semiconductor laser GaAs

Wave Length: 663 ± 13 nm

Divergence:

= 73.7 ° ± 3 °

Output Power: 0.8 mW

Laser- specifikationer: (For Sweden)

Typ: Laserhalvedare GaAs

Våglängd: 663 ± 13 nm

Divergens:

= 73,7 ° ± 3 °

Uteffekt: 0,8 mW

LASER Spesifikasjon: (For Norway)

Type: Halvleder laser GaAs

Bølgelengde: 663 ± 13 nm

Divergens:

= 73,7 ° ± 3 °

Utgangseffekt: 0,8 mW

Laser Specifikationer: (For Denmark)

Type: Semiconductor GaAs

Bølge-længde: 663 ± 13 nm

Divergens:

= 73,7 ° ± 3 °

Udgang-effekt: 0,8 mW

LASERin tekniset tiedot: (For Finland)

Tyyppi: Laserpuolijohdin GaAs

Aallon pituus: 663 ± 13 nm

Hajaantuminen:

= 73,7 ° ± 3 °

Teho: 0,8 mW

for CD

LASER Specification

Type: Semiconductor laser GaAlAs

Wave Length: 775 ~ 815 nm (Typ. 790 nm)

Divergence:

= 53.4 ° ± 3 °

Output Power: 0.28 mW

Laser- specifikationer: (For Sweden)

Typ: Laserhalvedare GaAlAs

Våglängd: 775 ~ 815 nm (Typiskt 790 nm)

Divergens:

= 53,4 ° ± 3 °

Uteffekt: 0,28 mW

LASER Spesifikasjon: (For Norway)

Type: Halvleder laser GaAlAs

Bølgelengde: 775 ~ 815 nm (Typisk 790 nm)

Divergens:

= 53,4 ° ± 3 °

Utgangseffekt: 0,28 mW

Laser Specifikationer: (For Denmark)

Type: Semiconductor GaAlAs

Bølge-længde: 775 ~ 815 nm (Typisk 790 nm)

Divergens:

= 53,4 ° ± 3 °

Udgang-effekt: 0,28 mW

LASERin tekniset tiedot: (For Finland)

Tyyppi: Laserpuolijohdin GaAlAs

Aallon pituus: 775 ~ 815 nm (Tyypillinen 790 nm)

Hajaantuminen:

= 53,4 ° ± 3 °

Teho: 0,28 mW

A-4

INTRODUCTION

DVD-ROM is read-only memory using a CD-ROM disc system and an audio compact

disc system as a media package which handles digital data. To enjoy audio CD, please

insert the Headphone plug into the Headphone jack.(Model SR-8585-B only)

This drive unit uses DVD-ROM discs which bear the following mark.

This drive unit uses CD-ROM discs which bear the following mark.

This drive unit uses CD-R discs which bear the following mark (read only).

This drive unit uses audio compact discs which bear the following mark.

COMPACT

Recordable

COMPACT

DIGITAL AUDIO

A-5

ENGLISH

CHAPTER 1 PRECAUTIONS WHEN OPERATING

1.1 PRECAUTIONS WHEN TRANSPORTING

To avoid damage

* Keep the original packing materials for the drive unit.

* Before you transport the drive unit, remove the disc from the drive unit and repack

the drive unit in its original packing.

1.2 INSTALLATION LOCATION

Do not place unit in the following environments.

* High-temperature, high-humidity, extreme temperature changes.

* Dusty

* Excessive vibration/ sudden shock.

* Inclined place.

* Direct sunlight.

1.3 PRECAUTIONS FOR USE

* Never push objects of any kind through the Cabinet slots, never spill liquid of any

kind on the unit.

* Do not place objects on the product.

* Do not attempt to service this product yourself.

* Do not open or remove covers.

* Do not place foreign objects in the disc insertion slot and attempt to operate.

* Do not use CD-ROM drive when vertically installed. (Horizontal installation type only)

1.4 PRECAUTIONS FOR OPERATION

To avoid error

* Do not move the drive unit during operation.

* Do not operate the unit directly after a sudden increase in temperature.

NOTE :

A great proportion of problems are usually caused by the following.

➀Dust or Finger-prints on the surface of the disc.

➁Random Electrical Noise.

➂Scratches and Defects on the surface of the disc.

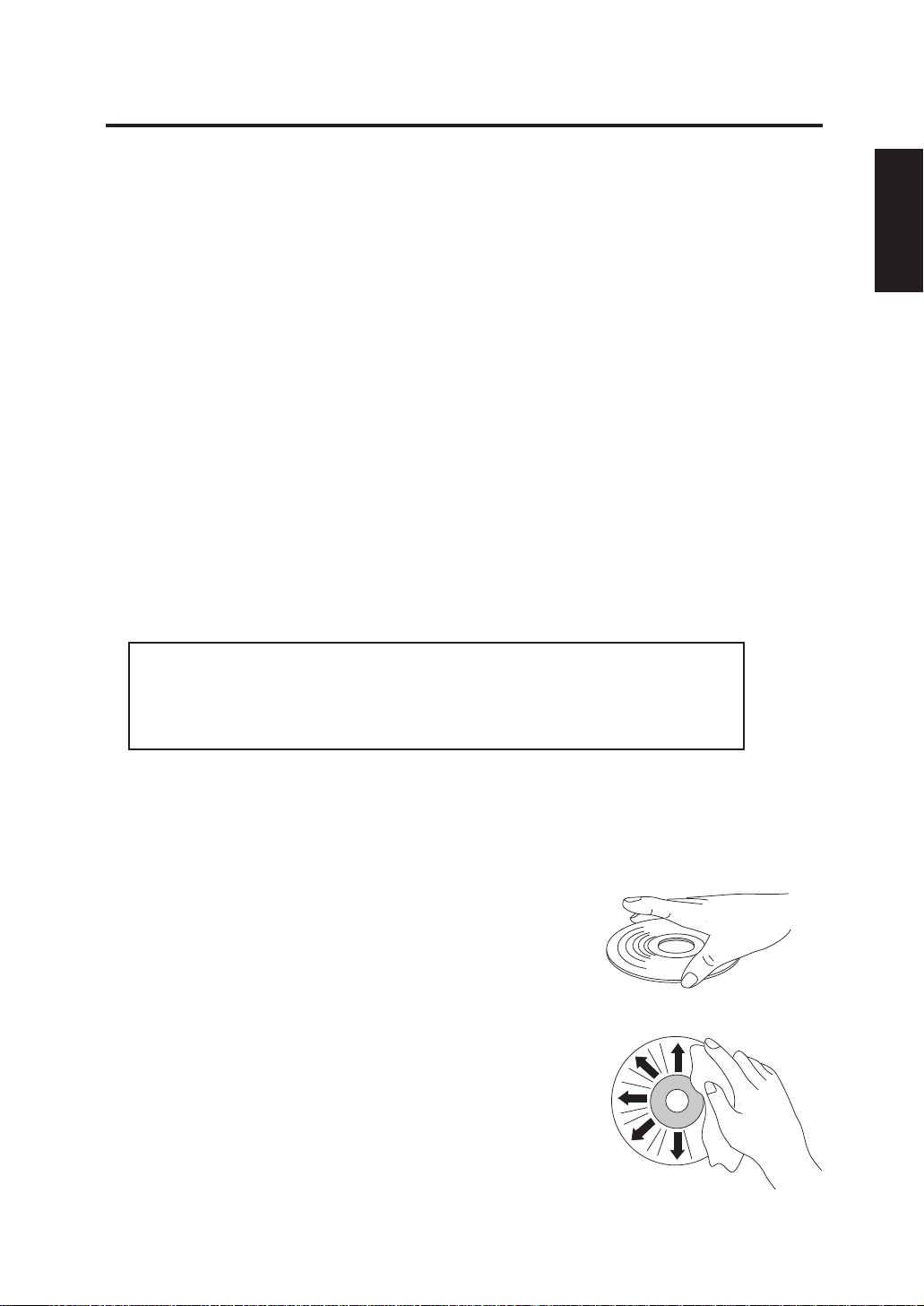

1.5 PRECAUTIONS WHEN HANDLING DISCS

➀Hold the disc by the edges, do not touch

the surface of the disc.

➁To remove dust or fingerprint, use a clean,

soft, dry cloth.

A-6

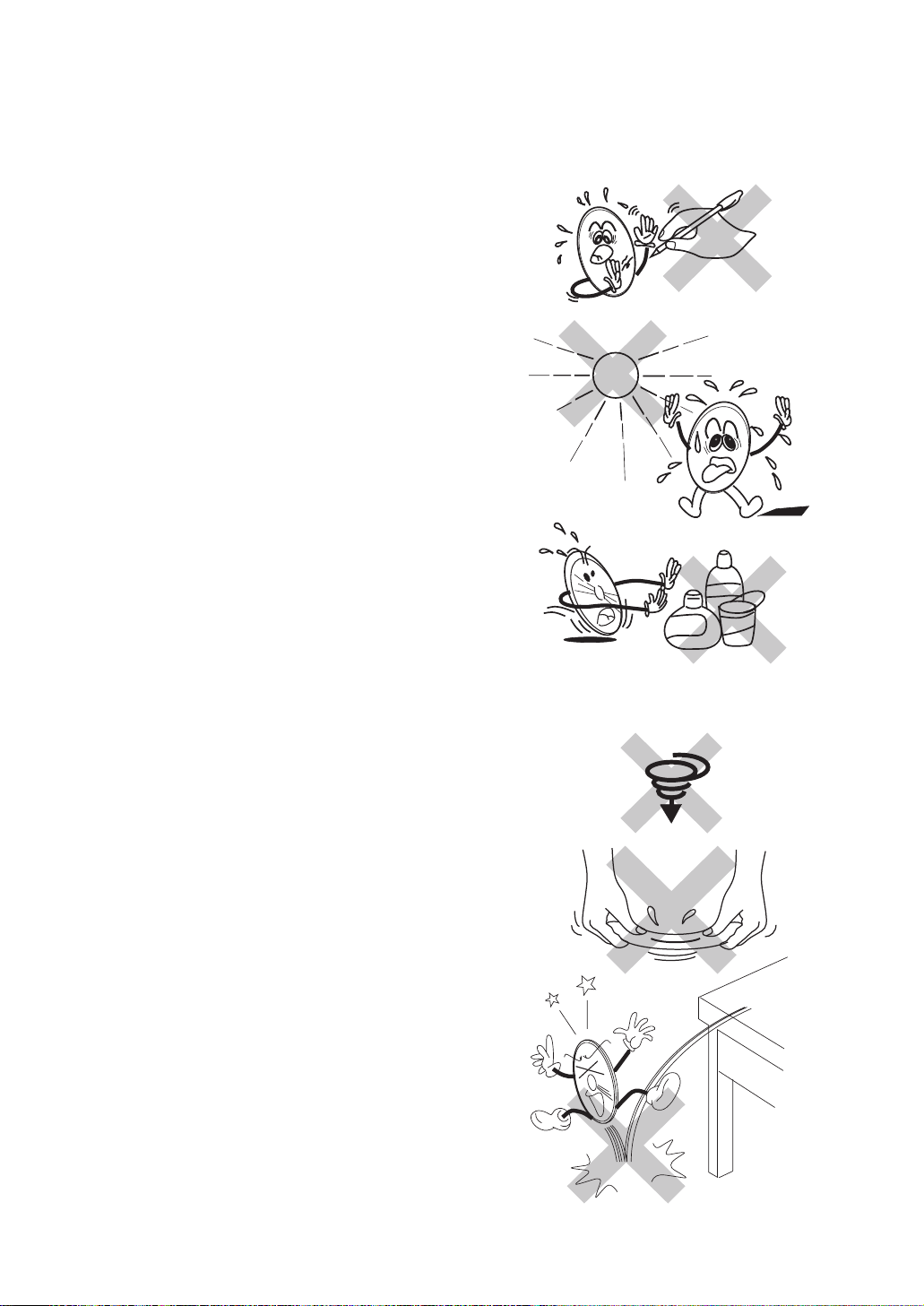

➂Do not write on, or paste paper

to the surface of the disc.

Should not paste a large or thick

label to the outer back surface

(the label side) of the disc, or it

generates drive vibration due to

imbalance of the disc.

➃Do not store the disc in a place where

the temperature is high.

➄Do not use benzine, thinners and

cleaners, etc.

➅Do not make the center hole larger.

➆Do not bend the disc.

➇Do not drop the disc, or subject it to

shock.

Benzine

Thinners

Cleaners

A-7

ENGLISH

CHAPTER 2 PARTS AND FUNCTIONS

2.1 FRONT VIEW

➀DISC TRAY

Accepts a disc.

➁HEAD PHONE JACK (Model SR-8585-B only)

Headphone can be connected using a 3.5mm stereo mini plug.

➂VOLUME (Model SR-8585-B only)

Adjusts audio output level of Headphone.

➃BUSY INDICATOR

Lights when data is being accessed from the disc, or the drive is playing an audio CD.

➄EJECT/LOAD BUTTON

Ejects and loads the disc tray.

➅EMERGENCY EJECT HOLE

Insert an instrument such as straightened paper clip into this hole to manually

eject the tray. (See 4.1)

➀

➁➂➃ ➄➅

2.2 REAR VIEW

➀INTERFACE CONNECTOR

Connects to host computer’s interface connector.

➁DC (IN) CONNECTOR

➂AUDIO OUT CONNECTOR (Analog)

➃JUMPER PIN

Insert the jumper according to the Master / Slave / CSEL drive.

(See the figure in the next page.)

➄DIGITAL AUDIO OUT CONNECTOR

NOTE:

The serial format of digital data (not Audio data) output functions with some models.

➀➁➂➃

➄

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Unità DVD

Panasonic

Panasonic LF-D103E Manuale utente

Panasonic

Panasonic CF-VDD281 Manuale utente

Panasonic

Panasonic CF-VDM Series Manuale utente

Panasonic

Panasonic CF-VDM Series Manuale utente

Panasonic

Panasonic CFVDM732U - DVD Manuale utente

Panasonic

Panasonic CF-VDD285 Manuale utente

Panasonic

Panasonic CF-VDR282 Manuale utente

Panasonic

Panasonic CF-VDD371M Manuale utente

Panasonic

Panasonic LF-M621U Manuale utente

Panasonic

Panasonic CF-VDD283 Manuale utente

Panasonic

Panasonic SR-8586-B Manuale utente

Panasonic

Panasonic KXL-CB30AU Manuale utente

Panasonic

Panasonic CF-VDR291U Manuale utente

Panasonic

Panasonic LFD521U - DISK DRIVE Manuale utente

Panasonic

Panasonic CF-VDM312U Manuale utente

Panasonic

Panasonic CF-VDM311U Manuale utente

Panasonic

Panasonic CF-VDM302U Manuale utente

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Manuale utente

Panasonic

Panasonic CF-VDD712M Manuale utente

Panasonic

Panasonic CF-VDD271W Manuale utente

Panasonic

Panasonic CF-VDR302U Manuale utente

Panasonic

Panasonic LF-D321U Manuale utente

Panasonic

Panasonic CF-VDM302AU Manuale utente

Panasonic

Panasonic CW-8572-B Manuale utente

Manuali Unità DVD popolari di altre marche

LG GSA-4160B Manuale utente

Sony

Sony DRU-500AX Manuale utente

LG GSA-2164D Manuale utente

Plextor

Plextor PX-755SA Manuale utente

Pioneer

Pioneer BDC-TD03RS Manuale del proprietario

Samsung

Samsung SM-332B Manuale utente

Freecom

Freecom MOBILE DVD RW II Manuale utente

Plextor

Plextor PX-712 Manuale utente

NEC

NEC ND-3550A Manuale utente

Emprex

Emprex Slim Writer DVD R/RW USB 2.0 External Drive Manuale utente

Philips

Philips PCA532K Manuale utente

Sony

Sony AD-7740H Manuale utente

Philips

Philips PCDV5016 Series Guida di riferimento

Pioneer

Pioneer LaserMemory DVD-115 Manuale utente

Samsung

Samsung SE-S224Q Manuale utente

IBM

IBM 71P7285 Manuale utente

Pioneer

Pioneer DVR-A04 Manuale utente

IBM

IBM 27L2579 Manuale utente
