Panasonic SL-DT300EG Manuale utente

AD0203067C2

DVD/CD Player

SL-DT300EG

Traverse Deck:RAE1813ZMechanismSeries

Colour

(S)...........SilverType

SPECIFICATIONS

1. Note

Refertotheservice manual for Model No. SA-DT300 (OrderNo. AD0203066C2)for information on

Accessories and Packaging.

2. Handling Precautions forTraverse Deck

Thelaserdiodeintheoptical pick-up may break downduetopotential difference causedby

staticelectricityofclothes or humanbody.

Sobecareful ofelectrostaticbreakdownduring repairoftheoptical pick-up.

2.1. Handling ofoptical pick-up

1. Donotsubject theoptical pick-up tostaticelectricityas itis

extremelysensitivetoelectrical shock.

2. To preventthebreakdownofthelaserdiode, anantistaticshorting

pinorsimilarobject isinsertedintotheflexibleboard(FFCboard).

Referto Fig. 2-1. / Whenremoving orconnecting theshortpin,

finishthejob inas shorttimeas possible.

3. Becareful nottoapplyexcessivestress totheflexibleboard(FFC

board).

4. Donotturnthevariableresistor(Laserpoweradjustment).

Fig. 2-1.

2.2. Grounding forelectrostaticbreakdownprevention

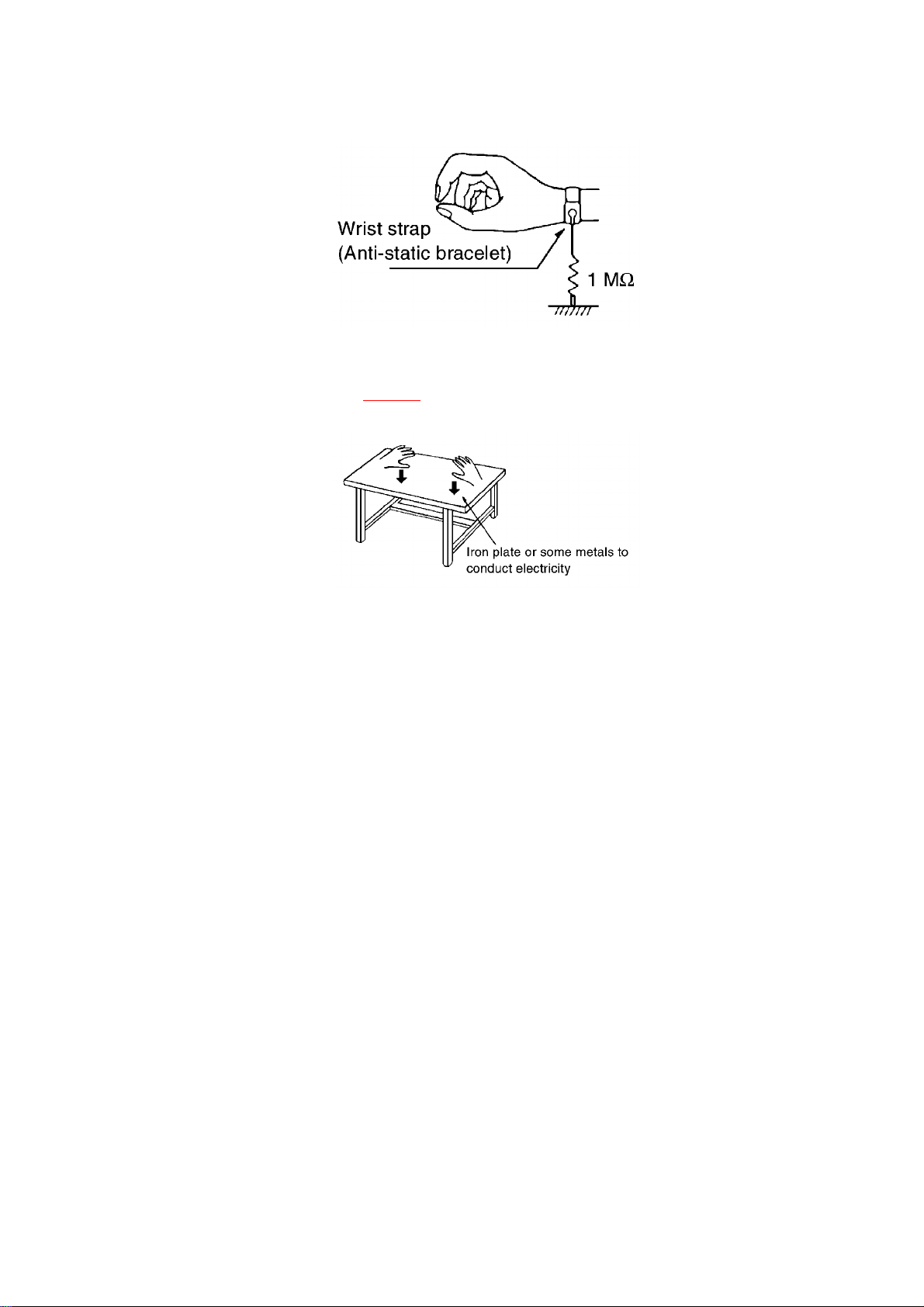

2.2.1. Humanbodygrounding

Use theantistaticwriststraptodischargethestaticelectricityfrom your body. Referto Fig. 2-2.

Fig. 2-2.

2.2.2. Worktablegrounding

Putaconductive material (sheet) or steel sheeton thearea wheretheoptical pick-up isplaced

and ground thesheet. Referto Fig. 2-3.

Fig. 2-3.

Caution:

Thestaticelectricityofyourclothes will notbegroundedthrough

thewrist strap. Sotake carenottolet yourclothes touchtheoptical

pick-up.

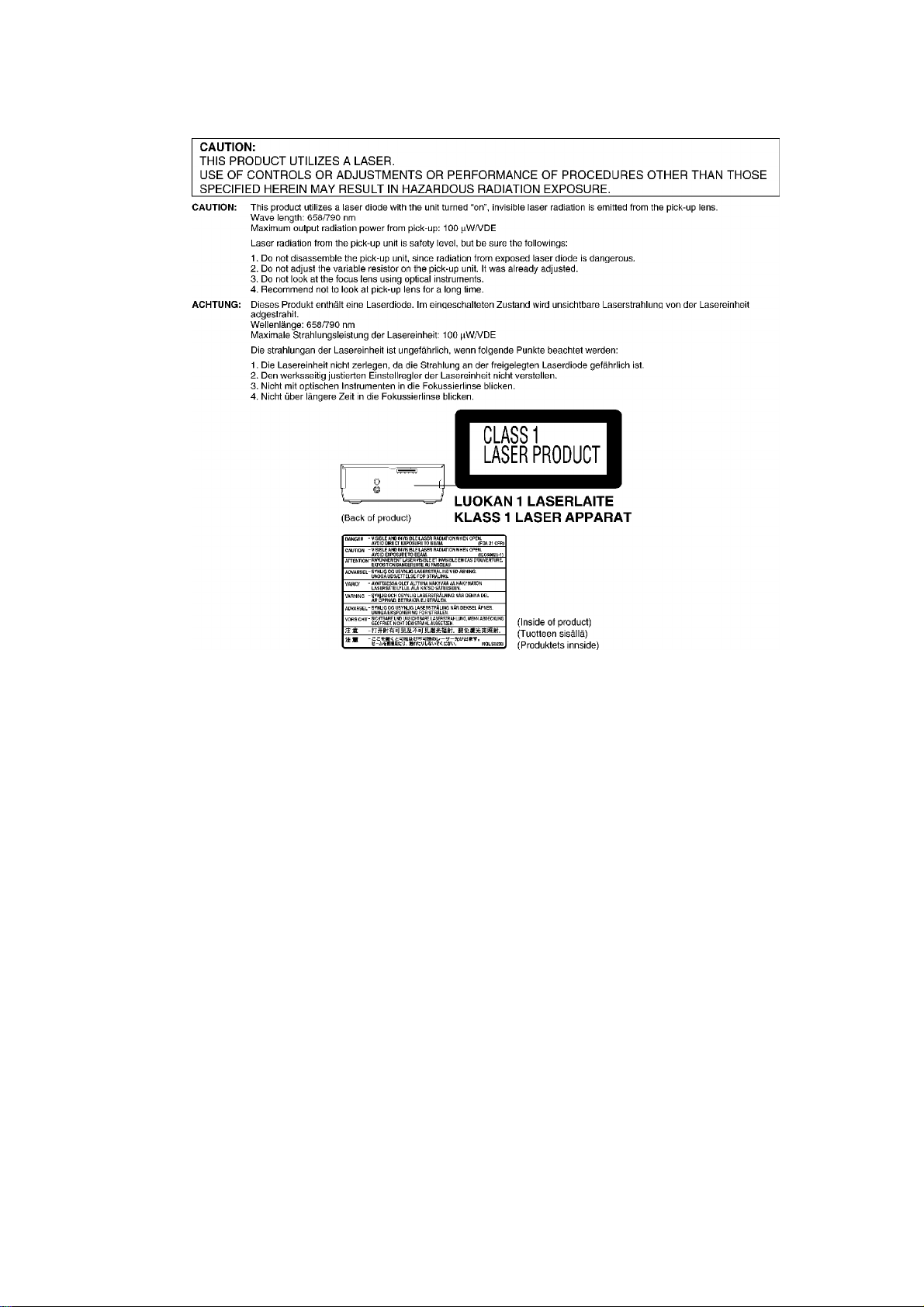

3. Precaution of LaserDiode

4. Location of Controls

5. Self-DiagnosisFunction and Service Mode

5.1. Self-diagnosisfunction and service mode

Eachresultsofself-diagnosisfunction and service modeisdisplayedon theLCD ofAV control

receiver(SA-DT300). / Whenusing these function, confirm theunittobeconnectedbysystem

cable.

Improving theself-diagnosisfunction

Theself-diagnosisfunction inour DVDplayercurrentlyinuse isimprovedas follow:

Our DVDplayercurrentlyin

use Our newDVDplayer Remarks

UHFerror display / The

latesterror storage/ n=1 UHFerror display / The

latesterror storage/ n=20 Thestoragecapacityisincreased.

Jitter/readerror display Jitter/readerror display /

Focusdrive valuedisplay Thefocusdrive currentvaluecanbedisplayed.

Laserdrive currentdisplay

for DVD Laserdrive currentdisplay

for DVD/CD

--------------- ADSCinternal RAMdata

display Theservolearning valuestoredintheRAM

datainsidetheADSC(servocontroller)ICis

displayed.

--------------- Total operation timedisplay,

SP motor, Laser(DVD/CD) Theoperation times ofSP motor and thelaser

(bothfor theDVDand CD) canbedisplayed.

5.2. Service modetable

Pressing variousbutton combinationson theplayerand remotecontrol unitcanactivatetheservice modes.

Item Playermodeand

button

combination

Function Display Cancellation

method

Jitter

check InPLAYmode,

press “STOP”

button on the

playerand “5”

button on the

remotecontrol

unit.

Jittercheck / Jitterrateis

measuredand displayed.

Measurementisrepeatedly

doneinthecycleofone

second. Readerror counter

startsfrom zero upon mode

setting. Whentargetblock

datafailedtobereadout, the

counteradvances byone

increment. Whenthefailure

iscausedbyminor error, it

may becorrectedwhen

retriedtoenablesuccessful

reading. Inthiscase, the

counteradvances byone.

Whentheerror persistseven

afterretry, thecountermay

jumpbytwoor more.

J*1 _xxx*2 _yyy*3 _zz*4 / *1 :

Jittercheck display mode/ *2 :

Jitterrate/ *3 :Readerror

counter/ *4 :Focusdrive value

Jitterrateisshownindecimal

notation tooneplace of

decimal.

Focusdrive valueisshownin

hexadecimal notation.

Press

“STOP”

button.

Item Playermodeand

button

combination

Function Display Cancellation

method

Error code

check Press “STOP”

button on the

playerand “0”

button on the

remotecontrol

unit.

Error codecheck / Thelatest

error codestoredin

EEPROMisdisplayed.

Error code(play_err)is

expressedinthefollowing

convention.

Error code=0xDAXX is

expressed DVDnn UXX

Error code=0xDBXX is

expressed DVDnn HXX

Error code=0xDXXXis

expressed DVDnn FXXX

Error code=0x0000 is

expressed DVDnn F---

Error codeexceptabove

DVDnn XXXX

*nn denotes theserial number

ofhistory.

Cancelled

automatically

5seconds

later.

Initial

setting of

laserdrive

current

InSTOP mode,

press “STOP”

button on the

playerand

“PAUSE”button

on theremote

control unit.

Initial setting oflaserdrive

current/ Initial currentvalue

for eachofDVDand CD

laserisseparatelysavedin

EEPROM.

LD0*1 _034*2 _028*3 / *1 :Laser

currentmeasurementmode/ *2 :

DVDlasercurrent

measurement/ *3 :CD laser

currentmeasurement

Thevaluedenotes thecurrent

indecimal notation. Theabove

exampleshowstheinitial

currentis34 mAand 28 mAfor

DVDand CD laser.

Cancelled

automatically

5seconds

later.

Item Playermodeand

button

combination

Function Display Cancellation

method

DVDlaser

drive

current

measure-/

ment

InSTOP mode,

press “STOP”

button on the

playerand “OSD”

button on the

remotecontrol

unit.

DVDlaserdrive current

measurement/ DVDlaser

drive currentismeasured

and theresultisdisplayed

togetherwiththeinitial value

storedinEEPROM. Afterthe

measurement, DVDlaser

emission iskepton. Itis

turnedoff whenStandby/on

key isswitchedoff. (Itisalso

turnedoff whentheprimary

powerisswitchedoff.)

LDD*1 _034*2 _032*3 / *1 :DVD

lasercurrentmeasurement

mode/ *2 :Initial currentstored

inEEPROM/ *3 :Measured

current

Thevaluedenotes thecurrent

indecimal notation.

Theabove exampleshowsthe

initial currentis34 mAand the

measuredvalueis32 mA.

Cancelled

automatically

5seconds

later.

ADSC

internal

RAMdata

check

Press “STOP”

button on the

playerand “1”or

“2”buttonson

theremotecontrol

unit.

ADSCinternal RAMdata

check / ADSCinternal RAM

dataisreadoutand

displayed. / Changethe

address with“CANCEL”key

operation toshowthedata

for 11 addresses.

A*1 _0FA*2 _6901*3 / *1 :ADSC

internal RAMdatacheck mode/

*2 :Address / *3 :RAMdatafor

specifiedaddress

Thevalueisshownin

hexadecimal notation. The

above exampleshowsthedata

inADSCaddress 0FAhis6901h.

Press

“STOP”

button.

Item Playermodeand

button

combination

Function Display Cancellation

method

CD laser

drive

current

measure-/

ment

InSTOP mode,

press “STOP”

button on the

playerand “3”

button on the

remotecontrol

unit.

CD laserdrive current

measurement/ CD laser

drive currentismeasured

and theresultisdisplayed

togetherwiththeinitial value

storedinEEPROM. Afterthe

measurement, CD laser

emission iskepton. It

isturnedoff whenStandby/

on key isswitchedoff. (Itis

alsoturnedoff whenthe

primarypowerisswitched

off.)

LDC*1 _028*2 _026*3 / *1 :CD

lasercurrentmeasurement

mode/ *2 :Initial currentstored

inEEPROM/ *3 :Measured

current

Thevaluedenotes thecurrent

indecimal notation.

Theabove exampleshowsthe

initial currentis28 mAand the

measuredvalueis26 mA.

Cancelled

automatically

5seconds

later.

User/

initializationInSTOP mode,

press / “STOP”

button on the/

playerand

“”/

button on the

remote/ control

unit.

Userinitialization / User

setting arecancelledand

playerisinitializedtofactory

setting.

“INITIALIZED”

Region

display InSTOP mode,

press “STOP”

button on the

playerand “6”

button on the

remotecontrol

unit.

Region display x*1 _yy*2 _zzz*3 / *1 :Region No.

/ *2 :Videooutputformat/ NN;

NTSC/ PN; PAL(Whenplaying

NTSCdisc:NTSC) / P6;PAL

(Whenplaying NTSCdisc:

PAL60)/ *3 :Model setting code

Cancelled

automatically

5seconds

later.

Item Playermodeand

button

combination

Function Display Cancellation

method

Microcomputer

/ &

firmware/

version /

display

InSTOP mode,

Press / “STOP”

button on the/

playerand “7”

button on / the

remotecontrol

unit.

Microcomputer&firmware

version / display xxxx*1 _50yyyy*2 / *1 :

Microcomputerversion / *2 :

Firmwareversion

Cancelled/

automatically

5/ seconds

later.

Region &

/ firmware

/ version

display

InSTOP mode,

press / “STOP”

button on the/

playerand “8”

button on / the

remotecontrol

unit.

Region &firmwareversion

display x*1 _50yyyy*2 / *1 :Region No. / *

2:Firmwareversion Cancelled/

automatically

5/ seconds

later.

Timer1

check InSTOP mode,

press “STOP”

button on the

playerand “ ”

button on the

remotecontrol

unit.

Timer1check / Laser

operation timer. Operation

timeismeasuredseparately

for DVDand CD laser.

T1_1234_5678 / Showntothe

left isDVDlasertime, and to

therightisCD lasertime. / Time

isshownin4digitsofdecimal

notation inaunitof10 hours. /

“0000”will follow“9999”.

Cancelled

automatically

5seconds

later.
