DMR-E500 Firmware Installation Instructions

Table of Contents

Table of Contents ..............................................................................................1

1Download Firmware ......................................................................................... 2

2Burn Firmware.................................................................................................. 3

2.1 Windows® OS CD Writing Program ................................................................ 3

2.2 Other OS CD Writing Program........................................................................ 4

2.3 3rd Party CD Burning Software ....................................................................... 4

2.4 Dragging & Dropping.................................................................................... 5

3Install Firmware............................................................................................... 6

DMR-E500 DVD Recorder Firmware Installation Instructions

Page 1 of 6

1Download Firmware

1) Left click on the DOWNLOAD icon for the DMR-E500 DVD Recorder Firmware.

- DMR-E500 DVD Recorder Firmware Update

2) Left click on SAVE.

The file name displayed should be

PANA_DVD.FRM

3) Left click on DESKTOP, and then left click on SAVE.

NOTE: The PANA_DVD.FRM file will be placed on the DESKTOP.

DMR-E500 DVD Recorder Firmware Installation Instructions

Page 2 of 6

2Burn Firmware

Use one of the below methods to burn the firmware to a CD-R disc.

2.1 Windows®OS CD Writing Program

1) Insert a blank CD-R disc into a CD Burner Drive installed in or attached to the computer.

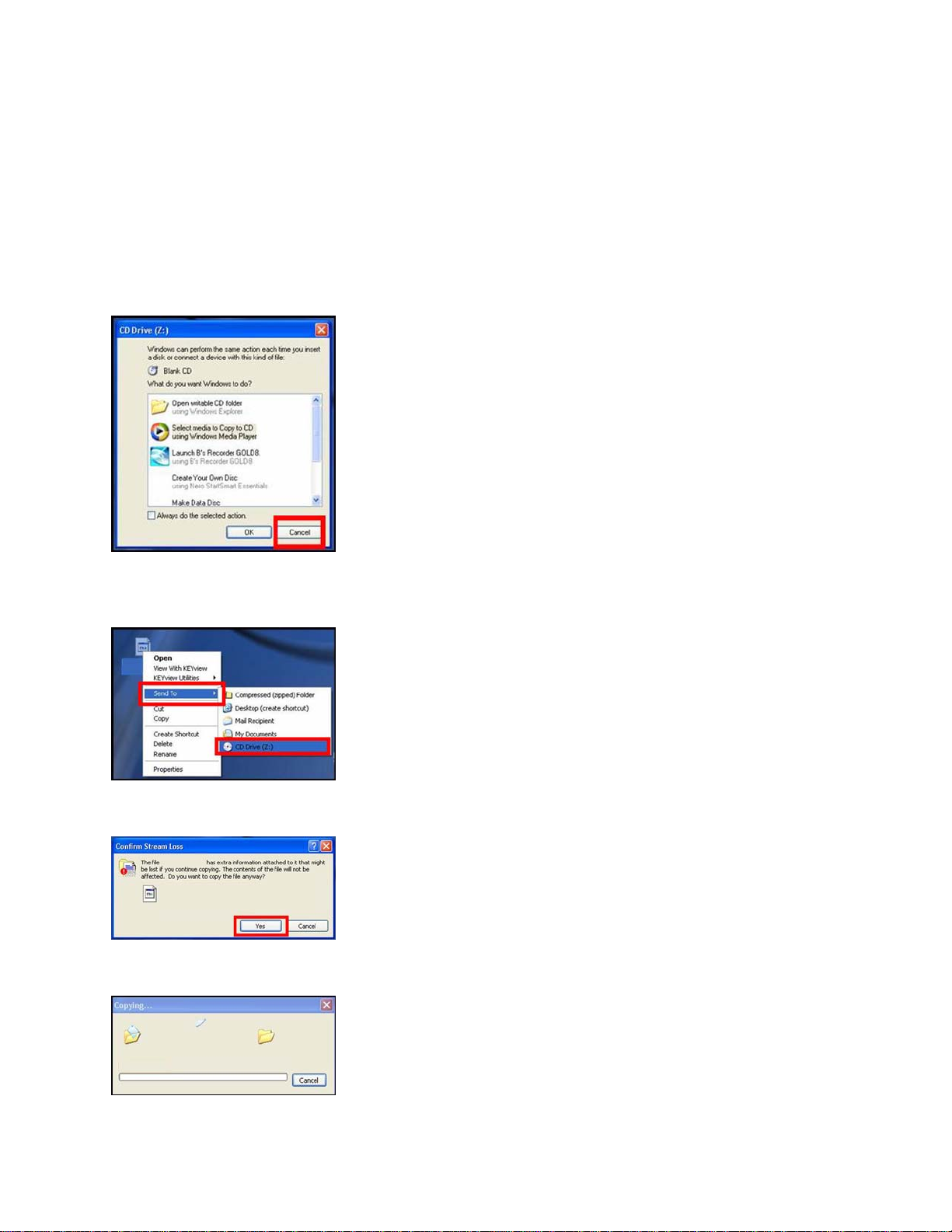

2) If the below (or similar) screen appears (Windows XP), left click on CANCEL.

3) Right click on the PANA_DVD.FRM file on the DESKTOP, mouse over SEND TO, and

then left click on the CD BURNER DRIVE.

4) If the below screen appears, left click on YES.

NOTE: The below screen may appear momentarily.

DMR-E500 DVD Recorder Firmware Installation Instructions

Page 3 of 6

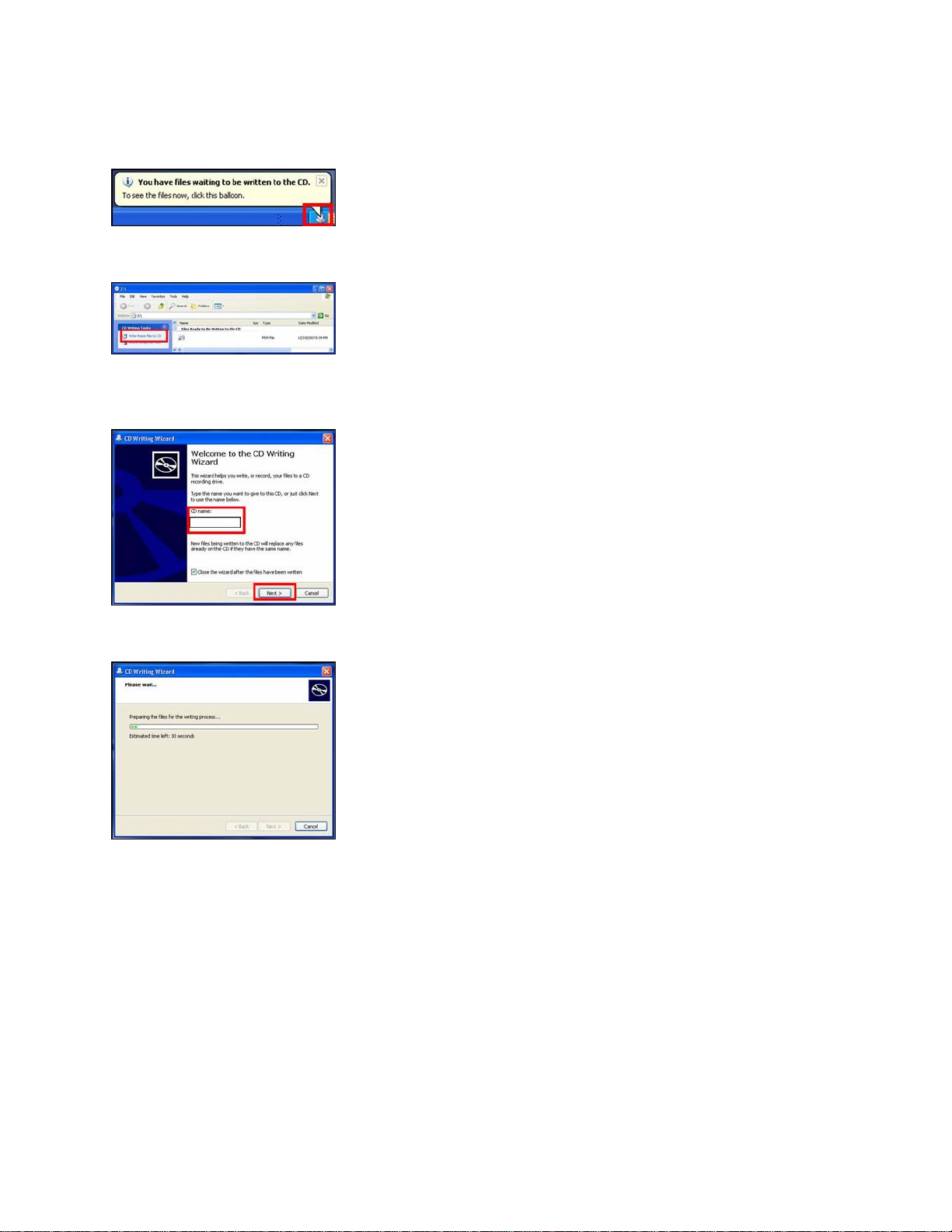

5) Lift click on the YOU HAVE FILES WAITING TO BE WRITTEN TO THE CD icon in the

SYSTEM TRAY.

6) Left click on WRITE THESE FILES TO CD.

7) Type a name for the CD, check the CLOSE THE WIZARD AFTER THE FILES HAVE

BEEN WRITTEN check box, and then left click on NEXT.

NOTE: The below screen will appear during the burning process.

8) After the PANA_DVD.FRM file has been burned to the CD, the disc should automatically

eject from the CD Burner Drive. If it doesn’t, manually eject the disc.

2.2 Other OS CD Writing Program

Refer to the computer’s owner’s manual or HELP files for instructions on how to copy the

PANA_DVD.FRM to a CD-R using the ISO-9660 format.

2.3 3rd Party CD Burning Software

Refer to the software application’s owner’s manual or HELP files for instructions on how to

copy the PANA_DVD.FRM to a CD-R using the ISO-9660 format.

DMR-E500 DVD Recorder Firmware Installation Instructions

Page 4 of 6

2.4 Dragging & Dropping

If an icon for the CD Burner Drive has been placed on the DESKTOP, left click on the

firmware file, hold the left mouse button down, drag the file to the CD Burner Drive icon and

release the left mouse button.

If using the Windows XP operating system, use procedure from STEP 5 of SECTION 3.1 on

PAGE 5 of 8.

DMR-E500 DVD Recorder Firmware Installation Instructions

Page 5 of 6

3Install Firmware

CAUTION: Do not turn the DVD Recorder OFF or press any buttons on the DVD

Recorder while the firmware update is in progress.

1) Power the DVD Recorder on.

2) Press the [OPEN/CLOSE] button to OPEN the disc tray.

3) Place the CD-R with the firmware update into the disc tray with the label side facing up.

4) Press the [OPEN/CLOSE] button to CLOSE the disc tray.

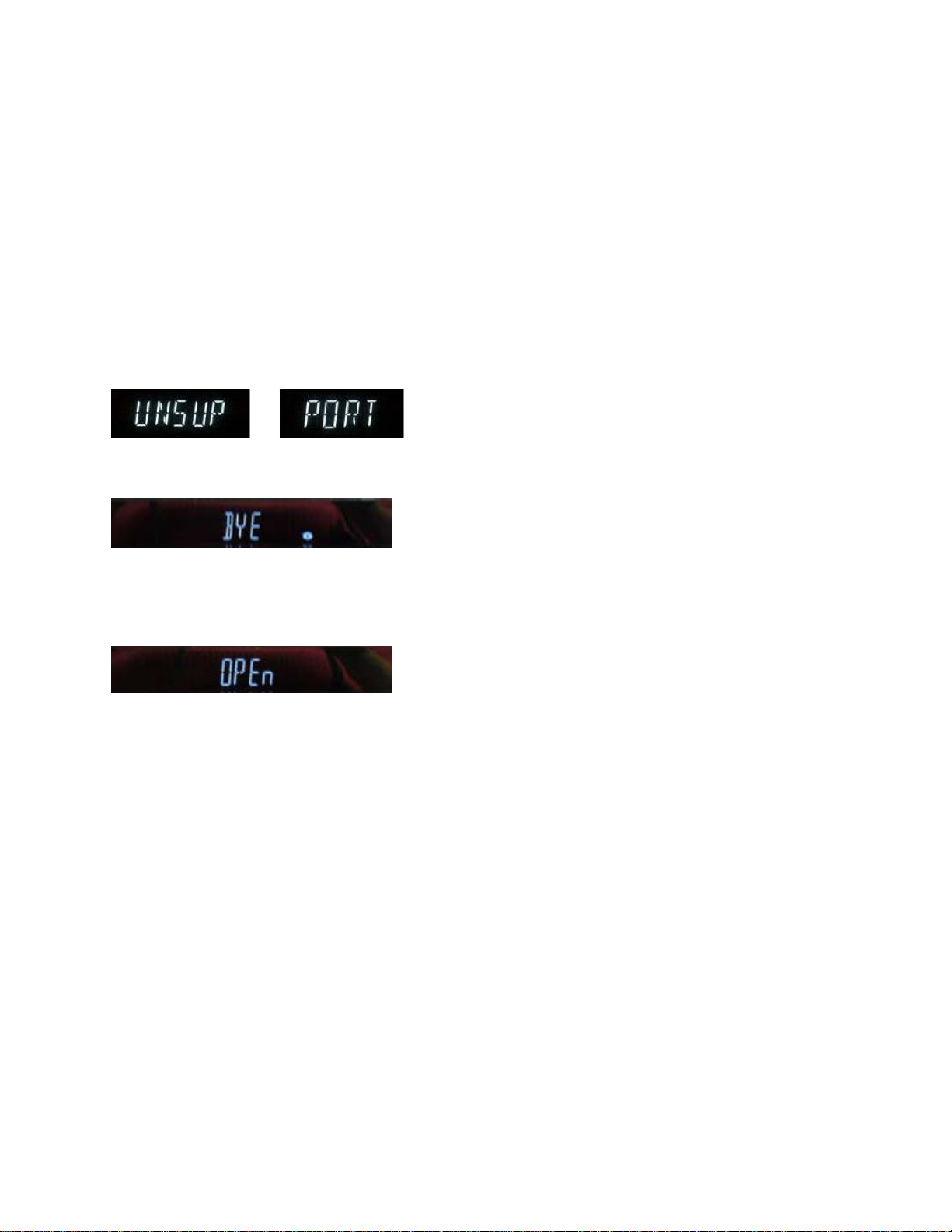

NOTE: If the firmware version in the unit is the same or higher than the firmware

CD, UNSUPPORT may be displayed on the front panel. In this case, an update is

unnecessary. Please remove the disc.

NOTE: If the firmware update will be installed, BYE will display on the front panel,

the DVD Recorder will power off, and then power back on.

NOTES:

•Several messages will be displayed on the front panel during the firmware

update.

•When the firmware update is complete, the disc tray will automatically OPEN.

5) Remove the CD-R with the firmware update from the disc tray.

6) Without closing the disc tray, press the [POWER] button on the DVD Recorder to power

the unit off. The disc tray will CLOSE automatically, display BYE,and then power off.

7) Unplug the power cord for at least 30 seconds, and then plug the power cord back in.

8) Press the [POWER] button on the DVD Recorder to power the unit on. (The unit will

display HELLO and then begin the FIRST TIME SETUP.)

NOTE: If the unit does not begin the FIRST TIME SETUP automatically, it is

recommended to initiate the FIRST TIME SETUP.

•Tune the DVD Recorder to a channel.

•Simultaneously press the [CHANNEL UP] and [CHANNEL DOWN] buttons on the

front of the DVD Recorder for approximately 10 – 15 seconds (until the unit powers

off).

•When the DVD Recorder is powered back on, the FIRST TIME SETUP screen should

be displayed.

9) Follow the on-screen prompts to complete the FIRST TIME SETUP.

DMR-E500 DVD Recorder Firmware Installation Instructions

Page 6 of 6
