Panasonic WJ-HD300A Manuale di riferimento

WJ-HD300A DVR Series

Introduction to User Interface for Schedule Recording

(Front Panel Advanced Setup)

Steps to create a recording schedule

Step I: Creating a REC Program

…………………………….…………….…………………………………………….

Creating an Event Program

……………………………………………….…………………….……………….

Steps II & III: Creating time table and assigning the programs to time table

……………………….......

Application of [Schedule] settings

Scenario I: Single Input

……………………………………………………………………………………………………..

Scenario II: Multiple Inputs

……………………………………….…………………………………………………………

WJ-HD300A DVR SERIES GUIDE

TableofContents

(Note: The WJ-HD300DVR Series is available in either 9 channel (WJ-HD309) or 16 channel (WJ-HD316) configuration.

Images displayed throughout this guide depict the WD-HJ316 DVR.)

WJ-HD300A DVR SERIES GUIDE

Key Buttons to Set a Schedule for Recording a Program/Event

1. Jog Dial

2. Set Button

3. Setup/Escape Button

4. Arrow Buttons

5. Camera Channels

[Schedule] Setting for Recording Program/Event Program

WJ-HD300A DVR SERIES GUIDE

Key points to remember:

1. Setup menu can be seen only on monitor two.

2. A day can be divided into six time zones and you can assign programs and event action programs to each time zone to

create a recording schedule.

3. Up to four normal recording programs (REC Program) and up to four event programs (Event Program) can be created.

4. To perform setting for REC Program, you must assign Resolution and Recording Rate. To perform setting for Event

Program, you must assign Action Mode for each event type and auto copy.

5. You can also create special days apart from the normal schedule, and a recording program of another day of the week

can be easily switched to a special day’s program automatically.

6. Always use [SETUP/ESC] button to return to Main Menu.

7. You can save the settings and upload them using WJ-HD300 Administration Console.

Three Steps to Create a Recording Schedule

WJ-HD300A DVR SERIES GUIDE

Step 3

Step 2

Create a

Timetable

Step 1

Assign REC Program/

Event Program to a

Timetable

Create a REC Program/

Event Program

WJ-HD300A DVR SERIES GUIDE

Step I

A. Creating a recording program

[REC Program]

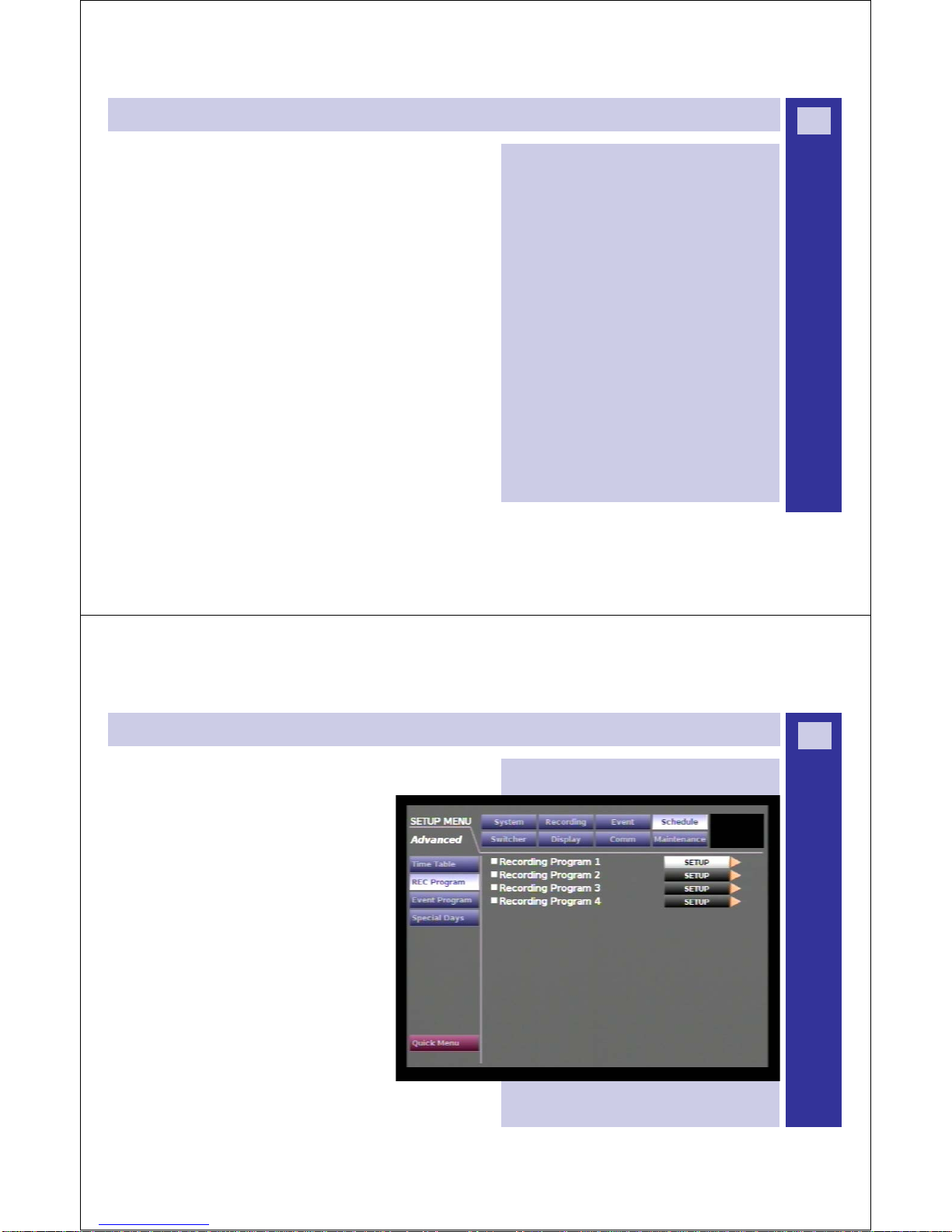

To create a recording program, go to SETUP MENU and

set up a schedule program.

To set the REC Program, assign resolution (image quality)

and recording rate (image per second or ips).

WJ-HD300A DVR SERIES GUIDE

x Resolution

There are four different resolutions available for you to create a REC

program:

x FRAME 3D ON: High resolution (720 x 480) with motion blur

compensation. (Please note that when FRAME 3D ON is selected, it is

possible to record moving object with less blurring. However,

sometimes fuzzy images may be displayed.)

x FRAME 3D OFF: High resolution (720 x 480) without motion blur com-

pensation

x FIELD: Standard resolution (720 x 240)

x SIF: Low resolution (360 x 240)

Remember:

Recording will not occur for four seconds in the

following cases:

x A different resolution is set depending on different

time zones.

x The SETUP MENU is closed after changing the

settings.

WJ-HD300A DVR SERIES GUIDE

The total recording rate of the camera channels must be as follows:

x FRAME 3D ON/FRAME 3D OFF: 30 ips or less

x FIELD: 60 ips or less

x SIF: 120 ips or less

Remember:

x When total recording rate is more than the values

on left, sections displaying maximum recording

rates for each camera channel turn red. In such a

case, lower the recording rate of camera channel

that has turned red to a lesser value.

x Recording Rate for Camera Channels

WJ-HD300A DVR SERIES GUIDE

x Image Quality for the Camera Channel

The following image qualities are available for setup.

x SFA/SFB: Top Quality (SUPER FINE)

x FQA/FQB: High Quality (FINE)

x NQA/NQB: Standard quality (NORMAL)

x EXA/EXB: Low Quality (EXTENDED)

*A is suitable for images with less motion.

**B is suitable for images with more motion.

WJ-HD300A DVR SERIES GUIDE

Step I...continued

B. Creating an event program for an event

occurrence [EVENT Program]

To perform setting for Event Program, assign Action Mode for each

event type.

You can perform settings of event action for each

event type (motion detection/video loss/terminal or

command alarm).

WJ-HD300A DVR SERIES GUIDE

x Video Motion Detection

There are three types of VMD settings:

x ACT DET (Activity Detection Mode): Performs only

recording, writing an event log, and camera movement

to a preset position at an event occurrence. It does

not generate alarm and alarm status.

x ALARM (Alarm mode): Performs alarm and alarm

status operation.

x OFF: Performs only recording of event log.

WJ-HD300A DVR SERIES GUIDE

x Video Loss/Terminal Command Alarm

You can assign settings to an event function at a video

loss function the same way as mentioned for VMD above.

WJ-HD300A DVR SERIES GUIDE

Steps II and III

Creating a timetable [Time Table] and

assigning REC Program/Event Program

to a timetable

You can create timetables for each day of the week,

and assign REC Program and Event Program to each

timetable.

You can create a maximum of six timetables.

WJ-HD300A DVR SERIES GUIDE

Creating a [Time Table]

Step 1: Open the Setup menu and go to Timetable

window.

Step 2: Press [SET]. A pop up window will show

setting menu for timetable for every day of the week.

The cursor displayed can be moved to

’MON’ (Monday) by using arrow buttons (ʆʈʉʇ).

Step 3: Select a day of the week using up/down

arrow buttons (Ÿź) and then press [SET]. For

example, you choose ‘TUE’ (Tuesday).

Step 4: A new window will pop up and display

timetable for selected day of the week. Select ‘New

Time Table Setup’ using up/down arrow buttons

(Ÿź) and rotate the Jog Dial to confirm button.

WJ-HD300A DVR SERIES GUIDE

Creating a [Time Table]...continued

Remember:

x You can copy a timetable set for a different day of

the week by simply selecting ‘Copy the Other

Timetable’ and select the day of the week by

rotating the Jog Dial as in Step 3.

x If you move the cursor to [CANCEL] and press

[SET] button, it cancels the setting and the popup

window of the timetable for the selected day

closes.

Step 5: Use the arrow buttons (ʆʈʉʇ)to move cursor to the

‘start time’ input box for ‘Period 1’.

Step 6: Rotate Jog Dial to set ‘start time’. Set ‘end time’ the

same way. Set ‘start time’ and ‘end time’ for other periods 2-6,

if needed.

Step 7: Select OK using arrow buttons (ʆʈʉʇ). Press [SET].

WJ-HD300A DVR SERIES GUIDE

Creating a [Time Table]...continued

Step 8: Use arrow buttons (ʆʈʉʇ)to assign the REC Program/

Event Program and move cursor to a particular time zone of the

day.

Step 9: Rotate Jog Dial to select desired REC Program/Event

program.

Step 10: Press [SET] button to display the REC Program/Event

Program window. You can repeat steps 8-10 to assign REC

Program/Event program to other timetables.

Step 11: Move cursor to OK using arrow buttons (ʆʈʉʇ)and

press [SET].

Remember:

REC or Pre/ Post Event programs are displayed in

different colors :

x Yellow = REC Program 1/Event Program 1

x Green = REC Program 2/Event Program 2

x Pale Purple = REC Program 3/Event Program 3

x Indigo Blue = REC Program 4/Event Program 4

If you move the cursor to [CANCEL] and press [SET],

the settings cancel and the selected timetable window

closes.

WJ-HD300A DVR SERIES GUIDE

Creating a [Time Table]...continued

You can assign timetables for ‘Special Days’ apart from other days of

the week.

Timetable for special days can be set up to 30 days.

You can also assign settings for special days by specifying the

‘dates’ and applying recording schedule to these special days.

Scenario 1: Single Input

WJ-HD300A DVR SERIES GUIDE

Now that you have understood the basics of creating the settings of a

schedule, let’s try applying them to two commonly used settings.

Operator A needs specific settings for recording program/events during

different hours in a day with just one camera (see the box on right for

setting parameters).

Setting Parameters

x One Camera

x Scheduled to record from 9 A.M. - 5 P.M. daily

x Field Resolution

x 30 ips, Super Fine “B” mode (SFB)

x VMD from 5 P.M. - 9 A.M.

x VMD for one area (not full screen)

x Pre Event 15 ips, SFB, 3s

x Post Event 60 ips, SFB, 20s

x Alarm and Buzzer Off

WJ-HD300A DVR SERIES GUIDE

Creating [REC Program] and [Event Program]

Step 1: Press [SETUP] button for more than 2 seconds to open Setup

Menu.

Step 2: Press [SET] to select SCHEDULE from Main

Menu and use arrow buttons (ʆʈʉʇ)to go to

REC PROGRAM in the submenu. Click [SET] and use

arrow buttons to move cursor to recording program. You

are setting PROGRAM 1. Press [SET]. This displays

the selected recording program.

Step 3: Use the Jog Dial to set the resolution to FIELD.

This provides a standard resolution of 720 x 240.
