Panasonic ES-WU11 Manuale utente

Unauthorized copying and distribution is a violation

of law.

Order Number PCD1201X31AE

Epilator

Model No. ES-WU11

ES-WU31

ES-WU41

Europe

CIS

TABLE OF CONTENTS PAGE PAGE

1 Warning-------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Exploded View and Replacement Parts List ------------ 3

Please file and use this manual together with the service manual for Model No. ES2013-E2, Order No.

PCD0606E33AE.

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

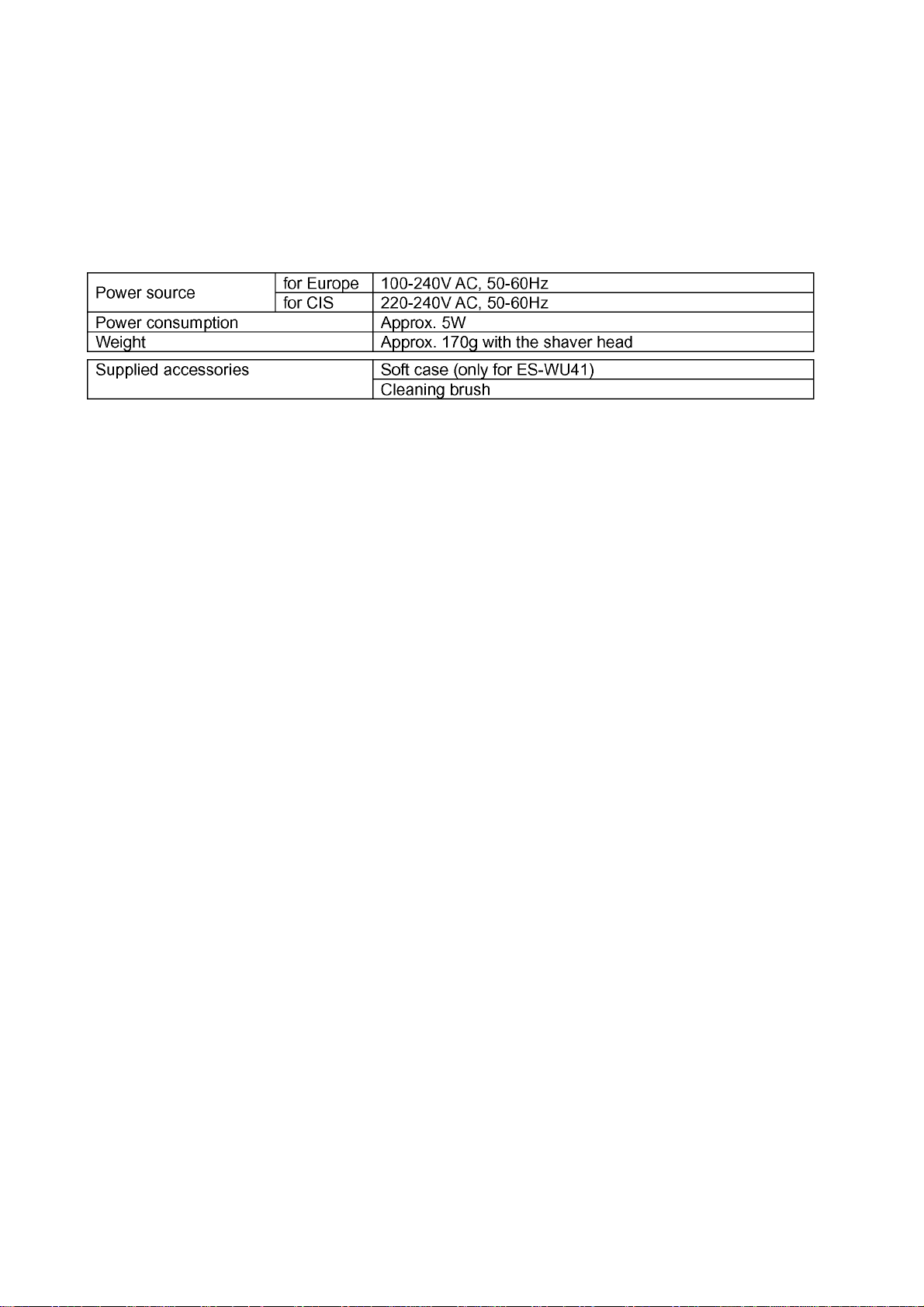

2 Specifications

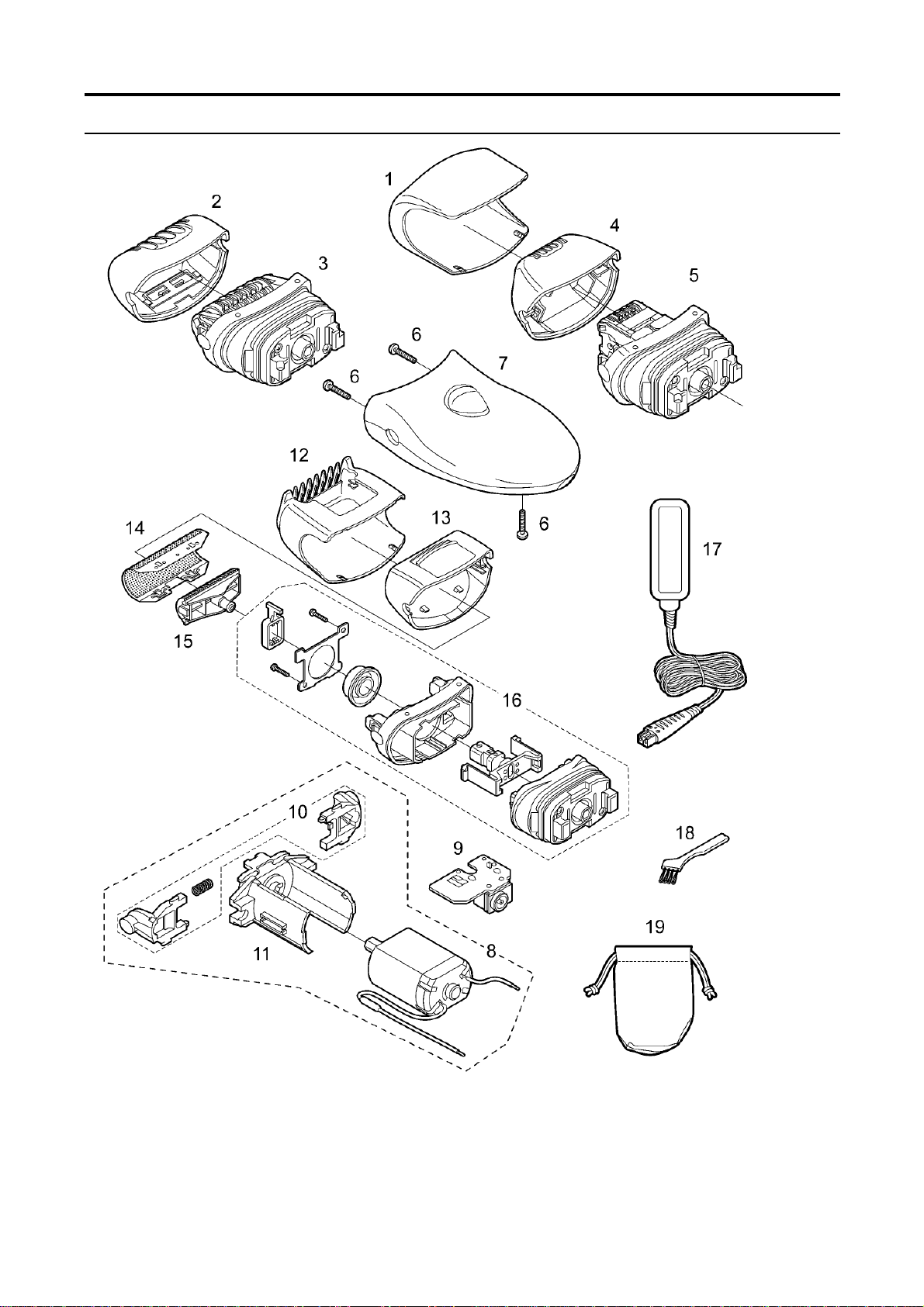

Model No. : ES-WU41 EXPLODED VIEW

3 Exploded View and Replacement Parts List

Model No. : ES-WU41 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

ES-WU41

1 WESWU41P7158 PROTECTIVE CAP 2

2 WESWS10W3008 EPILATION FRAME FOR LEGS/ARMS 1

3 WESWS20W1068 EPILATION HEAD FOR LEGS/ARMS 1

4 WESWU31W3128 EPILATION FRAME FOR UNDERARMS 1

5 WESWU31W1078 EPILATION HEAD FOR UNDERARMS 1

6 WES331B9257 TAPPING SCREW 3 K2-8

7 WESWU41P3058 HOUSING AB SET 1 for CIS

8 WESWU11L1008 MOTOR 1

9 WESWU11L2148 JACK WITH SWITCH P-PLATE 1

10 WES2013W3278 HEAD RELEASE BUTTON W/SPRING 1

11 WESWU11H2448 CHASSIS 1

12 WESWU41X3558 BIKINI COMB 1

13 WESWS20W4038 FOIL FRAME 1

14 WES9753Y OUTER FOIL 1

15 WES9752Y INNER BLADE 1

16 WESWS20W0788 SHAVER HEAD 1

17 WESWU11W7661 AC ADAPTOR 1 C-2 PLUG / for CIS

18 WES2047H6767 CLEANING BRUSH 1

19 WESWU41W7008 SOFT CASE 1

- WESWU41P8008 INDIVIDUAL BOX 1 for CIS

- WESWU41P8108 OPERATING INSTRUCTIONS 1 for CIS

Model No. : ES-WU31 EXPLODED VIEW

Model No. : ES-WU31 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

ES-WU31

1 WESWU31D7158 PROTECTION CAP 2

2 WESWS10W3008 EPILATION FRAME FOR LEGS/ARMS 1

3 WESWS20W1068 EPILATION HEAD FOR LEGS/ARMS 1

4 WESWU31W3128 EPILATION FRAME FOR UNDERARMS 1

5 WESWU31W1078 EPILATION HEAD FOR UNDERARMS 1

6 WES331B9257 TAPPING SCREW 3 K2-8

7 WESWU31D3058 HOUSING AB SET 1 for CIS

8 WESWU11L1008 MOTOR 1

9 WESWU11L2148 JACK WITH SWITCH P-PLATE 1

10 WES2013W3278 HEAD RELEASE BUTTON W/SPRING 1

11 WESWU11H2448 CHASSIS 1

12 WESWU11W7661 AC ADAPTOR 1 C-2 PLUG / for CIS

13 WES2047H6767 CLEANING BRUSH 1

- WESWU31D8008 INDIVIDUAL BOX 1 for CIS

- WESWU31D8108 OPERATING INSTRUCTIONS 1 for CIS

Model No. : ES-WU11 EXPLODED VIEW

Model No. : ES-WU11 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

ES-WU11

1 WESWU11G7158 PROTECTION CAP 1 for GREEN MODEL

1 WESWU11P7158 PROTECTION CAP 1 for PINK MODEL

2 WESWS10W3008 EPILATION FRAME FOR LEGS/ARMS 1

3 WESWS20W1068 EPILATION HEAD FOR LEGS/ARMS 1

4 WES331B9257 TAPPING SCREW 3 K2-8

5 WESWU11G3058 HOUSING AB SET 1 for CIS / GREEN MODEL

5 WESWU11P3058 HOUSING AB SET 1 for EUROPE / PINK MODEL

6 WESWU11L1008 MOTOR 1

7 WESWU11L2148 JACK WITH SWITCH P-PLATE 1

8 WES2013W3278 HEAD RELEASE BUTTON W/SPRING 1

9 WESWU11H2448 CHASSIS 1

10 WESWU11W7661 AC ADAPTOR 1 C-2 PLUG / for CIS

10 WESWU11W7664 AC ADAPTOR 1 C-2 PLUG / for EUROPE

11 WES2047H6767 CLEANING BRUSH 1

- WESWU11G8008 INDIVIDUAL BOX 1 for CIS / GREEN MODEL

- WESWU11P8008 INDIVIDUAL BOX 1 for EUROPE / PINK MODEL

- WESWU11G8108 OPERATING INSTRUCTIONS 1 for CIS / GREEN MODEL

- WESWU11P8108 OPERATING INSTRUCTIONS 1 for EUROPE / PINK MODEL
