Panasonic KX-FLM551 Manuale utente

ORDERNO. KMF0108507C1

Multi-Function Laser Fax

KX-FLM551

(for U.S.A.)

Unauthorized copying and distribution isaviolation of law.

1. INTRODUCTION

1.1. SAFETY PRECAUTIONS

1. Before servicing, unplug the AC power cord to prevent an electric

shock.

2. When replacing parts, use onlythe manufacturer's recommended

components.

3. Check the condition of the power cord. Replace ifwear or damage

isevident.

4. After servicing, be sure to restore the lead dress, insulation

barriers, insulation papers, shields, etc.

5. Before returning the serviced equipment to the customer, be sure

to perform the following insulation resistance test to prevent the

customer from being exposed to shock hazards.

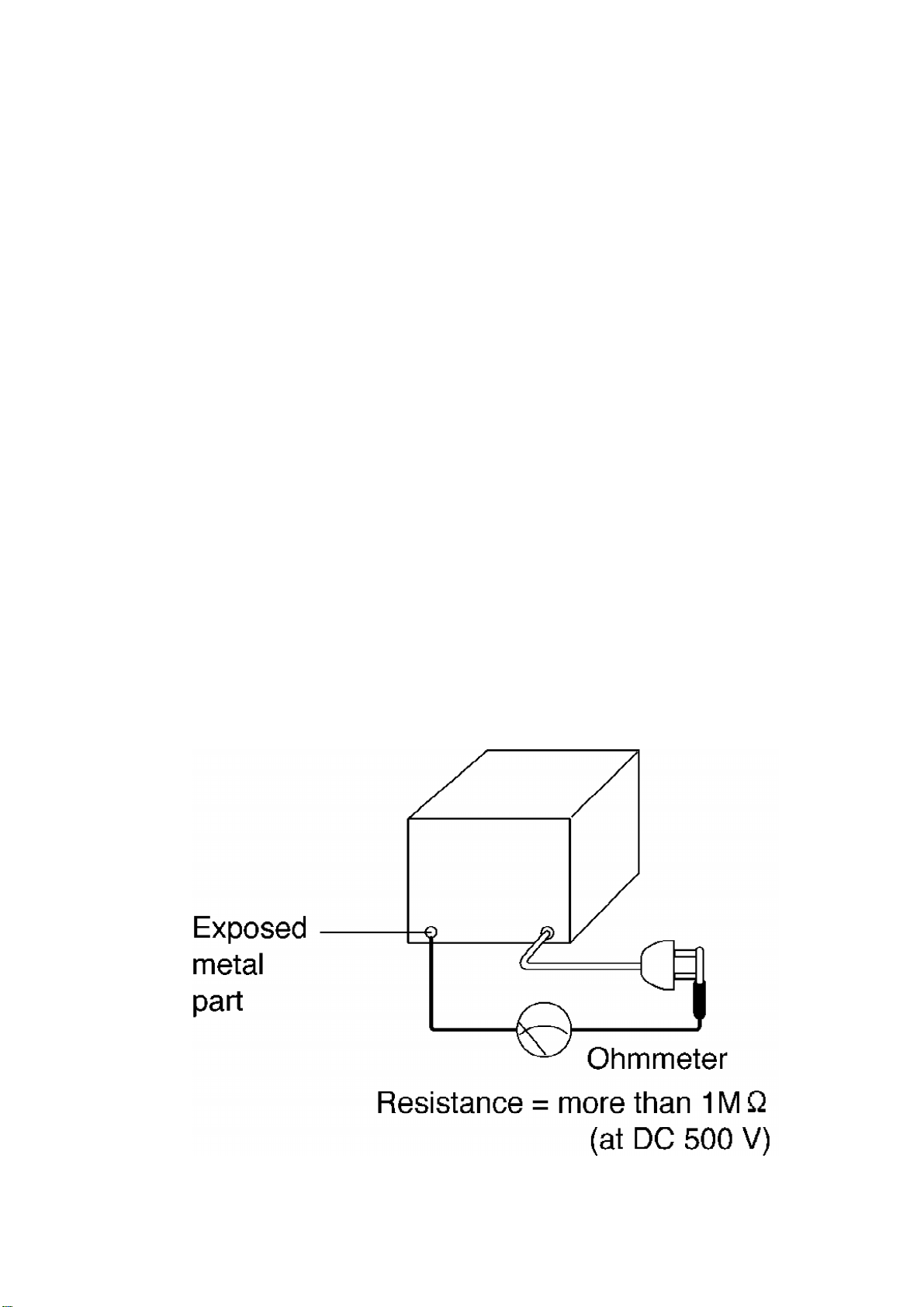

1.2. INSULATIONRESISTANCETEST

1. Unplug the power cord and short the twoprongs of the plug with

ajumper wire.

2. Turn on the power switch.

3. Measure the resistance value with an ohmmeter between the

jumpered AC plug and each exposed metal cabinet part

(screw heads, control shafts, bottom frame, etc.).

Note: Some exposed parts maybe isolated from the chassisby

design. These will read infinity.

4. Ifthe measurement isoutside the specified limits, there isa

possibilityof ashock hazard.

1.3. FORSERVICETECHNICIANS

ICs and LSIs are vulnerable tostatic electricity.

Whenrepairing, the following precautions will helpprevent recurring malfunctions.

1. Cover the plasticpart's boxes with aluminum foil.

2. Ground the soldering irons.

3. Use aconductive mat on the worktable.

4. Donot touch the ICor LSI pins with bare fingers.

1.4. BATTERYCAUTION

CAUTION

Danger of explosion ifthe batteryisreplaced incorrectly. Replace

onlywith the same or equivalent type recommended bythe

manufacturer. Discard used batteries according to following caution

Disposal of lithium batteries shouldbe performed bypermitted,

professional disposal firms knowledgeableinstate government

federal and local hazardous materialsand hazardous waste

transportation and disposal requirements.

Abatterycontinues to have no transportation limitations as long as

itisseparated to prevent short circuits and packed instrong

packaging.

Commercial firms that dispose of anyquantityof lithium cells

shouldhave amechanism inplace to account for theirultimate

disposition. Thisisagood practice for all types of commercial or

industrial waste.

Recommend Type Number:

CR2032 (BAT501) Manufactured byMATSUSHITA

CR2032 (BAT501) Manufactured bySONY

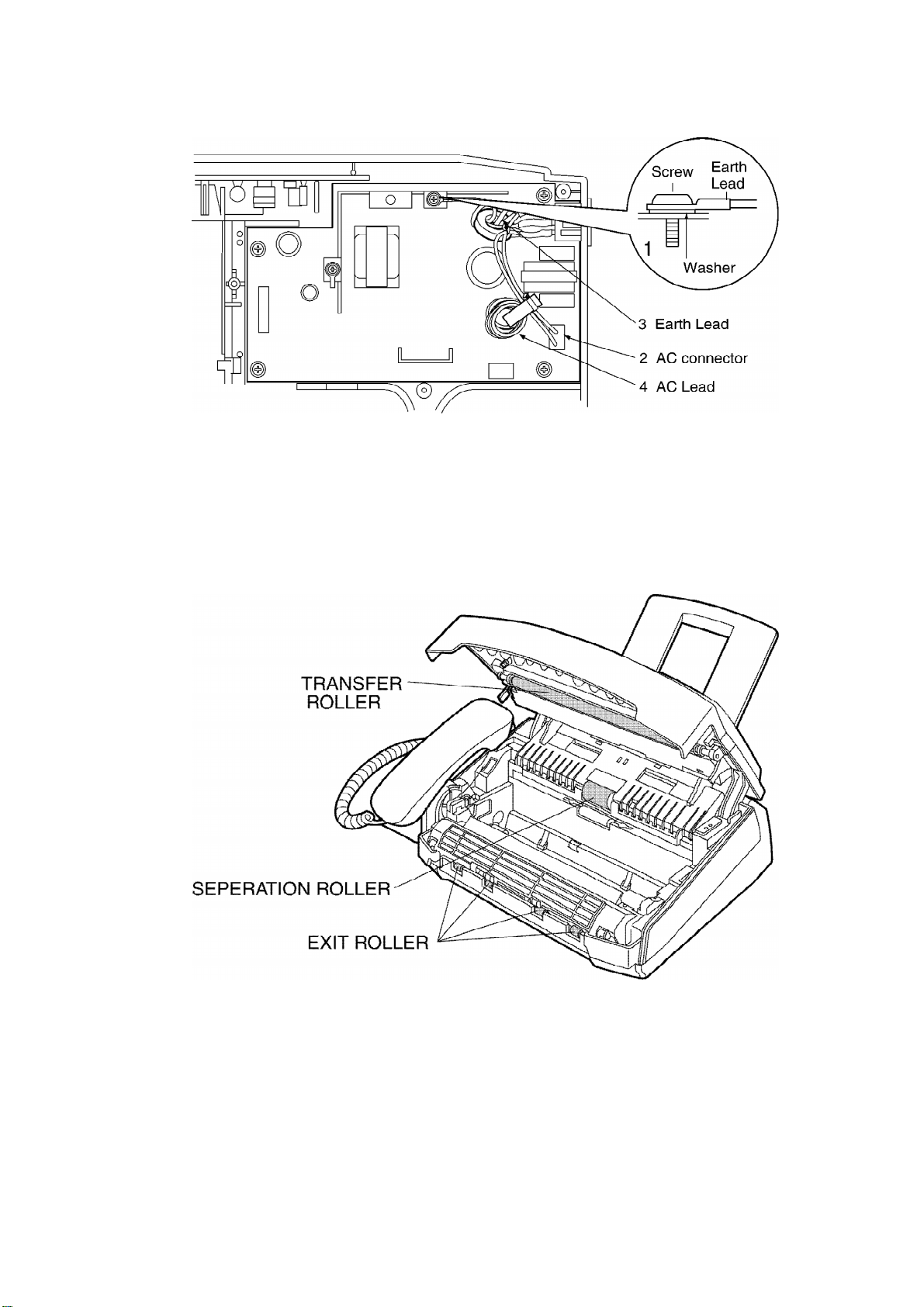

1.5. AC CAUTION

Forsafety, before closing the lowercabinet, please make sure of the following precautions.

1. The earth lead isfixed with the screw.

2. The AC connector isconnected properly.

3. Wind the earth lead around the core 5times.

4. Wind the earth AC around the core 4times.

1.6. PERSONALSAFETY PRECAUTIONS

1.6.1. MOVING SECTIONS OFTHE UNIT

Be careful not tolet yourhair, clothes, fingers, accessories, etc., become caught inanymoving

sections of the unit.

The moving sections of the unit are the rollers and a gear. There is a separation rollerand a

document feedrollerwhichare rotatedbythe document feedmotor. A gearrotates the two

rollers. Be careful not totouchthemwithyourhands, especiallywhenthe unit is operating.

1.6.2. LIVE ELECTRICALSECTIONS

All the electrical sections of the unit suppliedwithAC powerbythe AC powercordare live.

Neverdisassemble the unit forservice withthe AC powersupplypluggedin.

CAUTION:

AC voltage issupplied to the primaryside of the power supplyunit.

Therefore, alwaysunplug the AC power cord before disassembling

for service.

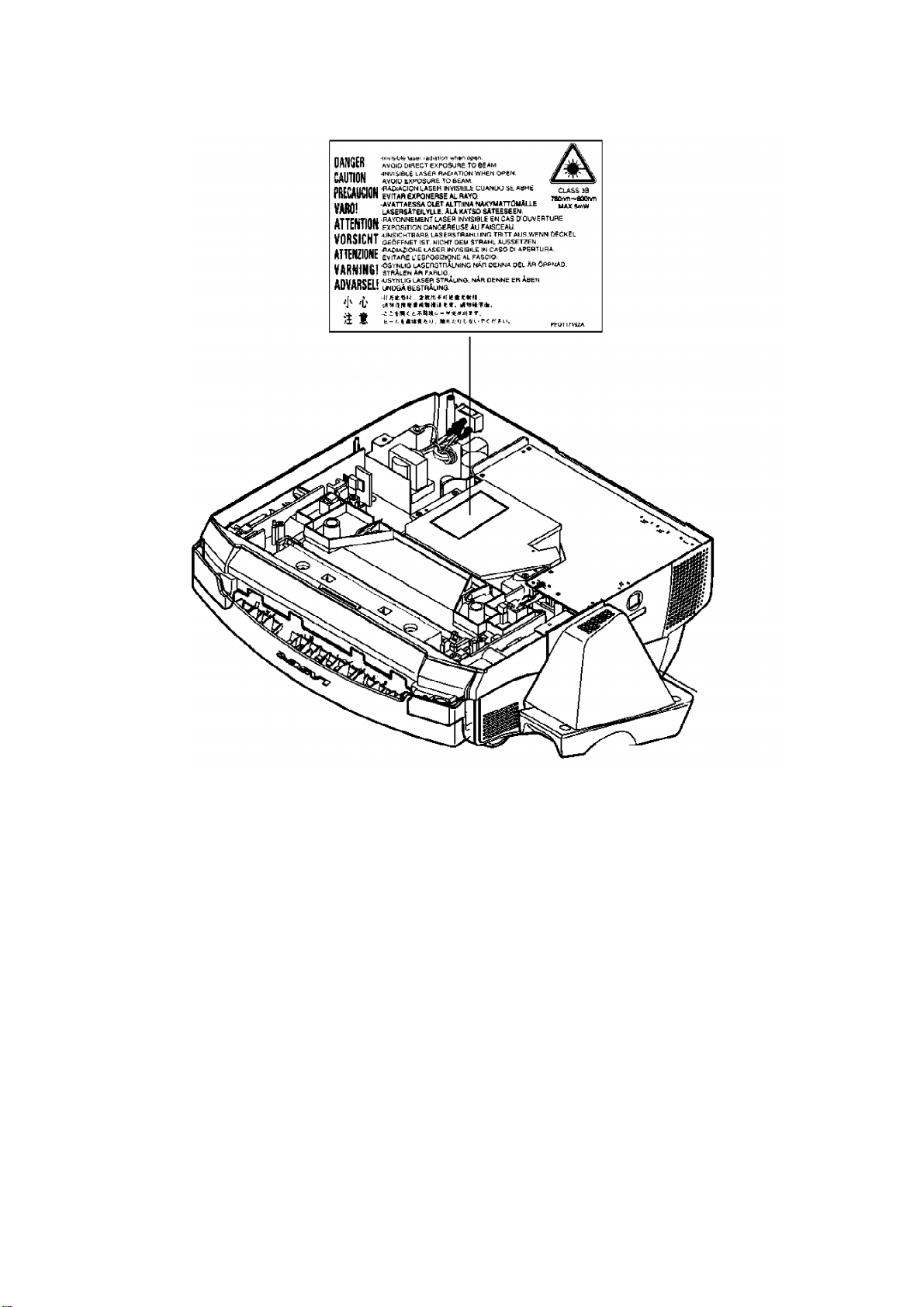

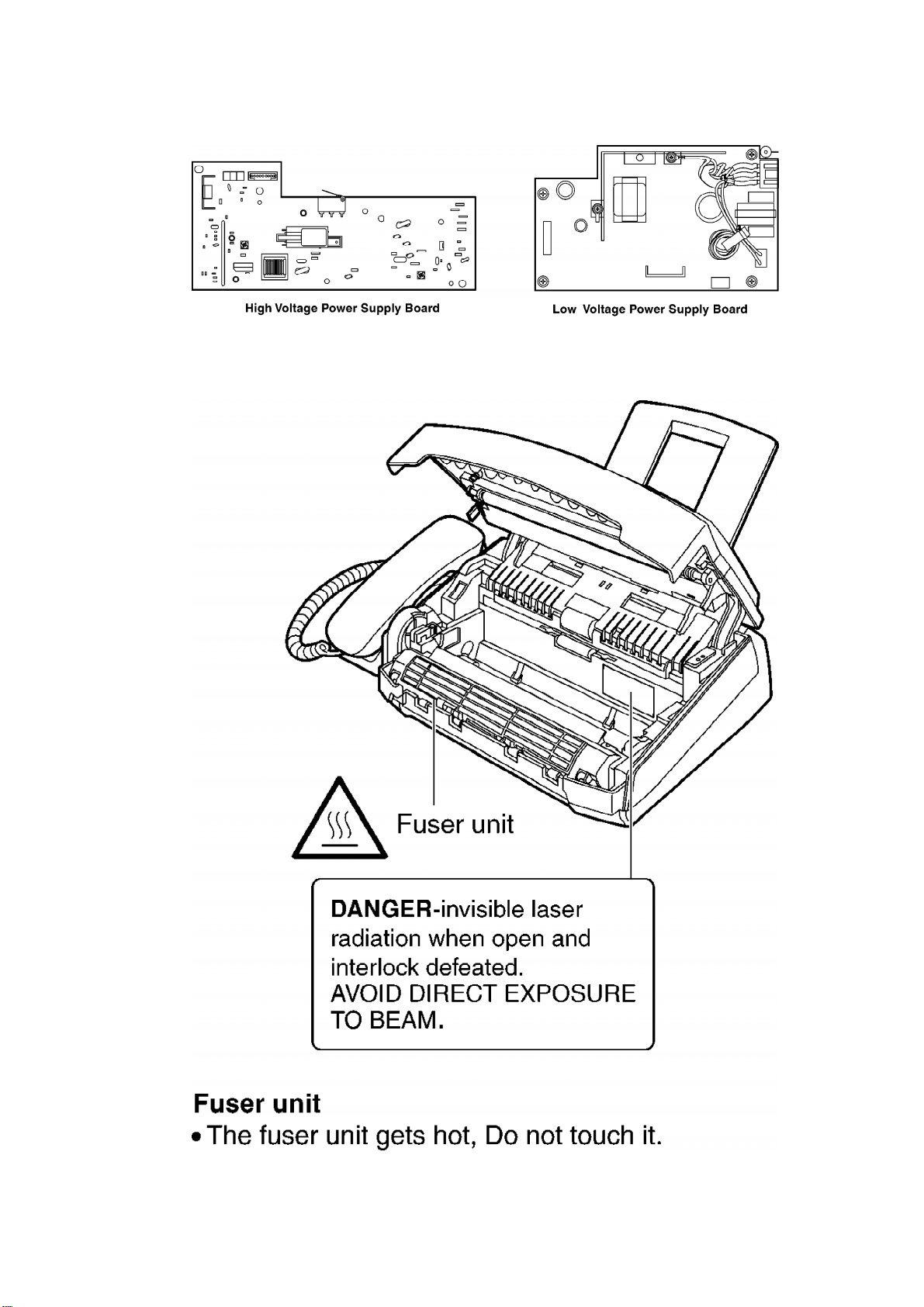

1.6.3. LASER BEAM SECTION

The printerof this unit utilises a laser. Use of controls oradjustments orperformance of

procedures otherthanthose specifiedhereinmayresult inhazardous radiation exposure.

1.7. SERVICEPRECAUTIONS

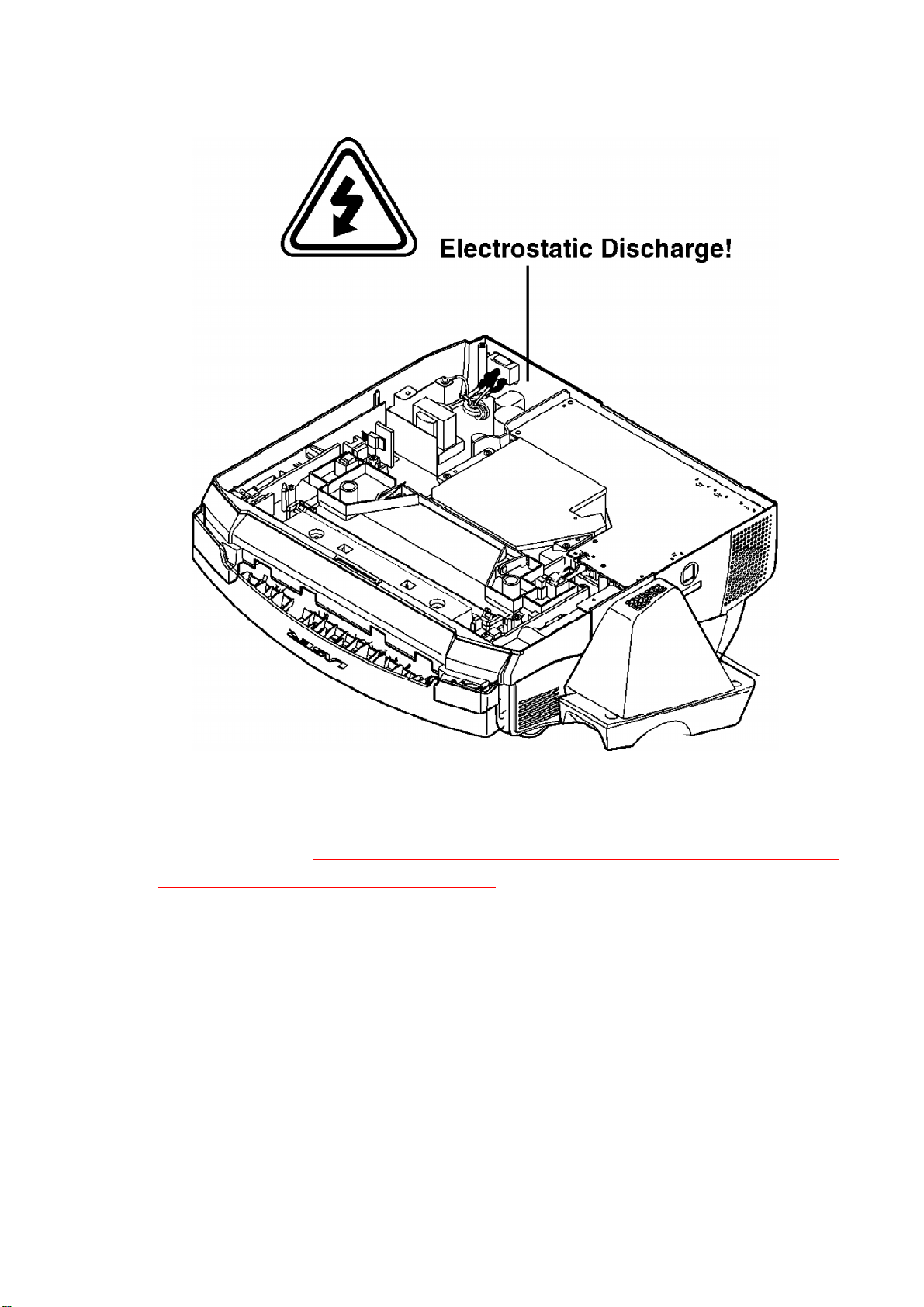

1.7.1. PRECAUTIONS TO PREVENTDAMAGE FROM STATIC ELECTRICITY

Electrical charges accumulate on a person. Forinstance, clothes rubbing togethercandamage

electric elements orchange theirelectrical characteristics. Inordertoprevent static electricity,

toucha metallic part that is groundedtorelease the static electricity. Nevertouchthe electrical

sections suchas the powersupplyunit, etc.

1.8. FEATURES

General

-Helpfunction

Please refer to WHEN YOU DON'T KNOW HOW TO OPERATE THE

UNIT, USE THE HELP FUNCTION.() to print below features.

Display:

1. QUICK SET UP

2. FEATURELIST

3. JOG/AUTO DIAL

4. FAXSND/RCV

5. COPIER

6. Q and A

7. ERRORS

8. REPORTS

9. CALLERID

-LCD (LiquidCrystal Display)readout

-TAM(Telephone answering machine) interface

PlainPaperFacsimile Machine

-8second transmission speed *

-Letter/A4/Legal, G3compatible

-Automaticdocument feeder (15 sheets)

-Quick scan

-Resolution: Standard/Fine/Super fine/Photo (64 level)

-STANDARD:For printed or typewritten originalswith normal-sized

characters.

-FINE: For originalswith small printing.

-SUPERFINE: For originalswith minute printing.

-PHOTO:For originalscontaining photograph.

-Broad cast with Jog-Dial

-150-sheet paper capacity(60 g/m2~ 75 g/m2[16 lb~20 lb.])

-Distinctive ring detection **

*The 8 second speedis basedupon the ITU-TNo. 1 Test Chart on the condition that memory

transmission is performed.

** Subscription todistinctive ring services is required.

Large Memory... PerformedbyDRAM

Approx. 150 pages of memoryreception

Approx. 150 pages of memorytransmission

IntegratedTelephone System

-On-hook dialing

-Monitor speaker

-Voice muting

-Redialing function

-100-Station telephone directorywith Jog Dial

EnhancedCopierFunction

-Multi-copyfunction (up to 99 copies)

-Enlargement and reduction

-Collate

-64-Level halftone

1.9. SPECIFICATIONS

ApplicableLines:

PublicSwitched Telephone Network

Document Size:

Max. 216 mm (8 1/2") inwidth

Max. 600 mm (23 5/8") inlength

Effective Scanning Width:

208 mm (8 3/16")

Effective Printing Width:

208 mm (8 3/16")

Transmission Time*:

Approx. 8s/page (ECM-MMR)**

Scanning Density:

Horizontal:

8pels/mm (203 pels/inch)

Vertical:

3.85 lines/mm (98 lines/inch)—STANDARD

7.7lines/mm (196 lines/inch)—FINE/PHOTO

15.4lines/mm (392 lines/inch)—SUPERFINE

Halftone Level:

64-level

Scanner Type:

Contact Image Sensor (CIS)

Printer Type:

Laser beam printer

Data Compression System:

Modified Huffman (MH), Modified READ (MR), Modified Modified

READ (MMR)

Modem Speed:

14,400/12,000/9,600/7,200/4,800/2,400 bps; AutomaticFallback

Operating Environment:

10°C—32.5°C(50°F—90.5°F), 20—80%RH (Relative Humidity)

Dimensions (H×W×D):

190 mm × 417 mm × 345 mm (7 1/2"×16 2/5"×13 3/5")

Mass (Weight):

Approx. 6.5kg (14.3lb.)

Power Consumption:

Standby:Approx. 6W

Transmission: Approx. 25 W

Reception: Approx. 200 W

Copy:Approx. 200 W

Maximum: Approx. 560 W(When the fuser unitturns on)

Power Supply:

120 VAC, 60 Hz

MemoryCapacity:

Approx. 150 pages of memorytransmission/reception/copy.

(Based on ITU-T No. 1Test Chart instandard resolution.)

Laser diode properties:

Laser output: Max. 5mW

Wave length: 760 nm—800 nm

Emission duration: Continuous

Print Speed:

10 ppm (page per minute)

Printing Resolution:

600 × 600 dpi

CompatibleOS:

Windows95/98/Me/2000

Interface:

USB/Parallel (IEEE 1284)

*Transmission speeddepends upon the contents of the pages, resolution, telephone line

conditions and capabilityof the otherparty’s machine.

** Transmission speedis basedupon the ITU-TNo. 1 Test Chart and original mode. (Referto ITU-

T No.1 TEST CHART().) If the capabilityof the otherparty's machine is inferiortoyourunit, the

transmission time maybe longer.

Note:

-Anydetailsgiven inthese instructions are subject to change

without notice.

-The pictures and illustrations inthese instructions mayvary

slightlyfrom the actual product.

Design and specifications are subject tochange without notice.
