Panasonic KX-L5CW Manuale utente

Facsimile

Quick Reference Guide

KX-L5CL

KX-L5CW

Model No.

Table of Contents

Finding the controls ……………………………………………………………2

Installations and connections …………………………………………………4

Setting the date and time ………………………………………………………7

Setting your facsimile telephone number ……………………………………7

Setting your logo…………………………………………………………………8

Character input and command key table ……………………………………9

Automatic dialing on the main unit……………………………………………10

Automatic dialing on the portable handset …………………………………12

Intercom between the main unit and portable handset ……………………13

Intercom between portable handsets ………………………………………14

Sending faxes …………………………………………………………………15

Receiving faxes ………………………………………………………………16

Operating the built-in answering device ……………………………………20

L-mode service …………………………………………………………………21

Specifications…………………………………………………………Back cover

Thank you for purchasing a Panasonic facsimile.

●This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

●This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

●Any details given in this guide are subject to change without notice.

KX-L5CL has one portable handset.

KX-L5CW has two portable handsets.

KX-L5CL

Finding the controls

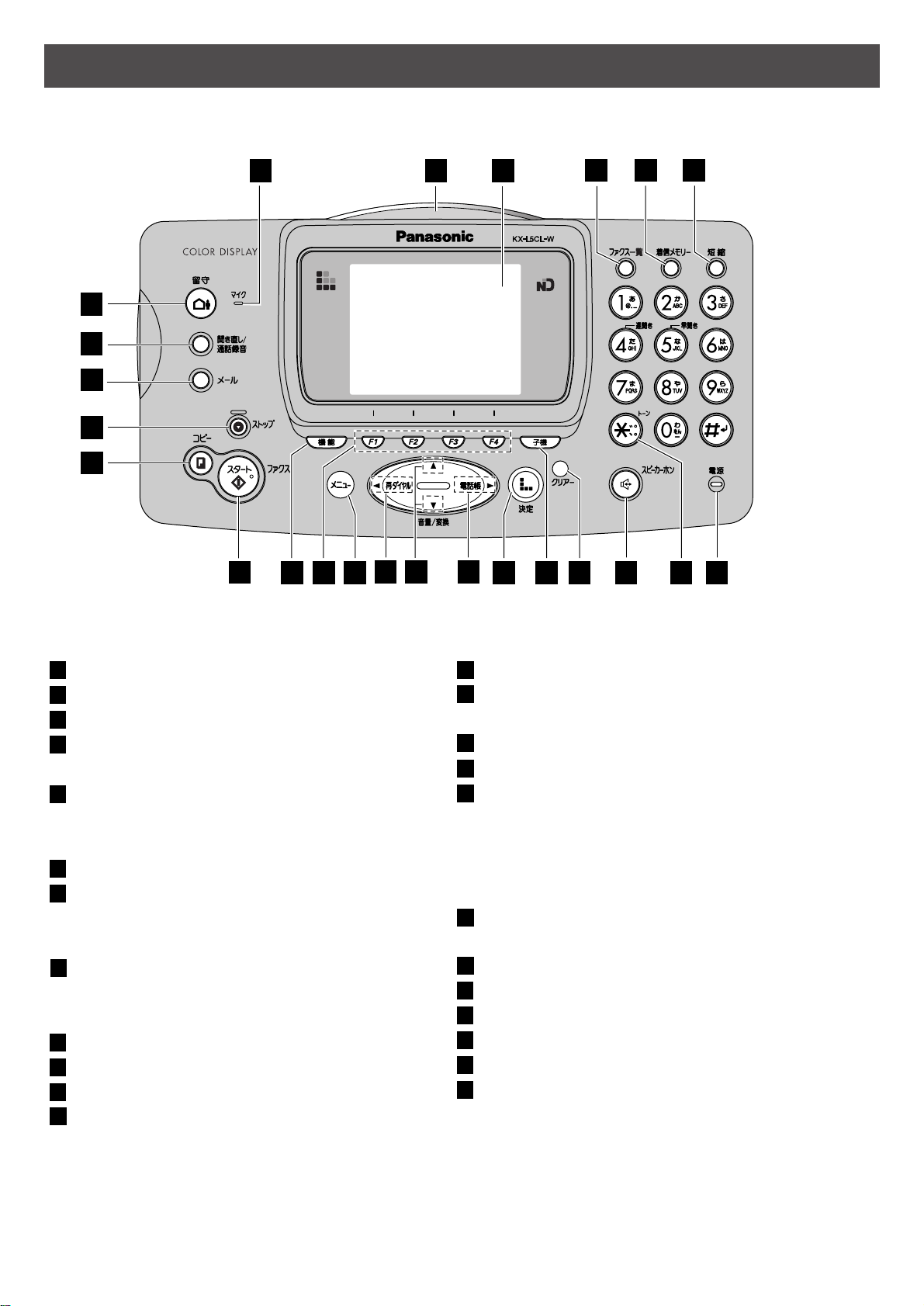

Main unit (control panel)

(KX-L5CL is shown.)

Microphone

Call indicator

Liquid crystal display

Memory button & indicator shows the

list of received fax data.

Call memory button & indicator starts a

search in the Number Display log.

(For caller ID display service users.)

Speed Dial button

Auto Answer button

—light on: answering device activated.

—light off: used as a regular telephone.

Replay button plays back recorded

messages. / Record button records

telephone calls.

Mail button & indicator

Stop button

Copy button starts copying.

Start/Fax button starts faxing.

Function button initiates programming.

Multi-operation buttons refer to the

function displayed on the display panel.

Menu button

Redial button

Search button searches the directory

by pressing the up and down buttons.

Volume button adjusts ringer, speaker

and handset volume by pressing the up

and down buttons.

Phonebook button uses the

phonebook.

L-mode button

Intercom button

Clear button

Speakerphone button

Tone button switches to tone dialing.

Power indicator

1 32 4 5 6

13 16 17 20 21 2314 15 19

18 22 24

Finding the controls

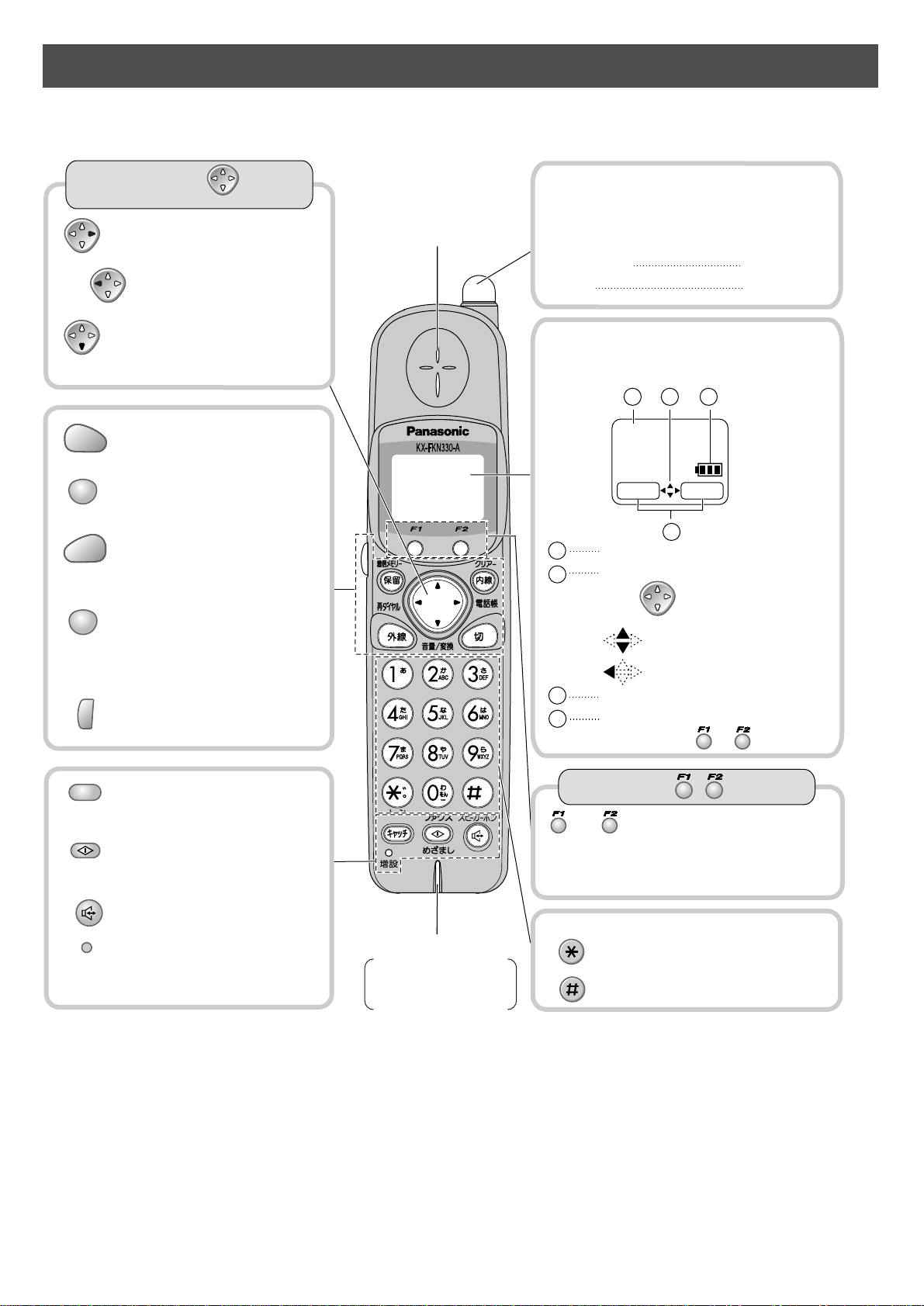

Portable handset



Tone button

●



To switch to Tone dialing mode.

●



To make/answer calls.

●



To page the main unit or

another portable handset.

●



To clear letters/numbers.

●



To end a call.

●



To end or exit from editing

or other operations.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For caller ID display

service users.)

●



For call waiting service

users.

●



To receive faxes.

●



To use the speakerphone.

●



Used when installing

additional portable

handsets. Sharp button

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Call/Charge indicator

Dial buttons

Charging

Full

Off

LCD (with back light)

Speaker

Microphone

Do not cover the

microphone while

talking.



●



Displays battery strength, telephone

numbers etc.

●



When receiving a call, the indicator

will blink.

●



When placed on a charger

Portable handset number



3Battery strength

1 2 3

機能

子機

留守電

Indicates which directions the

key can be tilted.

up and down

left

4Function menu that is

controlled by or .

外線

クリアー

内線

切

着信

メモリー

保留

ファクス

めざまし

キャッチ

スピーカーホン

増設

電話帳

再ダイヤル

音量/変換

トーン

How to use buttons

●



To talk to another portable

handset.

ト

ー

ク



●



To adjust the volume.

●



To change Hiragana into

Kanji.

●



To redial the last number

dialed.

●



To use the phonebook.

How to use key

電話帳

再ダイヤル

音量/変換

再ダイヤル

電話帳

音量/変換

Installations and connections

Installing the ink film

2Insert the ink film.

Insert the white core into the slots shown in the

picture below.

1Open the control panel.

Find the “T”shaped gear (blue).

Ink film

Insert the blue core into the right slot of the main

unit.

Insert the “T”shaped gear (blue) into the left slot of

the main unit.

Blue core

“T” shaped

gear (blue)

Right slot

White core

“T”shaped gear (blue) Do not be

slacken.

Control panel

Press here.

Open the control

panel until it locks.

If the ink film is slack, tighten it by winding the “T”

shaped gear.

3Close the control panel until it locks.

Installations and connections

Installing recording paper

(A4

size)

1Install the recording paper tray.

Remove the recording paper cover.

Insert the left tab on the recording paper tray into

the left slot of the main unit.

Insert the right tab into the right slot of the main

unit.

3Close the paper entrance cover by leaning it back.

4Install the recording paper cover on the recording

paper tray by sliding it down from the top.

Recording

paper tray

Slot Tab

Recording

paper cover

Paper entrance cover

Printing

side is on

the back

Paper entrance cover

Recording paper

tray

Recording paper

cover

Fan the stack of recording paper (A4 size).

Insert the recording paper into the recording paper

tray. (Up to 30 sheets)

2Insert the recording paper into the recording paper tray.

Open the paper entrance cover until it locks.

Connecting the main unit

Installations and connections

3Charge the battery in the charger for 10 hours.

Plug

Charger

AC adaptor

Power outlet

(AC 100 V)

Black

Red

Connector

Battery

Click

Battery cover

Charge indicator

–lights on:

while charging.

–lights off:

charging completed.

Setting up the portable handset

●After your Panasonic battery is fully charged,

it will last up to about 7 hours of conversation.

Power cord

Telephone line cord Wall jack

Power outlet

AC 100V

Click

1Raise the antenna.

2Connect the cord and

place the handset on

the main unit.

3Connect the telephone line

cord (Supplied accessory).

4Connect the power cord.

(電話回線へ)

回線

電話機

停電用

(電話回線へ)

回線電話機

停電用

Click

After the Power On...

This unit will automatically select the dialing

mode (Tone/Pulse).

Setting the date and time

1Press (Function) and .

機能

1Press (Function) and .

機能

2Enter the correct year/month/day.

Example: October 1, 2002

Press . 2Enter your facsimile telephone number, up to

20 digits.

Example: 098 765 43 · ·

3Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press .

3Press (Register).

登録

4Press (Register).

登録

5Press (Stop).

ストップ

4Press (Stop).

ストップ

Setting your facsimile

telephone number

機能

ストップ

機能

ストップ

日付時刻

2002

年

月

日

14：30

Cursor

Example :

日付時刻

2002

年

月

日

15：45

登録しました

日付時刻

2002

年

月

日

15：45

あなたの電話番号

.....................

Cursor

あなたの電話番号

09876543・・・.......

登録しました

あなたの電話番号

09876543・・........

The (Space) button

replaces the digit with a space.

スペース

1Press (Function) and .

機能

2Enter your logo, up to 30 characters, using the dial

keypad.

●To enter English characters easily, press

(Character input mode) repeatedly and select

“半角英字” (English and sign input mode).

●For details, see the table on page 9 for instructions.

4Press (Stop).

ストップ

Setting your logo

機能

電話帳

再

ダイヤル

ストップ

2. Press six times.

3. Press six times.

4. Press to move the cursor to the next

space and press four times.

電話帳

再

ダイヤル

5. Press five times.

Example: Micah

1. Press once.

3Press (Register).

登録

名前(印刷用)

Cursor

名前

(

印刷用

)

Cursor

名前

(

印刷用

)

名前

(

印刷用

)

Mic

名前

(

印刷用

)

Mica

名前

(

印刷用

)

Micah

登録しました

名前

(

印刷用

)

Micah

Character input and command key table

、、。、。

“かな”

Hiragana

“半角英字／／英”

English

“カナ”

Katakana

“半角数字／／数”

Numbers

!？/ー#‚;: ｜・’”

（）

[]

｛｝〈〉「」

ワヲンー！？ ( )

あいうえおぁぃぅぇぉ

かきくけこ

さしすせそ

たちつてとっ

なにぬねの

はひふへほ

まみむめも

やゆよゃゅょ

らりるれろ

わをんー！？ ( )

アイウエオァィゥェォ @・ｰ&＄¥%＋=

〜^

DEFdef

GHI gh i

JKL j k l

MNOmn o

PQRSpqrs

TUVtuv

WXYZwxyz

カキクケコ

サシスセソ

タチツテトッ

ナニヌネノ

ハヒフヘホ

マミムメモ

ヤユヨャュョ

ラリルレロ

ABCabc

、。

Pressing the dial keys will select a character as shown below.

Character

Dial key

Used to change the character input mode.

Used to move the cursor to the left and right.

Used to delete a character.

Used to insert a space.

Command keys

(Main unit), (Portable handset)

電話帳

再

ダイヤル

(Main unit), (Portable handset)

クリアー

内線

クリア

ー

(Main unit), (Portable handset)

保留

スペース

●A space is counted as one character in the number of the maximum input characters.

●When entering e-mail address, the small letters are displayed before the capital letters.

●When entering e-mail address, you can not enter the following symbols: 、。ー.「」

●When entering e-mail message, pressing enables you to begin the new line. ( “ ” is displayed.)

●The display items of the main unit are somewhat different from those of the portable handset.

Automatic dialing on the main unit

Storing names and telephone

numbers in the phonebook

Making a voice call using the

phonebook

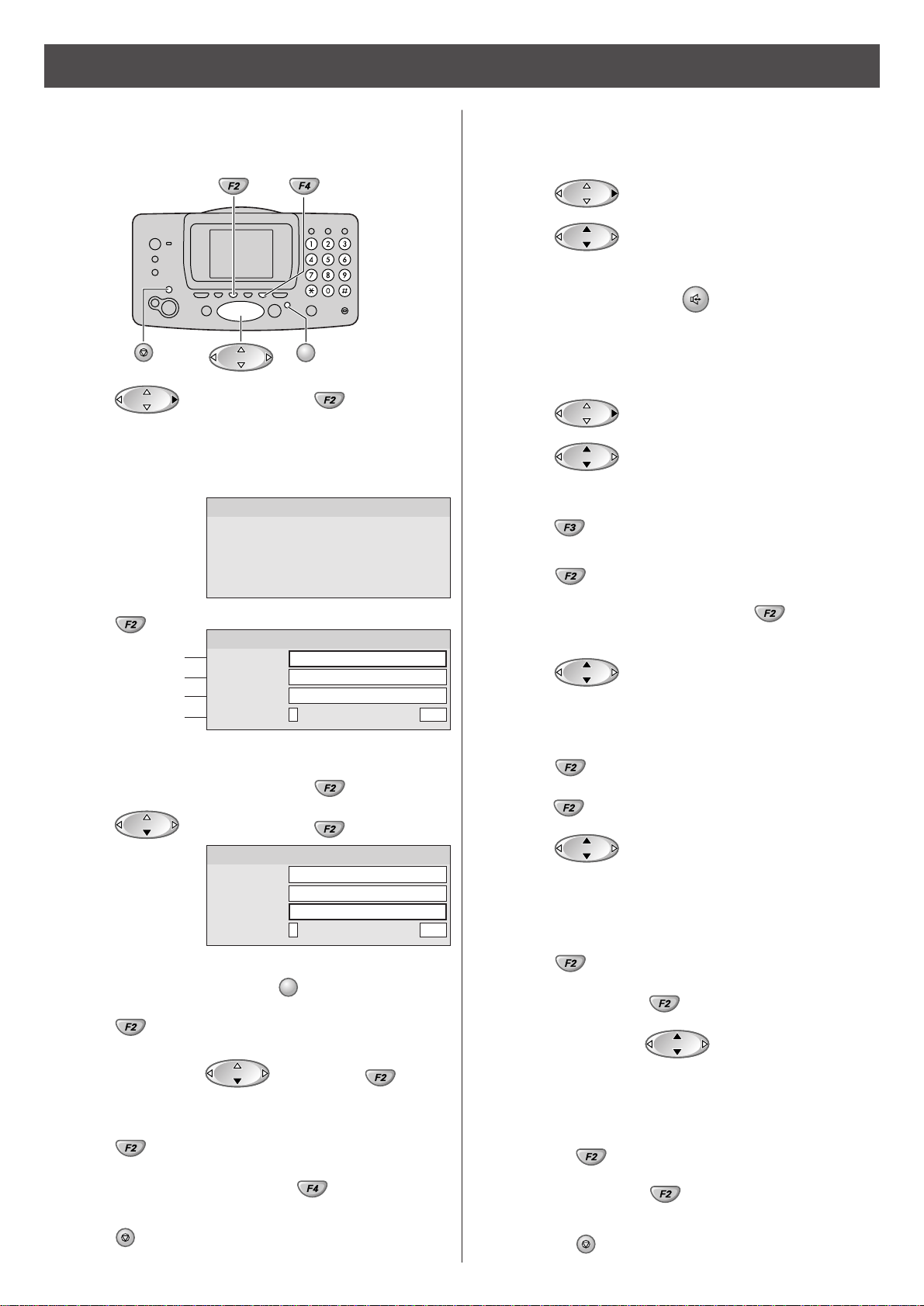

1Press (Phonebook) and (Register).

●“XXX” shows the number of remaining stations you

can store.

●You can program up to 150 stations, including 4

pre-programmed stations.

登録

電話帳

再

ダイヤル

2Press (Search button) repeatedly until the

desired name is displayed.

電話帳

再

ダイヤル

3Enter the name, up to 20 characters (see the table on

page 9 for instructions), then press (Register).

登録

3Lift the handset or press (Speakerphone).

スピーカーホン

5Enter the telephone number, up to 24 digits.

●To correct a mistake, press (Clear).

クリア

ー

6Press (Register).

登録

7If necessary, press (Down) and (Set),

then enter the group number (1–9).

決定

電話帳

再

ダイヤル

8Press (Register).

●To program other items, press (Next station)

and repeat steps 2 to 9.

次の登録

登録

Editing a stored name or number

2Press (Search button) repeatedly until the

desired name is displayed.

電話帳

再

ダイヤル

3Press (Edit).

修正

4Press (Set) and edit the name (see the table on

page 9 for instructions), then press (Register).

●If you do not need to edit the name, skip to step 5.

登録

決定

6Press (Set) and enter the correct kana, then

press (Register).

登録

決定

9If necessary, press (Search button) to

select the group number column.

●If you do not need to edit the group number,

skip to step 11.

電話帳

再

ダイヤル

10Press (Set), and enter the group number

(1-9), then press (Register).

登録

決定

電話帳

再

ダイヤル

クリア

ー

ストップ

2Press (Set).

決定

1Press (Phonebook).

電話帳

再

ダイヤル

1Press (Phonebook).

電話帳

再

ダイヤル

5Press (Search button) to select the kana

column.

●If you do not need to edit the kana, skip to step 7.

電話帳

再

ダイヤル

★★電話帳★★

電話帳検索

名前

？

電話帳空き

XXX

件

画像なし

★★電話帳★★

名前

フリカ

ﾞ

ナ

電話番号

ｸﾞﾙｰﾌﾟ

4Press (Down) twice and (Set).

決定

電話帳

再

ダイヤル

画像なし

★★電話帳★★

名前 Micah

フリカ

ﾞ

ナ

Micah

電話番号

ｸﾞﾙｰﾌﾟ

8Press (Set) and enter the correct telephone

number, then press (Register).

登録

決定

7Press (Search button) to select the

telephone number column.

●If you do not need to edit the telephone number,

skip to step 9.

電話帳

再

ダイヤル

11Press (Stop) to exit the program.

ストップ

9Press (Stop) to exit the program.

ストップ

Name

Kana

Group number

Telephone number

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Fax

Panasonic

Panasonic KX-PD701DL Manuale utente

Panasonic

Panasonic KX-FM330GR Manuale utente

Panasonic

Panasonic KX-F390 Manuale utente

Panasonic

Panasonic Panafax UF-7000 Manuale utente

Panasonic

Panasonic KX-F1000BX Manuale utente

Panasonic

Panasonic KX-FP207FX-S Manuale utente

Panasonic

Panasonic KX-FM131CX Manuale utente

Panasonic

Panasonic KX-FL521 - B/W Laser - Fax Istruzioni per l'uso e l'installazione

Panasonic

Panasonic KX-FP181E Manuale utente

Panasonic

Panasonic Panafax DX-800 Istruzioni di installazione e manutenzione

Panasonic

Panasonic KX-F790 Manuale utente

Panasonic

Panasonic KXF90 - CONSUMER FACSIMILE Manuale utente

Panasonic

Panasonic KX-FL513RU Manuale utente

Panasonic

Panasonic PANAFAX UF-321 Manuale utente

Panasonic

Panasonic KX-FC228HK Manuale utente

Panasonic

Panasonic KX-PZ628DLE Manuale utente

Panasonic

Panasonic DX 1000 - PanaFax B/W Laser Printer Manuale utente

Panasonic

Panasonic KX-FLC418RU Manuale utente

Panasonic

Panasonic KX-FC255E Manuale utente

Panasonic

Panasonic KX-FB422CX Manuale utente

Panasonic

Panasonic KX-F180 Manuale utente

Panasonic

Panasonic KX-PW201CL Manuale utente

Panasonic

Panasonic KX-PW38CL Manuale utente

Panasonic

Panasonic KX-F5000 Manuale utente

Manuali Fax popolari di altre marche

Samsung

Samsung SF-515 Manuale utente

Radio Shack

Radio Shack TFX-1031 Manuale utente

imagistics

imagistics 2030 Manuale

Furuno

Furuno FAX-30 Manuale utente

Savin

Savin 3740 Manuale

Sharp

Sharp FO-51 Manuale utente

Muratec

Muratec MFX-C3035 Manuale utente

Canon

Canon FAX-L400 Manuale utente

Ricoh

Ricoh 1000L Guida rapida

Sharp

Sharp FO-3150 Manuale utente

Kyocera

Kyocera KM-F1060 Manuale utente

Sharp

Sharp FO-2970M Manuale utente

Canon

Canon JX510P Manuale utente

Mita

Mita LDC-870 Manuale

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuale utente

Samsung

Samsung FX100 Manuale

Sharp

Sharp MX-FXX1 Manuale utente

Develop

Develop ineo 25e Manuale utente
