Panasonic KX-PW201CL Manuale utente

Facsimile

Quick Reference Guide

Model No.

Table of Contents

Finding the controls ……………………………………………………………2

Installations and connections …………………………………………………4

Setting the date and time ………………………………………………………6

Setting your facsimile telephone number ……………………………………6

Setting your logo…………………………………………………………………7

Character input and command key table ……………………………………8

Automatic dialing on the main unit ……………………………………………9

Automatic dialing on the portable handset …………………………………11

Intercom between the main unit and portable handset ……………………13

Sending faxes …………………………………………………………………14

Receiving faxes ………………………………………………………………15

Operating the built-in answering device ……………………………………17

Individual e-mail services ……………………………………………………18

Specifications…………………………………………………………Back cover

Thank you for purchasing a Panasonic facsimile.

●This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

●This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

●Any details given in this guide are subject to change without notice.

KX-PW201CL

KX-PW201CW

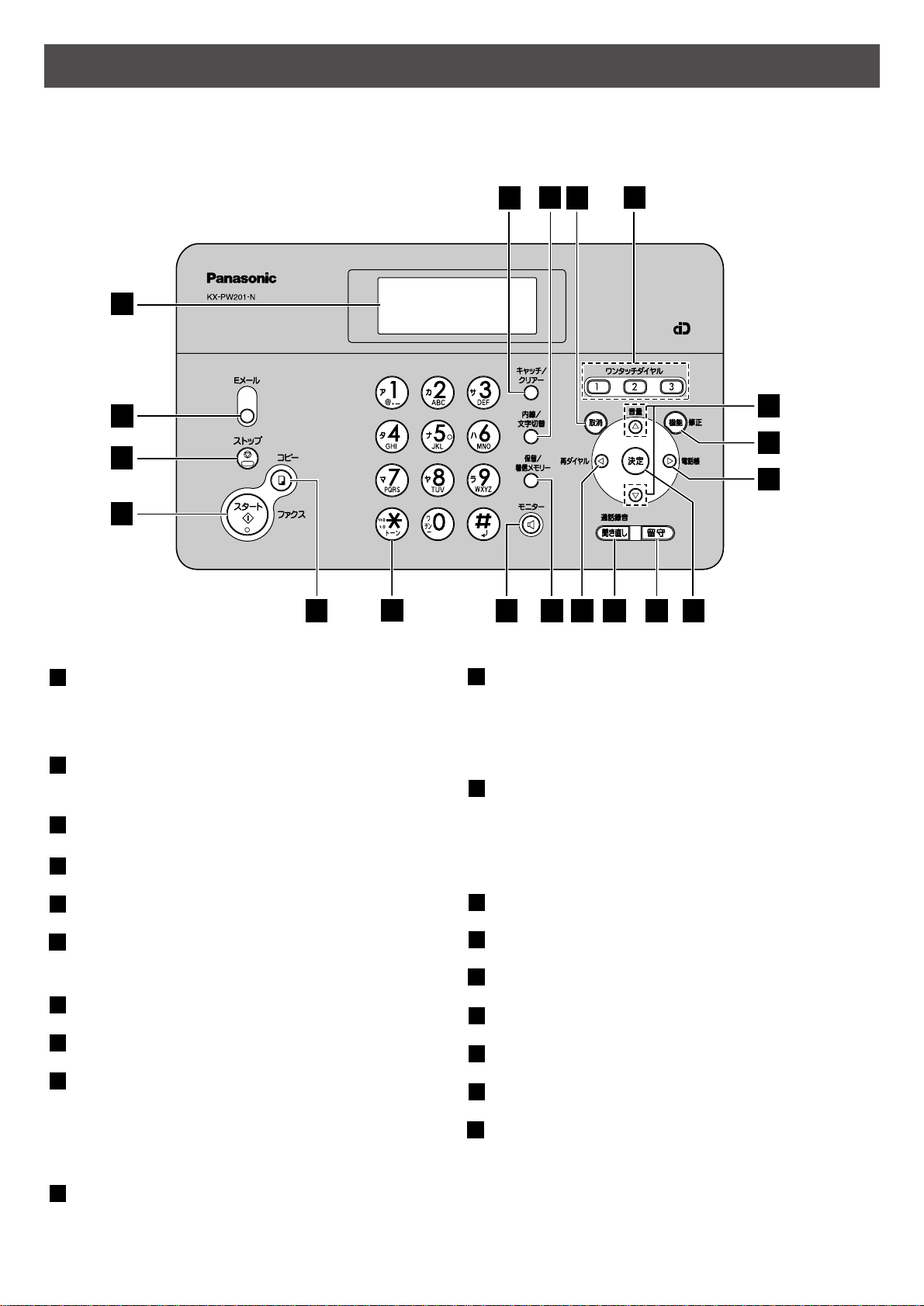

Finding the controls

Main unit (control panel)

月

日

14：00



ﾖｳｹﾝ

ｹﾝ

124

14 13

Flash button

(For call waiting service users.)

Erase button

Intercom button

Character Input Mode button

Cancel button

One-touch dial buttons

Volume buttons

Function button initiates programming.

Edit button

Phonebook button

Set button stores a paramater.

Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

Pause button

Record button records telephone calls.

Replay button plays back recorded

messages.

Redial button

To redial the phone numbers in the

redial list. The last 10 phone numbers

dialed are stored in memory.

Hold button

Call Memory button starts a search in

the Number Display log.

(For caller ID display service users.)

Monitor button

Tone button switches to tone dialing.

Copy button starts copying.

Start/Fax button starts faxing.

Stop button

E-Mail button & indicator

Liquid crystal display

Finding the controls

Portable handset



●



To adjust the volume.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To make/answer calls.

●



To page the main unit or

another portable handset.

●



To change the character

input mode.

●



To end a call.

●



To end or exit from editing or

other operations.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For caller ID display service

users.)

●



To clear letters/numbers.

●



For call waiting service

users.

●



To use the One-touch dial.

●



To use the speakerphone.

Sharp button

●



To use the phonebook.



and buttons refer to the

function displayed on the bottom of the

display. They function differently

depending on the mode.

Dial buttons

LCD (with back light)

Earpiece

Microphone

Do not cover the

microphone while

talking.



How to use buttons

How to use key



●



Displays battery strength, telephone

numbers etc.

Function menu that is

controlled by or .

Portable handset number

Battery strength



Tone button

●



To switch to Tone dialing mode.

ｺｷ

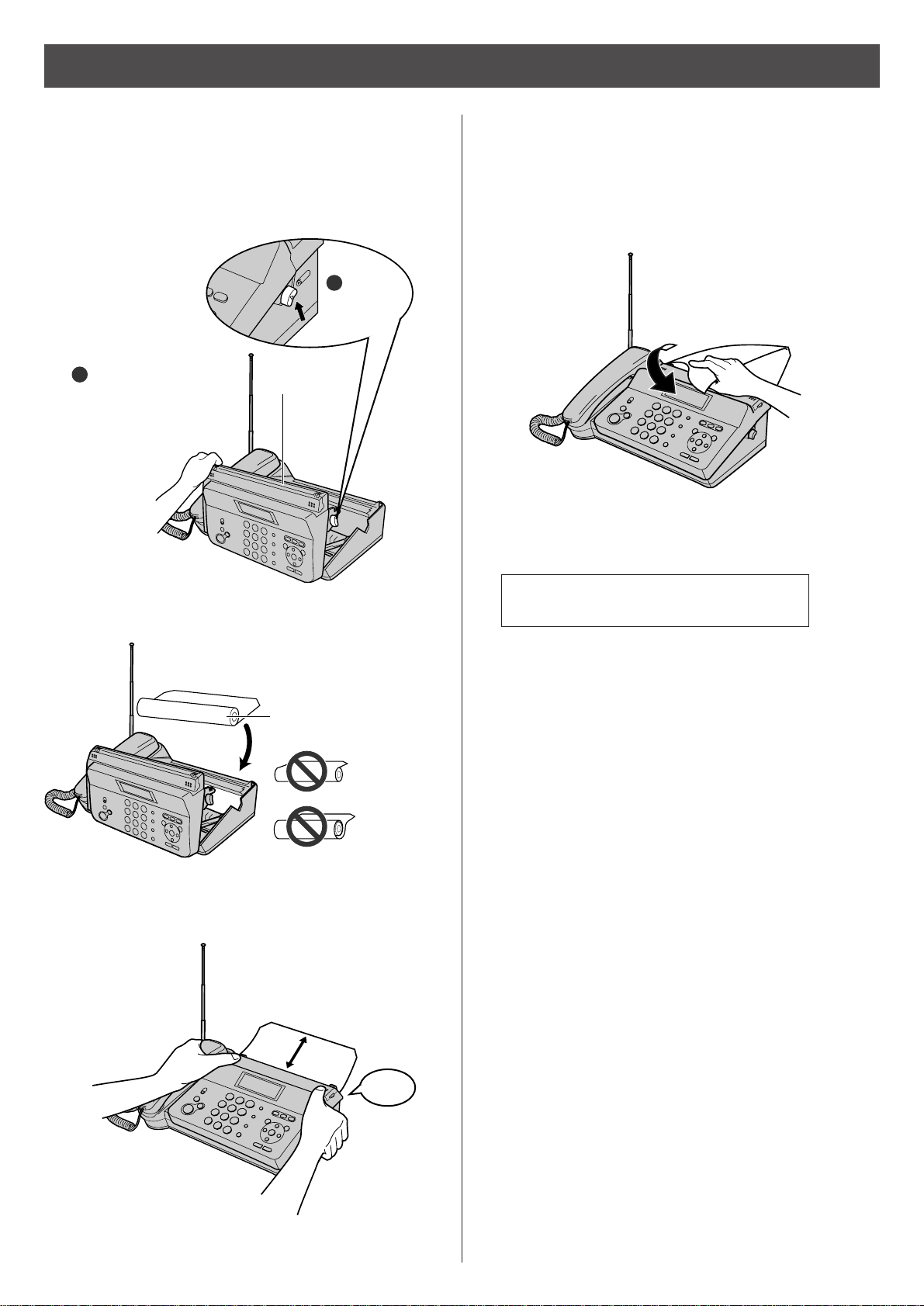

Installations and connections

Installing the thermal recording

papar

2Install the recording paper.

1Open the control panel.

Control panel

開く

Rolling core is upside

Reverse

Slack

Approx.

10cm

Click

Pull up

here.

Open the control

panel until it locks.

3Pull the paper approx. 10 cm out of the unit and

close the control panel until it locks.

4Pull the recording paper towards you to cut off.

Install a new thermal recording paper.

・As of June 2003. ・Tax not included.

●Approximetely 5 cm of the recording paper will

come out automatically.

Replacement thermal recording paper:

UG-0010A4 (15 m role type) ¥450

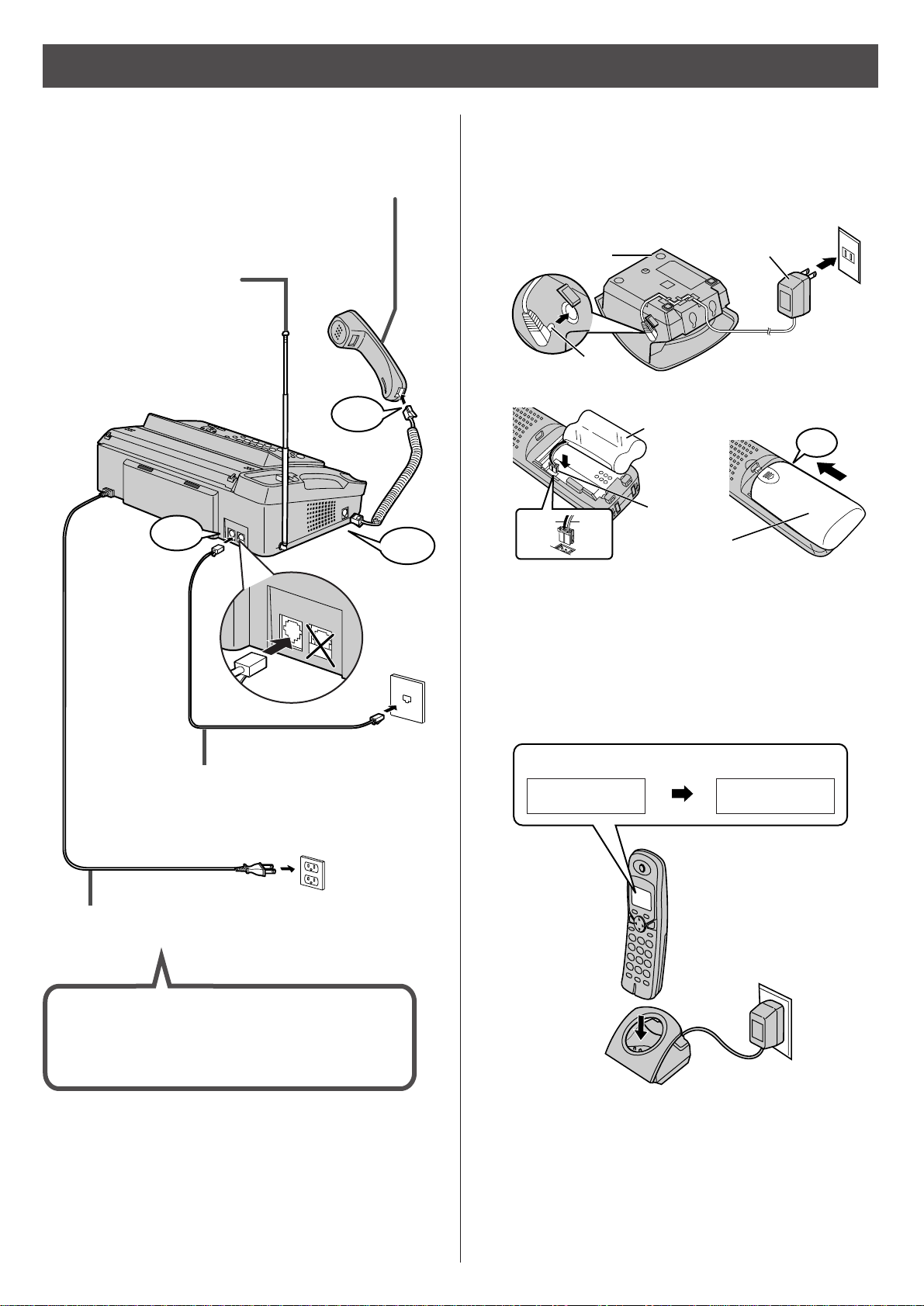

Connecting the main unit

Installations and connections

3Charge the battery in the charger for 10 hours.

Plug

Charger AC adaptor

Power outlet

(AC 100 V)

Black

Red

Connector

Battery Click

Battery cover

Setting up the portable handset

●After your Panasonic battery is fully charged,

it will last up to about 7 hours of conversation.

Charging completed.

While charging.

(電話回線へ)

回線

電話機

停電用

Power cord

Telephone line cord Wall jack

Power outlet

(AC 100V)

2Raise the antenna.

3Connect the telephone line

cord (Supplied accessory).

4Connect the power cord.

Click

1 Connect the cord and place the handset on the

main unit.

Click

After the Power On...

This unit will automatically select the dialing

mode (Tone/Pulse).

ｼﾞｭｳﾃﾞﾝﾁｭｳｼﾞｭｳﾃﾞﾝｶﾝﾘｮｳ

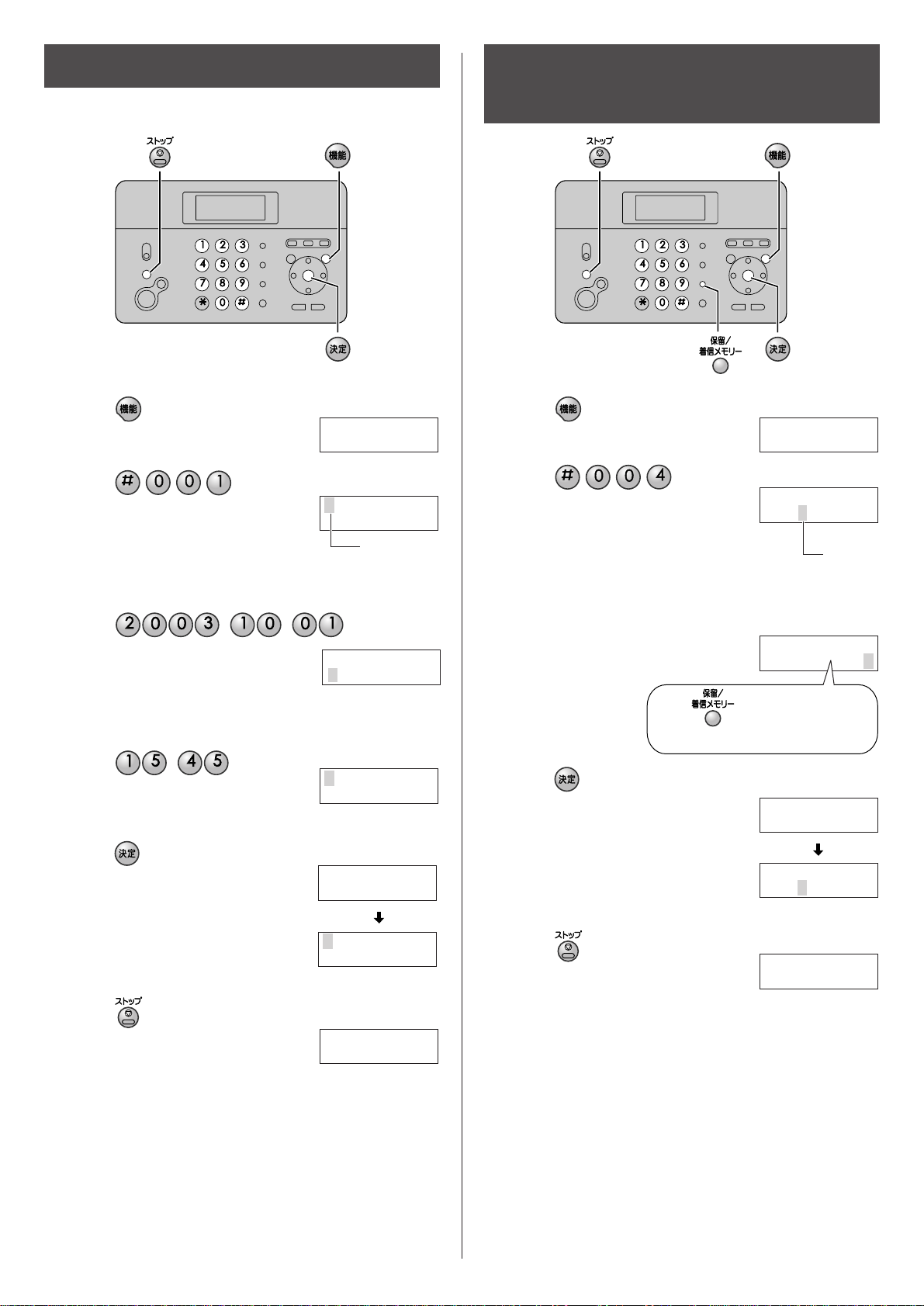

Setting the date and time

1Press (Function). 1Press (Function).

2Press .

3Enter the correct year/month/day.

Example: October 1, 2003

Press .

2Press .

3Enter your facsimile telephone number, up to 20

digits.

Example: 098 765·

4Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press . 4Press (Set).

5Press (Set).

6Press (Stop).

5Press (Stop).

Setting your facsimile

telephone number

ｷﾉｳｱﾄｳﾛｸﾓｰﾄﾞ

ｶｲｾｼｼｼ[

▼▲

]ｵｽ

2003

年

月

日

20:10

2003

年

月

日

00:10

月

日

015:45

ﾖｳｹﾝ

000000

ｹﾝ

2003

年

月

日

15:45

ﾄｳﾛｸｱｼﾏｼﾀ

2003

年

月

日

15:45

ｷﾉｳｱﾄｳﾛｸﾓｰﾄﾞ

ｶｲｾｼｼｼ[

▼▲

]ｵｽ

ｱﾅﾀﾉﾊﾞﾝｺﾞｳ?

TEL= ．．．．．．．．

月

日

015:45

ﾖｳｹﾝ

000000

ｹﾝ

ｱﾅﾀﾉﾊﾞﾝｺﾞｳ?

TEL=0980765

The (Space) button

replaces the digit with a space.

Example :

Cursor

Example :

Cursor

Example :

ｱﾅﾀﾉﾊﾞﾝｺﾞｳ?

TEL=0980765 ..

ﾄｳﾛｸｱｼﾏｼﾀ

4. Press to move the cursor to the next space

and press four times.

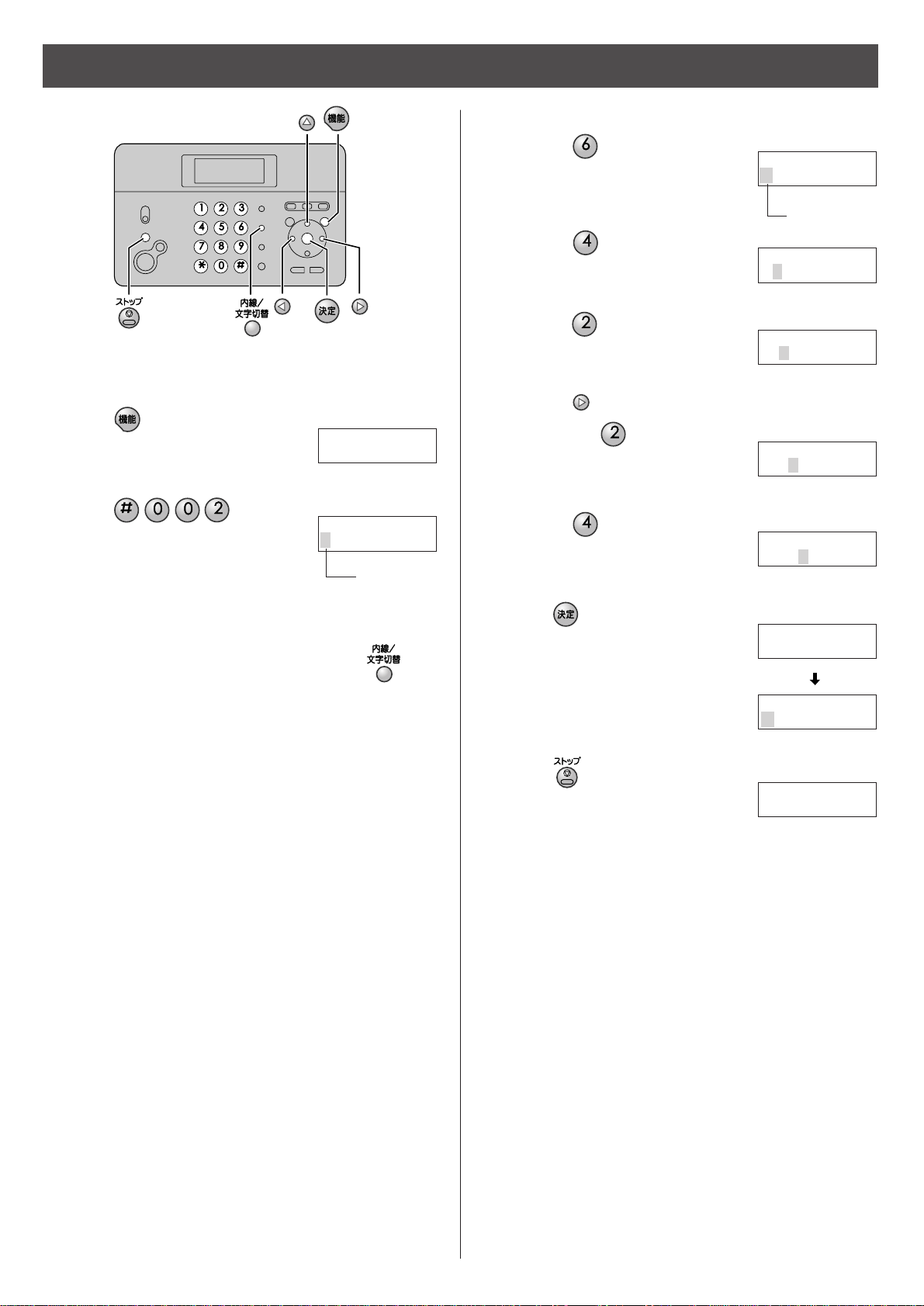

1Press (Function).

2Press .

3Enter your logo, up to 30 characters, using the dial

keypad.

●To enter English characters easily, press

(Character input mode) repeatedly and select

“英” (English and sign input mode).

●For details, see the table on page 8 for instructions.

5Press (Stop).

Setting your logo

ｷﾉｳｱﾄｳﾛｸﾓｰﾄﾞ

ｶｲｾｼｼｼ[

▼▲

]ｵｽ

ｱﾅﾀﾉﾅﾏｴ?

Mic

ｱﾅﾀﾉﾅﾏｴ?

Mica

2. Press six times.

3. Press six times.

5. Press five times.

Example: Micah

1. Press once.

4Press (Set).

ｱﾅﾀﾉﾅﾏｴ?

Micah

ﾄｳﾛｸｱｼﾏｼﾀ

Cursor

月

日

015:45

ﾖｳｹﾝ

000000

ｹﾝ

Example :

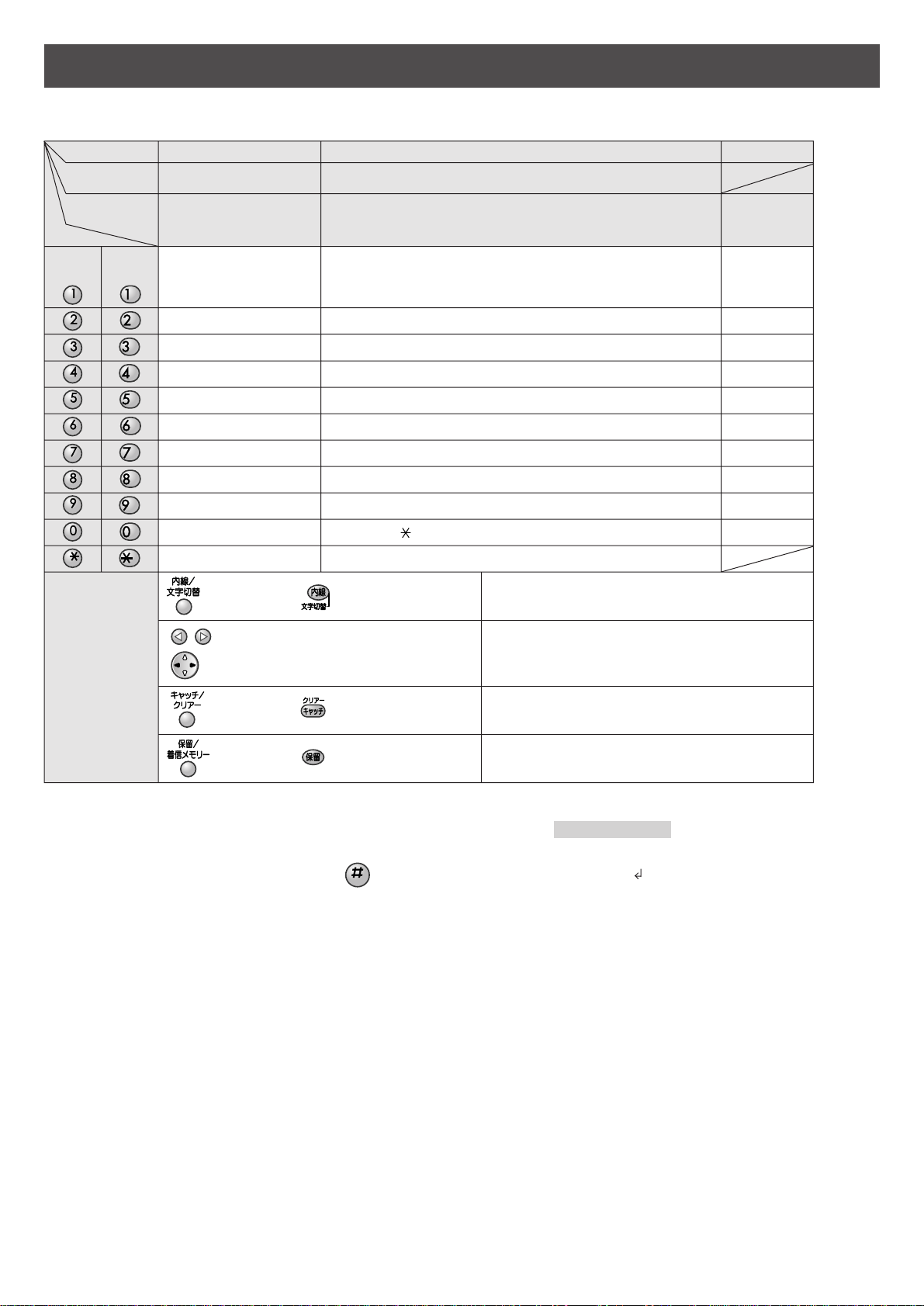

Character input and command key table

Used to change the character input mode.

Used to move the cursor to the left and right.

Used to delete a character.

Used to insert a space.

(Main unit), (Portable handset)

(Main unit), (Portable handset)

●When entering e-mail address, the small letters are displayed before the capital letters.

●When entering e-mail address, you can not enter the following symbols: 、。− .「」

●When entering e-mail address, you can enter only English and Numbers.

●When entering e-mail message, pressing enables you to begin the new line. ( “ ” is displayed.)

●The display items of the main unit are somewhat different from those of the portable handset.

、、。、。

英

［AB］

English

カナ

［カナ］

Katakana

［12］

Numbers

!？/ー#‚;:｜

・’”

（）

[]

｛｝〈〉「」

ワヲンー！？ ( )

アイウエオァィゥェォ @・ｰ&＄¥%＋=

〜^

DEFdef

GHI gh i

JKL j kl

MNOmn o

PQRSpqrs

TUVtuv

WXYZwx yz

カキクケコ

サシスセソ

タチツテトッ

ナニヌネノ

ハヒフヘホ

マミムメモ

ヤユヨャュョ

ラリルレロ

ABCabc

、。

Display of the

portable handset

Display of the

main unit

Character

Portable

(

handset

)

Main

(

unit

)

Dial key

(Main unit),

(Portable handset)

Pressing the dial keys will select a character as shown below.

Command keys

1Press the desired one-touch dial button ( to ).

Example: one-touch dial 1

ﾜﾝﾀｯﾁ

ﾄｳﾛｸｻﾚﾃｲﾏｾﾝ

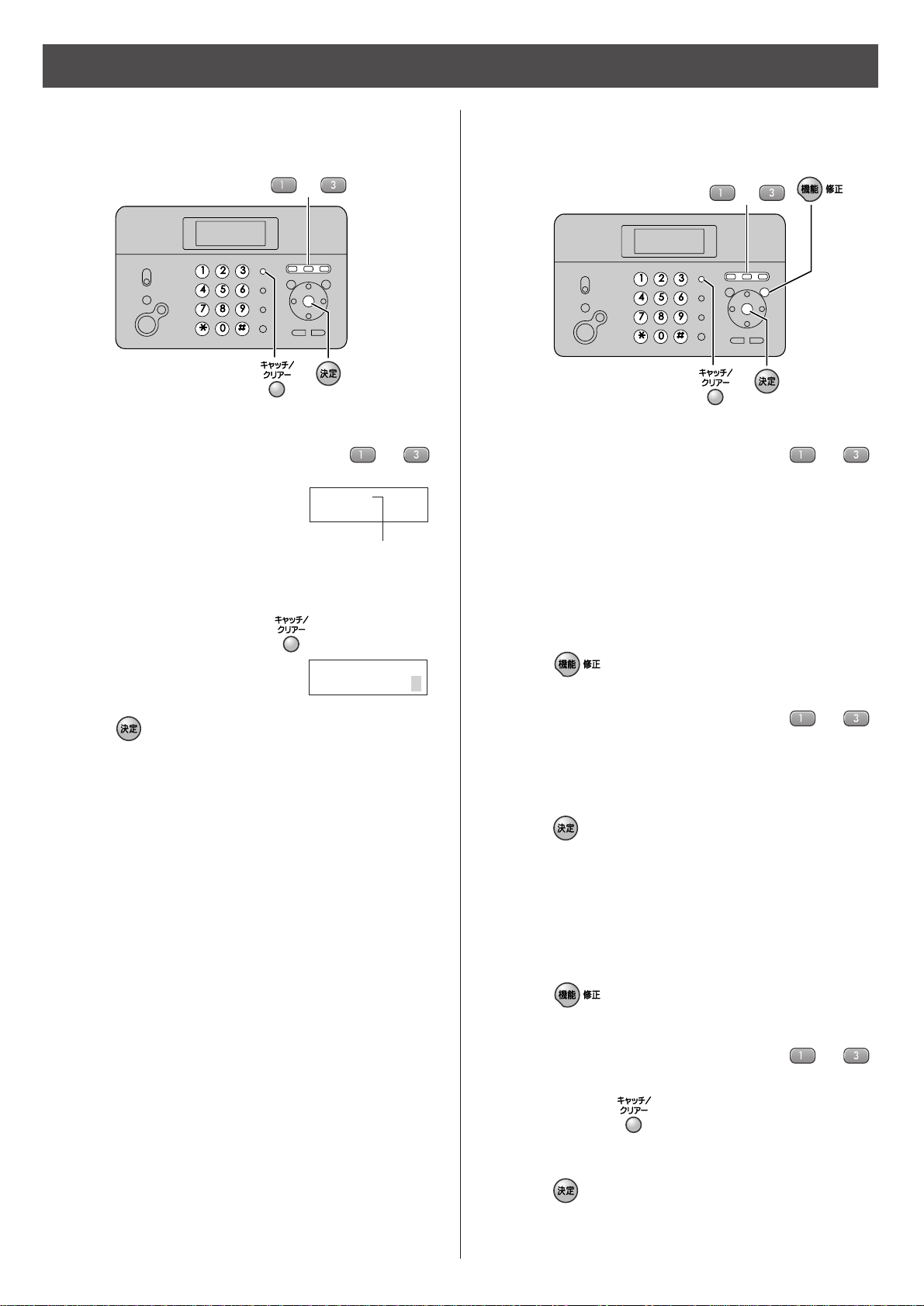

Automatic dialing on the main unit

Storing telephone numbers in the

one-touch dial

Making a voice call using the

one-touch dial

2When the other party answers, lift the handset.

2Enter the telephone number, up to 24 digits.

●To correct a mistake, press (Clear).

Editing a stored number in the

one-touch dial

1Press the desired one-touch dial button ( to ).

●The unit will start dialing.

〜

2Press the desired one-touch dial button ( to ).

1Press (Function/Edit).

4Press (Set).

3Edit the telephone number, up to 24 digits.

Erasing a stored number in the

one-touch dial

2Press the desired one-touch dial button ( to ).

1Press (Function/Edit).

3Press and hold (Erase) until the telephone

number has been erased.

3Press (Set).

〜

4Press (Set).

Button number

ﾜﾝﾀｯﾁ

ﾄｳﾛｸ

09876543

･･･

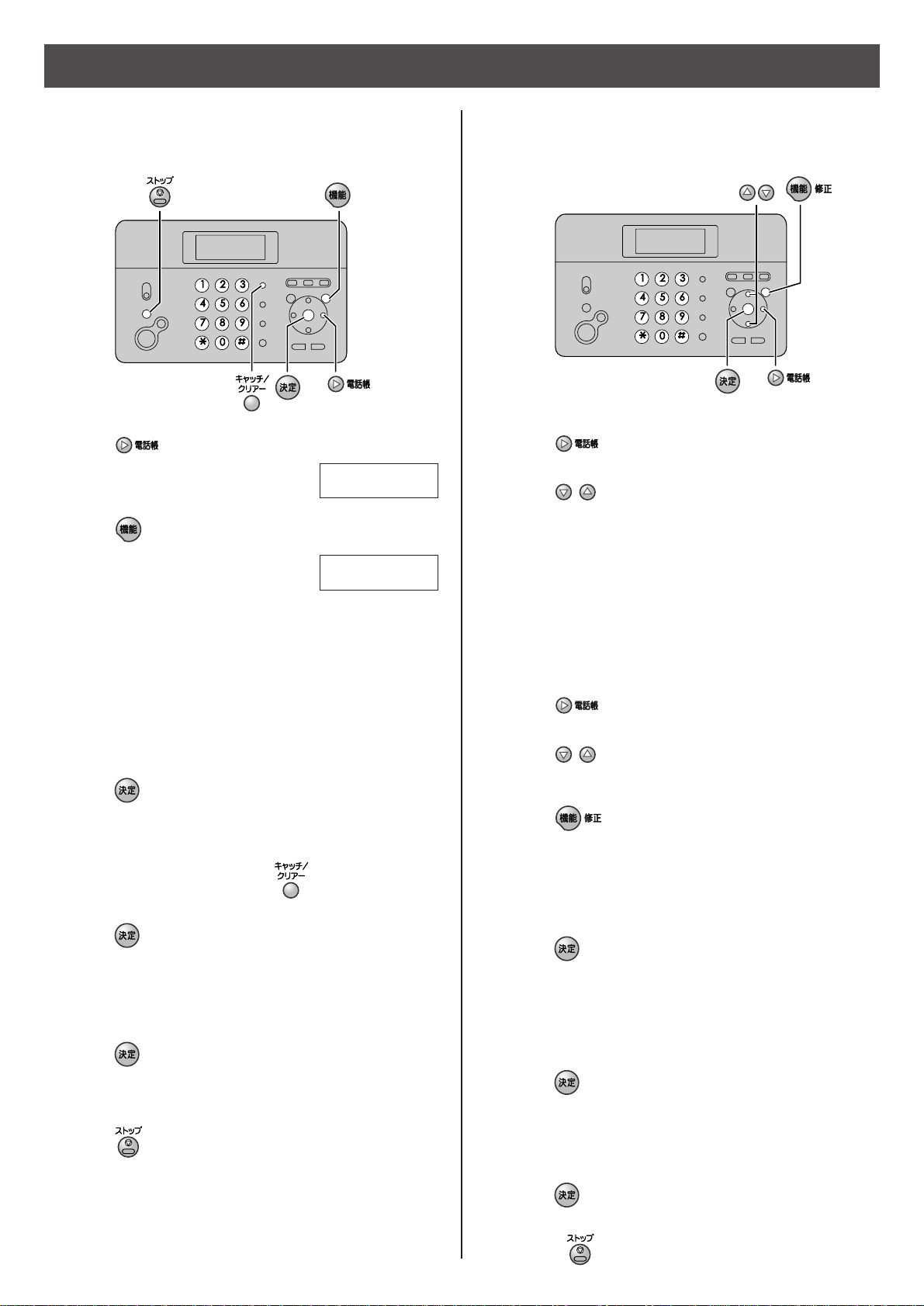

Automatic dialing on the main unit

Storing names and telephone

numbers in the phonebook

Making a voice call using the

phonebook

1Press (Phonebook). 1Press (Phonebook).

2Press (Function).

●“XX” shows the remaining

station numbers you can

store.

●You can program up to 100

stations, including 4 pre-

programmed stations.

ﾃﾞﾝﾜﾁｮｳﾄｳﾛｸ

ｱｷ xxｹﾝ

3Enter the name, up to 12 characters (see the table on

page 8 for instructions).

4Press (Set).

5Enter the telephone number, up to 24 digits.

●To correct a mistake, press (Clear).

6Press (Set).

7If necessary, enter the group number (1-9).

8Press (Set).

●To program other items, repeat steps 3 to 8.

9Press (Stop) to exit the program.

2Press (Search button) repeatedly until the

desired name is displayed.

3Lift the handset.

Editing a stored name or number

in the phonebook

3Press (Function/Edit).

4Edit the name (see the table on page 8 for

instructions).

●If you do not need to edit the name, skip to step 5.

5Press (Set).

6Edit the telephone number.

●If you do not need to edit the telephone number,

skip to step 7.

7Press (Set).

9Press (Set).

10Press (Stop) to exit the program.

8If necessary, enter the correct group number.

1Press (Phonebook).

2Press (Search button) repeatedly until the

desired name is displayed.

ﾄｳﾛｸﾊ[ｷﾉｳ]ｵｽ

ｹﾝｻｸﾊｸ[

▼▲

]ｵｽ

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Fax

Panasonic

Panasonic KX-FP105RS Manuale utente

Panasonic

Panasonic KX-FT33NZ Manuale utente

Panasonic

Panasonic Panafax DX-800 Manuale utente

Panasonic

Panasonic KX-FPC95 Manuale utente

Panasonic

Panasonic KX-F750 Manuale utente

Panasonic

Panasonic KX-FT21HK Manuale utente

Panasonic

Panasonic KX-F590 Manuale utente

Panasonic

Panasonic UF 8200 - Panafax - Multifunction Manuale utente

Panasonic

Panasonic KX-FPW111 Manuale utente

Panasonic

Panasonic KX-PD101DL Manuale utente

Panasonic

Panasonic KX-PW96CL Manuale utente

Panasonic

Panasonic Panafax UF-6100 Manuale utente

Panasonic

Panasonic KX-FP105BX Manuale utente

Panasonic

Panasonic KX-FP701FX Manuale utente

Panasonic

Panasonic KX-FPG175 Manuale utente

Panasonic

Panasonic KX-FL521 - B/W Laser - Fax Istruzioni per l'uso e l'installazione

Panasonic

Panasonic KX-F320 Manuale utente

Panasonic

Panasonic KX-PD502DL Manuale utente

Panasonic

Panasonic KX-PD525DL Manuale utente

Panasonic

Panasonic KX-FM280 Manuale utente

Panasonic

Panasonic KX-FT981CX-B Manuale utente

Panasonic

Panasonic KX-PD702DL Manuale utente

Panasonic

Panasonic Panafax UF-121 Manuale utente

Panasonic

Panasonic KX-FP158BR Manuale utente

Manuali Fax popolari di altre marche

Samsung

Samsung SF-515 Manuale utente

Radio Shack

Radio Shack TFX-1031 Manuale utente

imagistics

imagistics 2030 Manuale

Furuno

Furuno FAX-30 Manuale utente

Savin

Savin 3740 Manuale

Sharp

Sharp FO-51 Manuale utente

Muratec

Muratec MFX-C3035 Manuale utente

Canon

Canon FAX-L400 Manuale utente

Ricoh

Ricoh 1000L Guida rapida

Sharp

Sharp FO-3150 Manuale utente

Kyocera

Kyocera KM-F1060 Manuale utente

Sharp

Sharp FO-2970M Manuale utente

Canon

Canon JX510P Manuale utente

Mita

Mita LDC-870 Manuale

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuale utente

Samsung

Samsung FX100 Manuale

Sharp

Sharp MX-FXX1 Manuale utente

Develop

Develop ineo 25e Manuale utente
