Panasonic KX-PW513DW Manuale utente

Facsimile

Quick Reference Guide

Model No. KX-PW513DL

KX-PW513DW

KX-PW513DL

Thank you for purchasing a Panasonic facsimile.

lThis guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

lThis product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

lAny details given in this guide are subject to change without notice.

Table of Contents

Finding the controls …………………………………………………………… 2

Installations and connections ………………………………………………… 4

Setting the date and time……………………………………………………… 7

Setting your facsimile telephone number …………………………………… 7

Setting your logo ……………………………………………………………… 8

Character input and command key table …………………………………… 9

Automatic dialing on the main unit ………………………………………… 10

Automatic dialing on the portable handset (KX-FKN521) ……………… 11

Intercom ……………………………………………………………………… 12

Sending faxes ……………………………………………………………… 13

Receiving faxes ……………………………………………………………… 14

Operating the built-in answering device ………………………………… 15

Specifications ……………………………………………………………… 18

Main unit:

Portable handset:

KX-PW513

KX-FKN521

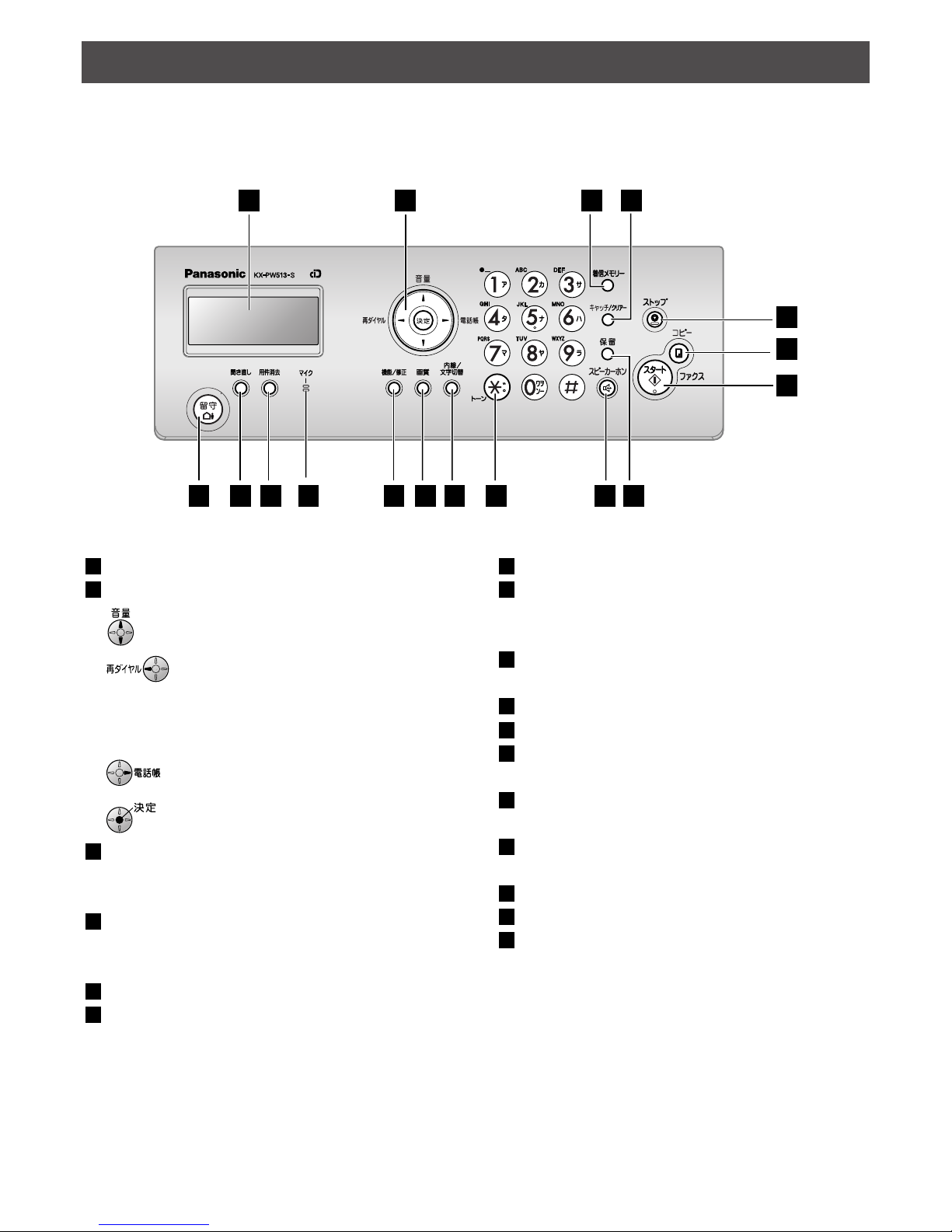

Finding the controls

Main unit

1 2 4

98 12 1413 15 16

11 17

1Liquid crystal display

2Volume/Redial/Phonebook/Set key

To adjust the volume.

To redial the phone numbers in

the redial list. The last 10 phone

numbers dialed are stored in

memory.

To use the phonebook.

To store a parameter.

3Call Memory button starts a search in the

Number Display log.

(For caller ID display service users.)

4Flash button

(For call waiting service users.)

Clear button

5Stop button

6Copy button starts copying.

7Start/Fax button starts faxing.

8Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

9Replay button plays back recorded

messages.

Erase button

Microphone

Function button initiates programming.

Edit button

Resolution button selects the resolution

when faxing or copying.

Intercom button

Character Input Mode button

Tone button switches to tone dialing.

Speakerphone button

Hold button

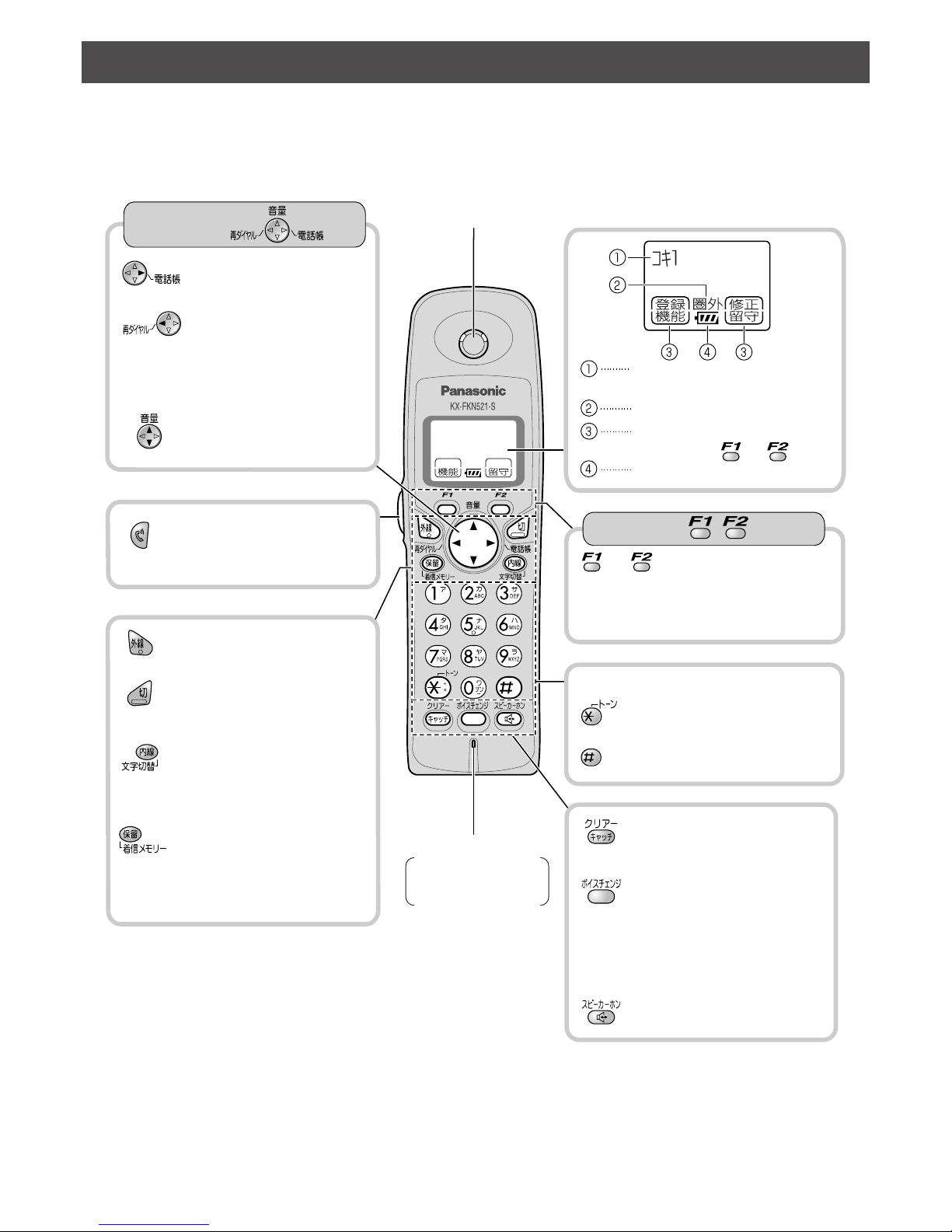

Finding the controls

Portable handset (KX-FKN521)

●



To adjust the volume.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To make/answer calls.

●



To page the main unit

and/or portable handset(s).

●



To change the character

input mode.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For caller ID display

service users.)

●



For call waiting service

users.

●



To clear letters/numbers.

●



To change your voice.

●



To mute your voice to the

other party by pressing this

button for about 2 seconds.

(To release the mute,

press this button again.)

●



To use the speakerphone.

Sharp button

●



To use the phonebook.

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Dial buttons

Earpiece Liquid crystal display

Microphone

Do not cover the

microphone while

talking.

How to use buttons

Function menu that is

controlled by or

Portable handset number

(and name)

No link to the base unit

Battery strength

●



To change the tone heard

from the earpiece.

Tone button

●To switch to tone dialing.

●



To end a call.

●



To end or exit from editing

or other operations.

How to use key

Installations and connections

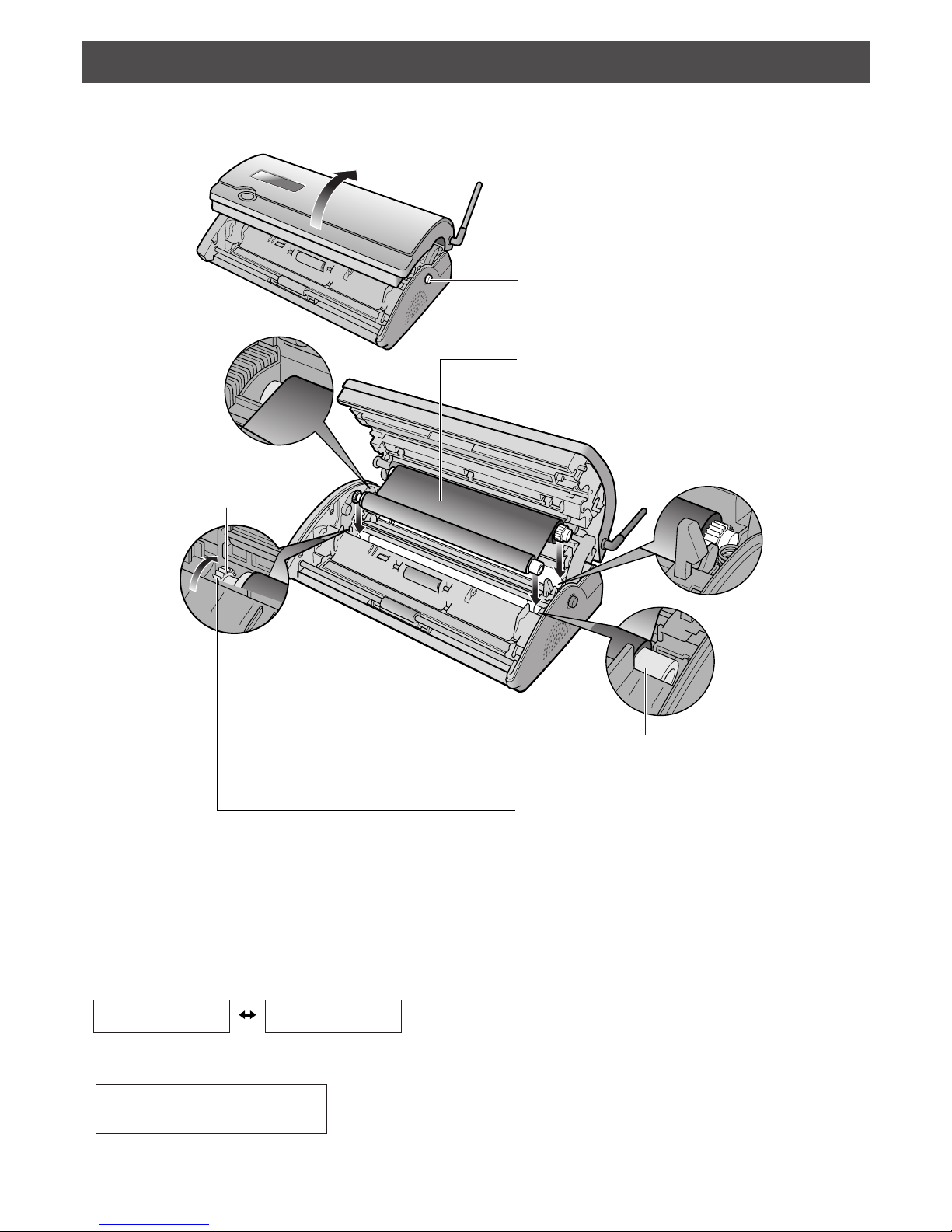

Installing the ink film

1Press here and open the control panel.

3If the ink film is slack, tighten it by

winding this gear (

orange)

4Close the control panel until it locks.

2Insert the ink film.

Insert the orange core into the right

slot of the main unit.

Insert the orange

gear

into the left slot

of the main unit.

lWhen the unit runs out of ink film, the following message will be displayed.

Install a new ink film.

・As of February 2005. ・Tax included.

ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀ

ｺｳｶﾝｼﾃｸﾀﾞｻｲｼ

U23

ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀ

ﾋﾝﾊﾞﾝ

K X - F A N 200

Replacement ink film:

KX-FAN200 (30 m) ￥1,208

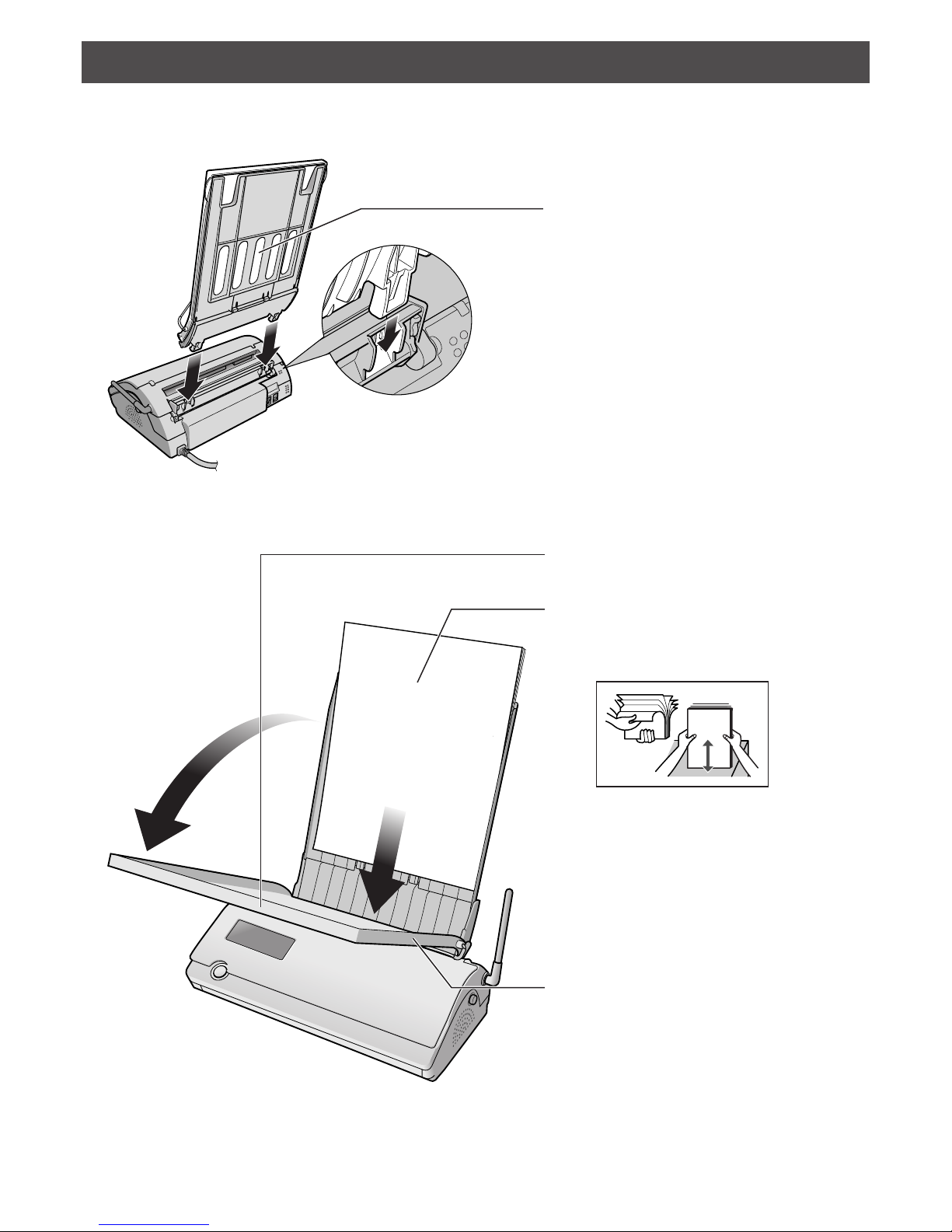

Installations and connections

Installing recording paper (A4 size)

1Install the recording paper cover/tray.

2Open the recording paper cover.

3Insert the recording paper into the

recording paper tray. (Up to 20 sheets)

●Fan the stack of recording paper.

4Close the recording paper cover.

Recording paper

●Printing side is on

the back.

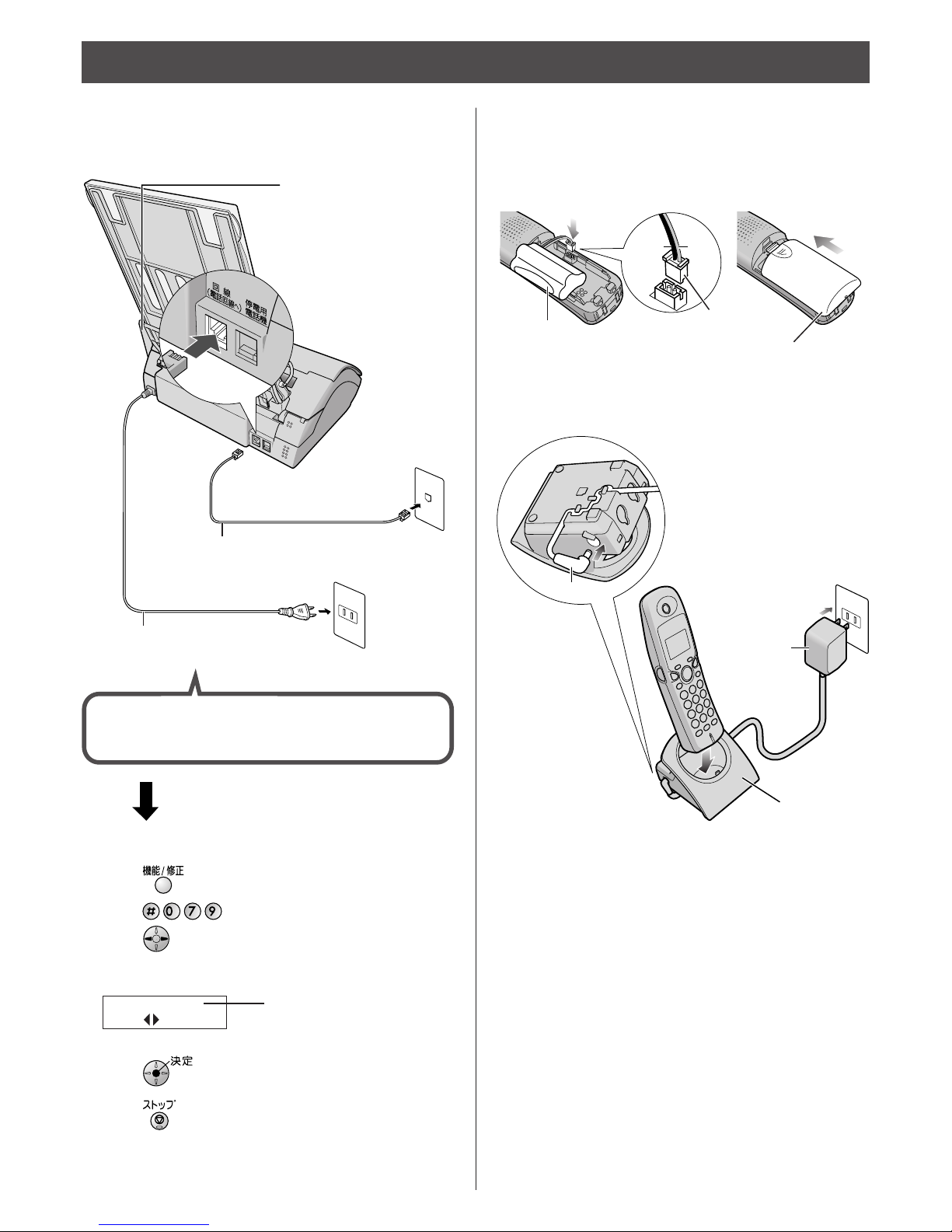

Connecting the main unit

Installations and connections

Setting up the portable handset

(KX-FKN521)

1Raise the antenna.

Power cord

Telephone line cord

(supplied accessory)

Wall jack

Power outlet

(AC 100 V)

2Connect the telephone line cord.

3Connect the power cord.

After the Power On...

This unit will automatically select the dialing mode

(Tone/Pulse).

3Charge the battery in the charger for 10 hours.

lAfter your Panasonic battery is fully charged,

it will last up to about 7 hours of conversation.

Battery

Connector

Black Red

Battery cover

Charger

Plug

Power outlet

(AC 100 V)

AC adaptor

If you can not make a call...

Set the dialing mode with the main unit.

1. Press (Function/Edit).

Press .

3. Press (Search button) repeatedly until the desired

setting is displayed.

4. Press (Set).

5. Press (Stop).

ｶｲｾﾝｼｭﾍﾞﾂ

＝

［

, ｹｯﾃｲ

］

ｵｽ

Example :

lﾌﾟｯｼｭ : Tone

20 : Pulse (20 PPS)

10 : Pulse (10 PPS)

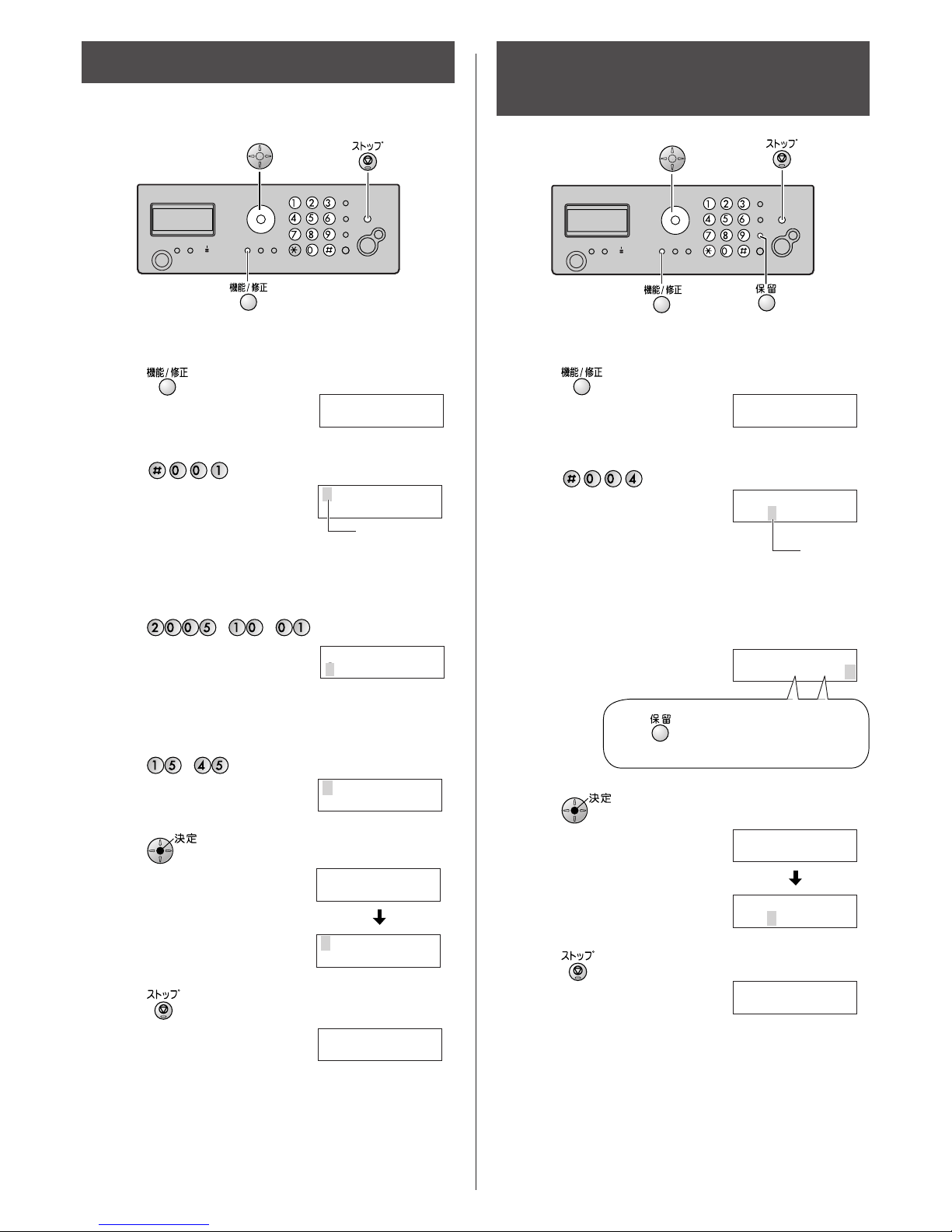

Setting the date and time Setting your facsimile

telephone number

1Press (Function/Edit).

ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ

ｸ[

▼▲

]ｵｽ

1Press (Function/Edit).

ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ

ｸ[

▼▲

]ｵｽ

5Press (Stop).

月

日

15:45

ﾖｳｹﾝﾛｸｵﾝ

ｹﾝ

Example :

6Press (Stop).

月

日

15 : 45

ﾖｳｹﾝﾛｸｵﾝ

ｹﾝ

Example :

3Enter your facsimile telephone number, up to

20 digits.

Example: 098 765 43·· ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=0980765043

The (Hold) button replaces

the digit with a space.

3Enter the correct year/month/day.

Example: October 1, 2005

Press .

2005

年

月

日

20:10

2Press .

ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=．．．．．．．．．．．

Cursor

4Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press .

2005

年

月

日

15:45

5Press (Set).

ﾄｳﾛｸｼﾏｼﾀ

2005

年

月

日

15 : 45

4Press (Set).

ﾄｳﾛｸｱｼﾏｼﾀ

ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=098 765 43 ．

2Press .

Example :

2005

年

月

日

20 : 10

Cursor

3Enter your logo, up to 30 characters, using the dial

keypad.

lTo enter English characters easily, press

(Intercom/Character input mode) repeatedly and

select “ 英” (English and sign input mode).

lFor details, see the table on page 9 for instructions.

Setting your logo

1Press (Function/Edit).

ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ

ｸ[

▼▲

]ｵｽ

5Press (Stop).

月

日

15 : 45

ﾖｳｹﾝﾛｸｵﾝ

ｹﾝ

Example :

2Press .

ｱﾅﾀﾉﾅﾏｴ?

Cursor

Example: Micah

1. Press once. ｱﾅﾀﾉﾅﾏｴ?

Cursor

2. Press six times.

ｱﾅﾀﾉﾅﾏｴ?

3. Press six times.

ｱﾅﾀﾉﾅﾏｴ?

Mic

4. Press to move the cursor to the next space

and press four times. ｱﾅﾀﾉﾅﾏｴ?

Mica

5. Press five times.

ｱﾅﾀﾉﾅﾏｴ?

Micah

4Press (Set).

ﾄｳﾛｸｱｼﾏｼﾀ

ｱﾅﾀﾉﾅﾏｴ?

Micah

Character input and command key table

Pressing the dial keys will select a character as shown below.

Character Katakana English Numbers

Display of the

main unit

カナ英数

Display of the

portable handset

［カナ］［AB］［12］

Dial key

Main

(

unit

)

Portable

handset

(

KX-FKN521

)

アイウエオァィゥェォ @ .  ｰ &＄￥%＋= ˜ ^ 1

カキクケコ ABC a b c 2

サシスセソ D E F d e f 3

タチツテトッ GH I g h i 4

ナニヌネノ J K L j k l 5

ハヒフヘホ MNOmn o 6

マミムメモ PQRS p q r s 7

ヤユヨャュョ TUV t u v 8

ラリルレロ WXYZw x y z 9

ワヲンー！？ () ! ？/ー #‚;:｜・’”（ ）[]｛｝〈〉「」 0

゛°、。 、。

Command keys

(Main unit), (Portable handset)

Used to change the character input

mode.

(Main unit), (Portable handset) Used to move the cursor to the left

and right.

(Main unit), (Portable handset) Used to delete a character.

(Main unit), (Portable handset) Used to insert a space.

lThe characters on the display are somewhat different from those shown in the character input and command key table.

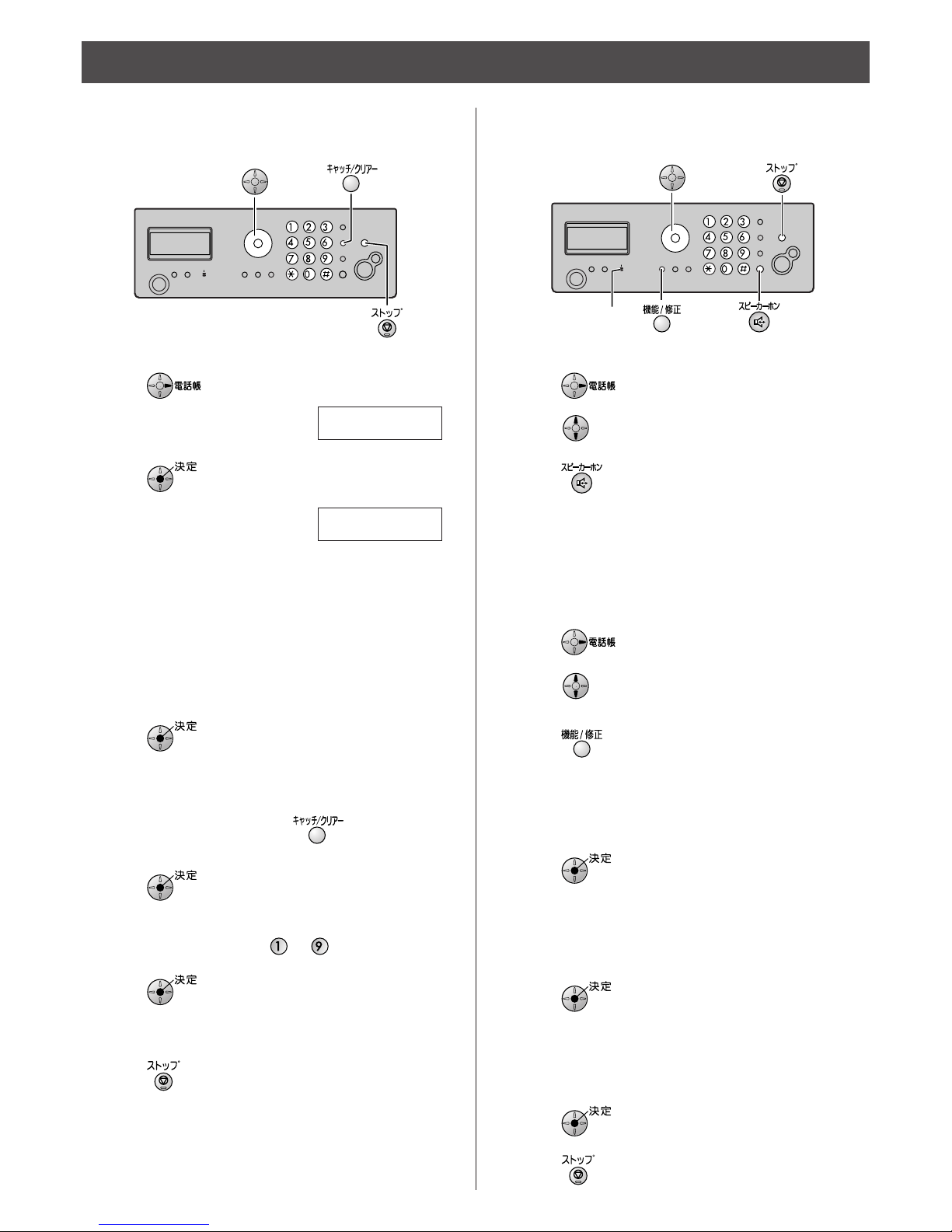

Automatic dialing on the main unit

Storing names and telephone

numbers in the phonebook

Making a voice call using the

phonebook

Microphone

1Press (Phonebook).

2Press (Set).

l“XXX” shows the remaining

station numbers you can

store.

lYou can program up to

150 stations, including

4 pre-programmed stations.

ﾃﾞﾝﾜﾁｮｳｱｷ

XXX

ｹﾝ

3Enter the name, up to 12 characters (see the table on

page 9 for instructions).

4Press (Set).

5Enter the telephone number, up to 24 digits.

lTo correct a mistake, press (Flash/Clear).

6Press (Set).

7Enter the group number ( to ).

2Press (Search button) repeatedly until the

desired name is displayed.

3Press (Speakerphone).

lWhen the other party answers, speak to the

microphone.

Editing a stored name or number

in the phonebook

3Press (Function/Edit).

4Edit the name (see the table on page 9 for

instructions).

lIf you do not need to edit the name, skip to step 5.

5Press (Set).

6Edit the telephone number.

lIf you do not need to edit the telephone number,

skip to step 7.

8Edit the group number.

lIf you do not need to edit the group number,

skip to step 9.

1Press (Phonebook).

2Press (Search button) repeatedly until the

desired name is displayed.

1Press (Phonebook).

ﾄｳﾛｸｸﾊｸ[ｹｯﾃｲ]ｵｽ

ｹﾝｻｸｸﾊｸ[

▼▲

]ｵｽ

8Press (Set).

lTo program other items, repeat steps 3 to 8.

9Press (Stop) to exit the program.

Press (Stop).

9Press (Set).

7Press (Set).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Fax

Panasonic

Panasonic KX-FPC141 Manuale utente

Panasonic

Panasonic KX-F2710NZ Manuale utente

Panasonic

Panasonic KX-FP101 Manuale utente

Panasonic

Panasonic KX-FHD301 Manuale utente

Panasonic

Panasonic Panafax UF-127M Manuale utente

Panasonic

Panasonic KX-FT988FX Manuale utente

Panasonic

Panasonic KX-FP151GR Manuale utente

Panasonic

Panasonic DX 1000 - PanaFax B/W Laser Printer Manuale utente

Panasonic

Panasonic Panafax UF-490 Manuale utente

Panasonic

Panasonic KX-FC238HK Manuale utente

Panasonic

Panasonic KX-FL521 - B/W Laser - Fax Manuale utente

Panasonic

Panasonic KX-PW508DL Manuale utente

Panasonic

Panasonic DX 1000 - PanaFax B/W Laser Printer Manuale utente

Panasonic

Panasonic KX-FPC135 Manuale utente

Panasonic

Panasonic KX-PW12CL, KX-PW12CLW, KX-PW22 Manuale utente

Panasonic

Panasonic KX-FL612CX Manuale utente

Panasonic

Panasonic KX-F50 Manuale utente

Panasonic

Panasonic KX-PD381DLE8 Manuale utente

Panasonic

Panasonic KX-FP365CX Manuale utente

Panasonic

Panasonic KX-FP151 Manuale utente

Panasonic

Panasonic KXF1150 - MFD FAX PRINTER Manuale utente

Panasonic

Panasonic KX-FP141AL Manuale utente

Panasonic

Panasonic KX-PW520DL Manuale utente

Panasonic

Panasonic KX-FHD331 Manuale utente

Manuali Fax popolari di altre marche

Samsung

Samsung SF-515 Manuale utente

Radio Shack

Radio Shack TFX-1031 Manuale utente

imagistics

imagistics 2030 Manuale

Furuno

Furuno FAX-30 Manuale utente

Savin

Savin 3740 Manuale

Sharp

Sharp FO-51 Manuale utente

Muratec

Muratec MFX-C3035 Manuale utente

Canon

Canon FAX-L400 Manuale utente

Ricoh

Ricoh 1000L Guida rapida

Sharp

Sharp FO-3150 Manuale utente

Kyocera

Kyocera KM-F1060 Manuale utente

Sharp

Sharp FO-2970M Manuale utente

Canon

Canon JX510P Manuale utente

Mita

Mita LDC-870 Manuale

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuale utente

Samsung

Samsung FX100 Manuale

Sharp

Sharp MX-FXX1 Manuale utente

Develop

Develop ineo 25e Manuale utente
