Panasonic CS-E12NKUAW Manuale del proprietario

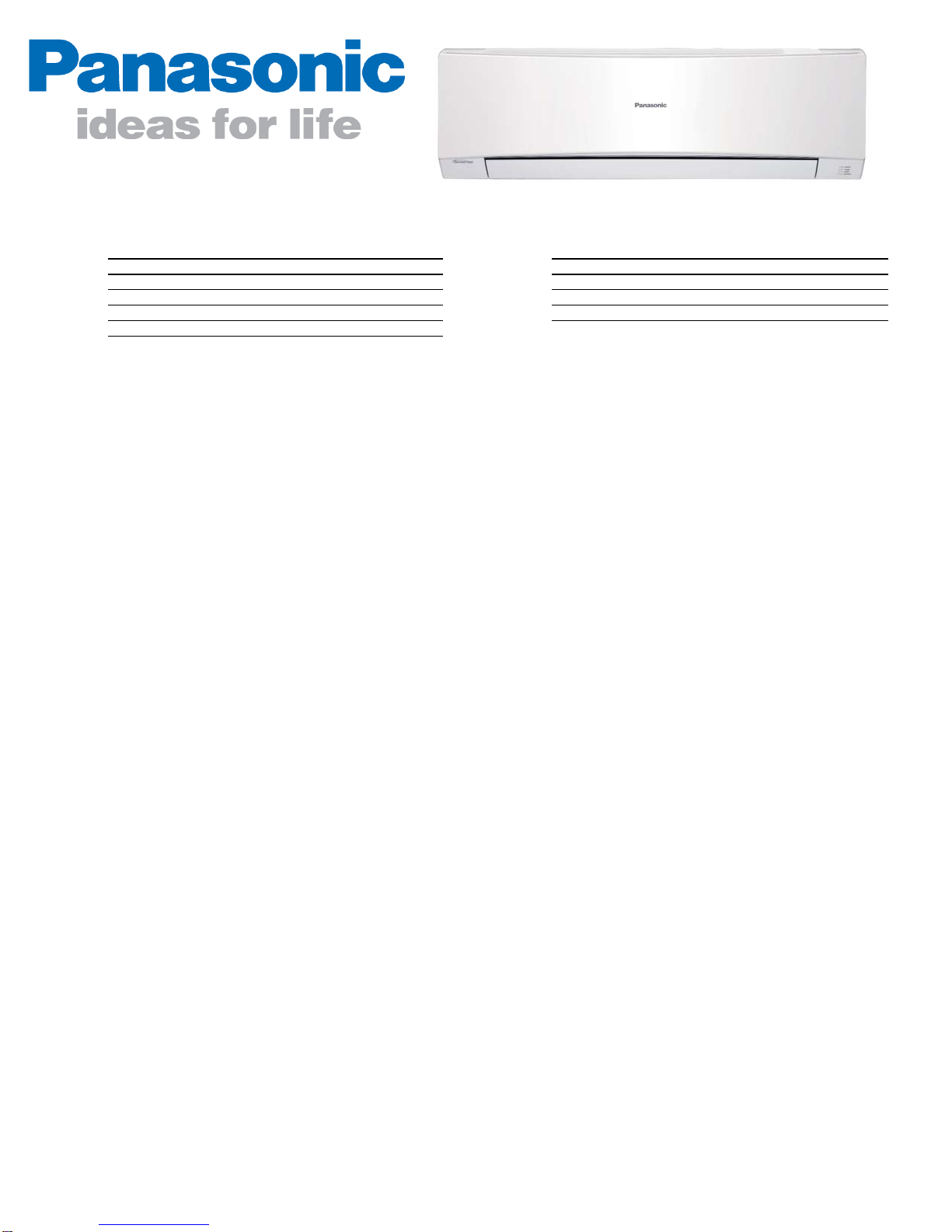

Multi Zone Submittal Data

Indoor: CS-E12NKUAW

Wall Mounted Heat Pump

Job Name: Approval:

Location: Date:

Engineer: Construction:

Submitted to: Unit #:

Submitted by: Drawing #:

Reference:

Power

V

/PH/Hz 230/208/1/60 Refrigeran

t

Circuit Ampacity (A) 15 Control Electronic Expansion Valve

Fuse Size, Max. (A) 15 Connection Flare

Line Size (in. O.D. Discharge) 1/4"

Indoor Unit Line Size (in. O.D. Suction) 1/2"

Fan type Cross Flow

No. Speeds 5 Dimensions (in.) Height Width Depth

RPM (High) 1300 Indoor Unit (Uncrated) 11-7/16" 34-9/32" 8-1/16"

Motor Output (W) 40

CFM (Qlo,Lo,Me,Hi,Shi) 187/246/335/425/472 Weight Indoor Outdoor

Indoor Sound Rating (Hi) (dB-A) 40 Net (lbs.) 20 82

Coil Type Aluminum Fin & Copper Tube Shipping (lbs.)

Fin Type - Pipe Type Slit Plate - Inner Rifled

Rows - F.P.I 2-19 Performance Data @ ARI Standard Conditions (230/208V)

Face Area (sq.ft) 2 Cooling

Drain Connection Size (in.) 5/8" Total Capacity (BTU/H) 10200

SEER 21

Features Dehumidification (Pints/H) 2.5

Wireless Remote Controller Standard Amps (A) 3.5

Wired Remote Controller ( CZ-RD516C ) Optional Power Inputs (W) 650

Controls Microprocessor Outdoor Sound Rating (dB-A) 47

Remote Controller LCD Wireless Type, Temp, Sensor Built In Heating

Temperature Control IC Thermostat Total Capacity (BTU/H) 14100

Air Louver (Horizontal) Manual HSPF 10.5

(Vertical) Automatic

Power Failure Automatic Restart Built-In Operating Range

Self-Diagnosis Built-In Indoor Air Intake Temp.

Air Filter Washable, Anti-Mold Cooling Maximum 90F DB/74F WB

Minimum 60F DB/52F WB

Heating Maximum 86F DB/-F WB

Minimum 60F DB/-F WB

R410A

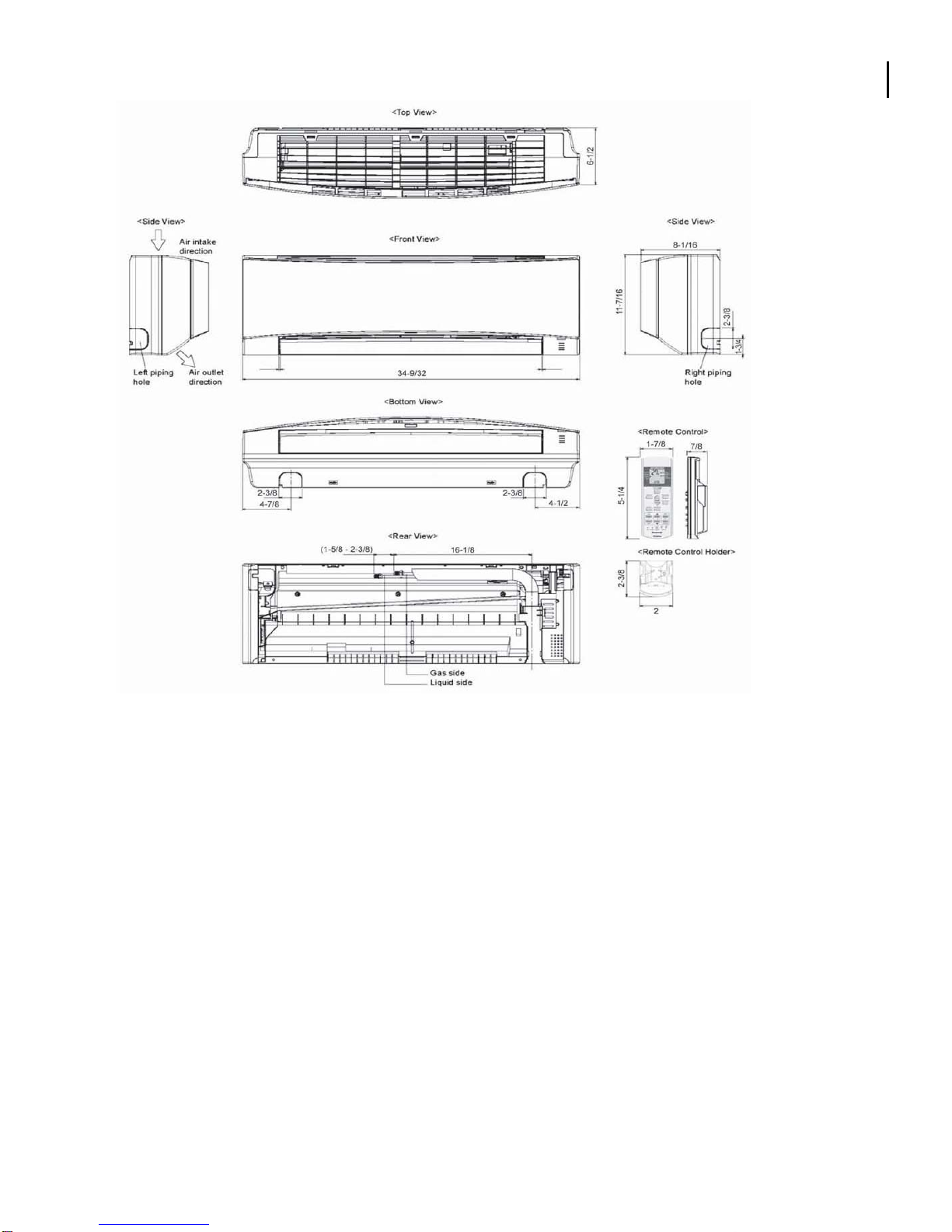

Indoor Dimensions
