Panasonic WH-MDC07J3E5 Manuale utente

Quick Menu Guide

(Mono bloc) Air-to-Water Heatpump 2-7 English

Hurtig menuvejledning

(Monobloc) Luft-til-vand-varmepumpe

8-13 Dansk

Guía del menú rápido

Bomba de calor de aire a agua (Mono bloc)

14-19 Español

Guida rapida dei menu

Pompa di calore Aria-acqua (Mono bloc)

20-25 Italiano

Handleiding snelmenu

(Mono bloc) Air-to-Water Warmtepomp

26-31 Nederlands

Przewodnik po skróconym menu

(Monoblok) pompa ciepła powietrze-woda

32-37 Polski

Οδηγός Σύντομου Μενού

Αντλία Θερμότητας Αέρος-Νερού (Monoblock)

38-43 Ελληνικά

Průvodce Rychlá nabídka

Tepelné čerpadlo vzduch-voda (Monoblok)

44-49 Český

Guide du menu rapide

Pompe à chaleur air-eau (Mono bloc)

50-55 Français

Schnellmenü-Anleitung

(Kompaktgerät) Luft/Wasser-Wärmepumpe

56-61 Deutsch

HızlıMenü Kılavuzu

(Monoblok) Hava-Su IsıPompası62-67 Türkçe

Snabbmenyguide

(Monobloc) Luft-till-Vatten-Värmepump

68-73 Svenska

Hurtigmenyveiledning

(Monobloc) Luft-til-vann-varmepumpe

74-79 Norsk

Pikavalikko-opas

(Monobloc) Ilmavesilämpöpumppu 80-85 Suomi

Útmutató a gyorsmenühöz

(Monoblokk) Levegő-víz hőszivattyú

86-91 Magyar

Hitri vodnik meniju

(Monoblok) Toplotna črpalka zrak-voda

92-97 Slovenščina

Vodičza Brzi izbornik

(Monoblok) toplinska pumpa zrak-voda

98-103

Hrvatski

ACXF55-26660

Quick Menu Guide

(Mono bloc)

Air-to-Water Heatpump

REFRIGERANT

Model No.

Mono bloc Unit

WH-MDC05J3E5

WH-MDC07J3E5

WH-MDC09J3E5

This Quick Guide explains how to use the Quick Menu.

Please read the Operating Instructions thoroughly before using the Quick Menu.

Before Use

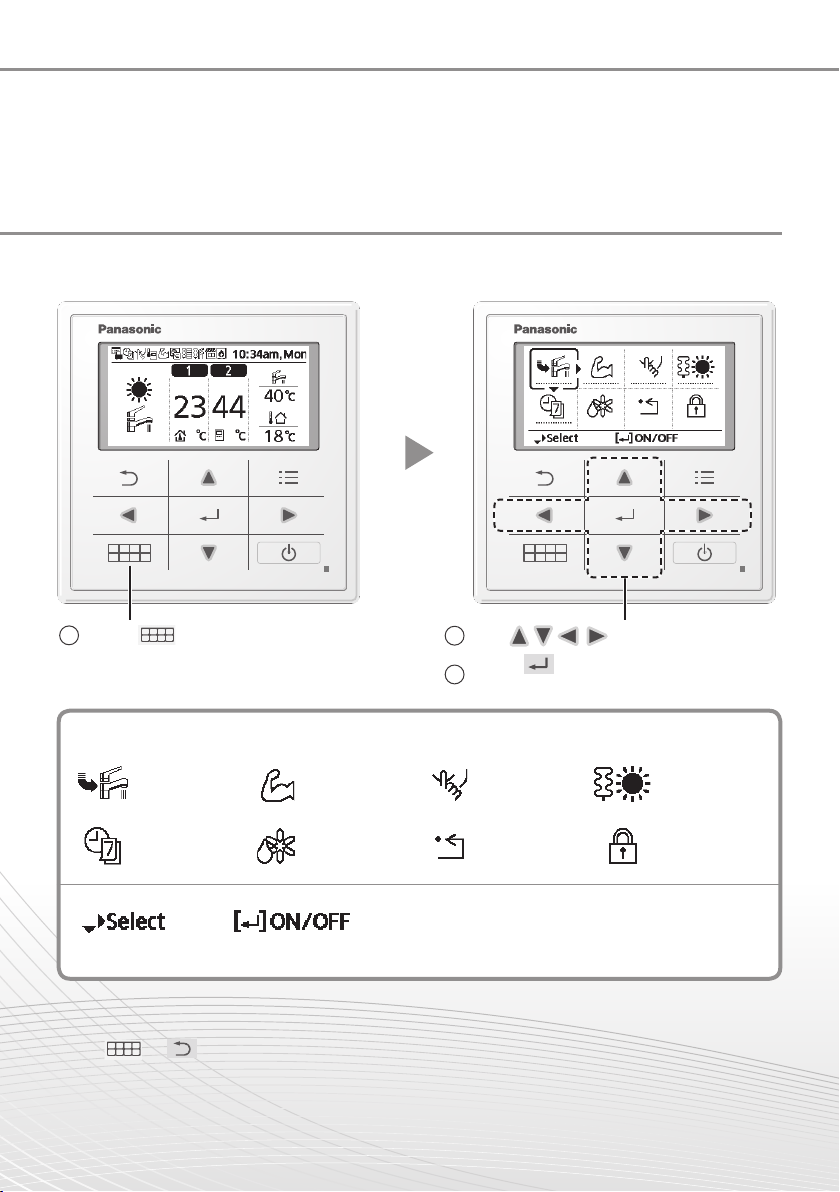

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the

following options and edit the setting.

Select each setting and confirm the setting

according to the instructions displayed at the

bottom of the screen. (The icons refer to each

selection key.)

Quick Menu

To return to the Main Screen,

Press or .

Force DHW Powerful Quiet Force

Heater

Weekly

Timer Force

Defrost Error Reset R/C Lock

1Press . 2Use to select menu.

3Press to turn on/off the select

menu.

English

How to use the Quick Menu

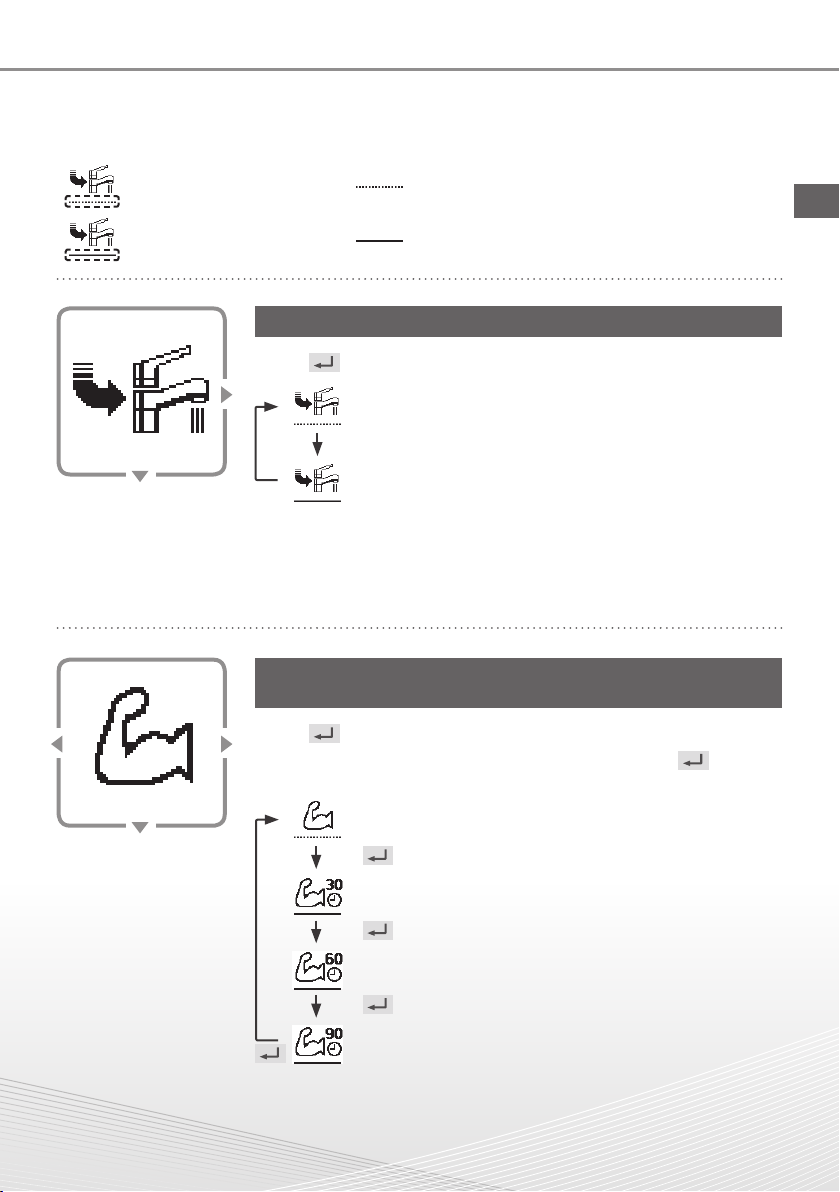

Notes on operation icon

Example:

• Operation icon indicate with “ ” = OFF

• Operation icon indicate with “ ” = ON

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.

• Force DHW is turned on.

■Note:

• Force DHW is disabled when Force Heater is turned on.

• When Force DHW is turned off, operation & mode should change back to

the previous memorized status.

Force DHW

Select this icon to operate the heating/cooling system

powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is

pressed.)

• Powerful mode is set off.

• The Powerful mode operates for 30 minutes.

• The Powerful mode operates for 60 minutes.

• The Powerful mode operates for 90 minutes.

■Note:

• Powerful is disabled when operation is turned OFF.

Powerful

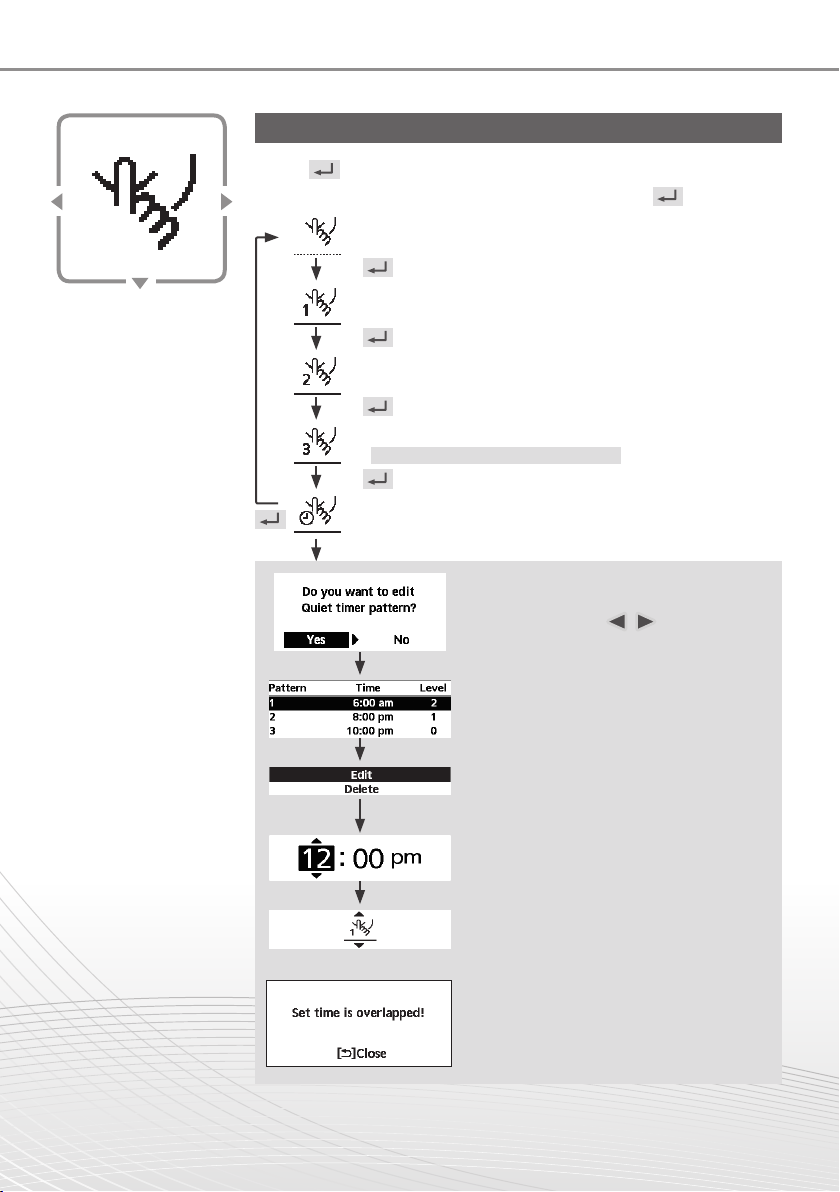

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

• Quiet mode is set off.

• The Quiet mode operates at level 1.

• The Quiet mode operates at level 2.

• The Quiet mode operates at level 3.

Level 3 is the most quiet mode.

• Select this to set a timer for the Quiet mode operation.

After 1 sec delay.

Quiet

Select “Yes”.

• Select “Yes” using buttons.

Select pattern “1” ~ “6”.

Select “Edit”.

• If you select “Delete”, the timer setting of

the selected pattern will be deleted.

Set the hour and minutes.

Select the level of Quiet.

■Note:

• If the time overlaps with another pattern,

"Set time is overlapped!" will appear on

the screen.

How to use the Quick Menu

English

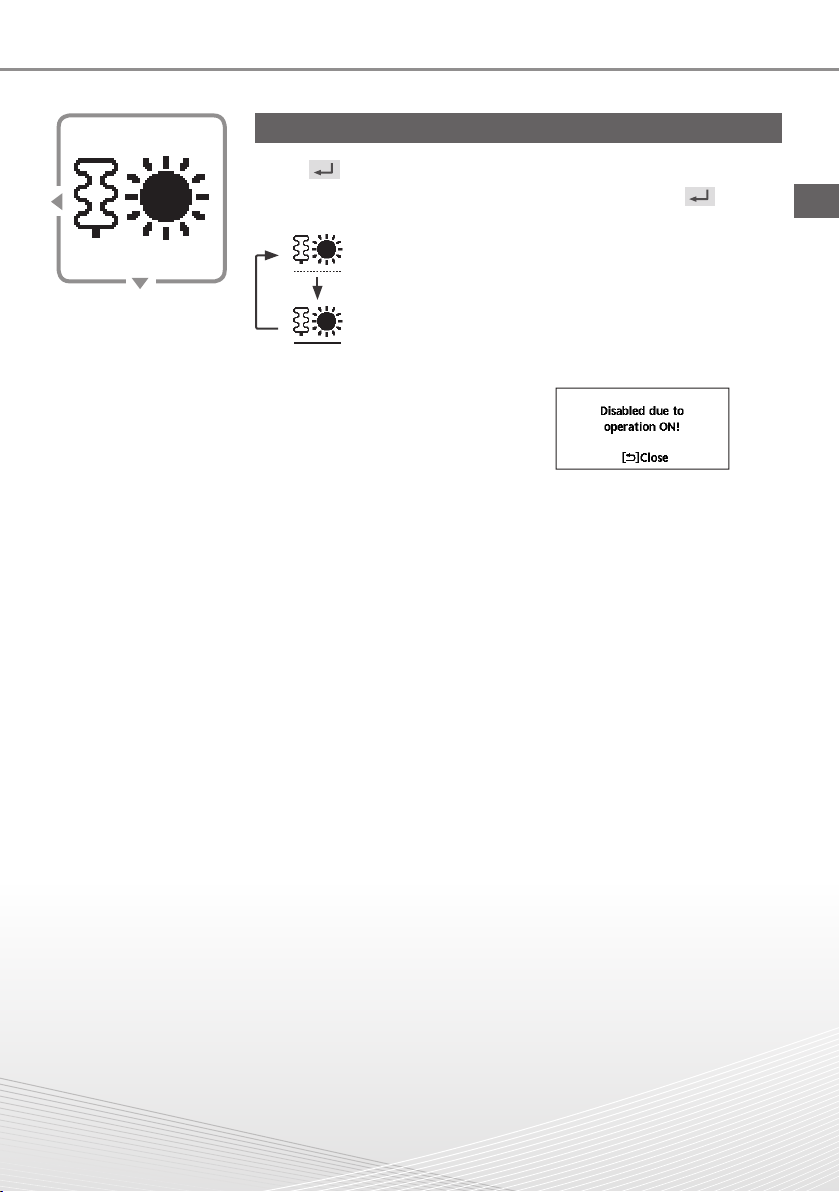

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is

pressed.)

• Force Heater is turned off.

• Force Heater is turned on.

■Note:

• Force Heater is disabled whenever

operation is already on and ‘Disabled

due to operation ON!’ will be

displayed.

Force

Heater

Select this icon to delete (cancel) or change the pre-set

Weekly Timer.

Press to confirm your selection.

• Timer is not ON.

• Timer is set.

After 1 sec delay.

Weekly

Timer

Select “Yes”.

• If you select “No”, the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.

• Timer copy: Select to copy a timer setting.

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

1 2 3 4 5 6

1Select pattern “1” ~ “6”.

2Set the hour and minutes of the Timer.

3Select ON/OFF of the Timer.

4Select the operation mode.

/ / / / / /

• Select mode using buttons.

5Set the temperature for both Zone 1 and 2

(if your system has the 2-Zone setting).

6Set the Tank temperature.

■Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.

• If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

How to use the Quick Menu

English

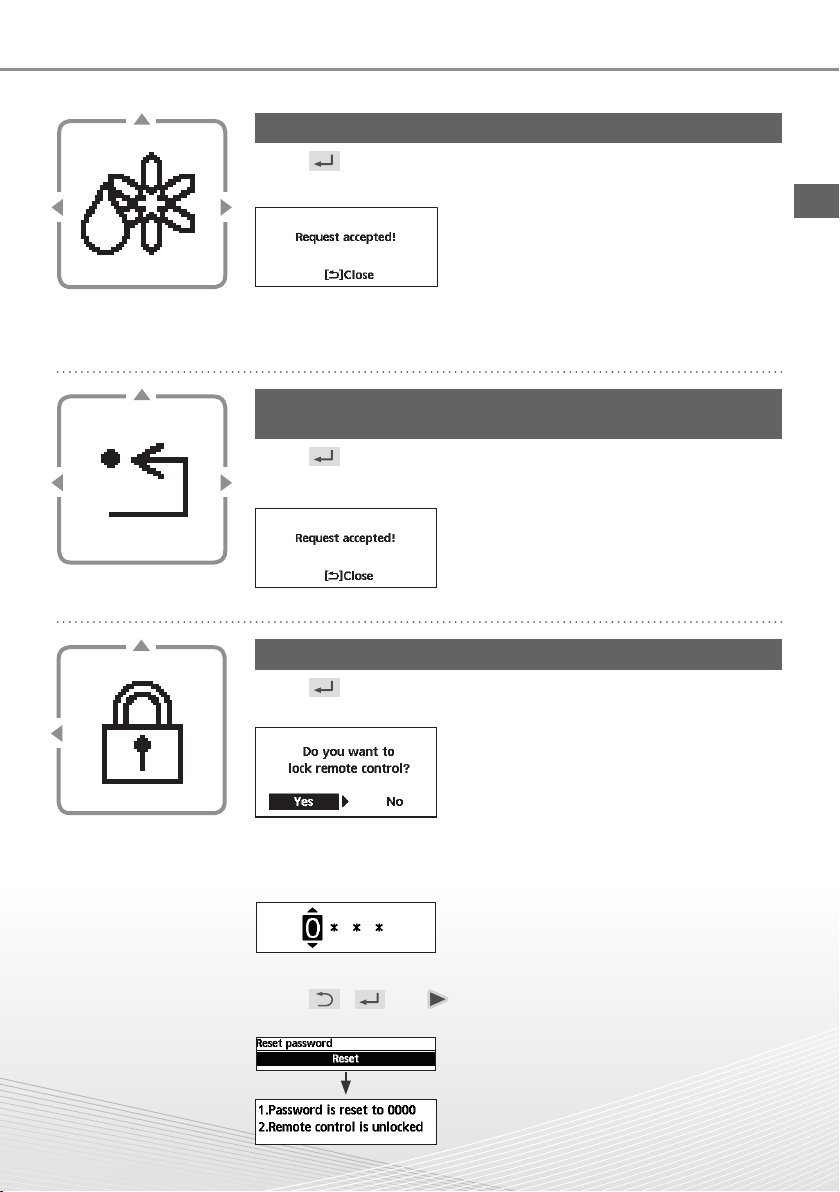

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Force

Defrost

Select to restore the previous settings when error has

occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

• Make sure all units are turned off before

selecting this mode which restores the whole

system to the previous settings.

Error Reset

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Select “Yes”.

(The Main Screen will be locked.)

• If “No” is selected, the screen will return to the

Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is

correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select “Reset”.

(The screen will be off after 3 seconds.)

R/C Lock

Denne hurtige vejledning forklarer, hvordan hurtigmenuen skal bruges.

Du bedes læse betjeningevejledningen grundigt, før du bruger hurtigmenuen.

Før brug

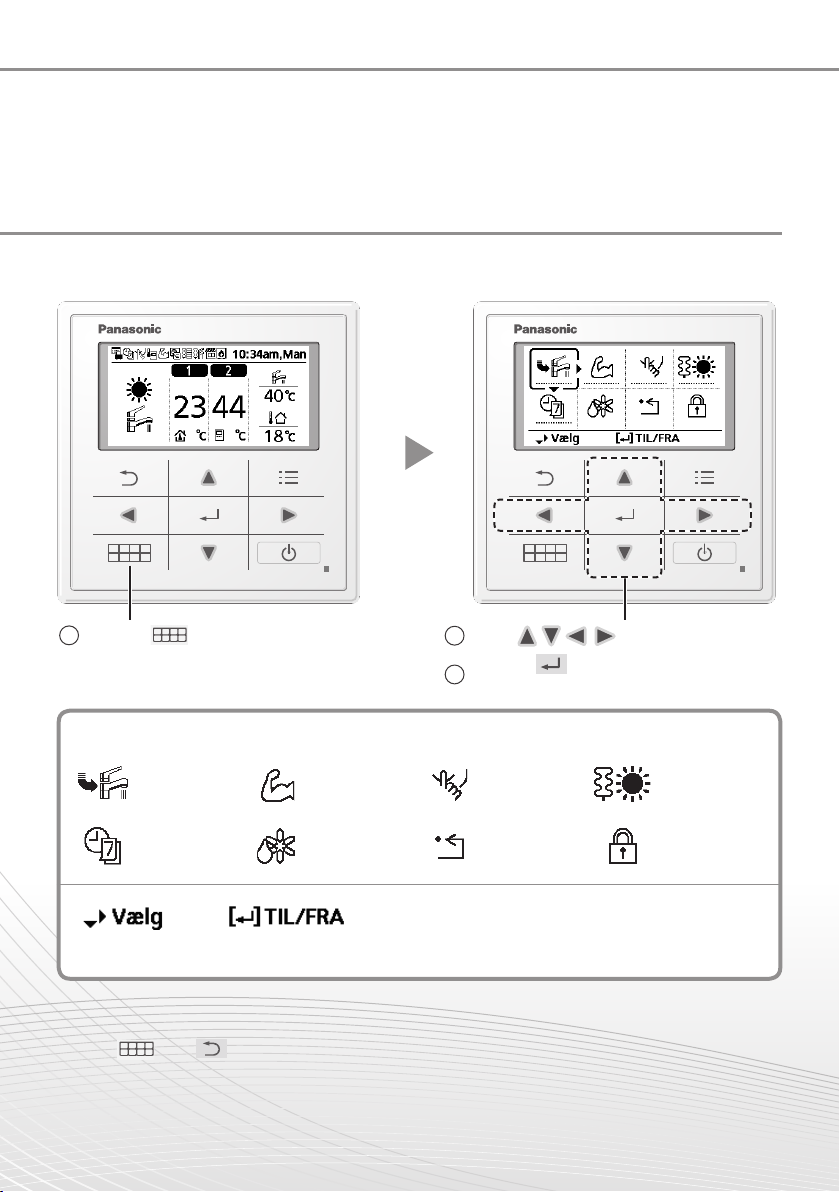

Sådan bruger du hurtigmenuen

Når de indledende indstillinger er gennemført, kan du vælge en hurtigmenu fra følgende

indstillinger, og redigere indstillingen.

Vælg hver indstilling og bekræft indstillingen i

henhold til de instruktioner, der vises nederst på

skærmen. (Ikonerne henviser til hver valgtast.)

Hurtig menu

Sådan vender du tilbage til hovedskærmen,

Tryk på eller .

Tving DHW

Powerful Lydsvag Start el

backup

Ugeprogram Kraftig

optøning Nulstilling af

fejl R/C-lås

1Tryk på . 2Brug til at vælge menuen.

3Tryk på for at tænde/slukke for den

valgte menu.

Sådan bruger du hurtigmenuen

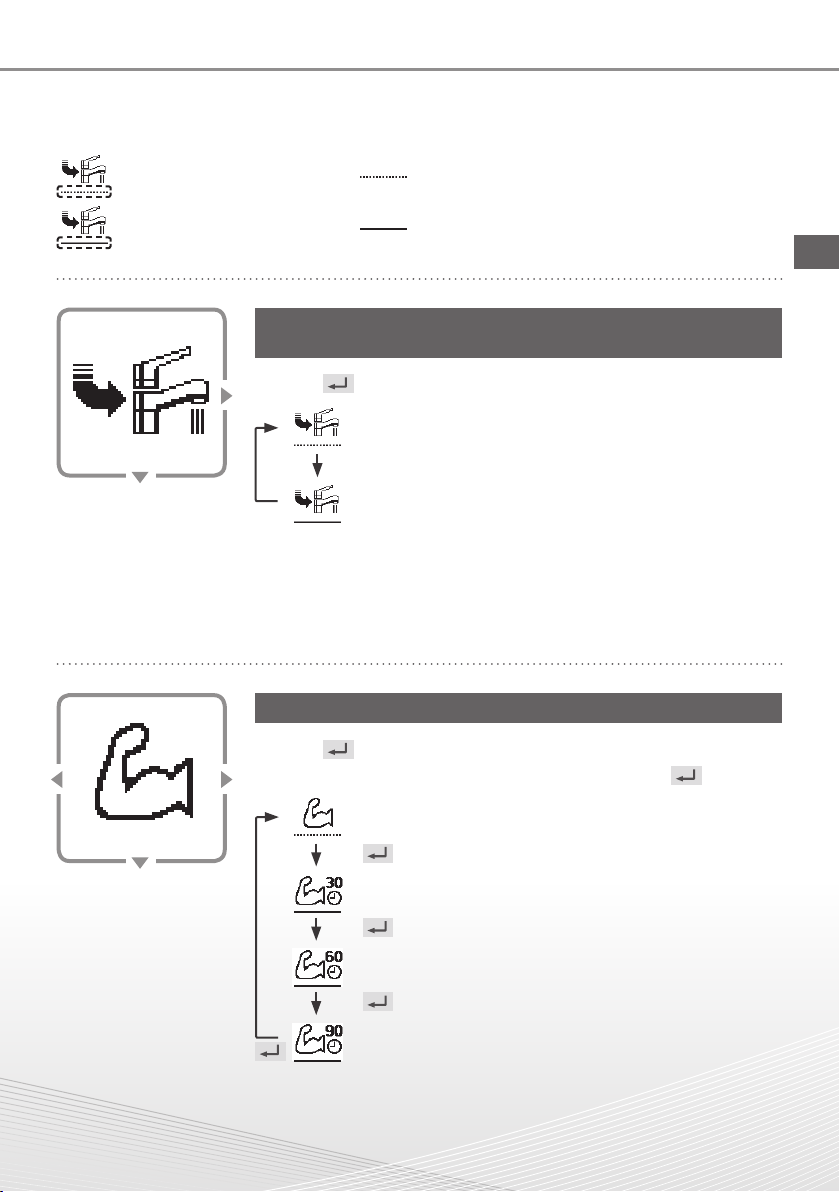

Vælg dette ikon for at tænde eller slukke tankens varme

brugsvand.

Tryk på for at bekræfte dit valg.

• Kraftigt varmt brugsvand er slukket.

• Kraftigt varmt brugsvand er tændt.

■Bemærk:

• Kraftigt varmt brugsvand er deaktiveren når det kraftige varmelegeme er

tændt.

• Når det kraftige varme brugsvand er slukket, bør funktionen & tilstanden

skifte tilbage til den forrige gemte status.

Tving DHW

Vælg dette ikon for at køre varme/kølesystemet kraftigt.

Tryk på for at bekræfte dit valg.

(Den kraftige drift starter ca. 1 minut efter der er trykket på .)

• Den kraftige tilstand er slukket.

• Den kraftige tilstand fungerer i 30 minutter.

• Den kraftige tilstand fungerer i 60 minutter.

• Den kraftige tilstand fungerer i 90 minutter.

■Bemærk:

• Kraftig bliver deaktiveret når funktionen er slukket.

Powerful

Noter om betjeningsikon

Eksempel:

• Betjeningsikon indikeres med " " = FRA

• Betjeningsikon indikeres med " " = TIL

Dansk

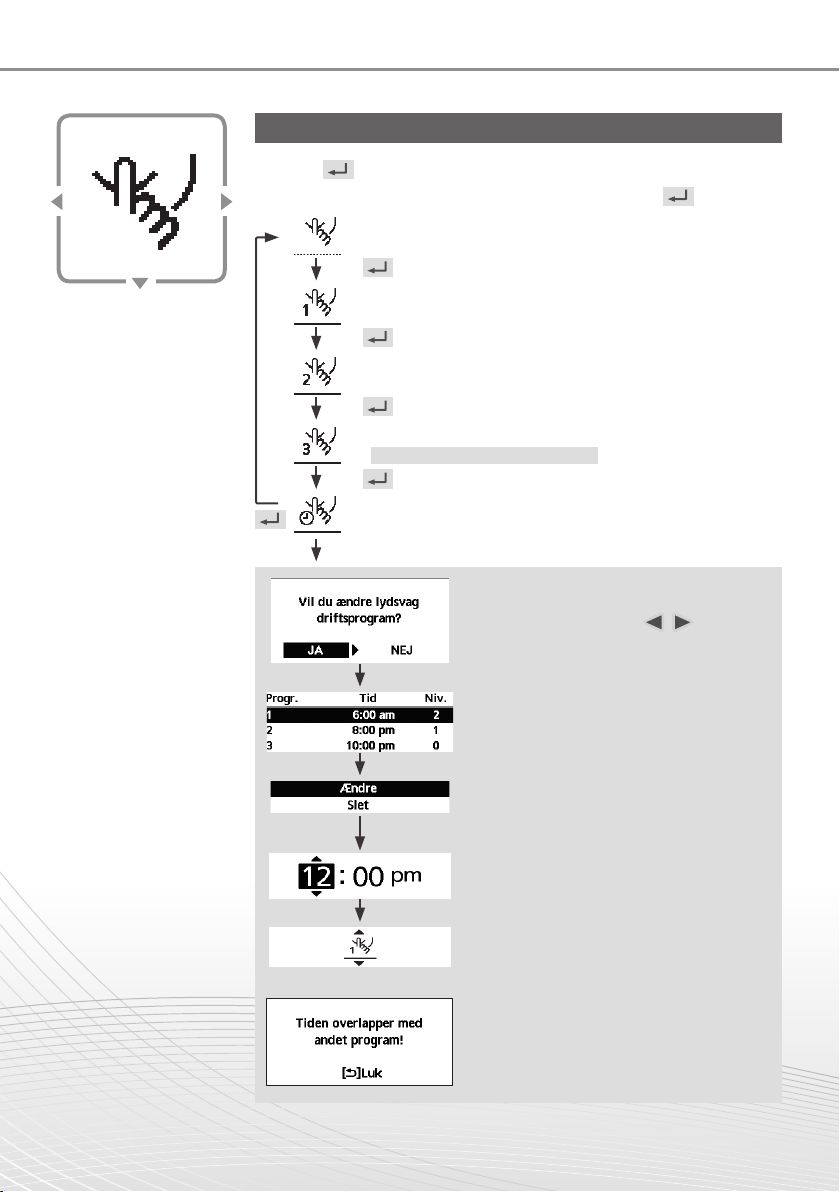

Vælg dette ikon for at stille drift.

Tryk på for at bekræfte dit valg.

(Den stille drift starter cirka 1 minut efter der er trykket på .)

• Stille tilstand er slukket.

• Den stille tilstand fungerer på niveau 1.

• Den stille tilstand fungerer på niveau 2.

• Den stille tilstand fungerer på niveau 3.

Niveau 3 er den mest stille tilstand.

• Vælg dette for at indstille en timer til at fungere på stille

tilstand.

Efter en forsinkelse på 1 sekund.

Lydsvag

Vælg "JA".

• Vælg "JA" ved at bruge

knapperne.

Vælg mønster "1" ~ "6".

Vælg "Ændre".

• Hvis du vælger "Slet", vil timeren

indstilling fordet valgte mønster blive

slettet.

Indstil timen og minutter.

Vælg niveauet for stille.

■Bemærk:

• Hvis tiden overlapper med et andet

mønster, vises "Tiden overlapper med

andet program!" på skærmen.

Sådan bruger du hurtigmenuen
