Order No: PAPAMY1508107CE

Mono bloc Unit

WH-MDC06G3E5

WH-MDC09G3E5

Destination

Europe

Turkey

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to

service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

PRECAUTION OF LOW TEMPERATURE

In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.

2.2 WH-MDC09G3E5

Item Unit Refrigerant System

Performance Test Condition EN 14511

Condition (Ambient/Water) A35W7 -

kW 7.00 -

BTU/h 23900 -

Cooling Capacity

kcal/h 6020 -

W/W 2.44 -

EER kcal/hW 2.10 -

Condition (Ambient/Water) A7W35 A2W35

kW 9.00 7.45

BTU/h 30700 25400

Heating Capacity

kcal/h 7740 6410

W/W 4.15 3.14

COP kcal/hW 3.57 2.70

Air Flow m3/min (ft3/min) Cooling : 57.1 (2016)

Heating : 51.6 (1822)

Refrigeration Control Device Expansion Valve

Refrigeration Oil cm3FV50S (900)

Refrigerant (R410A) kg (oz) 1.45 (51.2)

Type Hermetic Motor (Rotary)

Motor Type Brushless (4-poles)

Compressor

Rated Output kW 1.70

Type Propeller Fan

Material PP

Motor Type DC (8-poles)

Input Power W —

Output Power W 60

Fan

Fan Speed rpm Cooling: 700

Heating: 640

Fin material Aluminium (Pre Coat)

Fin Type Corrugated Fin

Row × Stage × FPI 2 × 30 × 17

Heat Exchanger

Size (W × H × L) mm 38.1 × 762 × 903.8:873.8

Item Unit Mono Bloc Unit

Height mm (inch) 865 (34-1/16)

Width mm (inch) 1283 (50-17/32)

Dimension

Depth mm (inch) 320 (12-5/8)

Net Weight kg (lbs) 112 (247)

dB-A Cooling: 49

Heating: 49

Cooling: -

Heating: -

Noise Level

Power Level dB Cooling: 67

Heating: 67

Cooling: -

Heating: -

ø Single

V 230

Power Source (Phase, Voltage, Cycle)

Hz 50

Input Power kW Cooling: 2.87

Heating: 2.17

Cooling: -

Heating: 2.37

Maximum Input Power For Mono Bloc Unit kW 5.01

Power Supply 1: Phase (ø) / Max. Current (A) / Max. Input Power (W) Single / 22.9 / 5.01k

Power Supply 2: Phase (ø) / Max. Current (A) / Max. Input Power (W) Single / 13.0 / 3.00k

Power Supply 3: Phase (ø) / Max. Current (A) / Max. Input Power (W) - / - / -

Item Unit Mono Bloc Unit

Starting Current A 13.0

Running Current A Cooling: 13.0

Heating: 9.9

Cooling: -

Heating: 10.8

Maximum Current For Mono Bloc Unit A 22.9

Power Factor % Cooling: 96

Heating: 95

Cooling: -

Heating: 95

Power factor means total figure of compressor and outdoor fan motor.

Number of core -

Power Cord Length m (ft) -

Thermostat Electronic Control

Protection Device Electronic Control

Item Unit Water System

Performance Test Condition EN 14511

Outdoor Ambient °C Cooling: 16 ~ 43

Heating: -20 ~ 35

Operation Range

Water Outlet °C Cooling: 5 ~ 20

Heating: 25 ~ 55

Internal Pressure Differential kPa Cooling: 36.5

Heating: 57.5

Inlet mm (inch) 30 (1-3/16)

Water Pipe Diameter Outlet mm (inch) 30 (1-3/16)

Water Drain Hose Inner Diameter mm (inch) 15.00 (19/32)

Motor Type DC Motor

No. of Speed 7 (software selection)

Pump

Input Power W 84

Type Brazed Plate

No. of Plates 48

Size (H × W × L) mm 82 × 93 × 325

Hot Water Coil

Water Flow Rate l/min (m3/h) Cooling: 20.0 (1.2)

Heating: 25.8 (1.6)

Pressure Relief Valve Water Circuit kPa Open: 300, Close: 265 and below

Flow Switch Magnetic Lead Switch

Protection Device A Residual Current Circuit Breaker (40)

Volume I 6

Expansion Vessel MWP bar 3

Capacity of Integrated Electric Heater kW 3.00

Note:

Cooling capacities are based on outdoor air temperature of 35°C Dry Bulb with controlled water inlet temperature

of 12°C and water outlet temperature of 7°C.

Heating capacities are based on outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb

(42.8°F Wet Bulb) with controlled water inlet temperature of 30°C and water outlet temperature of 35°C.

Specification are subjected to change without prior notice for further improvement.

3. Features

Inverter Technology

- Energy saving

High Efficiency

Compact Design

Environment Protection

- Non-ozone depletion substances refrigerant (R410A)

Easy to use remote control

Weekly Timer setting

Quality Improvement

- Random auto restart after power failure for safety restart operation

- Gas leakage protection

- Prevent compressor reverse cycle

- Inner protector to protect compressor

Serviceability Improvement

- Breakdown Self Diagnosis function

- System Status Check Buttons for servicing purpose

- System Service Mode Button for servicing purpose

- Front maintenance design for Mono bloc unit

Operation Condition

Water outlet temperature (°C) Ambient temperature (°C)

Maximum 20 43

COOLING Minimum 5 16

Maximum 55 35

HEATING Minimum 25 -20

NOTICE : When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly

and Mono bloc unit might stop for protection control.

4. Location of Controls and Components

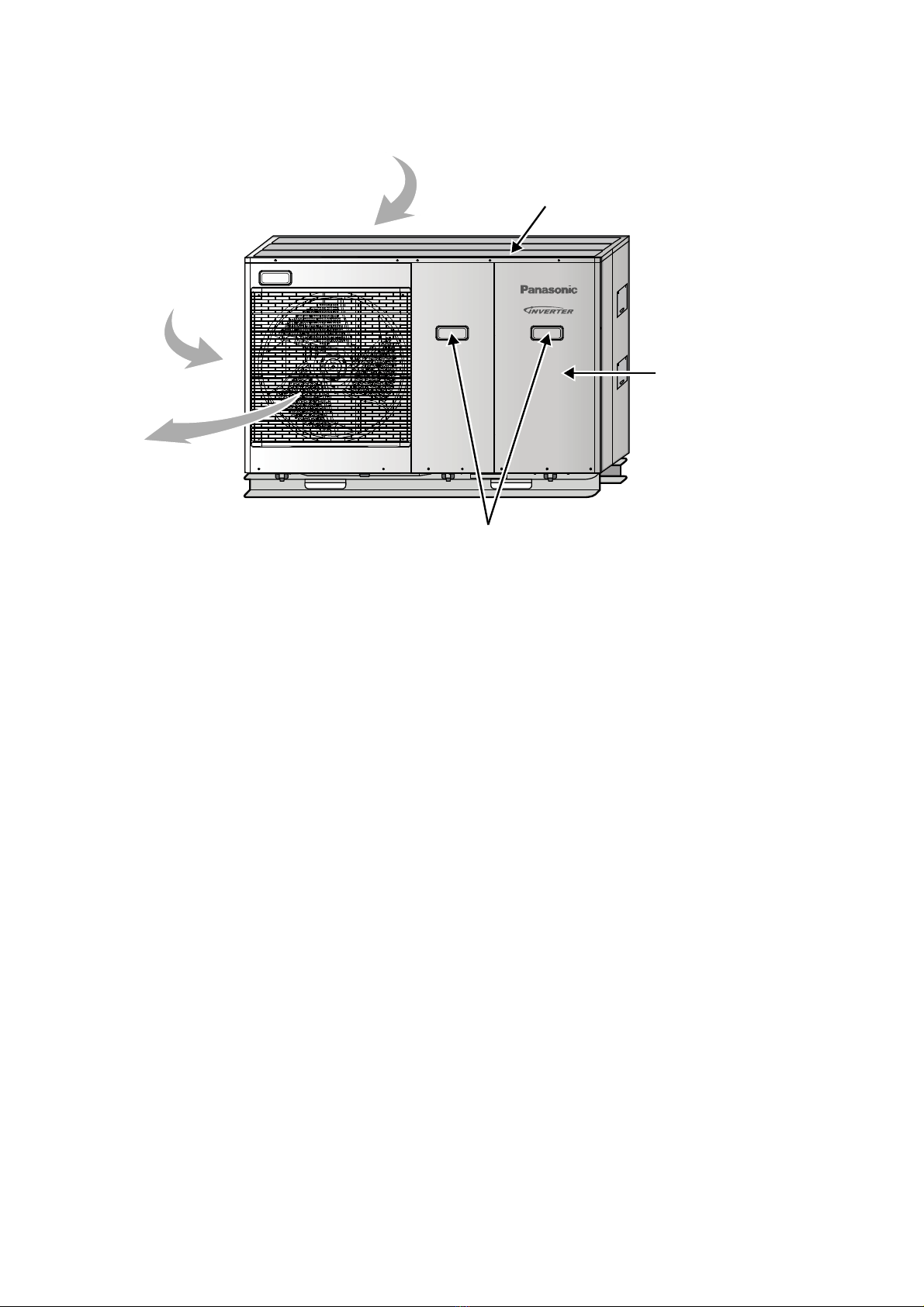

4.1 Mono Bloc Unit

Top Plate

ir inlet (rear)

Air inlet (side)

ir outlet

Cabinet Front Plate

Handle

(2 pieces front and 2 pieces behind)

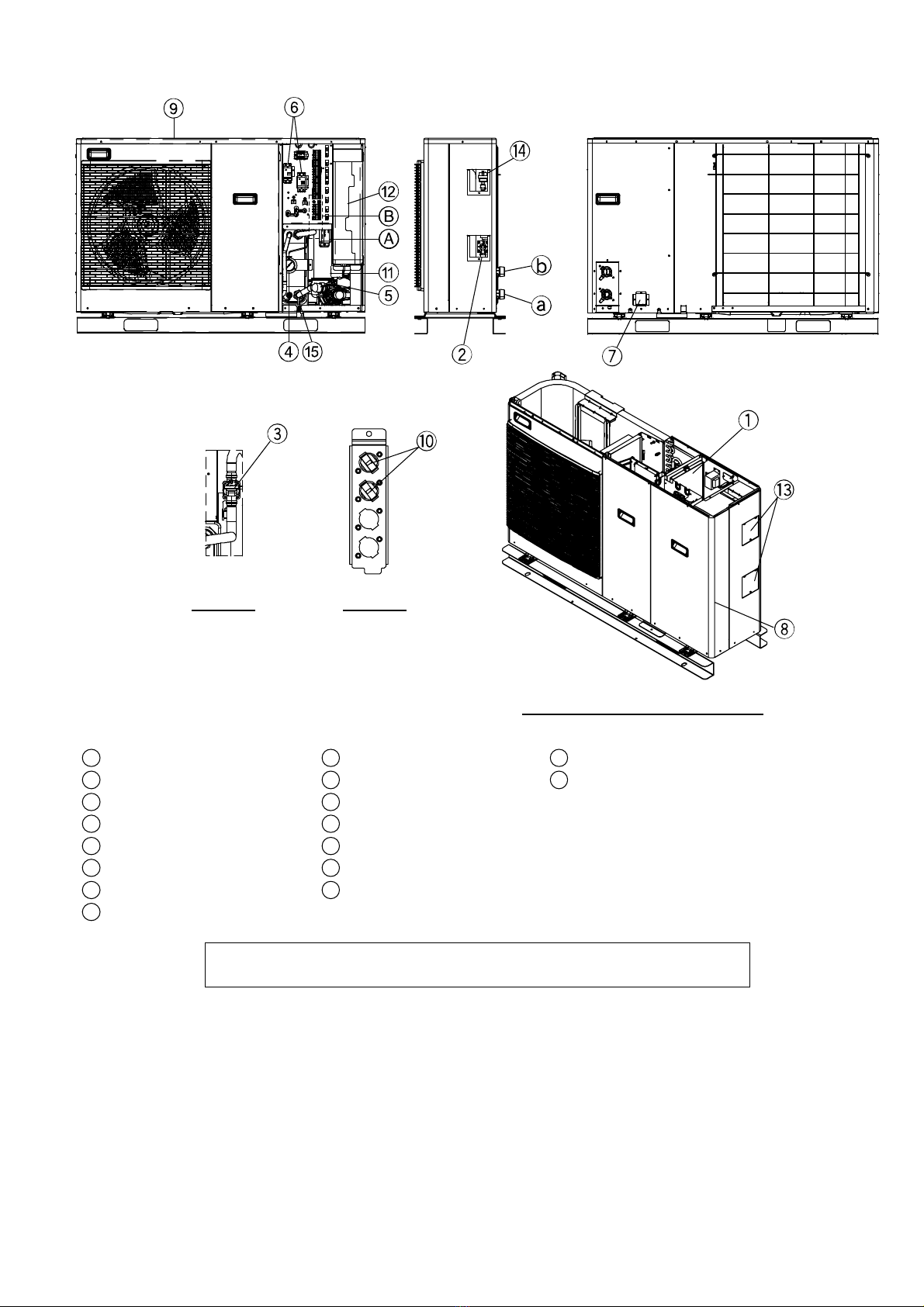

4.1.1 Main Components

Component name

PCB

Pressure relief valve

Flow switch

Pressure gauge

Water pump

RCCB

Cable cover

Cabinet front plate

Connector name

Water inlet

Water outlet

Cabinet top plate

Overload protector

Heater assembly

Expansion vessel

Cover

Air purge valve

Plug

(VIEW

WITHOUT

COVER)

DETAIL B DETAIL A

View without cabinet top plate

(VIEW

WITHOUT

PCB)

It is advisable to avoid more than 2 blockage directions. For better ventilation & multiple-outdoor

installation, please consult authorised dealer/specialist

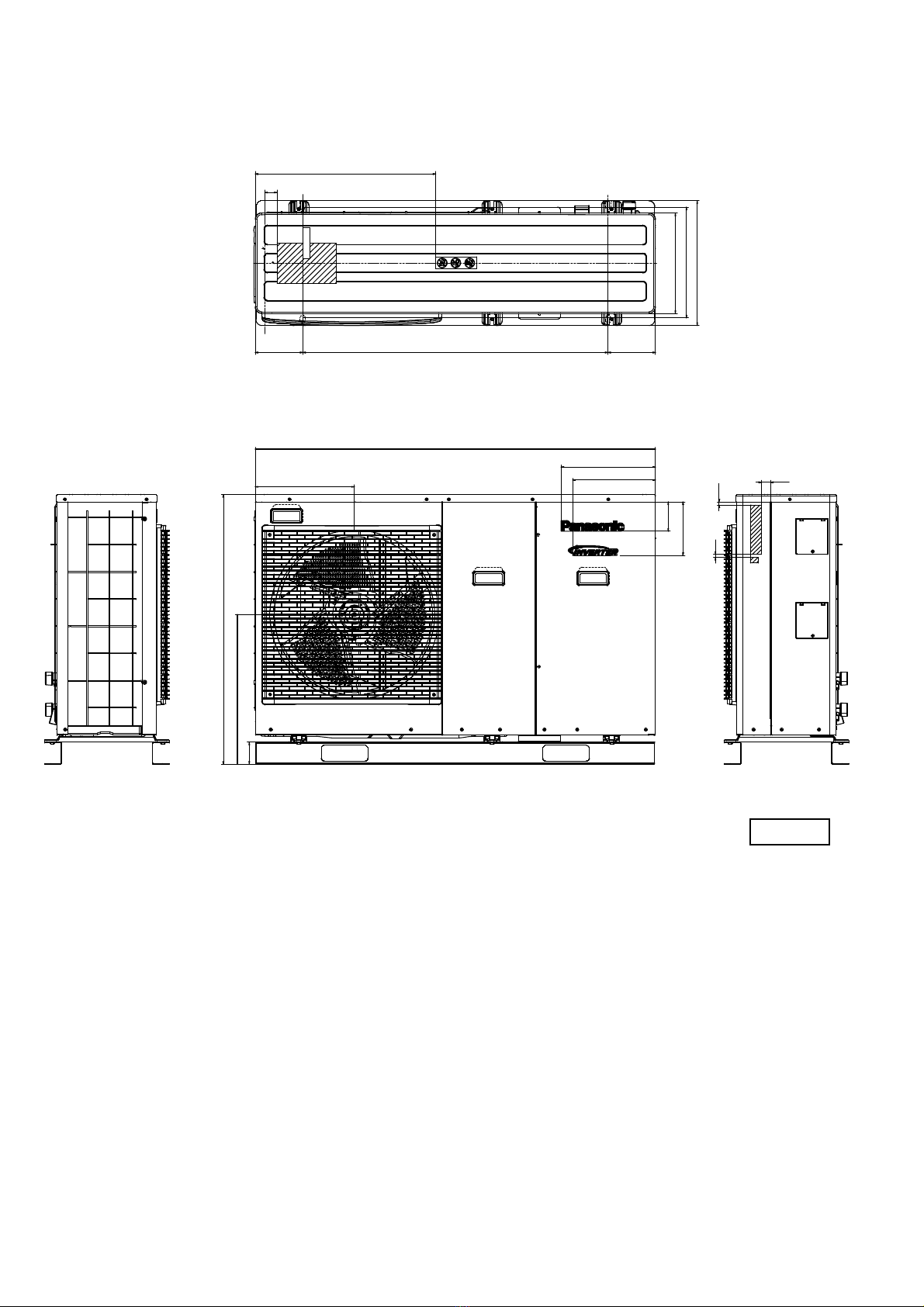

5. Dimensions

5.1 Mono Bloc Unit

Unit: mm

<Top View

(579)

152 980

1283

303

319 266

865

480

172

(10)

(20)

152

400

355

320

(10)

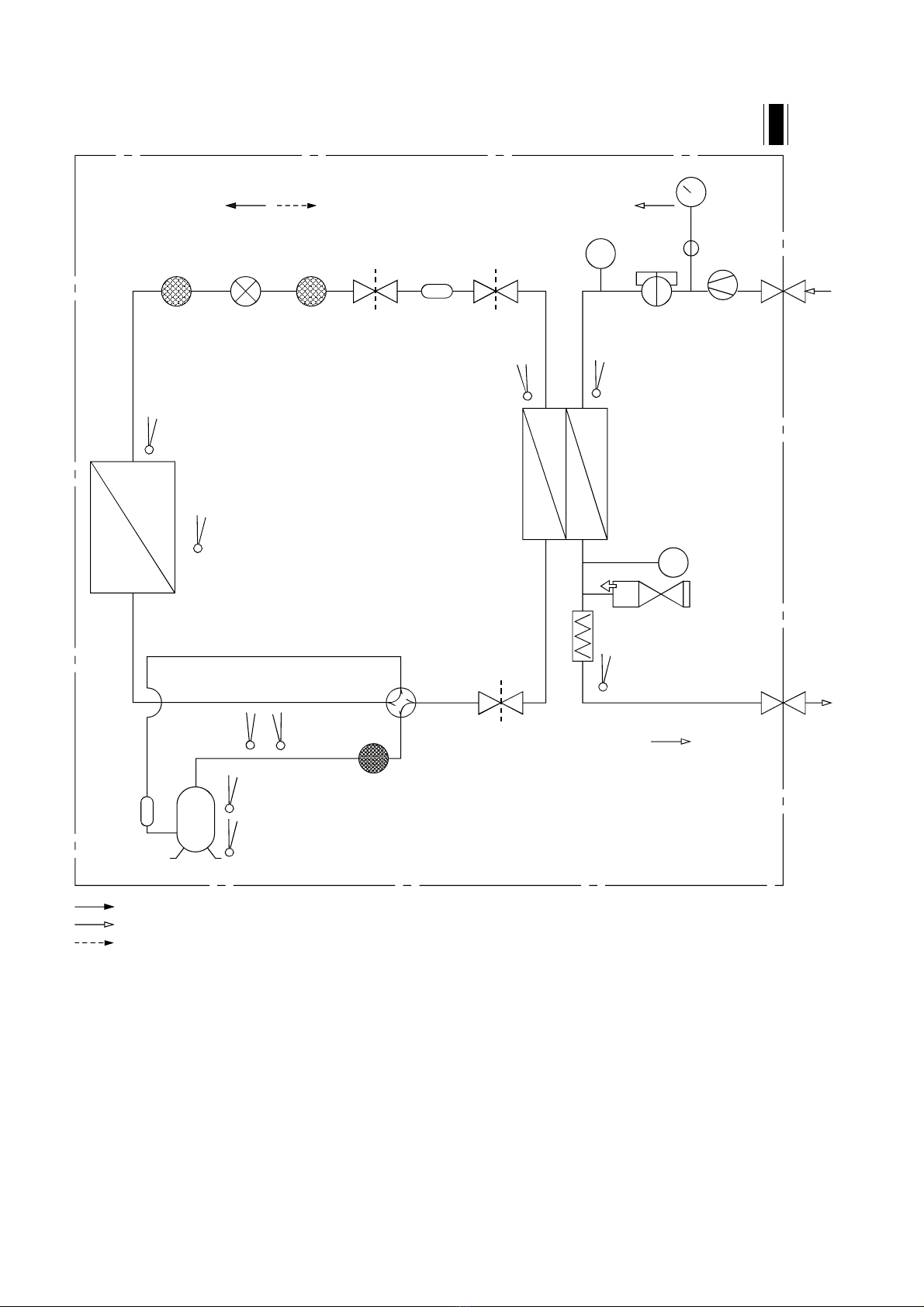

6. Refrigeration and Water Cycle Diagram

Mono bloc Unit

Pipe

Temp.

Sensor

Pipe

Temp.

Sensor

Pipe

Temp.

Sensor

Pipe

Temp.

Sensor

Air

Temp.

Sensor

Compressor

Discharge Temp.

Sensor

Compressor

Tank Temp.

Sensor

Backup Heater

Outdoor

Side

Expansion

Vessel

Pressure

Relief

Valve

Air Purge Valve

Water

Flow

Switch

Water

Pump

Water

Inlet

(Connec

Sanitary

Tank)

Water

Outlet

(Connec

Sanitary

Tank)

Drain

Refrigerant Cycle (Heating)

Water Cycle

Heat

Exchanger

Heat

Exchanger

Strainer Strainer

Receiver

4-Way

Valve

Gas Side

(3-Way Valve)

Liquid Side

(3-Way Valve)

Pressure

Switch

High Pressure

Sensor

Compressor

Water

Pressure

Gauge

Capillary

Tube

Expansion

Valve

Refrigerant Cycle (Cooling)

Muffler

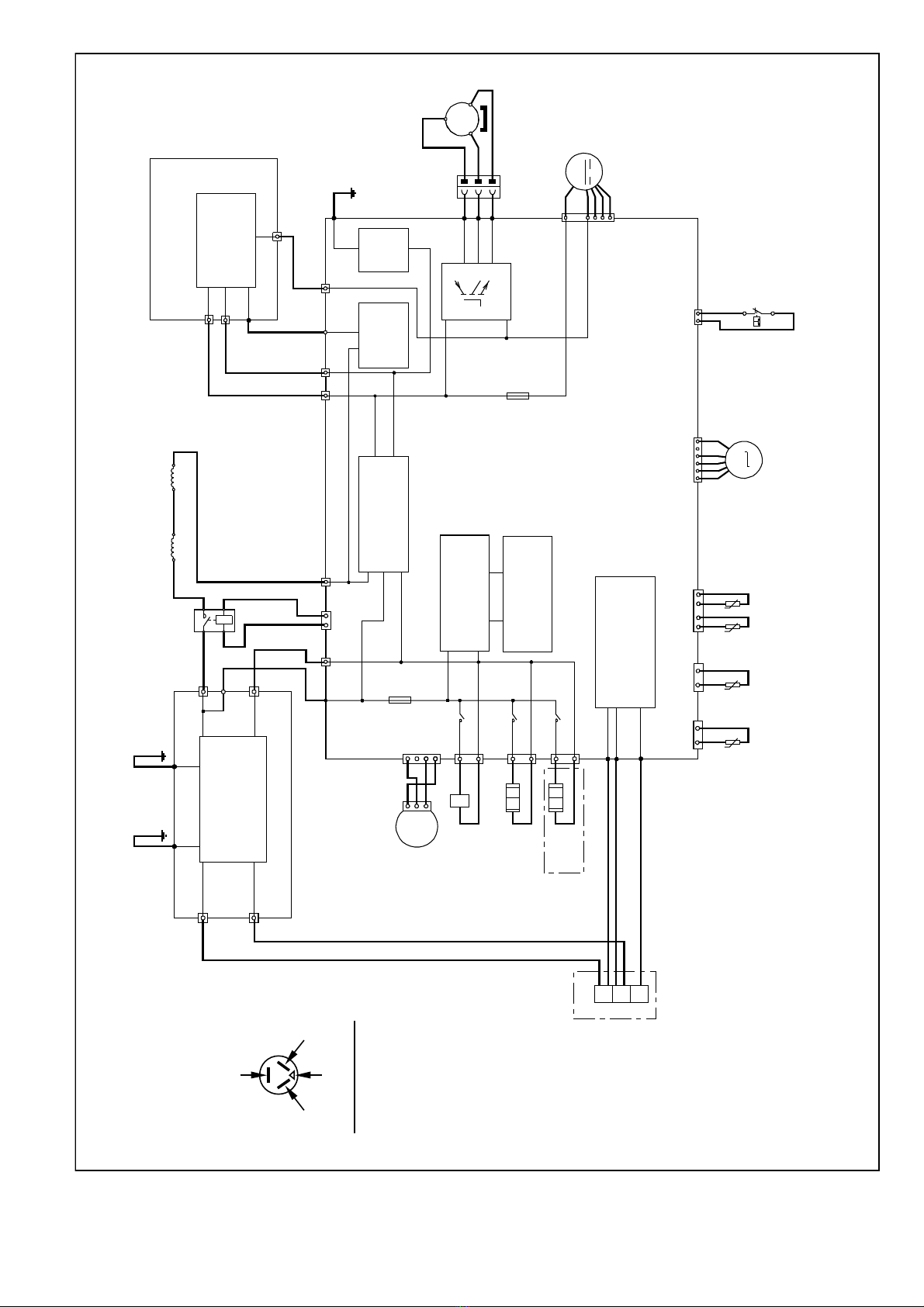

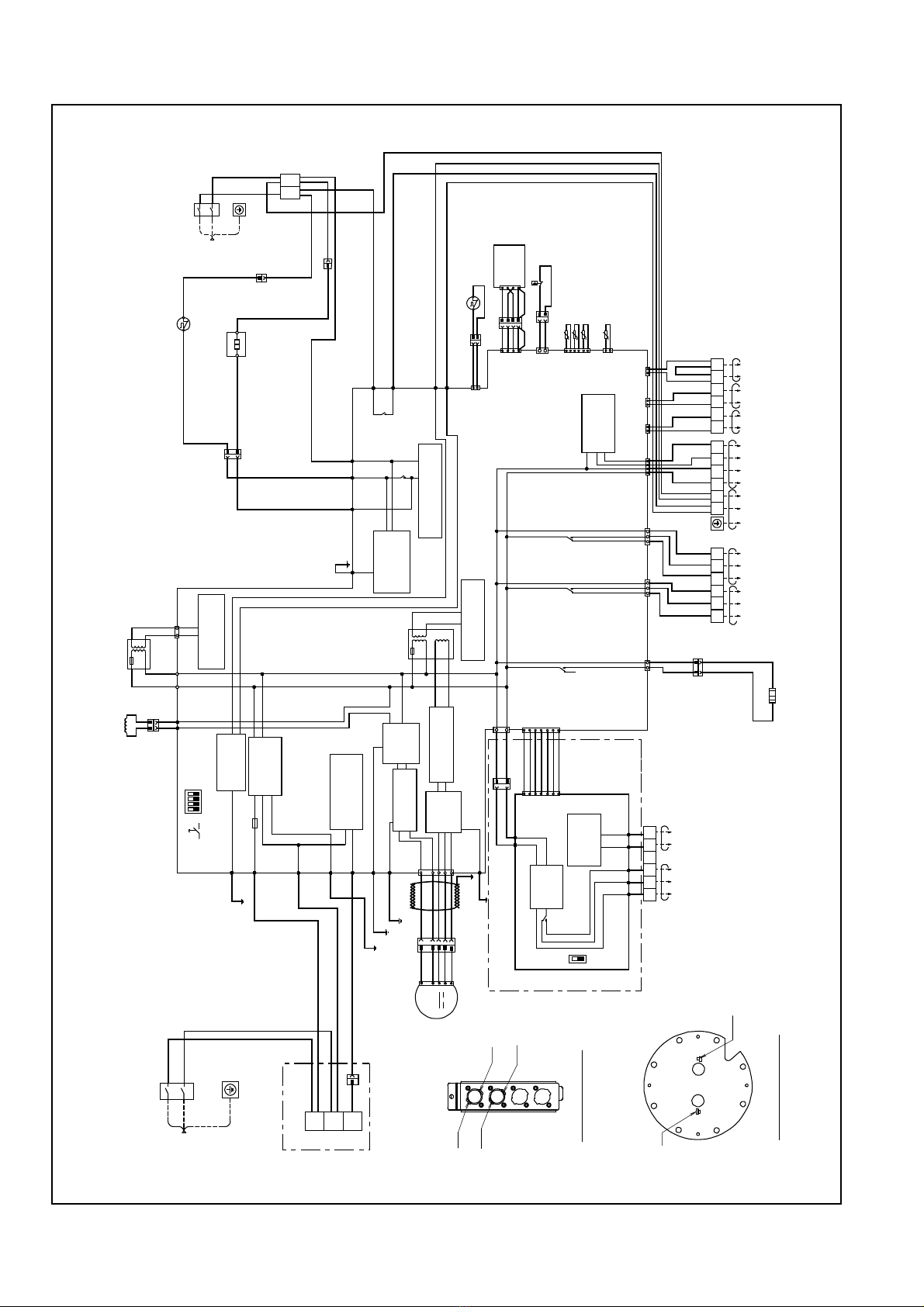

8. Wiring Connection Diagram

RCCB

POWER

SUPPLY 1

Single phase

AC230V

50Hz 230V 40A

l∆n=30mA

GROUNDING

(WATER SYSTEM)

(L)

(N)

SW1 SW2

REACTOR

SURGE

PROTECTION

CIRCUIT

SURGE

PROTECTION

CIRCUIT

NOISE

FILTER

CIRCUIT

NOISE

FILTER

CIRCUIT

NOISE FILTER

CIRCUIT

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

RECTIFICATION

CIRCUIT

RECTIFICATION

CIRCUIT

RECTIFICATION

CIRCUIT

TERMINAL

BOARD

REFRIGERANT

SYSTEM

SIGNAL DETECTION

CIRCUIT

SIGNAL

DETECTION

CIRCUIT

WATER

PUMP

CIRCUIT

SIGNAL

DETECTION

CIRCUIT

WW BL R

BL R

R11

AC1-L3

(BLK)

AC1-N

(WHT)

G02

(GRN)

(WHT) L1

(WHT) T2

(BLK) T1

(BLK) CN-T1

(WHT)

FUSE1

T6.3A L250V

G01

(GRN)

G05

(GRN)

G07

(GRN)

BL BL

G04

(GRN)

G08

(GRN)

CN-PUMP2

(WHT)

DATA

(RED)

EXTERNAL

CONTROL

TANK

SENSOR

TANK

OLP

ROOM

THERMOSTART

BOOSTER

HEATER

HEATCOOLNL

2-WAY

VALVE

NOPENCLOSE

N OPENCLOSE

3-WAY

VALVE

NOPENCLOSE

REMARKS:

W:WHITE

O:ORANGE

R:RED

B:BLUE

BL : BLACK

Y:YELLOW

BR : BROWN

G : GREEN

GR : GRAY

YG/ : YELLOW/GREEN

RCCB : RESIDUAL CURRENT CIRCUIT BREAKER

CN-THERMO

(WHT)

RRRYYOOGRGRB

BOBR R Y

3511351 3571 2121 13

BR BL

BLBL

BL BL BLWW

TERMINAL

BOARD

TERMINAL

BOARD

TERMINAL

BOARD

TERMINAL

BOARD

TERMINAL

BOARD

PUMPSOLAR3-WAYSOLAR

VALVE

LEAD WIRE FIXING FOR OLP

LEAD WIRE FIXING FOR HEATER

BLUE

BLACK

WHITE

RED

TRANSFORMER

WATER

PUMP

HT1-L3

(RED)

AC2-L3

(BLK)

ACL3

(BLK)

ACL-BOOSTER

(BRW)

ACL-BOOSTER2

(WHT)

ACL-BOOSTER2

(BLK)

AC2-N2

(WHT)

ELECTRONIC CONTROLLER

(MAIN)

OLP

80±3°C

OLP

80±3°C

CN-SOLAR_B

(IVORY) CN-SOLAR

(WHT)

HEATER

BACKUP

HEATER

(3kW)

CN-HT

(WHT) CN-V2

(WHT) CN-RCV2

(WHT)

CN-OLP2

(WHT) CN-TH2

(WHT)

CN-V3

(GRN)

PUMP-L

(RED)

ACN-3V

(BLU)

ACL1-3V

(ORG )

ACL2-3V

(BRW)

PUMP-N

(YLW)

ACN

(WHT)

ACL

(BLK)

CN-PWR

(BLK)

ELECTRONIC CONTROLLER

(SOLAR)

SW201

RY-V201

RY-HT

(L3)

RY-BOOSTER

RY-HT

RY-V2

RY-V3

RCCB

POWER

SUPPLY 2

Single phase

AC230V

50Hz 230V 40A

l∆n=30mA

GROUNDING

(L1)

(N1)

20 21 22 23

123456 78910 11 12 13 14 15 16 17 18

CN-FLOW

(YLW)

CN-TH1

(WHT)

CN-OLP1

(WHT)

CN-TH3

(WHT)

CN-REMOTE2

(WHT)

WATER OUTLET TEMP. SENSOR (THERMISTOR)

WATER INLET TEMP. SENSOR (THERMISTOR)

REFRIGERANT TEMP. SENSOR (THERMISTOR)

REMOTE

CONTROL

HEX WATER OUTLET TEMP. SENSOR (THERMISTOR)

FLOW SWITCH

t°

(REFRIGERANT SYSTEM)

REMARKS:

W : WHITE R : RED

B : BLUE P : PINK

BL : BLACK Y : YELLOW

BR : BROWN O : ORANGE

G : GREEN GR : GRAY

Y/G : YELLOW/GREEN

WATER

SYSTEM

TERMINAL

BOARD

CN-ACL

(BLACK)

CN-BLK

(BLACK)

AC-BLK

(BLACK)

AC-BLK01

(BLACK)

AC-L

(GRAY)

DCP

(RED)

DCN2

(BLACK)

CN-PSW1

(BLUE)

CN-EV

(WHITE)

CN-FM1

(WHITE)

FG1

(GREEN)

DCN-OUT

(BLACK)

AC-C

(BLUE)

DCN-IN

(BLACK)

DCP-OUT

(WHITE)

AC-C

(BLUE)

DCN

(BLACK)

CN-ACN

(WHITE)

CN-WHT

(WHITE)

CN-WHT

(WHITE)

CN-RY1

(WHITE)

CN-HPS

(RED)

CN-HOT

(BLUE)

CN-HT1

(WHITE)

CN-HT2

(BLACK)

AC-BLK02

(BLACK)

AC-WHT02

(WHITE)

CN-TANK

(WHITE)

CN-DIS

(WHITE)

CN-TH1

(WHITE)

COM3

(RED)

ELECTRONIC CONTROLLER

(MAIN)

COMPRESSOR

31214611

ELECTRO MAGNETIC COIL

(MAIN EXPANSION VALVE)

1RY-HT2

RY-HT1

RY-HOT

FAN MOTOR

U (RED)

V (BLUE)

W (YELLOW)

BBLR

REACTOR REACTOR

RELAY

WWW

FG1 (GREEN) FG2 (GREEN)

HIGH PRESSURE SWITCH

FUSE2

T3.15A L250V

FUSE1

T3.15A L250V

NOISE FILTER CIRCUIT

ELECTRONIC CONTROLLER (SUB)

ELECTRONIC CONTROLLER

(CAPACITOR)

ELECTRO

MAGNETIC COIL

(4-WAY VALVE)

CRANKCASE

HEATER

BASE PAN

HEATER

(OPTIONAL)

HIGH PRESSURE

SENSOR

NOISE

FILTER

CIRCUIT

CAPACITOR

CIRCUIT

PFC

CIRCUIT

COMMUNICATION

CIRCUIT

RECTIFICATION

CIRCUIT

RECTIFICATION

CIRCUIT

SWITCHING POWER

SUPPLY CIRCUIT

t° t° t° t°

DISCHARGE TEMP. SENSOR

(THERMISTOR)

COMPRESSOR (TANK) TEMP. SENSOR

(THERMISTOR)

OUTDOOR AIR TEMP. SENSOR

(THERMISTOR)

OUTDOOR PIPE TEMP. SENSOR

(THERMISTOR)

RED

(TRADE MARK)

BLUE

YELLOW

COMPRESSOR TERMINAL

Indice

Altri manuali Panasonic Pompa di calore

Panasonic

Panasonic WH-MDF06D3E5 Manuale utente

Panasonic

Panasonic WH-SHF09D3E5 Manuale utente

Panasonic

Panasonic U-4..6ML5XPQ Manuale utente

Panasonic

Panasonic WH-SDF07C3E5 Manuale utente

Panasonic

Panasonic WH-MDC09C3E5 Manuale utente

Panasonic

Panasonic WH-SDC09C3E8 Manuale utente

Panasonic

Panasonic WH-SDC16H9E8 Manuale utente

Panasonic

Panasonic WH-SXH09D0E8 Manuale utente

Panasonic

Panasonic AQUAREA WH-ADC H Series Manuale utente

Panasonic

Panasonic Aquarea WH-MDF09C3E5 Manuale utente

Panasonic

Panasonic WH-UD09HE5-1 Manuale utente

Panasonic

Panasonic 26PEU1U6 Manuale utente

Panasonic

Panasonic Aquarea WH-SDC05H3E5-1 Manuale utente

Panasonic

Panasonic WH-MHF09G3E5 Manuale utente

Panasonic

Panasonic S-250WX2E5 Manuale di istruzioni

Panasonic

Panasonic WHUD30BE51 Manuale utente

Panasonic

Panasonic WH-SDC09H3E8 Manuale utente

Panasonic

Panasonic WH-MXC09J3E5 Manuale utente

Panasonic

Panasonic WH-MXC12J9E8 Manuale utente

Panasonic

Panasonic WH-SHF09D3E8 Manuale utente

Panasonic

Panasonic WH-UX12DE8 Manuale utente

Panasonic

Panasonic Aquarea WH-MDF09C3E5 Manuale utente

Panasonic

Panasonic LIAC7IM3 Manuale utente

Panasonic

Panasonic Aquarea WH-SDC16H6E5 Manuale utente

Manuali Pompa di calore popolari di altre marche

MICROWELL

MICROWELL HP 1000 GREEN Manuale utente

Sanyo

Sanyo SAP120FCH Manuale utente

Daikin

Daikin EHYHBH05AA Manuale utente

Bryant

Bryant 544B Manuale utente

Airxcel

Airxcel 45000 Series Manuale

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuale utente

Dimplex

Dimplex LI 16I-TUR Guida utente

Carrier

Carrier WSHP Open v3 Guida rapida alla configurazione

TGM

TGM CTV14CN018A Manuale utente

Carrier

Carrier 38MGQ Series Manuale utente

Kokido

Kokido K2O K880BX/EU Guida alla risoluzione dei problemi

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guida rapida

Carrier

Carrier 48EZN Manuale utente

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Istruzioni operative

Ariston

Ariston NIMBUS Manuale utente

Weishaupt

Weishaupt WWP L 7 Guida utente

GE Zoneline AZ85H09EAC Manuale utente

Bryant

Bryant Preferred Series Manuale utente
