Panasonic SC-BT735 Istruzioni utente

VQC7596

F0310RE0

12 34

SETUP MIC













FRONT

Lch →



  





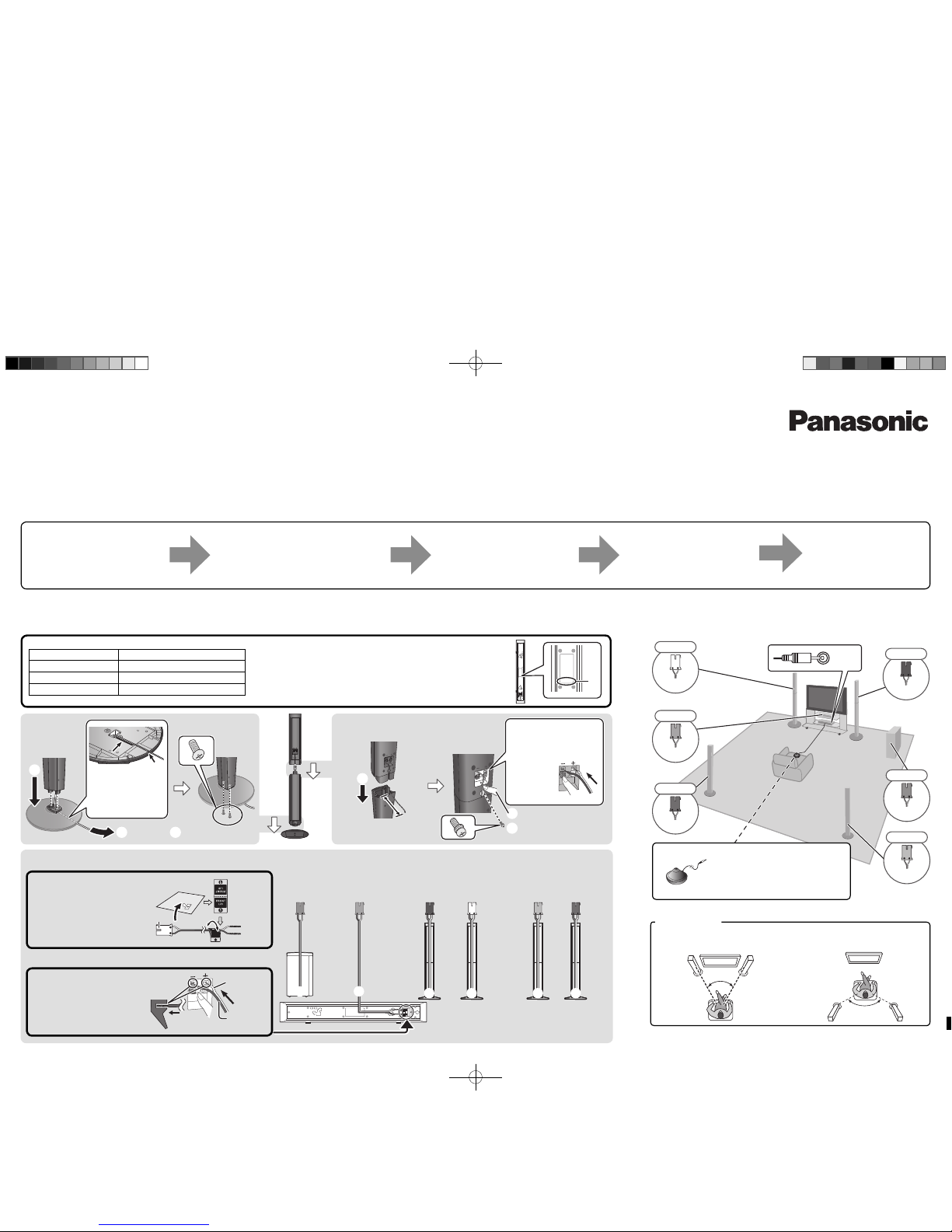

Easy Setting Guide

The order of setting

Blu-ray Disc Home Theater Sound System

Model No. SC-BT735

Prepare the

speakers

See below

Place the speakers

See below

Connect the

cables

See over

Turn on the

main unit

See over

Smart setup

See Smart setup screen

Prepare the speakers Place the speakers

Refer to the rear label of the speaker before connecting

the corresponding cable.

Verify the type of speaker with the label on the rear of

the speaker.

Speakers 

Front speakers Front/Avant

Centre speaker Center/Centre

Surround speakers Surround/Ambiophonie

e.g.,

Auto speaker setup microphone

(included)

Place the Auto speaker setup

microphone at the actual seating

position. (At ear level when seated.)

Main unit’s front panel

GREEN

GREY

RED

WHITE

PURPLE

BLUE

Recommended

Front speakers

(L, R)

60

120

Surround speakers

(LS, RS)

Label each speaker cable

by attaching the numbered

sticker at the position

indicated in the illustration. Be

sure to match the number on

each sticker with the circled

number in the illustration.

Connect the speaker cables.

Insert the wire fully, taking care

not to insert beyond the wire

insulation.

: White

: Blue line

e.g., Front speaker

Lch

PUSH!

Front speakers Surround speakersCentre speakerSubwoofer

Step 3

Step 4

Step 1 Step 2

WHITE

White

Blue line

Tighten securely.

Leave about 80 mm Tighten securely.

Front/

surround

speaker

Stand

Base

speaker

Lch

WHITE

Rch

RED

Rch

GREY

GREENPURPLE

Press into the groove.

Insert the wire fully, taking

care not to insert beyond

the wire insulation.

: White

: Blue line

Lch

BLUE

PUSH!

Back of the base

Pull the cable straight

along the line and slide

into the groove.

VQC7596eng.indd2-3VQC7596eng.indd2-3 2010/03/1517:26:272010/03/1517:26:27

12 4

AC IN

220 240V

110 127V

VOLT ADJ

VIDEO IN

AUDIO OUT

AV IN

OPTICAL

OUT

VIDEO

OUT AUX

OPTICA

ASE-T/

ASE-TX)

(ARC)

OUT

521

FRONT

CENTER

SUBWOOFER

R L

643

SURROUND

R L





DIGITAL AUDIO IN

XFM ANT

(75Ω)

OPTICAL

DIGITAL AUDIO IN



R6/LR6, AA





NTER

LAN

(10BASE-T/

100BASE-TX)

RETURN

Smart setup

Would you like to start smart setup?

Yes

Connect the cables by colour or by the numbers indicated in the illustration

to the appropriate terminals on the rear panel of the unit.

Main unit’s speaker

terminals (rear panel)

PURPLE GREEN RED WHITE GREY BLUE

Connect the cables For detailed information, refer to the operating instructions.

FM indoor antenna

(included) Adhesive tape

Turn on the main unit

Turn on the TV

Turn on your TV and select the appropriate

video input mode (e.g., VIDEO 1, AV 1,

HDMI, etc.) to suit the connections to this

unit.

Broadband Network Connections (Optional)

By connecting this unit to the network, you can use the BD-Live and

VIERA CAST*2features.

*2South East Asia only

Main unit

Shielded LAN cable

(not included)

Modem (Broadband)

• Provided by ISP

Press [, ] to select [Yes].

*3If you want to restart the Smart setup:

Refer to “STEP 5: Smart setup / Easy setup” in the

operating instructions.

Broadband router, etc.

Other connection

Press [ ] to turn

on the main unit.

Installing batteries in the

remote control

The Smart setup starts

The on screen display will guide you through the steps.*3

Turn on the main unit

Video cable*1(included)

HDMI cable (not included)

(Recommended for highest quality picture)

Optical digital audio cable (not included)

Audio cable (not included)

Audio connection

For best quality audio,

use the HDMI cable (with

an ARC compatible TV)

or an optical digital audio

cable.

If your TV does not

support the above, use

the audio cable.

*1Make sure that

the video cable

connection is made

to view photos/videos

from the iPod/iPhone.

Main unit

To a household mains socket

AC mains lead (included)

For Thailand

[South\East\Asia]

Before connecting the AC mains lead;

Set the voltage.

Use a ﬂat-head screwdriver to move the voltage

selector to the appropriate position for the area in

which this system is used.

[The\Middle\East]

For Saudi Arabia and Kuwait

Connect the AC mains lead

Connect the AC mains lead to the main unit before connecting to the household

mains socket.

VQC7596eng.indd4-5VQC7596eng.indd4-5 2010/03/1517:26:272010/03/1517:26:27
