Panasonic EYFLF1XC Manuale utente

1. Warning・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2

2. Specifications・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2

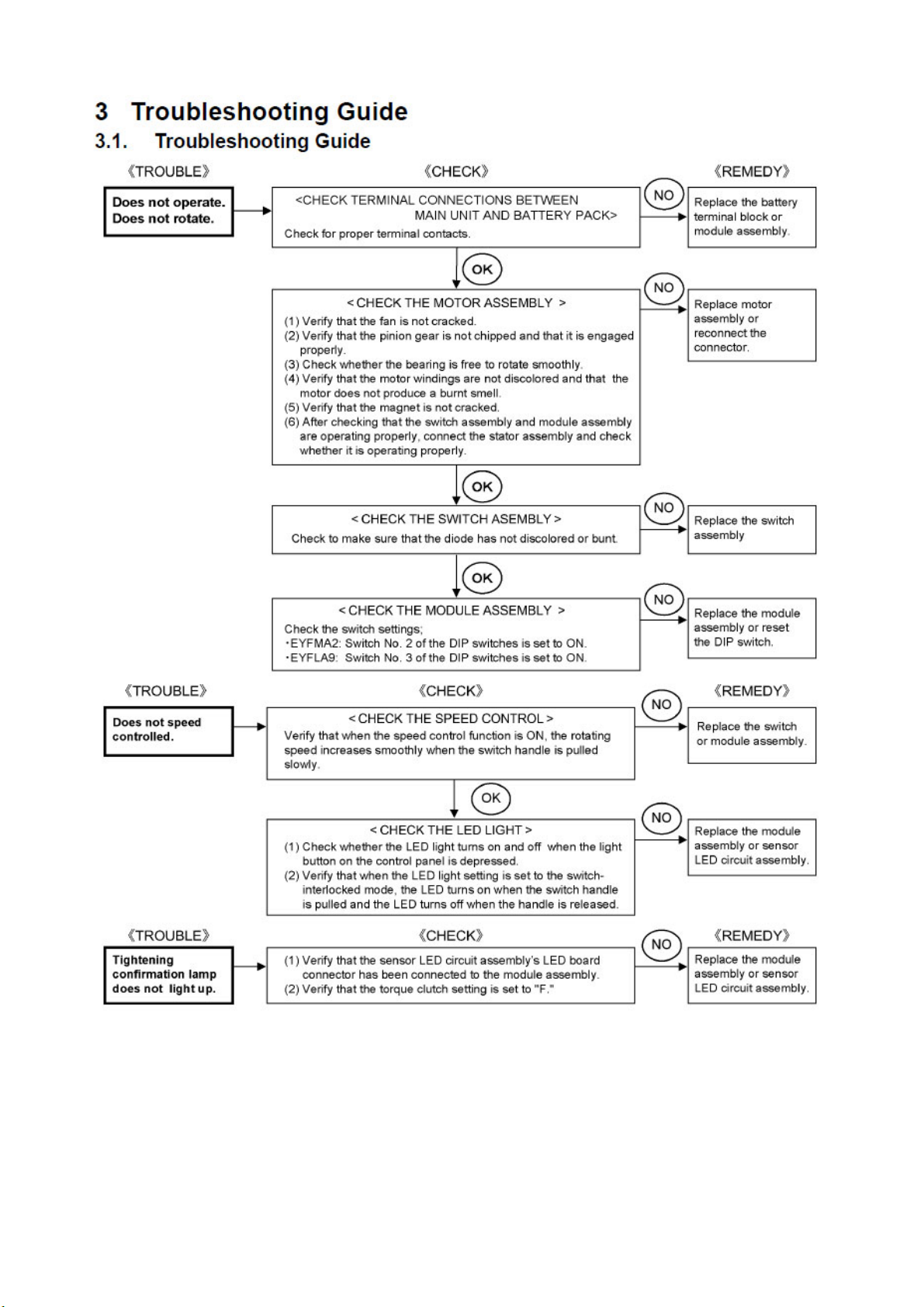

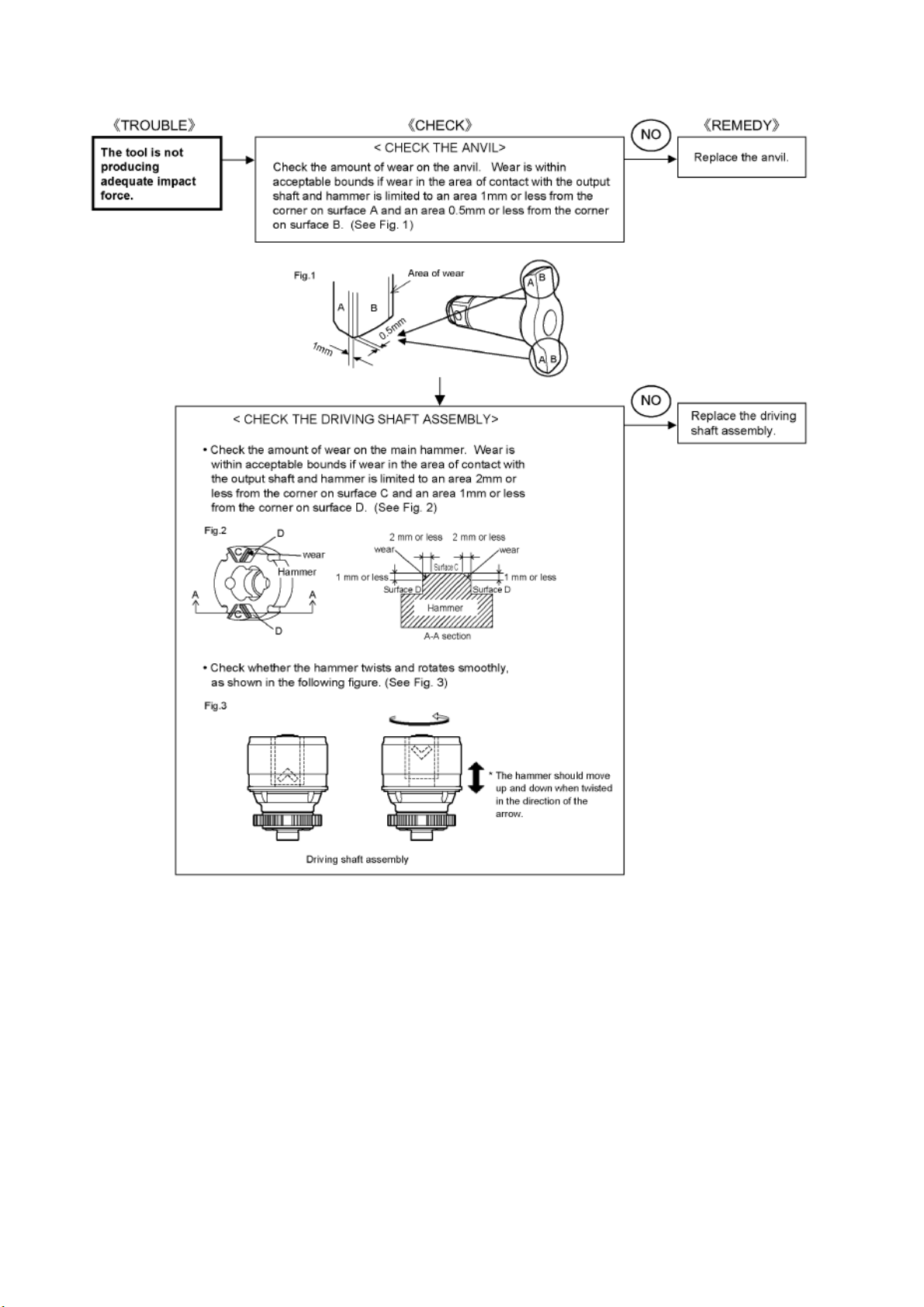

3. Troubleshooting Guide・・・・・・・・・・・・・・・・・・・・・・・ 3

4. Disassembly and Assembly Instructions・・・・・・・・ 6

5．Exploded View and Replacement Parts List・・・・・ 8

Model No. EYFLF1XC

EYFLF2XC

EYFLF1XP

EYFLF2XP

EYFLF1RC

EYFLF2RC

Europe

TABLE OF CONTENTS

ORDER NO. PTD2306E01AE

Cordless Impact Wrench

2023

2

This product is similar to EYFLA8A/8P with differences in some parts.

The main differences are as follows:

(1) Shaft cover block (with two bearings)

(2) Anvil assembly (of a split structure)

(3) Driving shaft assembly(with hammer, hammer spring, and shock-absorbing rubber)

(4) Motor block (with winding change)

(5) Module assembly (with EYFLF1-dedicated software)

Reference Information.

RC RC

3

4

3.2. Trial Operation (after checking Troubleshooting Guide).

5

Note:

・If you have any questions regarding the operation, please refer to the Instruction Manual for clarification.

・If the unit does not operate as described in the Instruction Manual, reassemble the unit and check for any faulty assembly or

missing parts.

【Method of confirmation 】

2. Confirm that the identification of the main unit is displayed on the operation panel display.

1. Press the D button on the wireless remote control once.

3.2.4 Integrity

• With the switch activated, shake the tool back and forth and up and down and verify that its sound does not change excessively.

•Verify that there is no dirt, scratching, or other damage on the tool’s exterior from the repair process.

【Initializing all settings (revert settings to factory defaults 】

Refer to the instruction manual of Initializing all settings section.

4 Disassembly/Assembly Instructions

6

*Refer to the EYFLA9C, EYFLA8A, and EYFLA8P Service Guide.

*Take note of the disassembly and reassembly procedures due to differences, which are detailed from this page onwards.

*Refer to the exploded view diagram for the configuration of parts.

Metal pin

4.1 The metal pin of the anvil has a mounting direction.

4.2 How to replace detent pin, detent pin spring and press fit pin (for EYFLF1XP EYFLF2XP)

【Metal pin orientation 】

Set the metal pin so that C0.6 will be on the rear side of the anvil.

Metal pin

7

4.3 Checking and setting the Module assembly’s DIP switches.

EYFLF1 EYFLF2

4.4 Precautions when applying the grease.

Refer to EYFLA9C/EYFMA2C Service Guide 4.6 and 4.8 except for the figures below.

Apply grease(doubrex)to the outer

circumference of the drive shaft (hatched

area).

Apply the grease(doubrex)to the steel ball side of the thrust plate.

Apply grease(doubrex)to approximately a ⌀5-mm area on each side of

the anvil (where the anvil comes into contact with the claw part of the

hammer).

Apply grease(doubrex)to the fitting surface

(hatched area) at the front of the anvil.

Apply grease(doubrex)to the fitting surface

(hatched area) at the rear of the anvil.

Apply grease(doubrex)to the indicated by

the shaded area.

8

5. Exploded View and Replacement Parts List

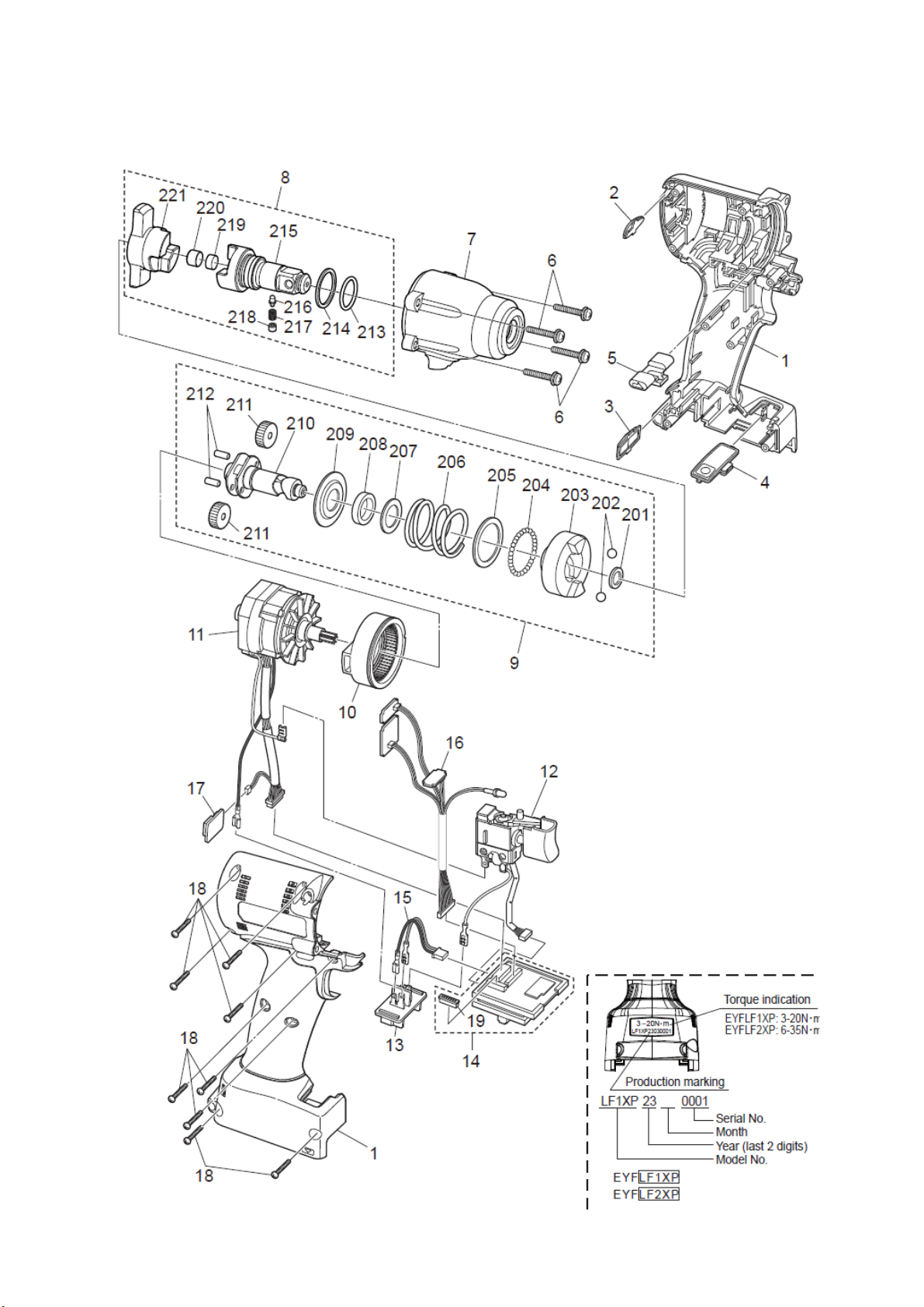

5.1 Exploded View for EYFLF1XC EYFLF2XC

9

5.2. Replacement Parts List

Model No. : EYFLF1XC EYFLF2XC Parts List

10

5. Exploded View and Replacement Parts List

5.3 Exploded View for EYFLF1XP EYFLF2XP

05
