Panasonic MJ-J176PWTC Manuale utente

ing and distribution is a violation of law.

KAD1006002CE

Juicer / Blender

Model No. MJ-J176PWTC

Destination : UAE , PGF

TABLE OF CONTENTS PAGE PAGE

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 3

2.1. MJ-J176PWTC--------------------------------------------- 3

3 Location of Controls and Components ------------------- 4

4 Operating Instructions------------------------------------------ 5

4.1. How to use -------------------------------------------------- 5

4.2. Safety--------------------------------------------------------- 7

4.3. How to clean------------------------------------------------ 8

5 Troubleshooting Guide----------------------------------------- 9

5.1. The Juicer, the Blender commons -------------------- 9

5.2. The Juicer --------------------------------------------------- 9

5.3. The blender ------------------------------------------------11

6 Disassembly and Assembly Instructions ---------------12

6.1. Coupler------------------------------------------------------12

6.2. Bottom plate and motor---------------------------------12

6.3. Carbon brush----------------------------------------------12

6.4. Power cord-------------------------------------------------12

6.5. Clamps A and B------------------------------------------12

6.6. Switch, Switch plate-------------------------------------12

6.7. Clearance adjustment-----------------------------------13

6.8. Glass container and cutting blade -------------------14

6.9. Mill container and mill cutter---------------------------15

7 Wiring Connection Diagram---------------------------------16

7.1. Schematic diagram--------------------------------------16

7.2. Basic wiring diagram------------------------------------16

8 Exploded View and Replacement Parts List-----------17

8.1. MJ-J176PWTC -------------------------------------------17

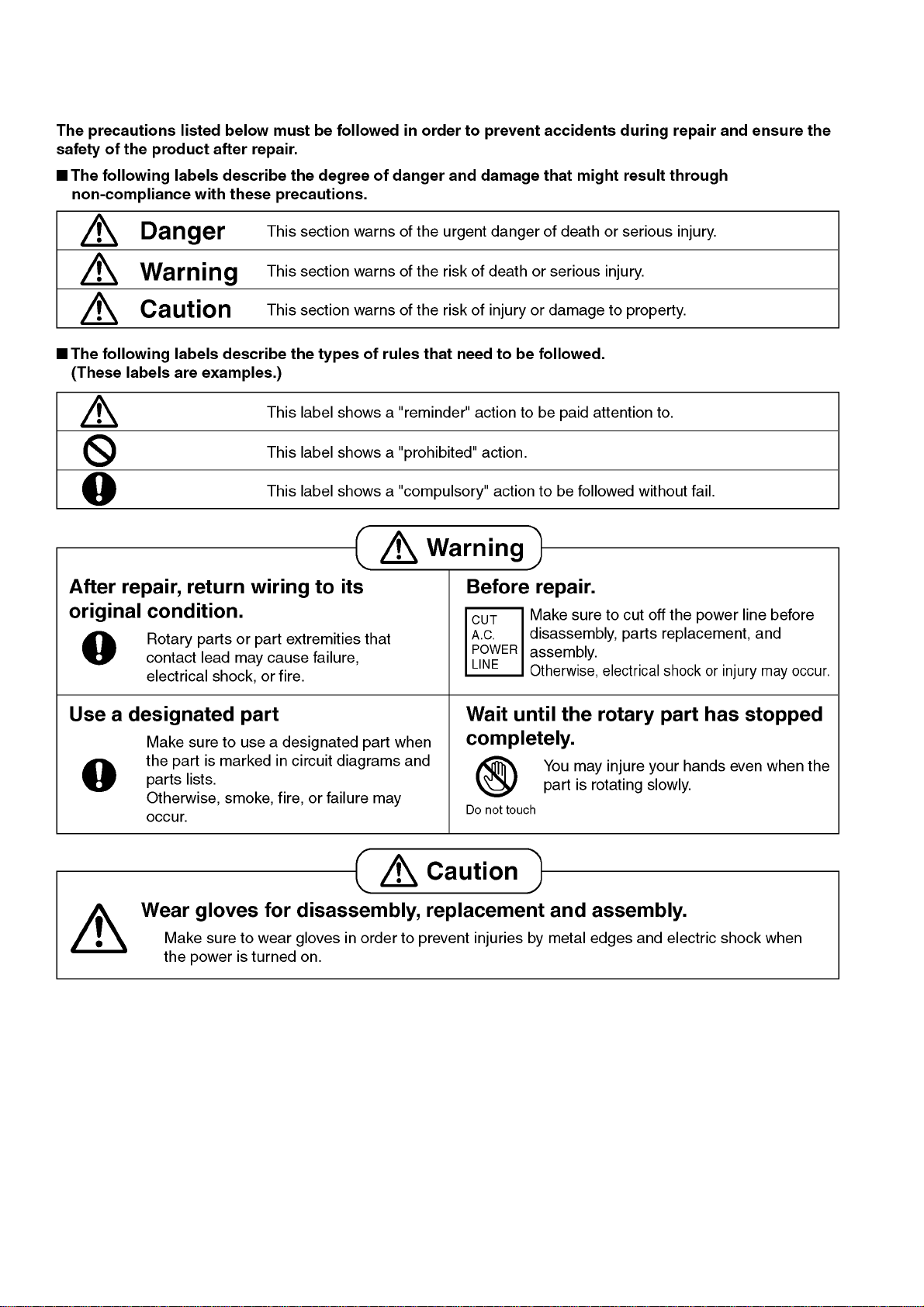

1 Safety Precautions

CAUTION

• Maximum capacity : 1,000ml. (Blender)

• Do not crush ice cubes alone.

• Dice solid foods first. Blend with liquid.

• Do not operate blender longer than 3 minutes at one time.

Stop for 1 minutes, then resume.

2 Specifications

2.1. MJ-J176PWTC

Specifications are subject to change without notice.

Using Juicer Using Blender Using Dry mill

Power supply 220-240V 50-60Hz

Power consumption 210-230W

Power Cord 0.9m(With S3 plug)---WTZ

0.9m(With C2 plug)---WTC

Rotation Speed (Juicer) 12,000-13,100r.p.m.

(Blender) 11,700-12,700r.p.m.

Switch Control (Juicer) ON / OFF Push button type

(Blender) 2 Speed Push button and pulse

Operation rating Continuous

(Repetition 2 min. ON, 2 min. OFF) Continuous

(Repetition 3 min. ON, 1 min. OFF) Continuous

(60 seconds at a time)

Container capacity - Maximum 1,000ml Maximum 50g

Dimensions (H x W x D) approx. 32.3 x 28.8 x 21.2cm approx. 38.2 x 28.8 x 17.1cm approx. 26.4 x 28.8 x 17.1cm

Weight approx. 3.2kg approx.3.5kg approx.2.7kg

Attachment Cleaning brush

3 Location of Controls and Components

4 Operating Instructions

4.1. How to use

4.2. Safety

4.3. How to clean

5 Troubleshooting Guide

5.1. The Juicer, the Blender commons

5.1.1. SYMPTOM : Motor doesn ’ t rotate.

5.1.2. SYMPTOM : Motor “ roars ” but doesn ’ t rotate.(Turn the switch off immediately.)

5.1.3. SYMPTOM : Motor overheats.

5.1.4. SYMPTOM : Unusual odor

5.2. The Juicer

5.2.1. SYMPTOM : Motor “ roars ” but doesn ’ t rotate (switch off immediately)

5.2.2. SYMPTOM : Noise, vibration

Cause Remedy

Switch malfunction Replace the switch

Cord cut or disconnected Replace the cord

Cause Remedy

Motor bearing rushed Disassemble and apply oil, or replace the motor

Cause Remedy

High voltage Adjust it

Shorted motor Replace the motor

Eccentric main shaft gear part Replace the part

Main shaft is hard to operate Disassemble and adjust it or replace it

Unloaded operation Be sure that something is in the container before operating

Overload (rotation is impeded by a hard object, or a high viscosity sub-

stance in the container) Refer to operation

Cause Remedy

Overheating Refer to the section concerning overheating of the motor

Liquid leaking into motor Refer to the section concerning liquid leakage

Motor absorbing moisture Dry the motor or replace it

Cause Remedy

The spinner is contacting bottom of inlet After removing cutter base, decrease the number of adjustment rings

Foreign materials are clogged between the spinner and the cutter Remove them

Hard materials or seeds are clogged between the inlet bottom and the

cutter Remove them

Case Remedy

Deformation of spinner Replace the spinner

Residue has collected unevenly Clean the spinner

Incompletely fastened clasp Fasten it completely Replace it

The fastening part of the container cover clasp is worn out Replace the cover

Incompletely fastened back cover Fasten it completely

Incorrect placement of the main unit Inspect the rubber feet

Use on a level surface

5.2.3. SYMPTOM : The spinner is difficult to install and remove

5.2.4. SYMPTOM : Juice is poorly extracted

5.2.5. SYMPTOM : Juice contains too much residue

5.2.6. SYMPTOM : Cutter rubs against inlet bottom

5.2.7. SYMPTOM : Leakage of juice

Cause Remedy

The clutch pin of the cutter base doesn’t operate smoothly Examine the clutch pin; replace it if necessary

Foreign materials are clogged between the cutter base and the spinner

base Remove them

Cause Remedy

Cutter doesn’t operate well Replace complete spinner

Spinner is broken Replace complete spinner

Continuous use for a long period Remove the residue

Too large a gap between inlet bottom and cutter blade Adjust it within the range of 0.5 - 0.9mm

Cause Remedy

Cutter blade is worn out Replace the spinner (complete)

Gap between inlet bottom and cutter blade is too large Use two or three adjusting washers on the motor shaft

Cause Remedy

Gear incompletely engaged between cutter base and spinner Engage the gear

Too many adjustment rings on the motor shaft Decrease the number of adjustment rings and adjust the gap within the

range of 0.5 - 0.9mm

Cause Remedy

Container and/or cover deformed or broken Replace the container or cover

Incorrect clasp fastening Examine the clasp; adjust the fastening force

Foreign materials are clogged between the container cover and the

container Clean it and remove them

Excessive vibration Clean it and adjust the spinner balance
