Reference Manual

Personal Computer

Model No. CF-19 Series

We recommend that this Reference Manual be printed.

Key Combinations

NOTE

Do not repeatedly press the keys in quick succession.

Do not use the key combinations together with touch pad (external mouse), touchscreen (only for model with touch-

screen), dual touch (only for model with dual touch), tablet buttons, or other key operations.

Do not use the key combinations before you log on to Windows. Wait until the hard disk drive indicator turns off.

On the Setup Utility screen, you can use the key combinations of

and

The key combinations may not work with some applications.

The popup menu icon appears after logging on to Windows. It may not appear in some application conditions (e.g.,

when [Command Prompt] is set to “Full Screen”).

Key Function Popup menu icon

LCD brightness

(

= down /

= up)

Display switching (page 44)

(When an external display is connected)

Internal LCD Simultaneous display External display

CAUTION

Do not press any keys until the display has finished switching.

Do not use this function:

• When an external display is not connected.

• When playing motion video such as DVD or MPEG.

• When using the Extended Desktop.

• When showing a game screen such as pinball.

Until Windows startup is completed (during Setup Utility, etc.), the simulta-

neous display cannot be used and pressing

switches the display

between the internal LCD and the external display.

Key Combinations

*1 These key combinations are disabled when [Concealed Mode] is enabled.

*2 Even if [Sound] is set to [OFF] on the [Concealed Mode Configuration] menu, icon on the notification area and [Device volume]

display do not show mute state.

However, audio from the speaker is not heard.

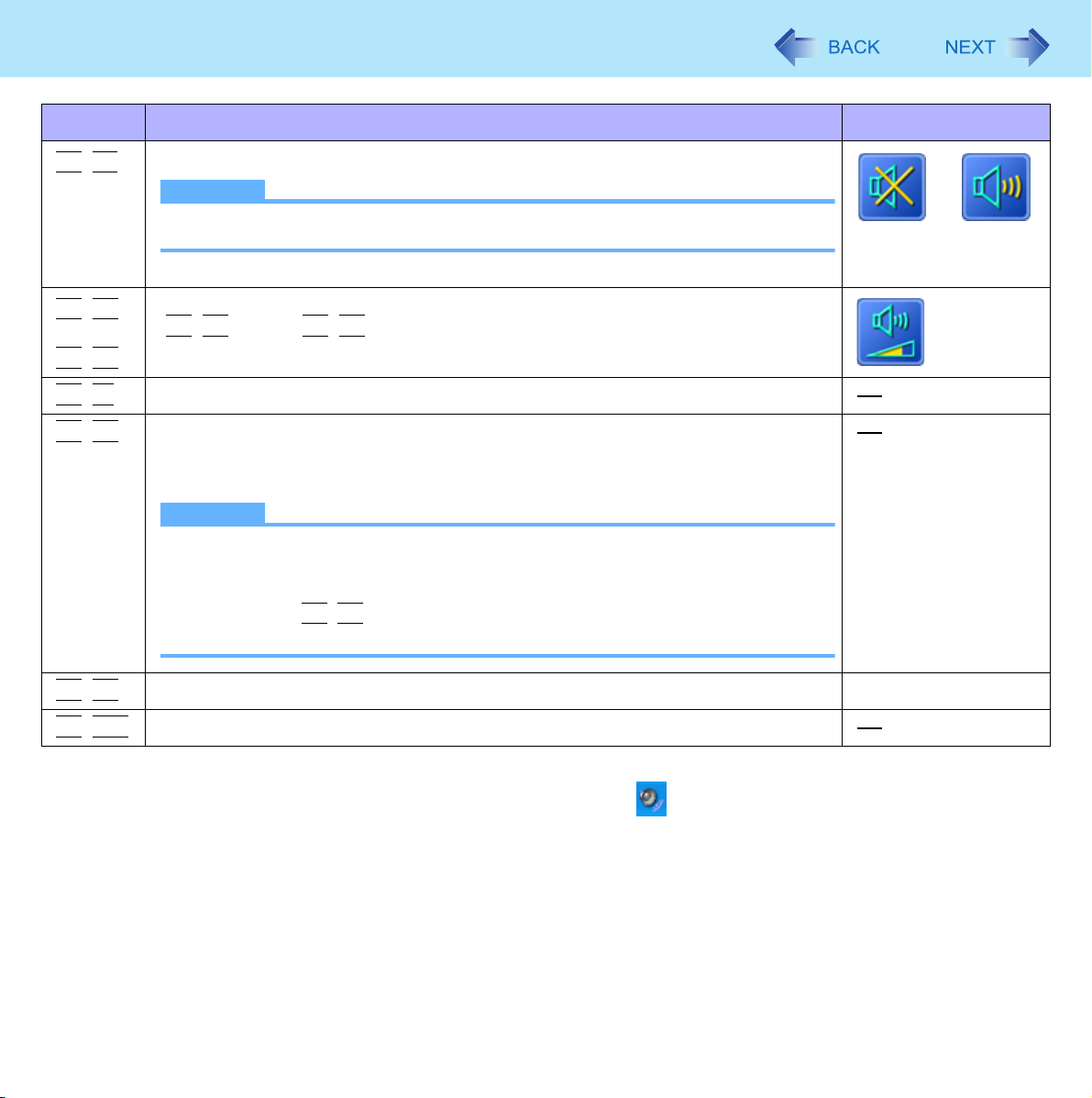

*1 Speaker on/off

NOTE

Beeps do not sound if you turn off the speaker sound*2.OFF

(MUTE)

Volume

(

= down /

= up)

Activate standby (page 17)

Concealed Mode on/off

You can select on/off of LCD Backlight, LED, Sound*2, Wireless Radio, Camera

Light, and Backlit Keyboard.

NOTE

You have to set [Concealed Mode] to [Enabled] in Setup Utility (page 88).

You can set the devices turned off in [Concealed Mode] with Setup Utility

(page 88).

If you press

in succession, the Concealed Mode may not be

switched. More than 4 minutes interval is necessary to switch on/off.

Remaining battery charge (page 25)

F10

Activate hibernation (page 17)

Key Function Popup menu icon

Key Combinations

You can make 2 settings:

•Fn key lock

is locked (pressed-down) until you press another key. Use this when pressing difficult key combinations.

• Popup menu icon on/off

1Start up the Hotkey Settings.

Click [start] - [All Programs] - [Panasonic] - [Hotkey Settings].

2Make the settings.

[Use Fn key lock]

When using an

key combination

APress

once. (Locked)

BPress another key. (Lock released)

When using successive

key combinations

APress

twice. (Locked)

BPress another key.

Fn key remains locked until you press

again.

[Notification]

[Make sounds when Fn key is pressed]*3

[Show status on screen]: Displays the Fn key status on the notification area.

•:

is locked.

•:

is not locked.

[Disable popup]

The popup menu icon will not be displayed.

3Click [OK].

NOTE

You can have different settings for each user.

*3 If the speaker is muted or [Sound] is turned off in [Concealed Mode Configuration], beeps do not sound.

Hotkey Settings

Tablet Buttons

NOTE

The Tablet buttons work when the Windows screen is displayed.

The Tablet buttons may not work immediately after Windows is started up or the Windows logon screen (or the Wel-

come screen) is displayed.

If you set password input for resuming from screensaver, the Input Panel, Enter and Rotation buttons do not work on

screensaver.

Button Function

LCD Brightness

: down / : up

Input Panel

Software keyboard on/off (page 11)

Tablet PC Input Panel on/off

This button does not work on the Welcome screen.

Enter

Works as

Enter

Rotation

Rotates the display. (page 14)

Do not press the button again until the display rotation is completed.

Security

Locks the computer.

On the Windows logon screen and the Welcome screen, this button work as

Ctrl

Alt

Del

This button does not work on screensaver.

Works as

Ctrl

Alt

Del

Tablet Buttons

NOTE

You can have different settings for each user.

On the Windows logon screen and Welcome screen, the tablet buttons are enabled and work in default irrespective of

the settings you made.

To change the tablet button functions

You can change the functions of the Input Panel ( )/Enter ( )/Rotation ( ) buttons.

1Open the setting screen.

Click [start] - [All Programs] - [Panasonic] - [Tablet Buttons Settings].

Click [start] - [Control Panel] - [Printers and Other Hardware] - [Tablet and Pen Settings] - [Tablet Buttons].

2Click the tablet button and click [Change].

3Select the function in [Action].

You cannot select

for [Press a key or key combination].

Click [Browse] to select the application if you select [Launch an application].

4Click [OK].

5Click [OK].

To disable the tablet buttons

You can disable the Security ( )/Input Panel ( )/Enter ( )/Rotation ( ) buttons.

1Click [start] - [All Programs] - [Panasonic] - [Tablet Buttons Settings].

2Remove the check mark from [Enable Security, Input Panel, Enter, Rotation Button.]

3Click [OK].

Setting the Tablet Buttons

Touchscreen

You can use the touchscreen function to perform the same operation as the touch pad and mouse. Touch the screen surface

with the stylus (included).

To right-click

1Click on the notification area.

changes to .

2Click the object you want to right-click.

returns to .

NOTE

Do not touch the screen by hand or other object when you input using the stylus (included). Otherwise you may not be

able to input correctly.

You need to make the following setting for each user.

AClick [start] - [All Programs] - [Fujitsu Touch Panel (USB)] - [Touch Panel Configuration].

BSelect the settings, and then click [OK].

Do not add a check mark to [Delete Cursor] since the display may be distorted.

If you add a check mark for [Use] in [Hold [Ctrl] key down + Touch the screen] of [Touch Panel Configuration], touching

the screen may always be recognized as a right-click. To return to the normal operation, press

Ctrl

on the keyboard.

The touchscreen function does not work in the Setup Utility, in the full screen of [Command Prompt].

1Run [Touch Screen Calibration Utility].

Click [start] - [All programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen Calibration Utility].

2Using the stylus, touch each of the 12 “+” target marks one by one until it blinks, and then

press

Enter

3Press

Enter

NOTE

Return the rotated display to [0 degree] (page 14) before the touchscreen calibration.

Perform the touchscreen calibration for each user.

Touchscreen Calibration

Dual Touch

You can use the digitizer function to perform the same operation as the touch pad and mouse by touching the screen surface

with the digitizer pen (included). And you can use the touchscreen function to perform the same operation as the touch pad

and mouse by touching the screen with your finger.

For further information, click [start] - [All Programs] - [Get Going with Tablet PC].

When touching with the digitizer pen, the touchscreen function is disabled.

To right-click

Touch and hold the object.

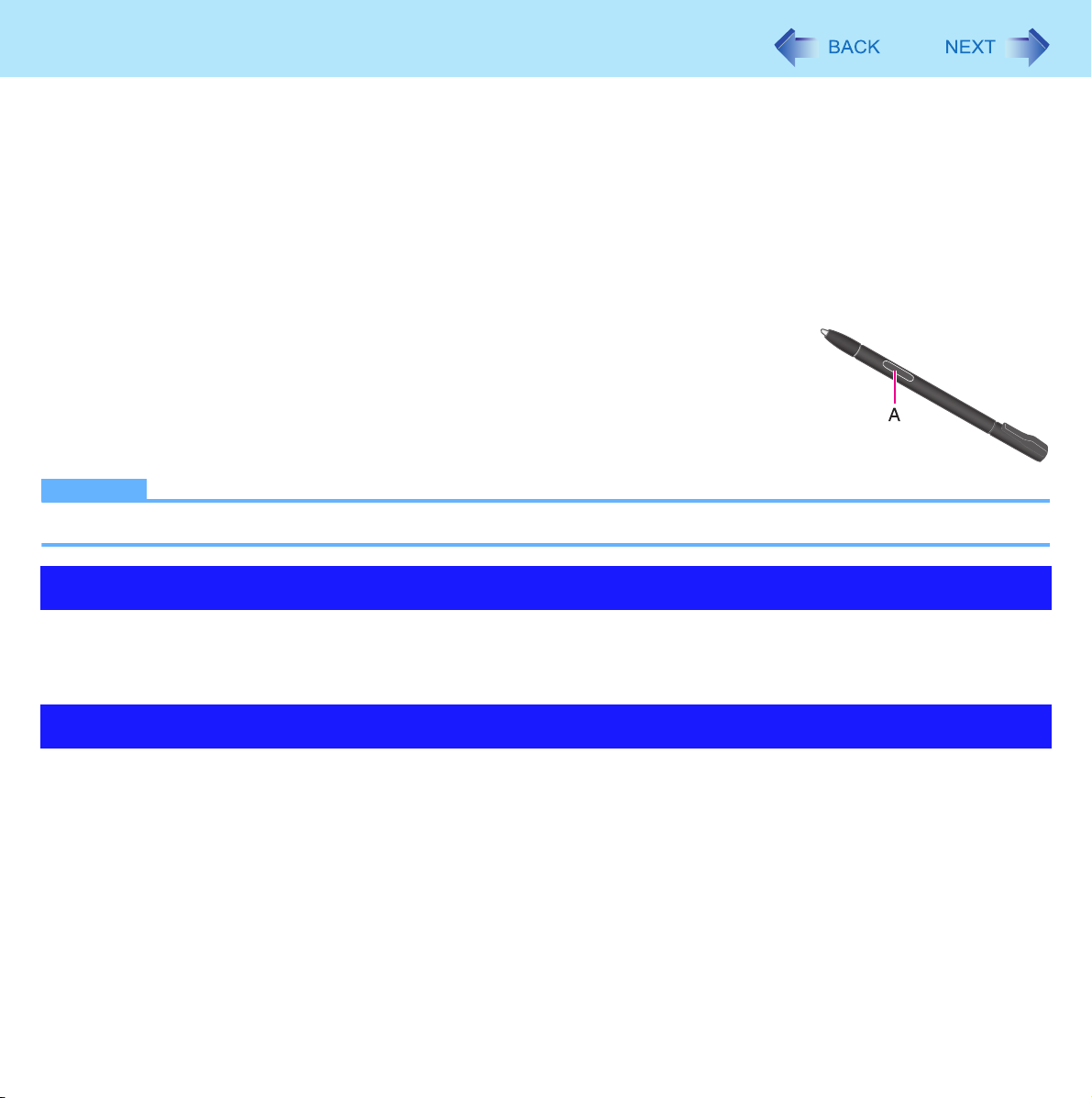

Press and hold the button (A) of the digitizer pen (included), and then tap the object.

NOTE

The dual touch function does not work in the Setup Utility, in the full screen of [Command Prompt].

Do not apply too much pressure when operating the dual touch

Only a light touch is required to operate the dual touch. Applying too much pressure may damage the surface.

When the screen becomes dirty, wipe it with an approved soft cloth

The screen is specially treated to prevent dirt from adhering to the surface, so dirt can be removed easily using a dry cloth

(use only the approved soft cloth). If the dirt does not come off easily, breathe on the surface and try again.

Do not apply water or solvents to the soft cloth.

Wash the soft cloth when it becomes dirty

When the soft cloth becomes dirty, wash it with mild detergent. Do not use bleach or fabric conditioner (softener), or try to

sterilize the cloth by boiling.

If the soft cloth is dirty, it may be ineffective in cleaning the screen, and in fact may cause dirt to adhere to the screen.

Operation of the dual touch

Maintaining the performance of the dual touch

Dual Touch

Check the following to prevent the surface of the screen from being scratched

Is the surface clean?

Is the soft cloth clean?

Is the tip of the digitizer pen clean?

Do not apply excessive force to the screen

Do not lift the computer while holding the LCD screen, or allow the screen to be twisted. Do not place any objects on the

LCD screen. Any of the above may cause the screen glass to break, or may damage the LCD screen.

If the cursor jumps to a location other than where the screen was touched, or if

the LCD resolution changes, recalibrate the touchscreen

Perform the procedure of “Dual Touch Calibration” (below).

NOTE

Perform these calibration for each user.

If you cannot touch the desired position, perform Digitizer Calibration again and restart the computer.

Digitizer Calibration

1Run [Tablet and Pen Settings].

Double-click or click [start] - [Control Panel] - [Printers and Other Hardware] - [Tablet and Pen Settings].

2Click [Settings] - [Calibrate].

3Using the digitizer pen, touch each of the 4 “+” target marks one by one, and then click

[OK].

Perform the calibration for both [Landscape] and [Portrait].

Things to keep in mind when using the dual touch

Dual Touch Calibration

Dual Touch

Touchscreen Calibration

Return the rotated display to [Primary Landscape] before the touchscreen calibration.

1Run [Touch Settings].

Click [start] - [Control Panel] - [Other Control Panel Option] - [Touch Settings].

2Click [Calibrate...].

3Touch each of the 9 “+” target marks one by one, and then click [Finished].

4Restart the computer.

Do not use the digitizer pen for touchscreen calibration.

Perform the calibration for the orientation to be used.

1Run [Touch Settings].

Click [start] - [Control Panel] - [Other Control Panel Option] - [Touch Settings].

2Press

Ctrl

and click [Calibrate...].

3Touch each of the 4 “+” target marks one by one, and then click [Finished].

4Restart the computer.
