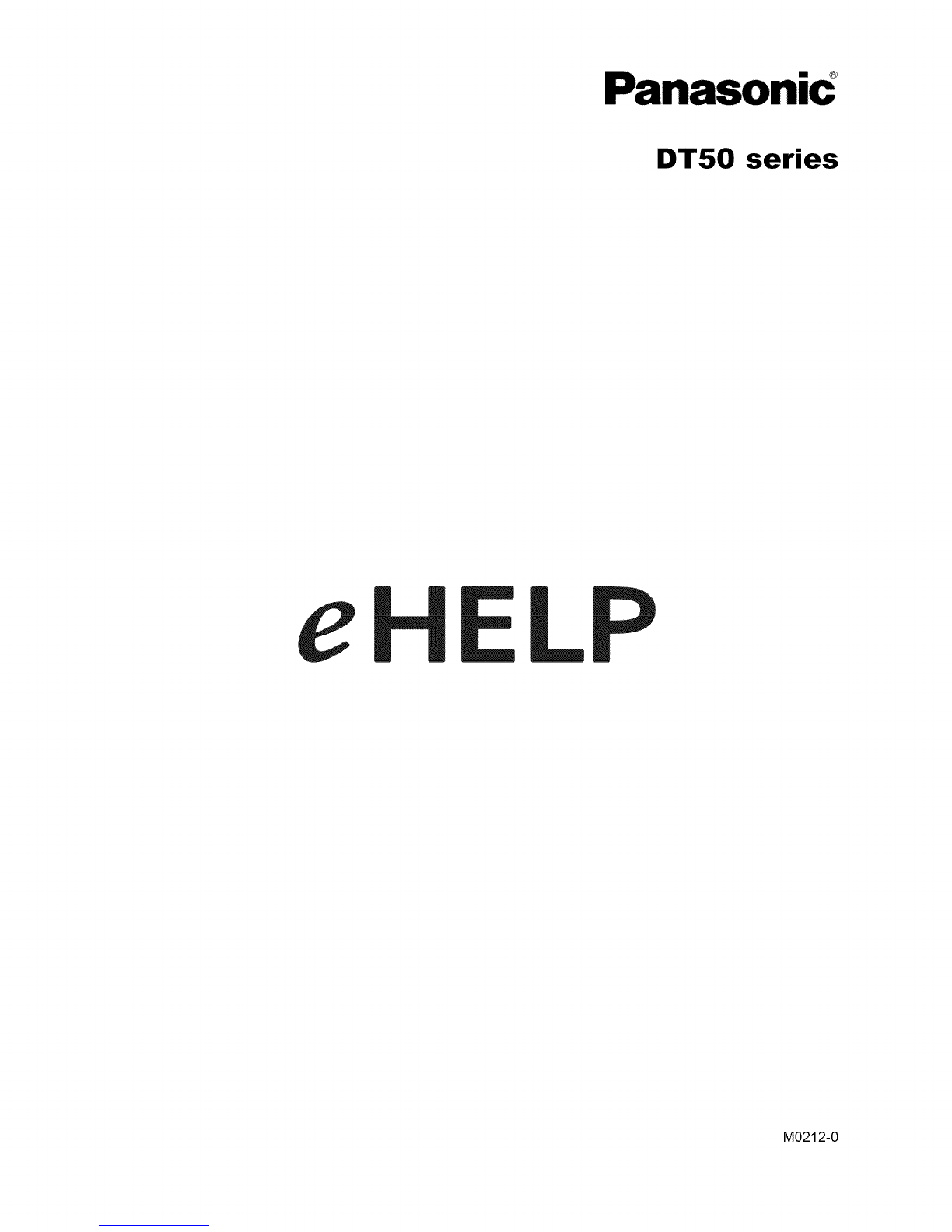

Panasonic DT50 series Istruzioni per il montaggio

DT50 series

M0212-0

Media player

Get started

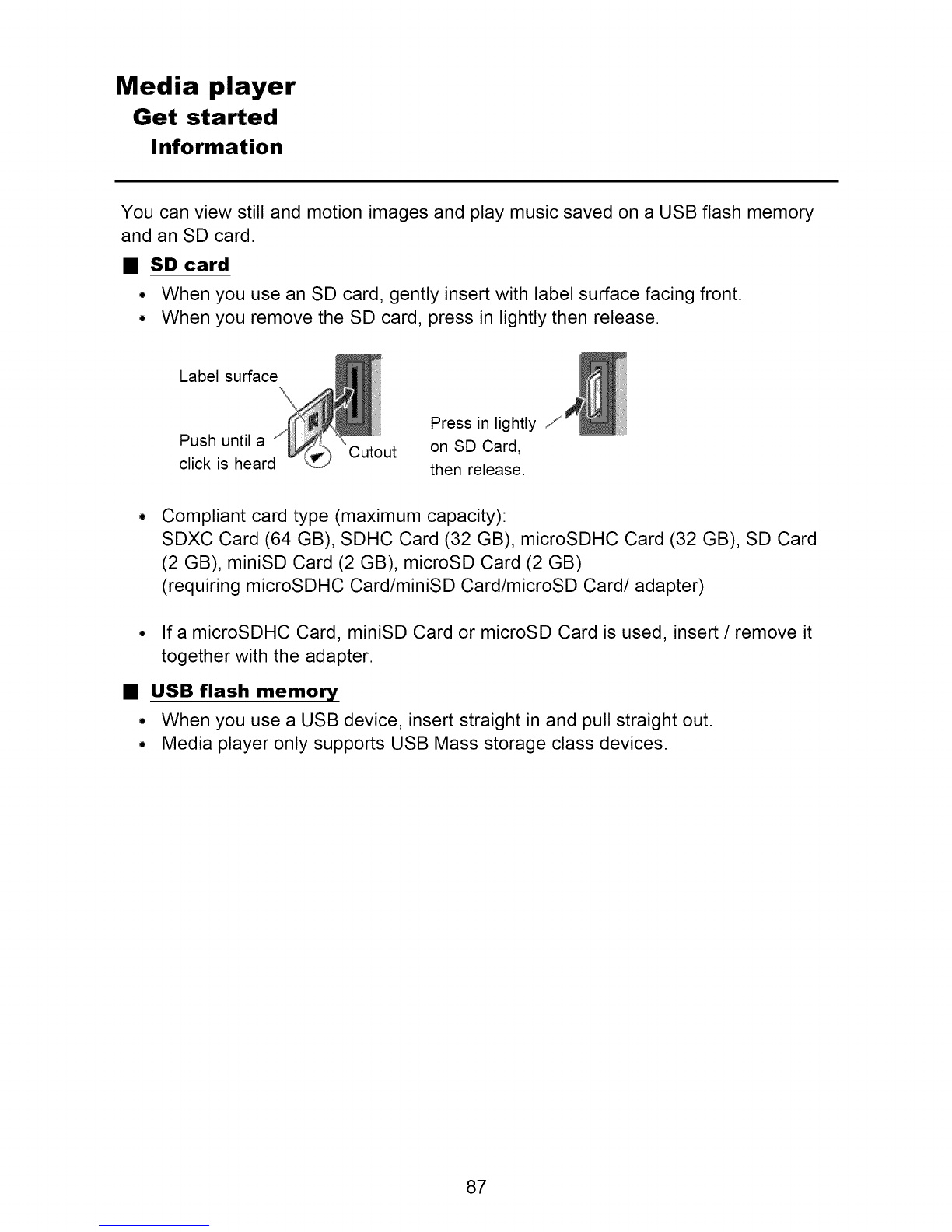

Information

You can view still and motion images and play music saved on a USB flash memory

and an SD card.

•SD card

•When you use an SD card, gently insert with label surface facing front.

• When you remove the SD card, press in lightly then release.

Label sur_ce

Push until a Cutout

click is heard

Press in lightly J

on SD Card,

then release.

Compliant card type (maximum capacity):

SDXC Card (64 GB), SDHC Card (32 GB), microSDHC Card (32 GB), SD Card

(2 GB), miniSD Card (2 GB), microSD Card (2 GB)

(requiring microSDHC Card/miniSD Card/microSD Card/adapter)

° If a microSDHC Card, miniSD Card or microSD Card is used, insert /remove it

together with the adapter.

•USB flash memory

•When you use a USB device, insert straight in and pull straight out.

•Media player only supports USB Mass storage class devices.

Media player

Get started

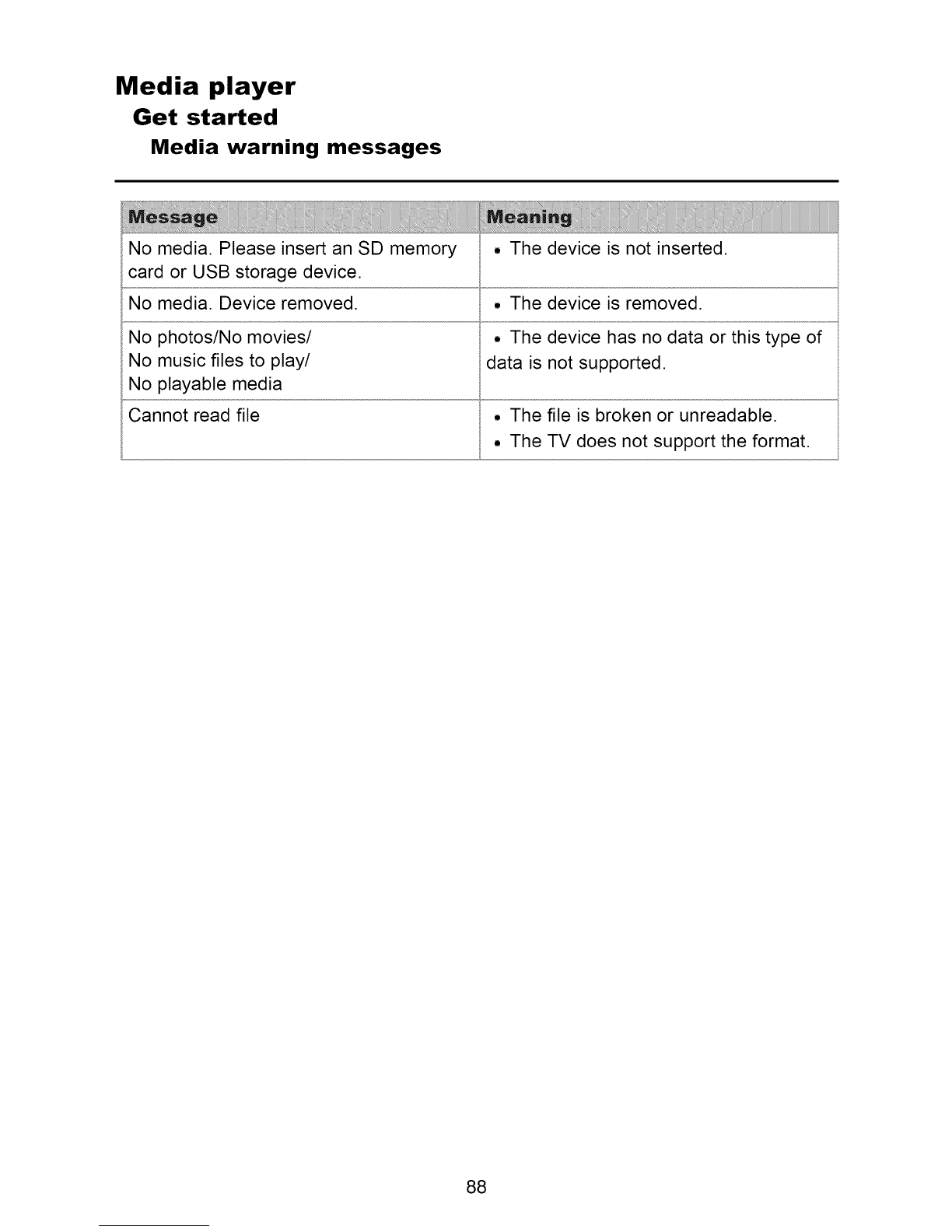

Media warning messages

No media. Please insert an SD memory

card or USB storage device.

No media. Device removed.

No photos/No movies/

No music files to play/

No playable media

Cannot read file

• The device is not inserted.

° The device is removed.

•The device has no data or this type of

data is not supported.

• The file is broken or unreadable.

•The TV does not support the format.

Media player

Get started

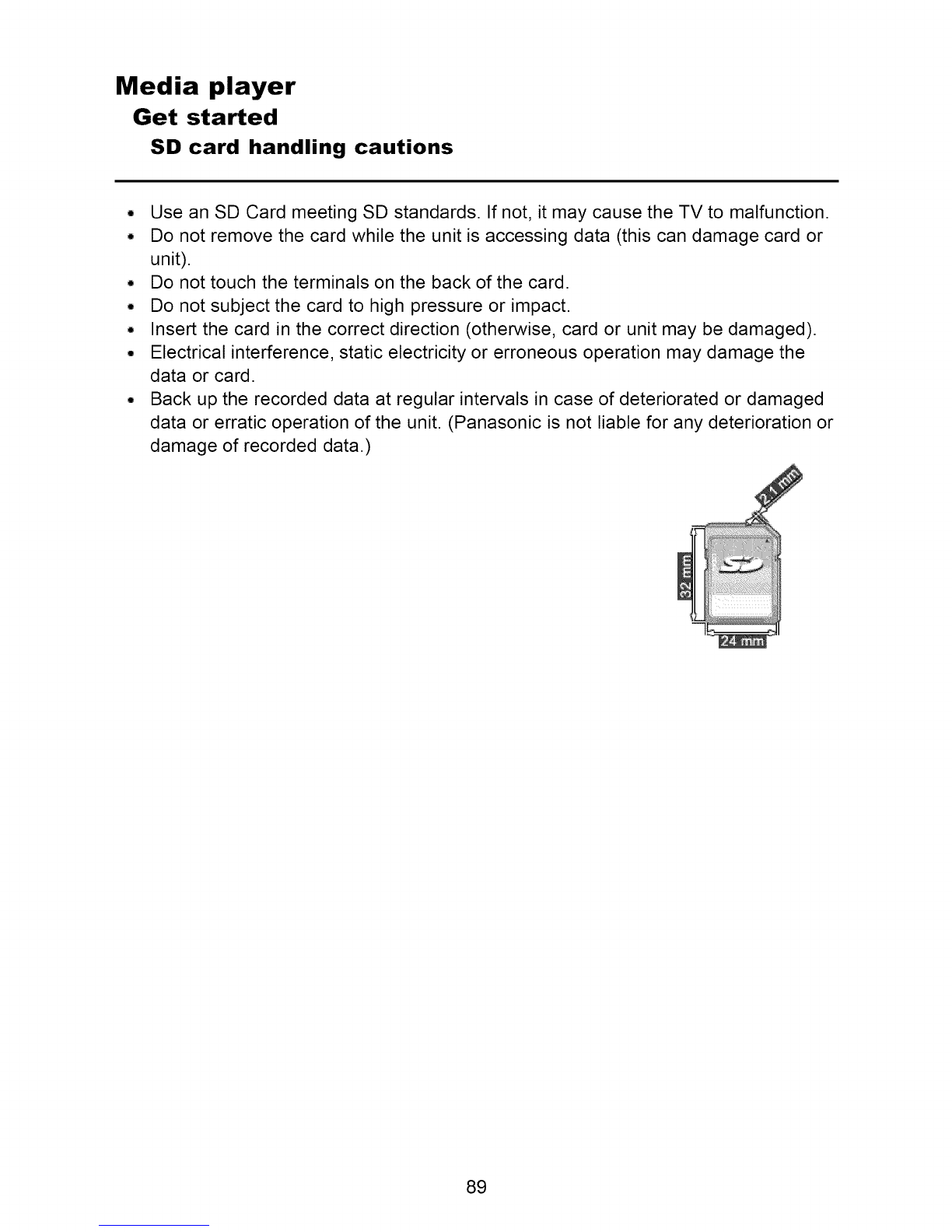

SD card handling cautions

•Use an SD Card meeting SD standards. If not, it may cause the TV to malfunction.

•Do not remove the card while the unit is accessing data (this can damage card or

unit).

•Do not touch the terminals on the back of the card.

• Do not subject the card to high pressure or impact.

•Insert the card in the correct direction (otherwise, card or unit may be damaged).

• Electrical interference, static electricity or erroneous operation may damage the

data or card.

• Back up the recorded data at regular intervals in case of deteriorated or damaged

data or erratic operation of the unit. (Panasonic is not liable for any deterioration or

damage of recorded data.)

Media player

Photos

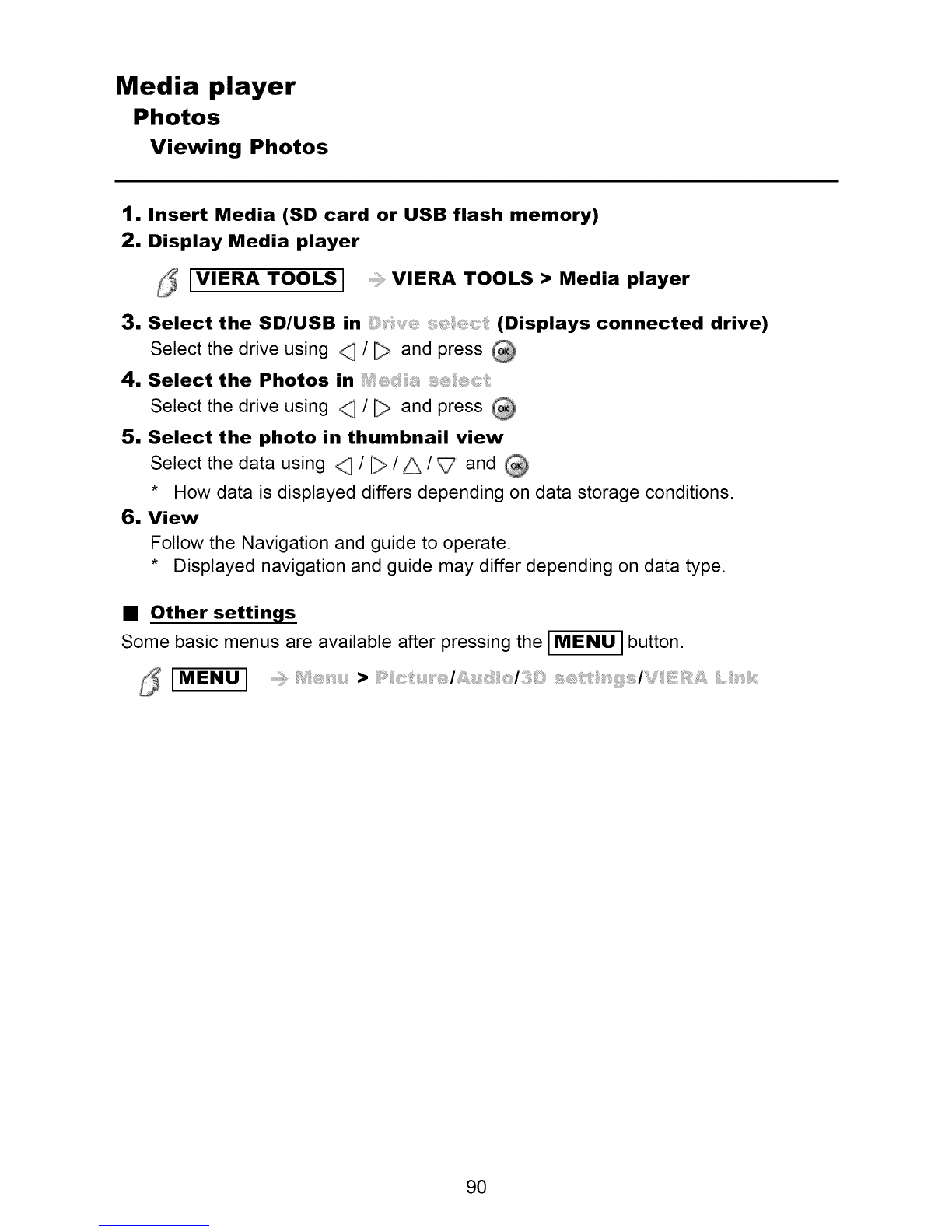

Viewing Photos

1. Insert Media (SD card or USB flash memory)

2. Display Media player

JVIERA TOOLS J VIERA TOOLS > Media player

3. Select the SD/USB in (Displays connected drive)

Select the drive using _ /_ and press

4, Select the Photos in

Select the drive using _ /_ and press

5, Select the photo in thumbnail view

Select the data using _ /_/_/_ and

* How data is displayed differs depending on data storage conditions.

6, View

Follow the Navigation and guide to operate.

* Displayed navigation and guide may differ depending on data type.

•Other settings

Some basic menus are available after pressing the 1MENU Jbutton.

Media player

Photos

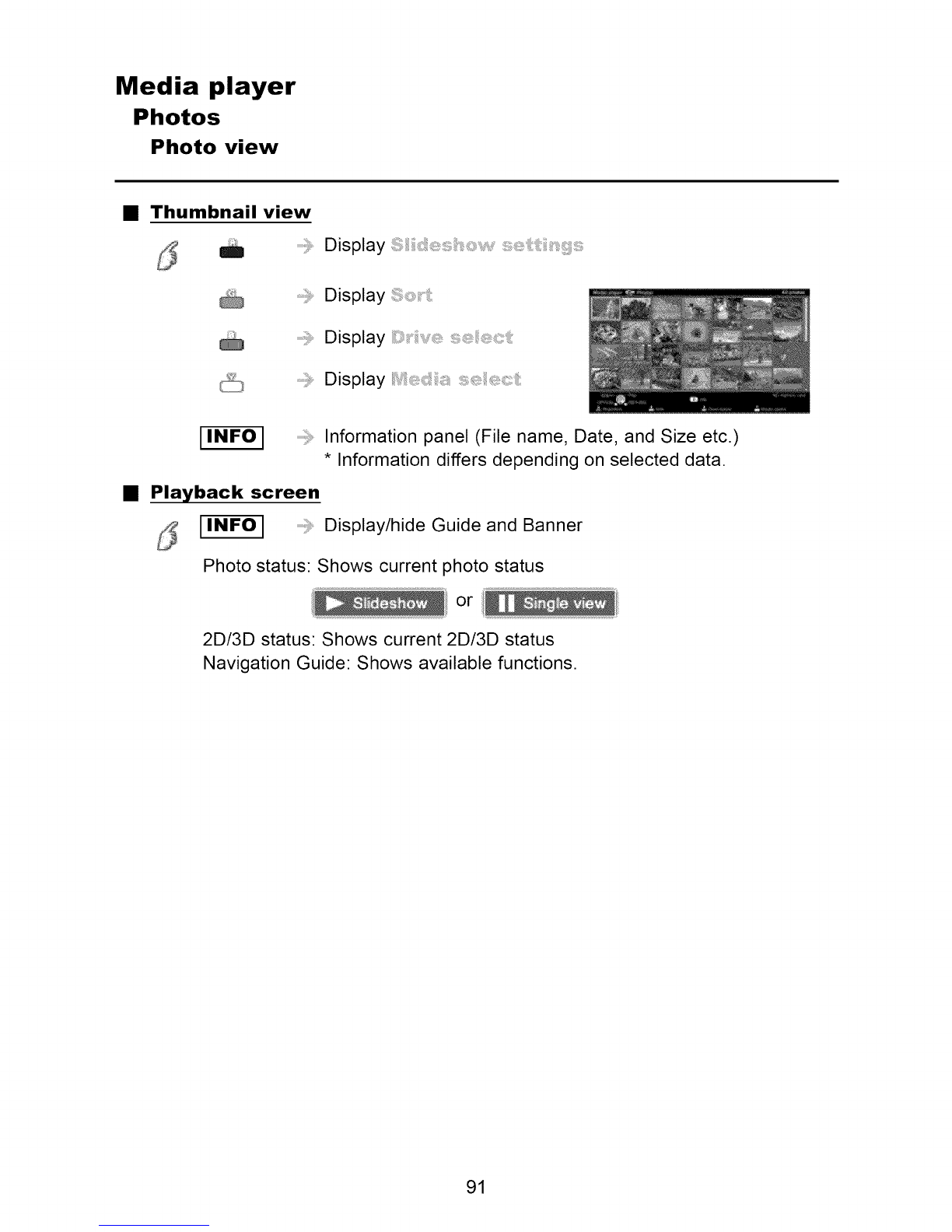

Photo view

•Thumbnail view

Display

,Display

Display

....,, Display '_::_::::_,_

IINFOI Information panel (File name, Date, and Size etc.)

* Information differs depending on selected data.

•Playback screen

IINFOI Display/hide Guide and Banner

Photo status: Shows current photo status

2D/3D status: Shows current 2D/3D status

Navigation Guide: Shows available functions.

Media player

Photos

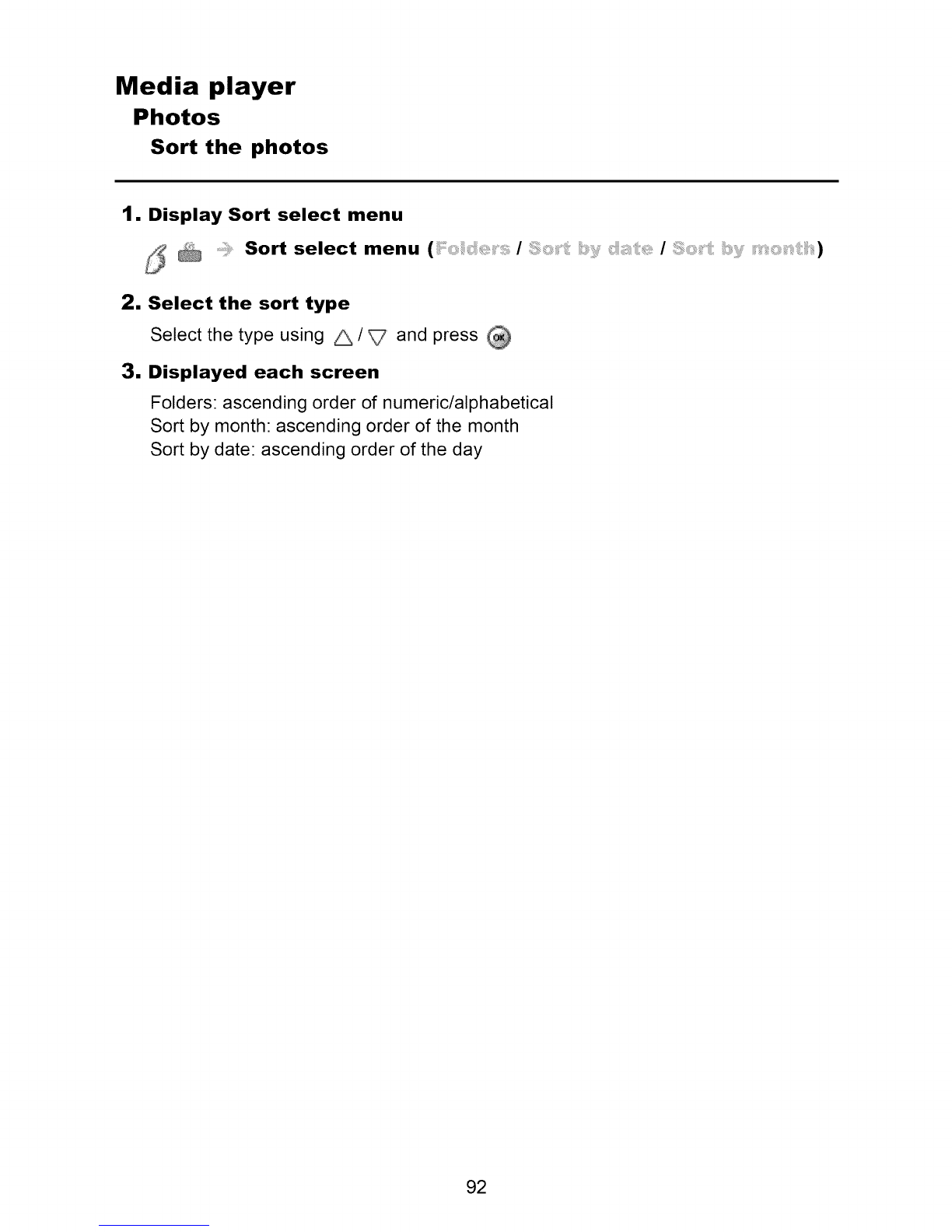

Sort the photos

1. Display Sort select menu

S _ Sort select menu (i:_ _;:_ / /, _)

2. Select the sort type

Select the type using _ /V and press

3. Displayed each screen

Folders: ascending order of numeric/alphabetical

Sort by month: ascending order of the month

Sort by date: ascending order of the day

Media player

Photos

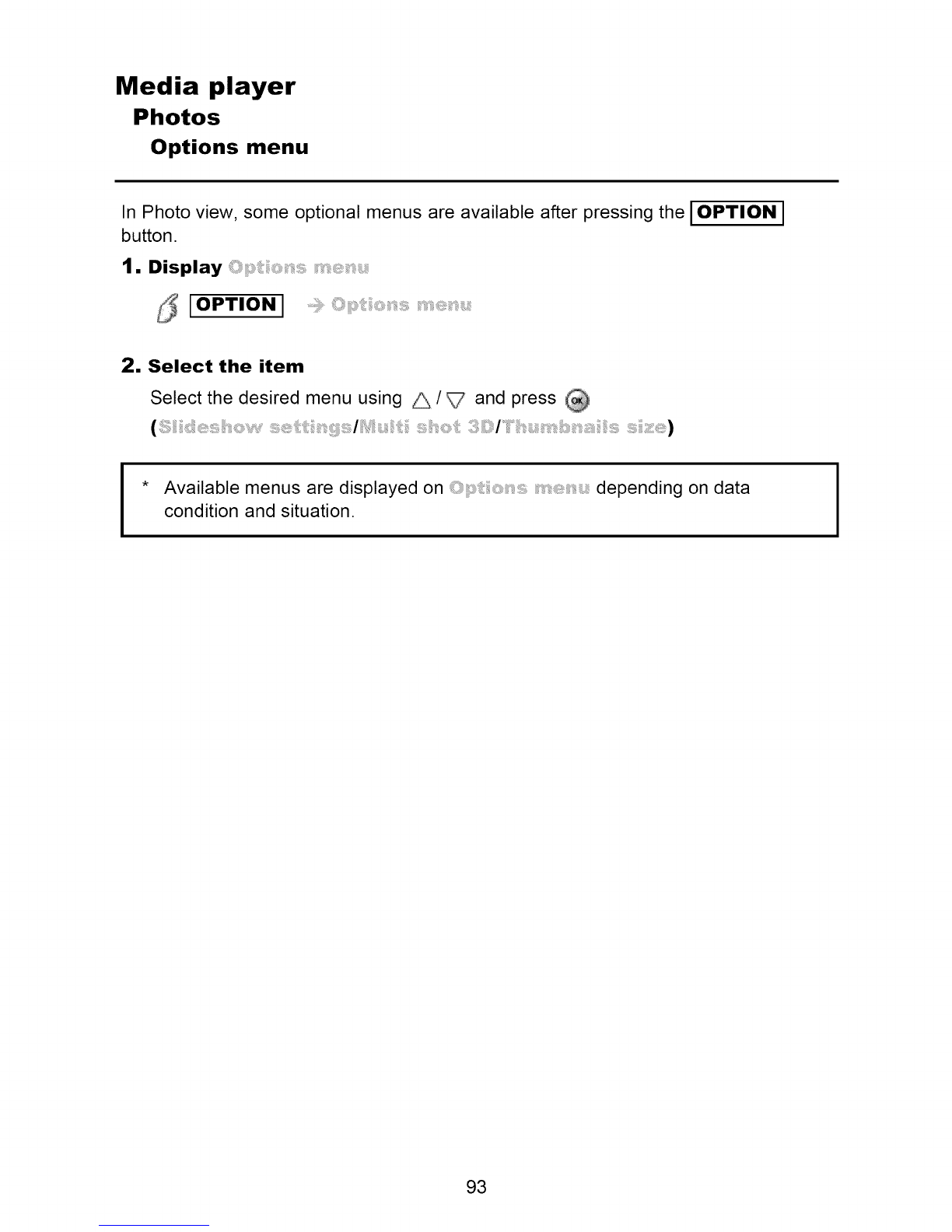

Options menu

In Photo view, some optional menus are available after pressing the IOPTION I

button.

1, Display

S[OPTION ] ....

2. Select the item

Select the desired menu using _ /V and press

*Ava ilable menus are displayed on (::, ,::::: depe nding on data

condition and situation,

Media player

Photos

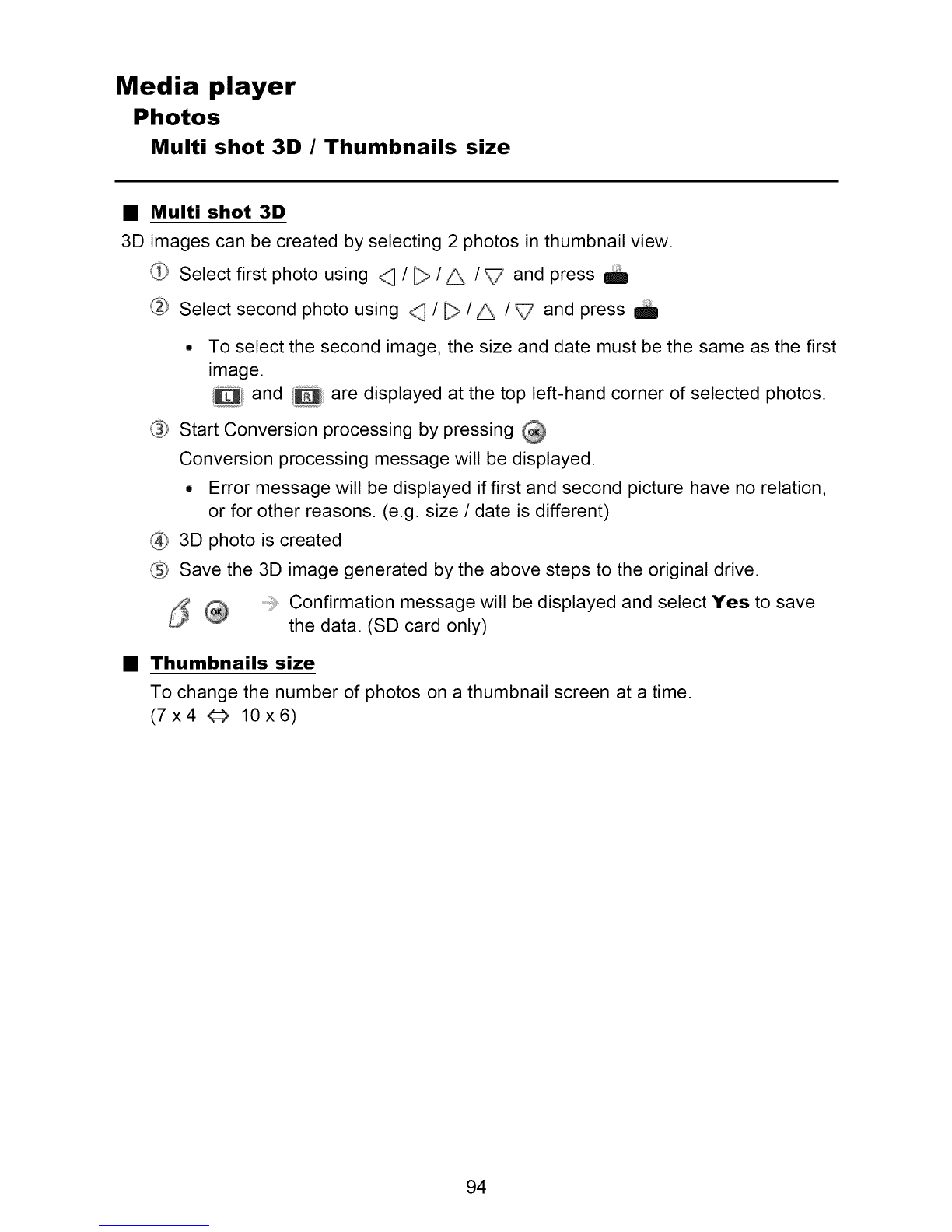

Multi shot 3D /Thumbnails size

•Multi shot 3D

3D images can be created by selecting 2 photos in thumbnail view.

_:i11_;' Select first photo using <] /_/_/V and press

Select second photo using _ /_/_/V and press m

• To select the second image, the size and date must be the same as the first

image.

and are displayed at the top left-hand corner of selected photos.

4_31_.Start Conversion processing by pressing

Conversion processing message will be displayed.

•Error message will be displayed if first and second picture have no relation,

or for other reasons. (e.g. size /date is different)

<i_ 3D photo is created

_._j(_51Save the 3D image generated by the above steps to the original drive.

Confirmation message will be displayed and select Yes to save

the data. (SD card only)

•Thumbnails size

To change the number of photos on a thumbnail screen at a time.

(7x4 _ 10x6)

Media player

Photos

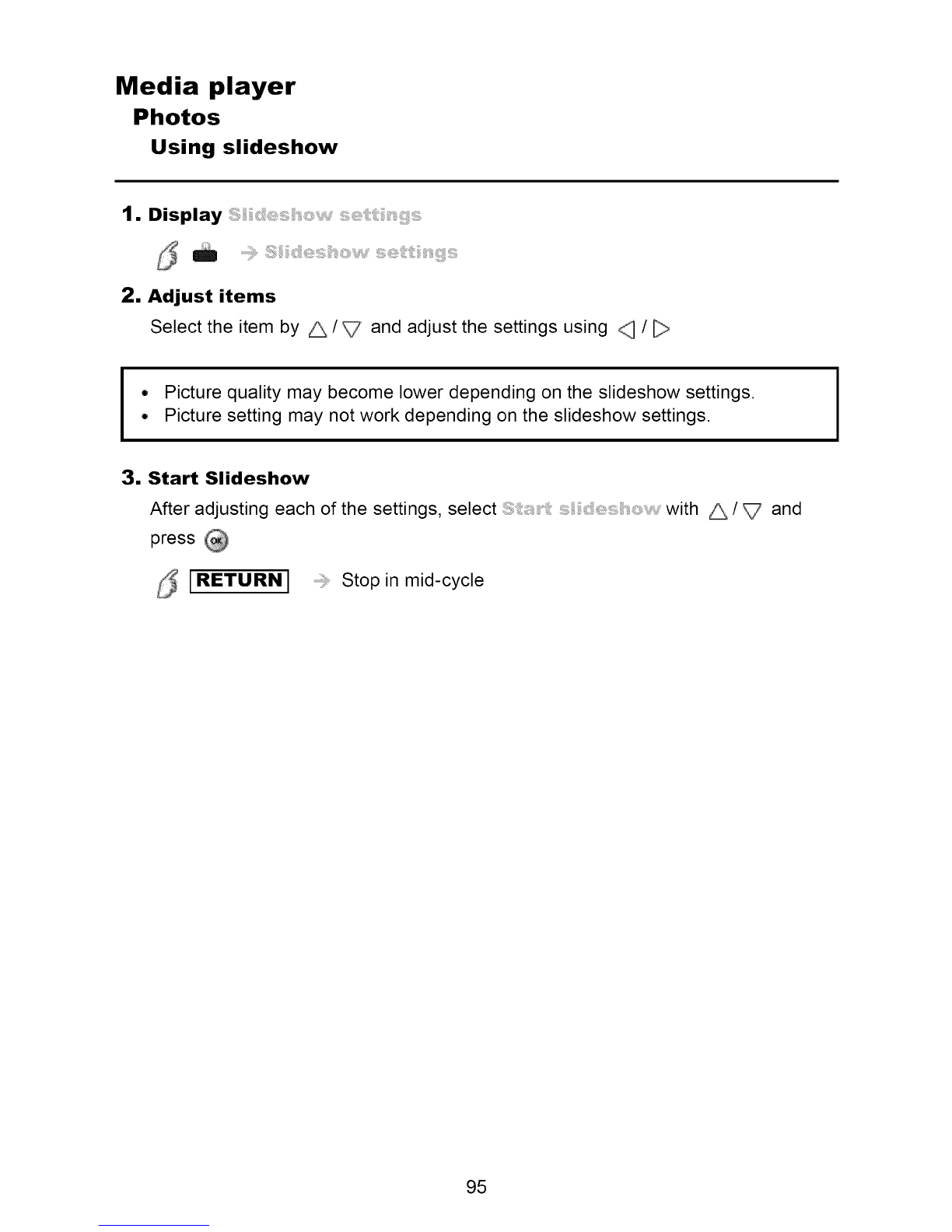

Using slideshow

1. Display

2. Adjust items

Select the item by _ /V and adjust the settings using _ /[:-_

•Picture quality may become lower depending on the slideshow settings.

•Picture setting may not work depending on the slideshow settings.

3. Start Slideshow

After adjusting each of the settings, selectil;_;:: .; _ ;_ :_ with _/V and

press

5IRETURNI.......Stopinmid-cycle
