Panasonic TC-L42D30 Manuale utente

*Compatible HD web camera and Internet connection required for Skype™video calls.

•1080p Full HD Resolution

•Clear Panel

•Game Mode

•Skype™Video Calling*

•VIERA Image Viewer

(Photo & Movie)

•DLNA

•VIERA Link™

•ISF Pro Setting Menu

•24p Smooth Film

•4 HDMI

•3 USB

•PC Input

Flush Design

Trim, clean and elegant to complement any décor.

iPs AlPhA leD PAnel

Delivers a 178º wide viewing angle for bright, clear and vivid images from virtually anywhere

in the room.

120 hz Motion Picture Pro 4

Sports and fast action stay crisp and focused, with minimal motion blur.

VierA connect™

Enjoy a world of sports, movies and other online apps, plus Skype™video calls on your

VIERA HDTV.

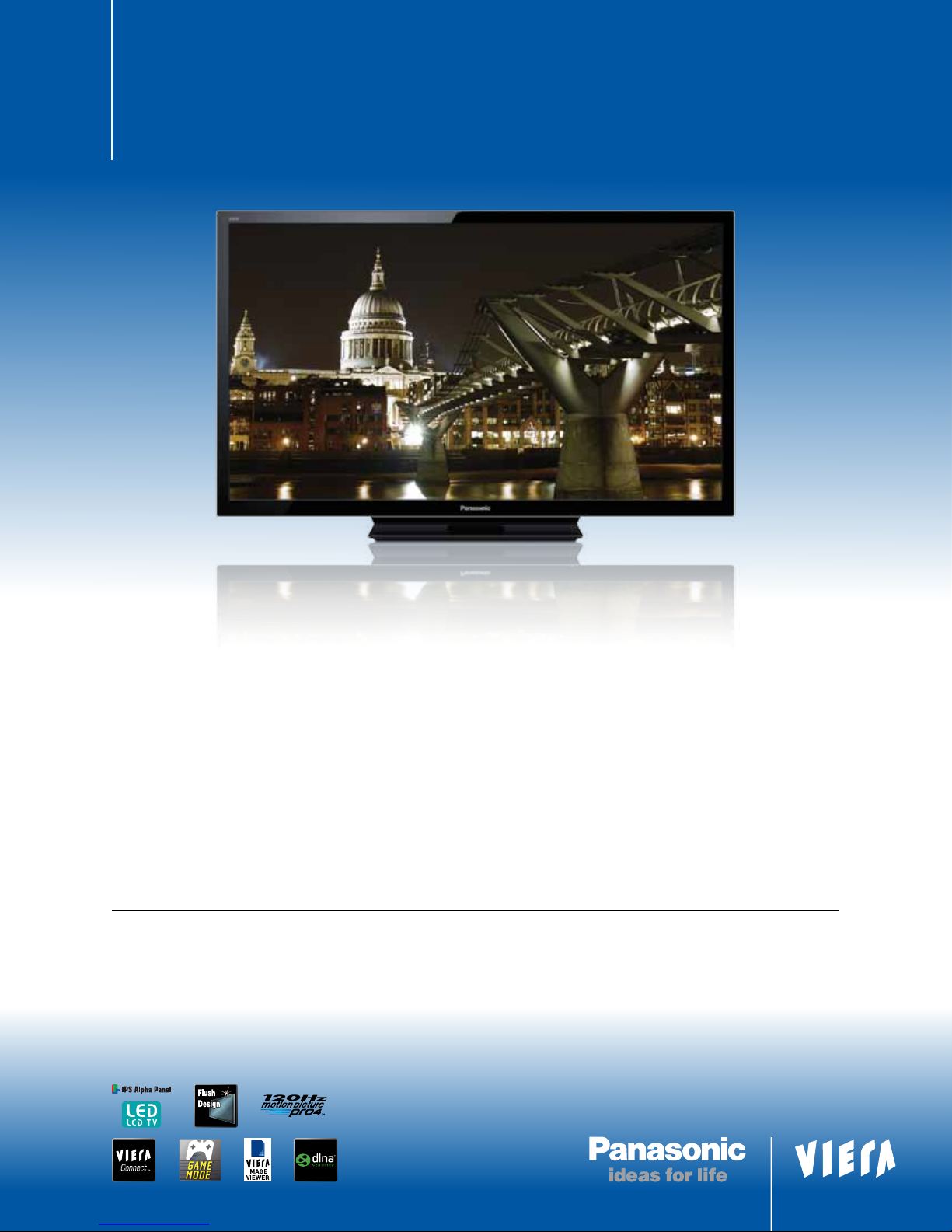

2011 Viera®

D30 Series LED/LCD

Available Model:

TC-L42D30

Screen image simulated.

04/11 Speciﬁcations subject to change without notice.

2011 Viera®

D30 Series LED/LCD

TC-L42D30

VIDEO

Screen Size Diagonal (in) 42.0

Aspect Ratio 16:9

Panel IPS Alpha LED LCD 1080p (WSXGA)

Filter Clear Panel

Number of Pixels 2,073,600 (1,920 x 1,080)

Moving Picture Resolution 900 lines

Viewing Angle 178 degrees

HDTV Display Capability (1080p, 1080i, 720p) Y

EDTV Display Capability (480p) Y

Aspect Control 480i/ p: FULL, JUST, 4:3, ZOOM

1080i/ p: FULL, H-FILL, JUST, 4:3, ZOOM

Progressive Scan Y

Panel Drive 120 Hz

24p Smooth Film Y

24p Playback Y

x.v.Color —

Intelligent Scene Controller Y

Motion Focus Technology Y

Super Resolution Y

FULL HD 3D

3D Panel —

3D 24p Smooth Film —

2D-3D Conversion —

3D Image Viewer —

3D Active Shutter Eyewear —

AUDIO

Speakers Full-range x 2 (L, R)

Number of Speakers 2

Audio Output 20 W

Surround Sound V-Audio Surround

JACKS

Integrated ATSC Tuner Y

VIERA Image Viewer Y (AVCHD/ MPEG2/ JPEG/ MP3 playback)

HDMI Input 4 (1 side)

Support Feature Audio Return Channel (Input 1)

USB 3

Analog Audio Input (for HDMI/DVI) Y

Composite Video Input RCA x 1

Audio Input (for Video) RCA x 1

PC Input D-sub 15-pin x 1

Component Video Input (Y, PB, PR) RCA x 1

Audio Input (for Component Video) RCA x 1

LAN Port 1

Digital Audio Output 1 (5.1 ch)

CONVENIENCE

VIERA Link Y

VIERA Connect (IPTV) Y

Easy IPTV —

Wireless LAN Adaptor Wi-Fi Ready

Universal Dock for iPod —

VIERA Tools Y

DLNA Y

Game Mode Y

Trilingual Menu (English/Spanish/French) Y

Built-In Closed Caption Decoder Y

Sleep Off-Timers and Programable Timer (5 programs) Y

GENERAL

Power Supply AC 110 – 127 V, 60 Hz

On Mode Average Power Consumption 45 W

Receiving System ATSC/ QAM/ NTSC

Dimensions with stand Height [in (mm)] 25.0" (633 mm)

Width [in (mm)] 38.9" (986 mm)

Depth [in (mm)] 11.4" (288 mm)

Dimensions without stand Height [in (mm)] 23.6" (599 mm)

Width [in (mm)] 38.9" (986 mm)

Depth [in (mm)] 1.3" (33 mm)

Mass Weight with stand [lbs (kg)] 41.9 lbs. (19.0 kg)

Mass Weight without stand [lbs (kg)] 35.3 lbs. (16.0 kg)

Swivel Angle ±15°

Tilt Angle —

VESA Compatible Y

Carton Dimensions Height [in (mm)] 28.5" (722 mm)

Width [in (mm)] 46.8" (1,188 mm)

Depth [in (mm)] 7.5" (189 mm)

Gross Weight [lbs (kg)] 50.7 lbs. (23.0 kg)

Optional Wall-mounting Bracket Model Numbers TY-WK3L2RW
