Operating Instructions

(Detailed Information)

Streaming Player

Model No. DMP-MST60

DMP-MS10

Unless otherwise indicated, illustrations in these operating instructions are of DMP-MST60.

Model number suffix “EB” denotes UK model.

チ

VQT4X77-1

F0213QK1043

- 2 -

Table of contents

Getting started

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Unit and media care . . . . . . . . . . . . . . . . . . . . .3

Control reference guide . . . . . . . . . . . . . . . . . .4

Connections and Settings

Connecting to a TV . . . . . . . . . . . . . . . . . . . . . .7

Connecting to the AC adaptor . . . . . . . . . . . . .7

Connecting to an amplifier/receiver . . . . . . . . .8

Connecting to the network . . . . . . . . . . . . . . . .8

Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Playback

HOME menu . . . . . . . . . . . . . . . . . . . . . . . . . .13

Enjoying Network Service. . . . . . . . . . . . . . . .14

Using Miracast™ . . . . . . . . . . . . . . . . . . . . . .15

Home Network feature . . . . . . . . . . . . . . . . . .16

Playing back USB devices . . . . . . . . . . . . . . .18

Operations during playback . . . . . . . . . . . . . .19

Enjoying 3D . . . . . . . . . . . . . . . . . . . . . . . . . .20

“HDMI CEC” . . . . . . . . . . . . . . . . . . . . . . . . . .20

Multi User Mode . . . . . . . . . . . . . . . . . . . . . . .21

Settings

Option menu . . . . . . . . . . . . . . . . . . . . . . . . . .22

Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . .24

Reference

LED indicators . . . . . . . . . . . . . . . . . . . . . . . .28

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Troubleshooting guide . . . . . . . . . . . . . . . . . .29

Specifications . . . . . . . . . . . . . . . . . . . . . . . . .32

≥Firmware updates (>12)

- 3 -

Getting started

Accessories

Check the supplied accessories before using this

unit.

≥Product numbers provided in these operating

instructions correct as of January 2013. These

may be subject to change.

1 Remote control

[MST60] (N2QAYB000891)

[MS10] (N2QAYB000886)

2 Batteries for remote control

1 AC adaptor

(VSK0812)

≥For use with this unit only. Do not use it with

other equipment.

≥Do not use any other AC adaptors except

the supplied one.

1 HDMI cable

(K1HY19YY0012)

Unit and media care

∫Clean this unit with a soft, dry

cloth

≥Never use alcohol, paint thinner or benzine to

clean this unit.

≥Before using chemically treated cloth, carefully

read the instructions that came with the cloth.

∫To dispose or transfer this unit

The unit may keep the user settings information in

the unit. If you discard this unit either by disposal

or transfer, then follow the procedure to return all

the settings to the factory presets to delete the

user settings. (>29, “To return all settings to the

factory preset.”)

≥The operation history may be recorded in the

memory of this unit.

- 4 -

Getting started

Control reference guide

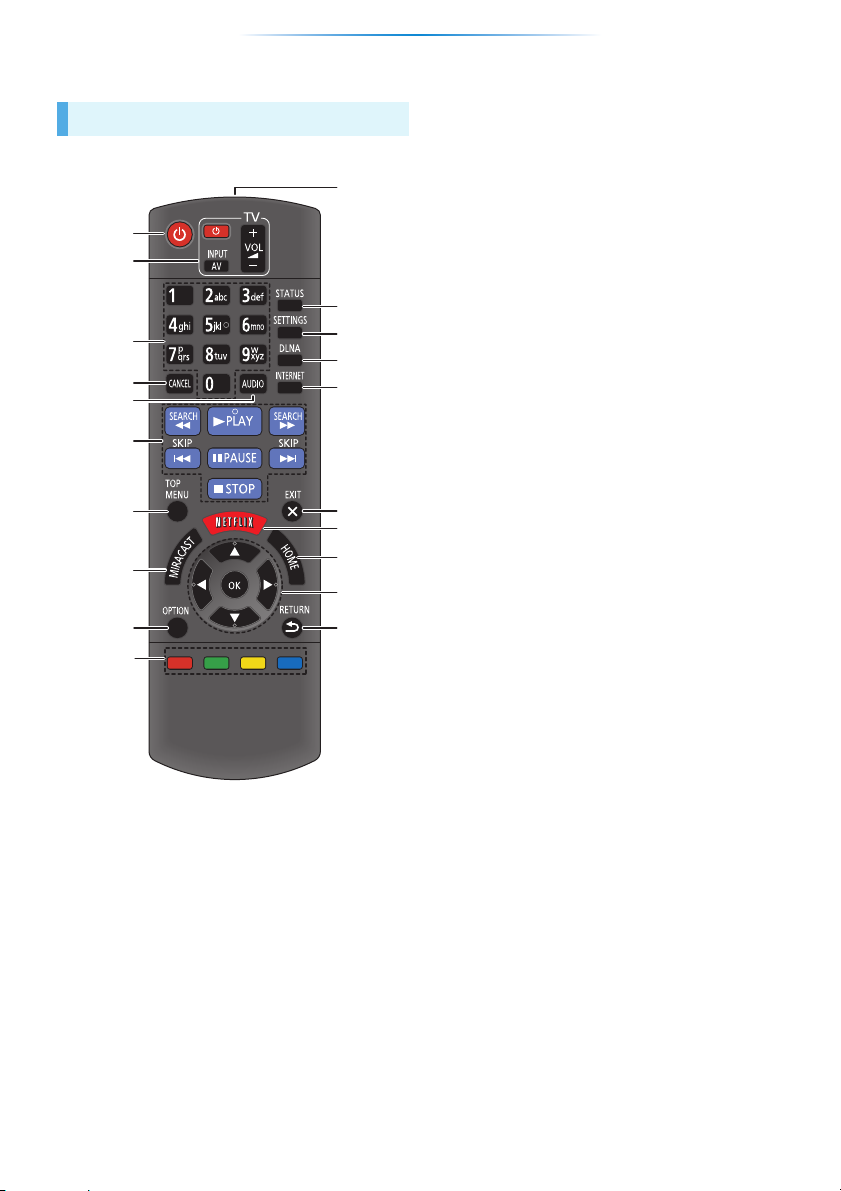

[MST60] 1 Turn the unit on and off

2 TV operation buttons

You can operate the Panasonic TV using the

unit’s remote control. Some buttons may not

work depending on the TV.

[ÍTV] : Turn the TV on and off

[AV] : Change input

[ijVOL] : Adjust the volume

3 Enter numbers or characters

4 Cancel

5 Select audio (>19)

6 Basic playback control buttons (>19)

7 Show Top menu (>19)

8 Show Miracast™ screen (>15)

9 Show Option menu (>22)

10 Coloured buttons (red, green, yellow, blue)

Used for various purposes depending on the

display.

11 Transmit the remote control signal

12 Show status messages (>19)

13 Show Setup menu (>24)

14 Show Home Network menu (>16)

15 Show the Home screen of the Network

Service

16 Exit the menu screen

17 Show Netflix screen (>14)

18 Show HOME menu (>13)

19 [3,4,2,1] :

Move the highlight for selection

[OK] : Confirm the selection

20 Return to previous screen

Remote control

920

- 5 -

Getting started

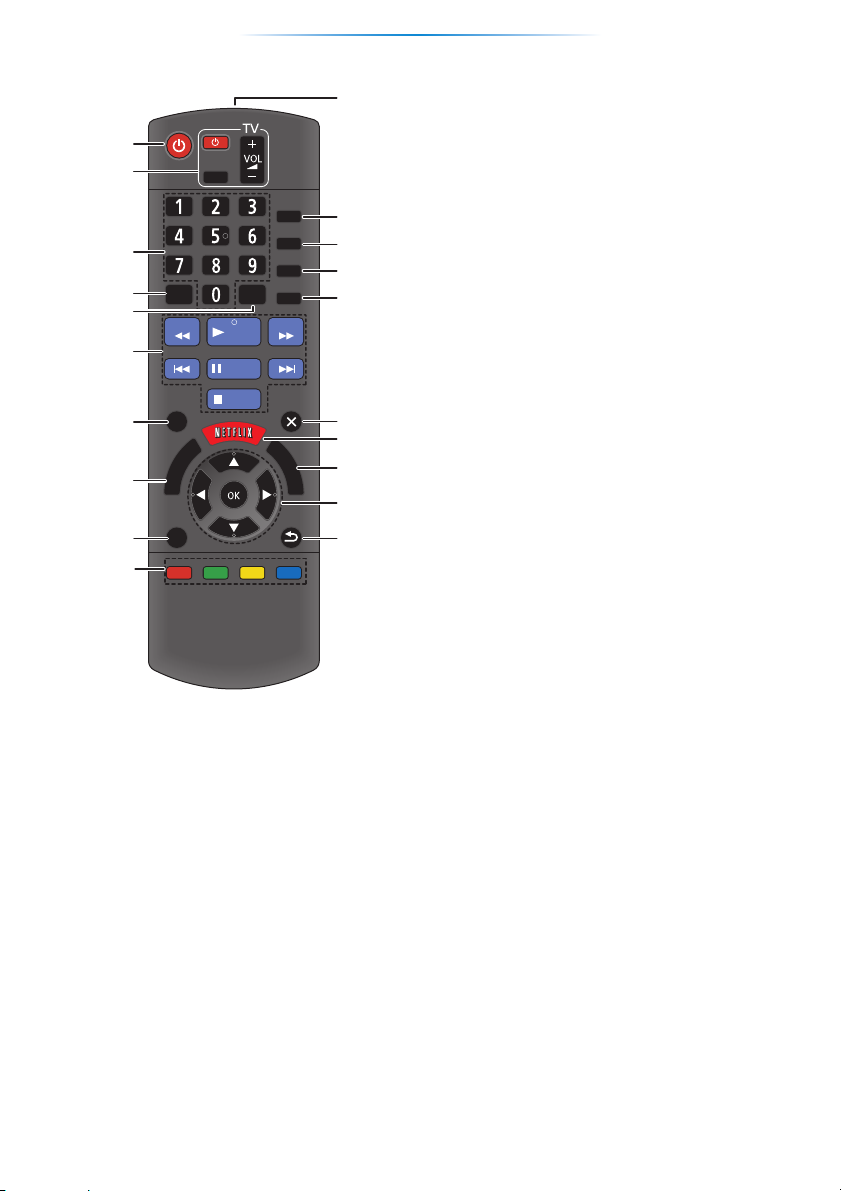

[MS10] 1 Turn the unit on and off

2 TV operation buttons

You can operate the Panasonic TV using the

unit’s remote control. Some buttons may not

work depending on the TV.

[

TV] : Turn the TV on and off

[AV] : Change input

[ijVOL] : Adjust the volume

3 Enter numbers

4 Cancel

5 Select audio (>19)

6 Basic playback control buttons (>19)

7 Show Top menu (>19)

8 Show Miracast screen (>15)

9 Show Option menu (>22)

10 Coloured buttons (red, green, yellow, blue)

Used for various purposes depending on the

display.

11 Transmit the remote control signal

12 Show status messages (>19)

13 Show Setup menu (>24)

14 Show Home Network menu (>16)

15 Show the Home screen of the Network

Service

16 Exit the menu screen

17 Show Netflix screen (>14)

18 Show HOME menu (>13)

19 [3,4,2,1] :

Move the highlight for selection

[OK] : Confirm the selection

20 Return to previous screen

リワヱヶヵ

ンユヵヶンワ

ヰヱヵリヰワ

ユヹリヵ

ヵヰヱ

ヮユワヶ

ヴレリヱヴレリヱ

リワヵユンワユヵ

ュロワモ

ヴユヵヵリワヨヴ

ヴヵモヵヶヴ

ヱロモヺ

ヱモヶヴユ

ヴヵヰヱ

ヴユモンヤラヴユモンヤラ

モヷ

チ

ラ

ヰ

ヮ

ユ

チ

ヤモワヤユロ

モヶュリヰ

920

チ

ヮ

リ

ン

モ

ヤ

モ

ヴ

ヵ

- 6 -

Getting started

Front View

Rear View

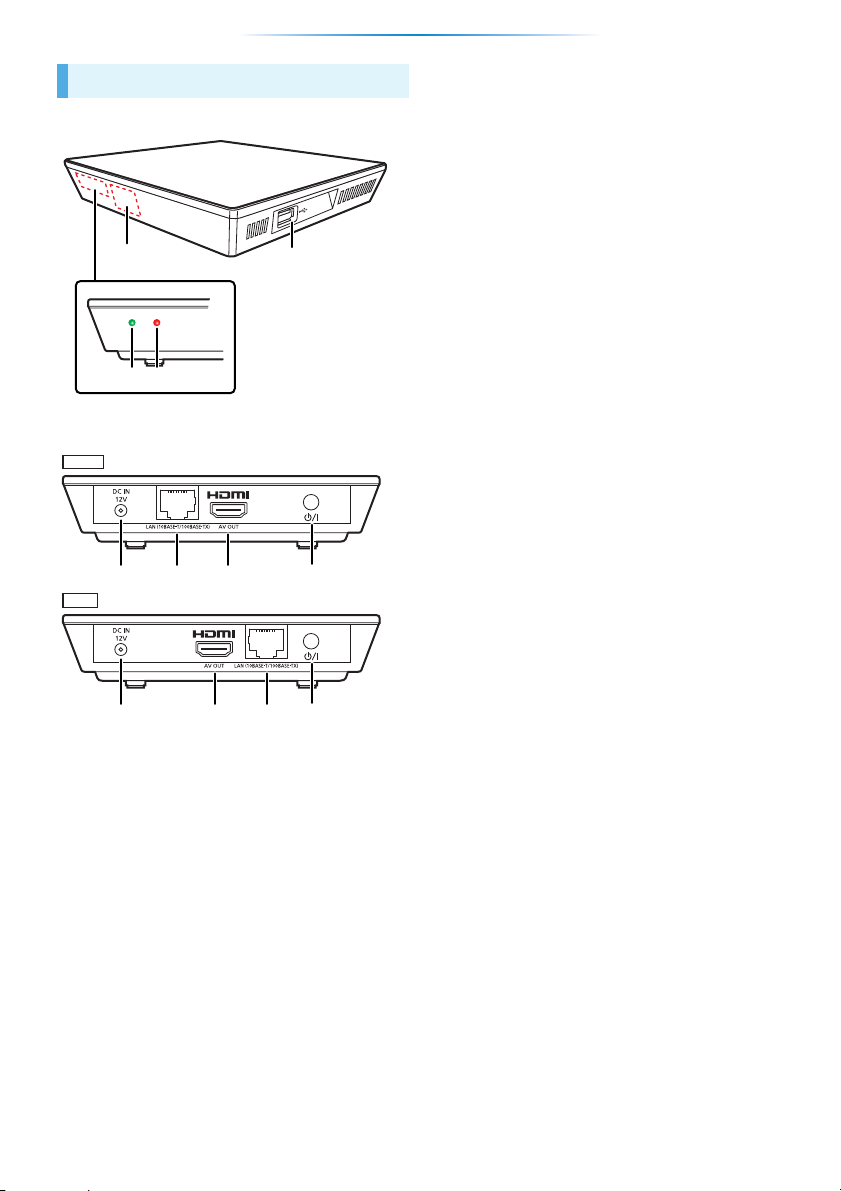

1 Remote control signal sensor

Distance: Within approx. 7 m

Angle: Approx. 20eup and down, 30eleft and

right

2 POWER LED

Blinks when the power is turned on.

Wait for the LED to turn solid green before

using this unit.

3 INFO LED (>28, “LED indicators”)

Displays the various states of this unit.

4 USB port (>18)

5 DC IN terminal (>7)

6 LAN port (>9)

7 HDMI AV OUT terminal (>7)

8Standby/on switch (Í/I)(>10)

Press to switch the unit from on to standby

mode or vice versa. In standby mode, the unit

still consumes a small amount of power.

The Unit

POWER INFO

MST60

MS10

567 8

5678

- 7 -

Connections and Settings

Connections a nd Settings

Connecting to a TV

≥Before making any connections, we

recommend that you temporarily disconnect all

the units from AC power.

≥Use the High Speed HDMI cables.

Non-HDMI-compliant cables cannot be utilized.

The HDMI-compliant cable is supplied with this

unit.

It is recommended that you use Panasonic’s

HDMI cable. When outputting 1080p signal,

please use HDMI cables 5.0 meters or less.

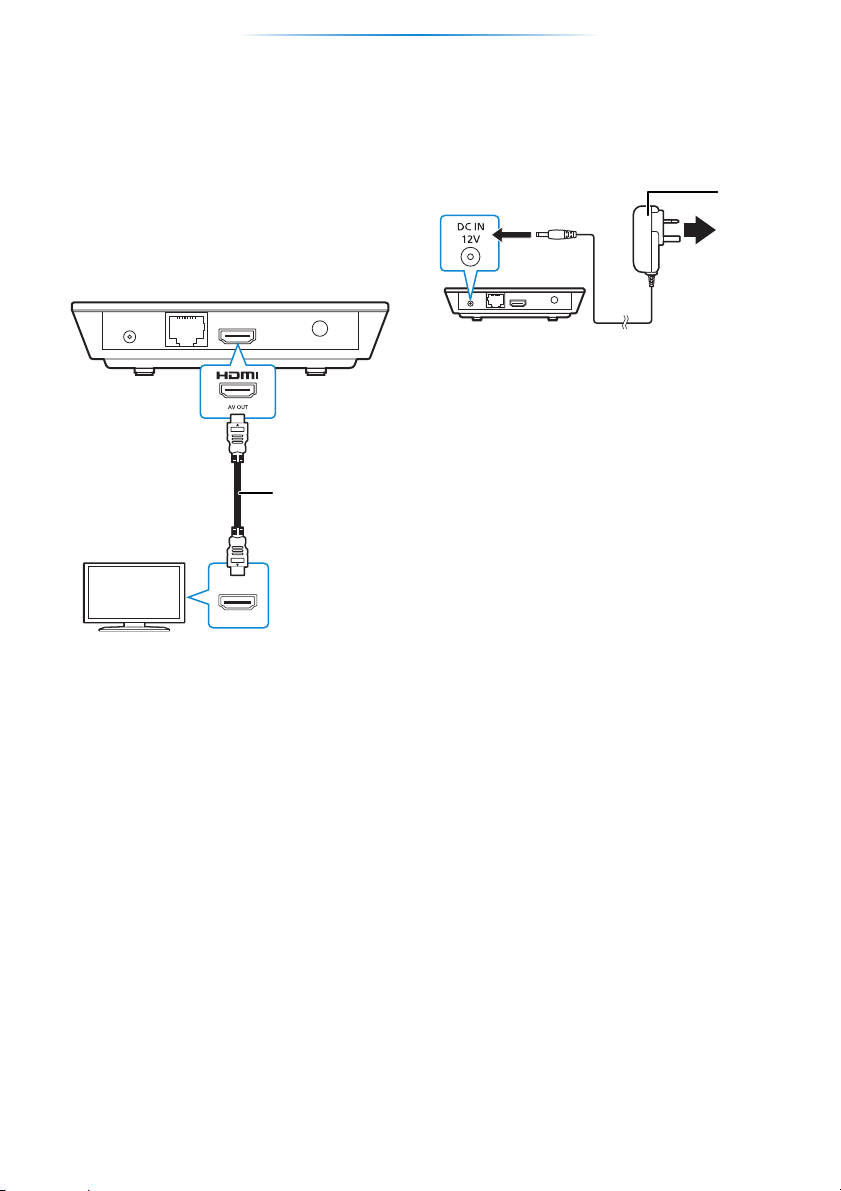

AHDMI cable (supplied)

Connecting to the AC

adaptor

Connect the AC adaptor after making all other

connections.

AAC adaptor (supplied)

BTo a household mains socket

≥This unit consumes a small amount of AC

power (>32) even when turned off. For the

purpose of power conservation, the unit can be

disconnected if you will not be using it for

extended period of time.

HDMI IN







- 8 -

Connections and Settings

Connecting to an

amplifier/receiver

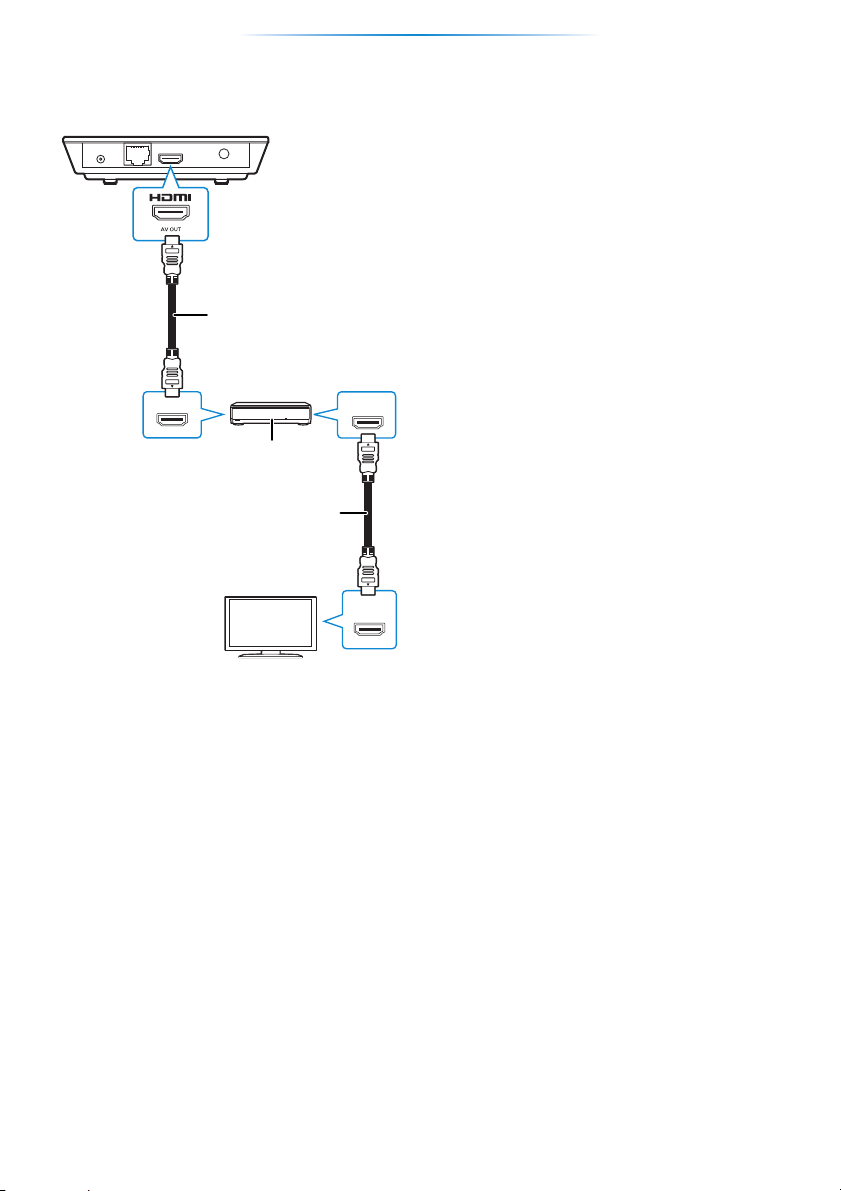

AHDMI cable (supplied)

BAmplifier/receiver

CHDMI cable

≥Set “Digital Audio Output” (>25).

≥When using the TV or amplifier/receiver that

does not have the indication of “(ARC)”

(non-ARC-compatible) on the HDMI terminal,

the amplifier/receiver and TV must also be

connected using an optical digital cable in order

to enjoy the TV’s sound through the amplifier/

receiver.

≥[MST60] When connecting to a non-3D

compatible amplifier/receiver, connect this unit

to a TV, then connect the TV and the amplifier/

receiver.

Connecting to the

network

The following services can be used when this unit

is connected to broadband.

≥Firmware can be updated (>12)

≥You can enjoy Network Service (>14)

≥You can access other devices (Home Network)

(>16)

≥This unit supports Wi-Fi Direct™ and can make

a wireless connection to wireless devices

without router. You can use this function when

enjoying Home Network feature, etc. Internet

access is not available while connected via

Wi-Fi Direct™. (>16, 25)

For details about connection method, refer to the

instructions supplied with the connected

equipment.

HDMI IN

(ARC)

HDMI OUT

(ARC)

HDMI IN







- 9 -

Connections and Settings

This unit has built-in Wi-Fi®and can be connected

to a wireless router.

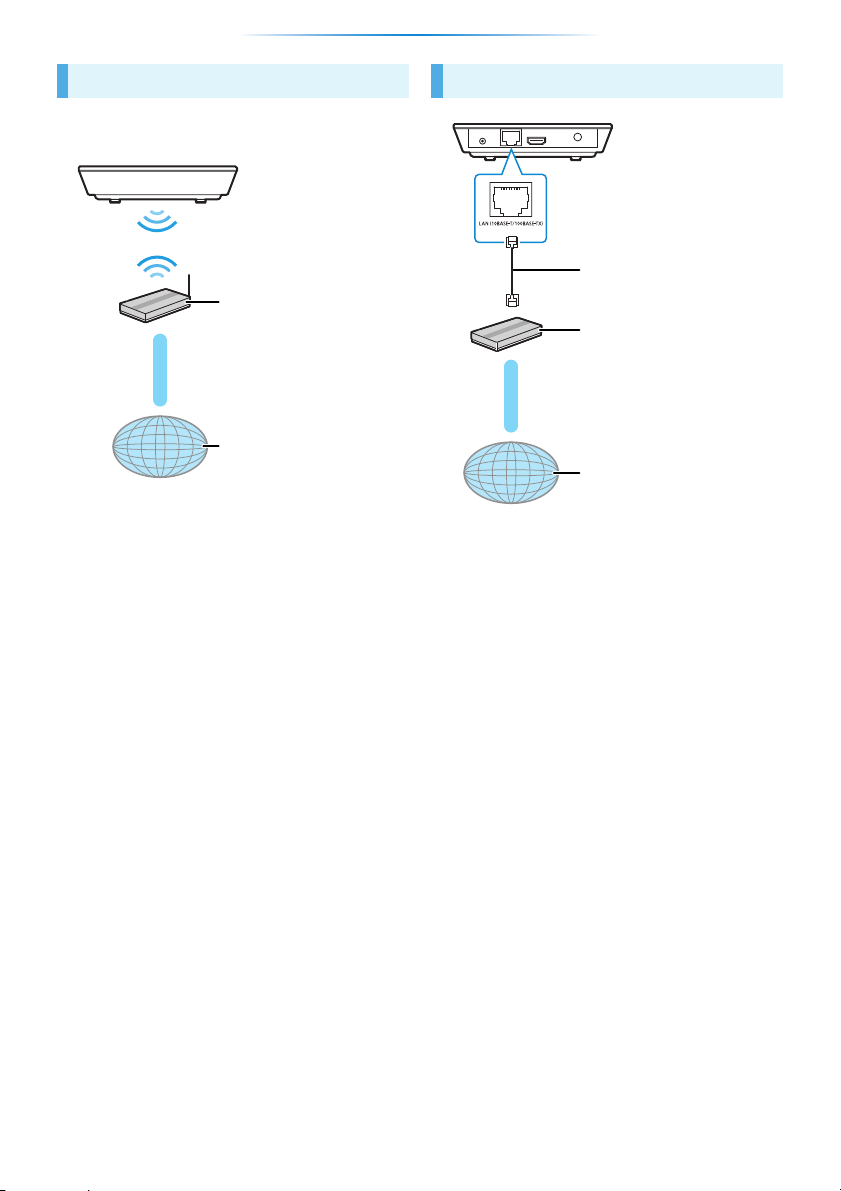

AWireless router, etc.

BInternet

≥For up-to-date compatibility information on your

wireless router, refer to

http://panasonic.jp/support/global/cs/

(This site is in English only.)

≥The unit is not compatible with public wireless

LAN services (Hotspot etc.) provided in airports,

stations, cafes, etc.

≥See “Operating Instructions (Essential

Information)” for the precautions for wireless

LAN connection.

ALAN Cable

BBroadband router, etc.

CInternet

≥Inserting any cable other than a LAN cable in

the LAN port can damage the unit.

Wireless LAN connection





LAN cable connection







- 10 -

Connections and Settings

Settings

After connecting your new unit for the first time

and pressing [Í], the basic settings screen will

appear.

Preparation

Turn on the TV and select the appropriate

video input.

1Press [Í].

Setup screen appears.

2Follow the on-screen instructions to

continue with the settings.



≥You can perform this setup anytime by selecting “Easy

Settings” in the Setup menu. (>27)

After completing “Easy Settings”, you can perform

“Easy Network Setting”.

Select “Wired” or “Wireless” and press [OK].

∫“Wired” connection

Follow the on-screen instructions to establish

your connection settings.

∫“Wireless” connection

Before beginning wireless connection setup

≥Obtain your network name (SSID*1).

≥If your wireless connection is encrypted,

please be sure that you know your

encryption key.

Select “Search for wireless network” or “WPS

(PUSH button)” and press [OK], then follow

the on-screen instructions to continue with

the settings.

Easy Settings

Easy Network Setting

Wired

Wireless

Select a connection mode.

RETURN

Wireless Settings

Select a connection method to wireless access point.

Please refer to the operating instructions of your wireless

access point about connection methods.

Search for wireless network

WPS (PUSH button)

Altri manuali per DMP-MST60

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Lettore multimediale

Panasonic

Panasonic CQ-RX200N Manuale utente

Panasonic

Panasonic LFE Series Manuale utente

Panasonic

Panasonic SVSD85 - SD AUDIO PLAYER Manuale utente

Panasonic

Panasonic CQ-C5303N Manuale utente

Panasonic

Panasonic SVAV20U - SD MULTI MEDIA TERMI Manuale utente

Panasonic

Panasonic SV-SW30VP Manuale utente

Panasonic

Panasonic SiriusXM CQ-RXBT490U Manuale utente

Panasonic

Panasonic CQ-C1301NW Manuale utente

Panasonic

Panasonic SV-MP100VGC Manuale utente

Panasonic

Panasonic PV-500 Manuale utente

Panasonic

Panasonic CQ-C8400 Manuale utente

Panasonic

Panasonic C7301U - Cd Rcvr W/ Custm Dsply Guida rapida

Panasonic

Panasonic FZ35S5M - INTE.MEDIA(PHCC ONLY Manuale utente

Panasonic

Panasonic SV-MP710VEG Manuale utente

Panasonic

Panasonic SV-SD75 Manuale utente

Panasonic

Panasonic CQC3301U - AUTO RADIO/CD DECK Manuale utente

Panasonic

Panasonic SV-SD350VGC Manuale utente

Panasonic

Panasonic FZ-35S Manuale utente

Panasonic

Panasonic SV-SW31VGC Manuale utente

Panasonic

Panasonic SV-MP500VGK Manuale utente

Panasonic

Panasonic CQ-DP383W Manuale utente

Panasonic

Panasonic SV-MP30V Manuale utente

Panasonic

Panasonic DMP-MST60 Manuale utente

Panasonic

Panasonic CQC1401U - AUTO RADIO/CD DECK Manuale utente

Manuali Lettore multimediale popolari di altre marche

Visual Land

Visual Land Impulse Manuale utente

limHD

limHD 200i Manuale utente

Transcend

Transcend DMP10 Manuale utente

Philips

Philips GoGear Muse SA2MUS08 Manuale utente

Fantec

Fantec MM-HDRL Manuale utente

Dune HD

Dune HD Duo 4K Manuale utente

IAdea

IAdea HMP-505S Manuale utente

Camos

Camos MMS-1000 Manuale utente

Energy

Energy 75 Series Manuale utente

Z3 Technology

Z3 Technology DME-03 Manuale utente

Sony

Sony SVR-2000 Guida utente

Meicheng

Meicheng HD-1080K12 Manuale utente

DENAFRIPS

DENAFRIPS ARCE Manuale utente

Topaz

Topaz CMS Media Player Istruzioni per l’uso

InFocus

InFocus LightCast Manuale utente

IconBiT

IconBiT XDS1003D Manuale utente

Quanmax

Quanmax QDSP-2090 Series Manuale utente

Samsung

Samsung MP-80S Manuale utente
