Infrared Wireless Microphone System
Infrared Wireless Microphone System
Product Introduction
Product Introduction
Confidential, Internal Use Only
Receivers
WX-LR100E/A
Microphone
(handheld)
Microphone
(pendant-style)
Infrared sensor Infrared sensor
coupler
Charger Stand
WX-LR100E/B
WX-LT100E
WX-LT310E
WX-LS100E WX-LC10E WX-LZ10E
Battery
Charger
WX-LZ110/G

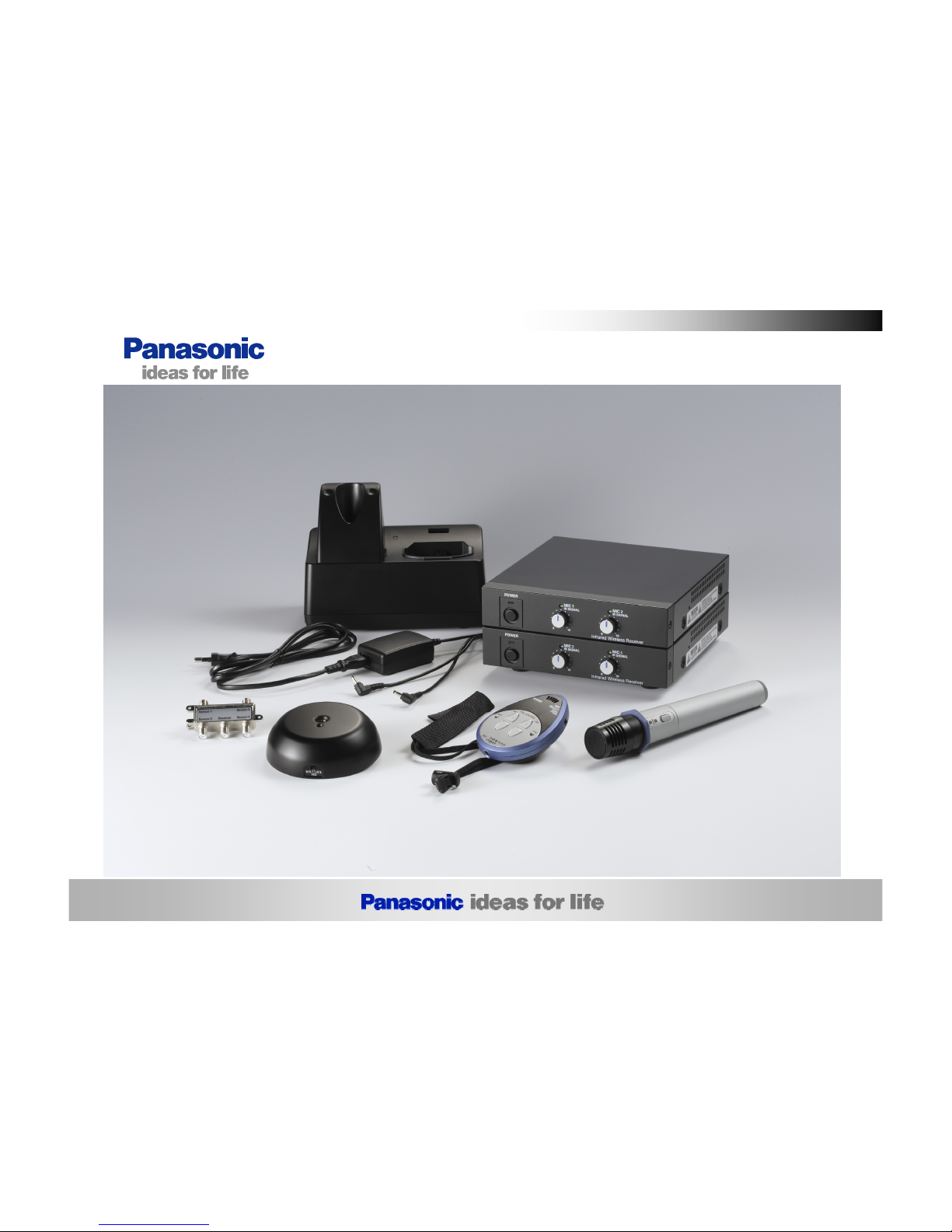

Product lineup
+ High Sound Quality for Speech Use
+ Hands-Free Operation
+ Remote Volume Controls on the Pendant Microphone
+ Light Weight Handheld Microphone
+ Accommodates Four(4)-Microphone Simultaneously
+ Microphone Aux input Allows Local Playback
from External Sources
+ Smart Circuitry for Batteries
Key Features
Confidential, Internal Use Only
The lightweight design eliminates
fatigue from long time use.
Lightweight and easy-to-use handheld microphone
OthersWX-LT100E
Grip
Grip
Panasonic: Approx 190 g
(rechargeable batteries included)
The infrared emitter is located right under the
microphone. By relocating the emitter from
the grip, sound interruption by inadvertently
blocking the emitter by the hand holding the
grip is prevented.
Emitter
Emitter
The microphone weighs approximately
190 g including two rechargeable batteries.
It weighs approximately 170 g with alkaline
batteries. The weight is drastically reduced as
compared to that other manufacturers. The
design eliminates fatigue from long time use.
Exclusive Panasonic features
The emitter designed to prevent
problems
Confidential, Internal Use Only
Easy to wear
The innovative device worn around the neck.
It can be easily worn over clothes without pockets.
The microphone, emitter and main unit are
Integrated into one unit. The cloggy cord of the
conventional clip-type microphone is gone,
eliminating the risk of being caught or wire damages.
Volume control
buttons
The pendant-type microphone is equipped
with volume control buttons. The volume of the
microphones worn by the user and other person
can be controlled. (The two channels of the same
receiver are controlled.)
Exclusive Panasonic features
Innovative hands-free pendant-style microphone
The cordless design prevents
wire damages
The volume is controlled
on the microphone
WX-LT310E
OWN/ OTHER
Switch
*Future use
Confidential, Internal Use Only
Handheld Pendant-style
The microphone is equipped with a line
input terminal.Audio data from laptop
PCs and other devices can be easily
reproduced via the infrared microphone
thus providing effective presentation.
(The microphone is turned OFF while the
line input is used.)
Handheld Pendant-style
The PLL frequency conversion system is
adopted in the infrared microphone for
the first time.
The single microphone with a selector
switch to four channels allows using the
microphone in a more flexible way.
Line input terminal
3.5mm phone jack
Channel selector switch
Exclusive Panasonic features
Using the microphone in a more flexible way
The four channels are supported by
a single microphone
The microphone has a line
input terminal
Confidential, Internal Use Only
Battery type Rechargeable
battery
Dry battery
(Alkaline)
Operating
time
Approx
6 hours
Approx.
5 hours
Both rechargeable and dry batteries provide
the long battery life.
The user will enjoy carefree use of the
microphone in a prolonged meeting.
Basically, rechargeable batteries are used.
The commercially-available, easy-to-obtain
Panasonic size AA rechargeable batteries
can also be used. They are recharged while
installed in the main unit. The dual power
supply system supports size AA dry
batteries in an emergency.
Commercially available
Panasonic nickel hydrogen
rechargeable battery
Charger Stand
Exclusive Panasonic features
Using the microphone in a more flexible way
Commercially available rechargeable
batteries can be used
The energy-saving scheme allows up
to approx. Six(6) hours.
Confidential, Internal Use Only
Battery over discharging protection
10
67892345
1.0V
0.5V
1
0.0V
2.5V
3.0V
2.0V
1.5V
BATTERY VOLTAGE
OPERATING TIME [H]
Battery Indicator : GREEN
( 6.75H, 230mA )
OFF
20mA
OFF
10uA (Curent Cut)
Warning
Power Off
2.25V
2.10V
Panasonic
Panasonic
No cut off
Using Nickel- Hydrogen Battery
Panasonic infrared microphone will be automatically power off to protect
Ni-Hydrogen batteries from over discharging for long time usage.
Exclusive Panasonic features
Confidential, Internal Use Only
Others
WX-LS100E
A single infrared sensor covers a wide area with 360 horizontal degrees.
An area of a standard size can be covered by a single sensor.
The cable length alignment process in setting up multiple sensors is unnecessary and
the installation is facilitated.
Exclusive Panasonic features
Easy to install
The dome infrared sensor covers
360 horizontal degrees.
360 degree
Confidential, Internal Use Only
Infrared Wireless Microphone
System Examples
