Panasonic Genius NN-SD767S Manuale utente

With some models, you may need to

remove a blue protective ﬁlm

from the cabinet. Also, remove the

protective sheet

from the surface of the

keypad.

Install roller ring and

glass tray into oven.

Make sure you remove all packing material from

the oven. Locate the glass tray and roller ring.

Keep the Operating Instructions and other

documentation in a place easily accessible.

Thank you for your purchase of a Panasonic Microwave

Oven. Before using your oven, follow these quick steps.

IMPORTANT: For complete directions, please refer

to the Operating Instructions Manual and make sure to write

down in the Operating Instructions Manual the serial number

located on the back of the oven or on the doorjamb.

IMPORTANT: DO NOT remove the wave

plate from the inside wall of the oven!

DO NOT remove the protective ﬁlm

behind the door!

set-up guide

Initial Set-Up

Meijer.com

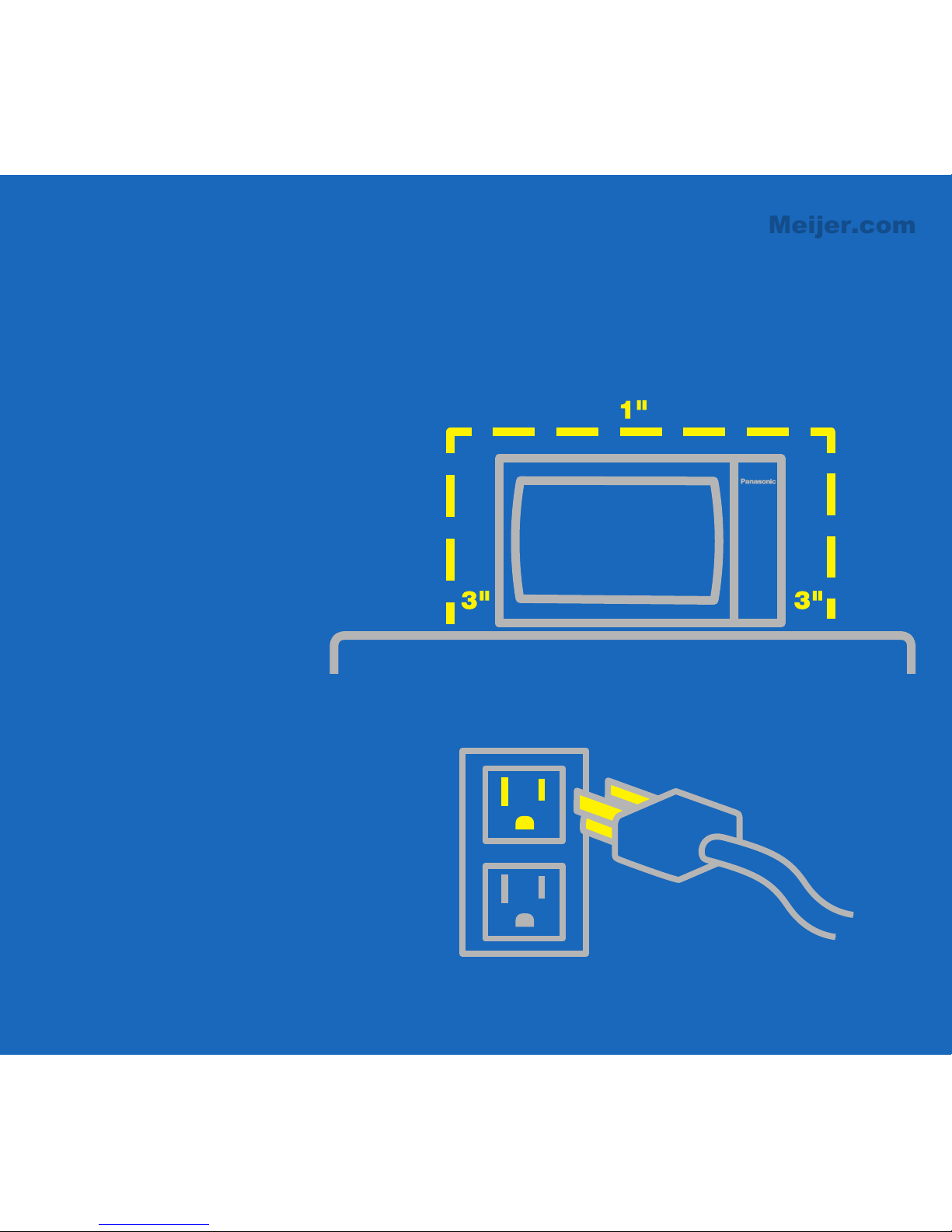

Select a clean, ﬂat area on your

counter to place the oven.

DO NOT place oven near gas

or electric range.

DO NOT block air vents

on left side.

DO NOT operate

the oven empty.

Be sure to plug the oven into a

grounded wall outlet rated at

least 20 A, 120 V, 60 Hz.

2Space & Power Requirements

Meijer.com

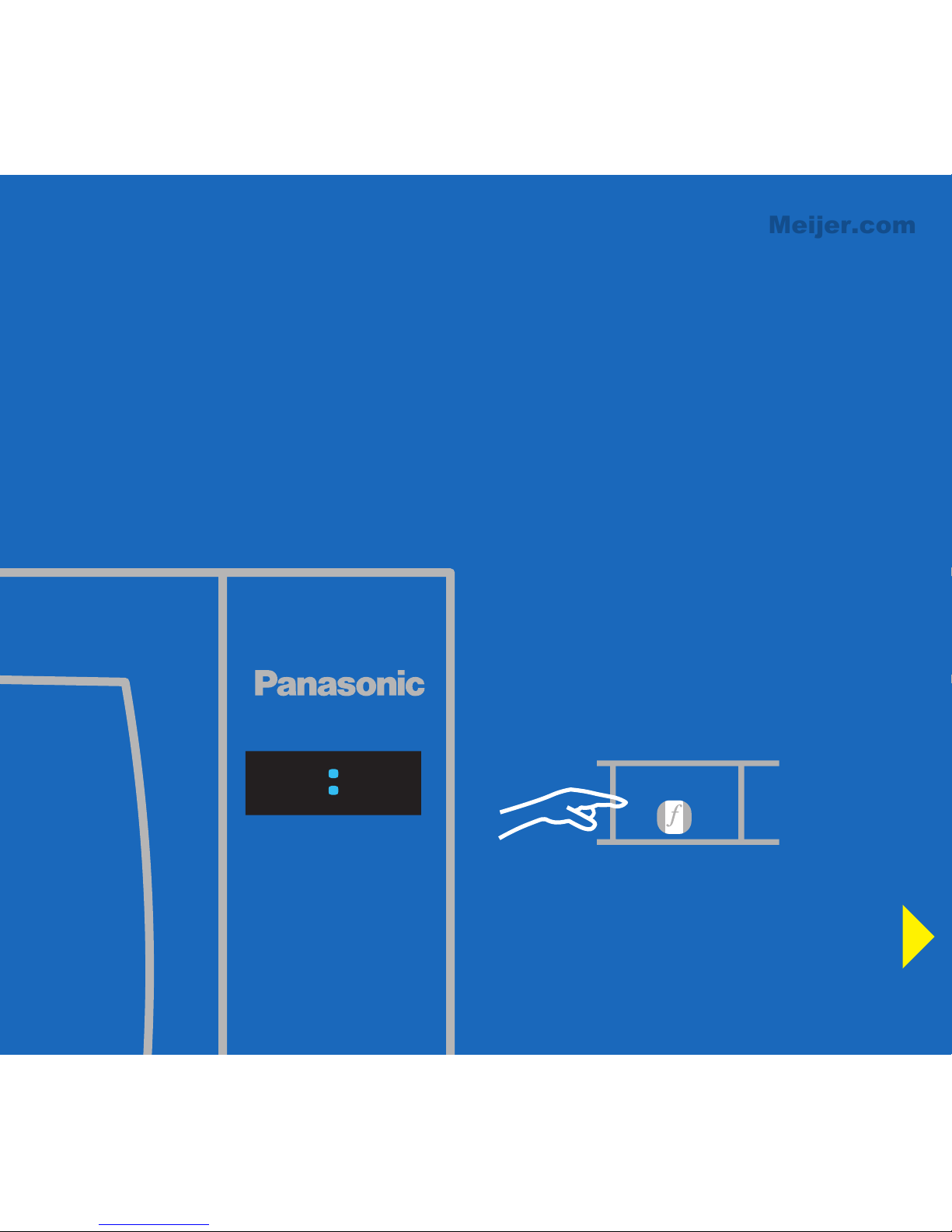

When turned on, the oven weight measurement guide

automatically defaults to (oz/lbs).

To convert to metric (g/kg), press the “Start” button.

Press the “Stop” button, colon (:) will appear in the

display window when change is completed.

If your oven has a “Function”

button, the metric weight is

controlled by...

Press button: “function” ...

“2” ...“2”

You are now ready

to set the clock.

3Cooking Conversions

Function

PRESS

Meijer.com

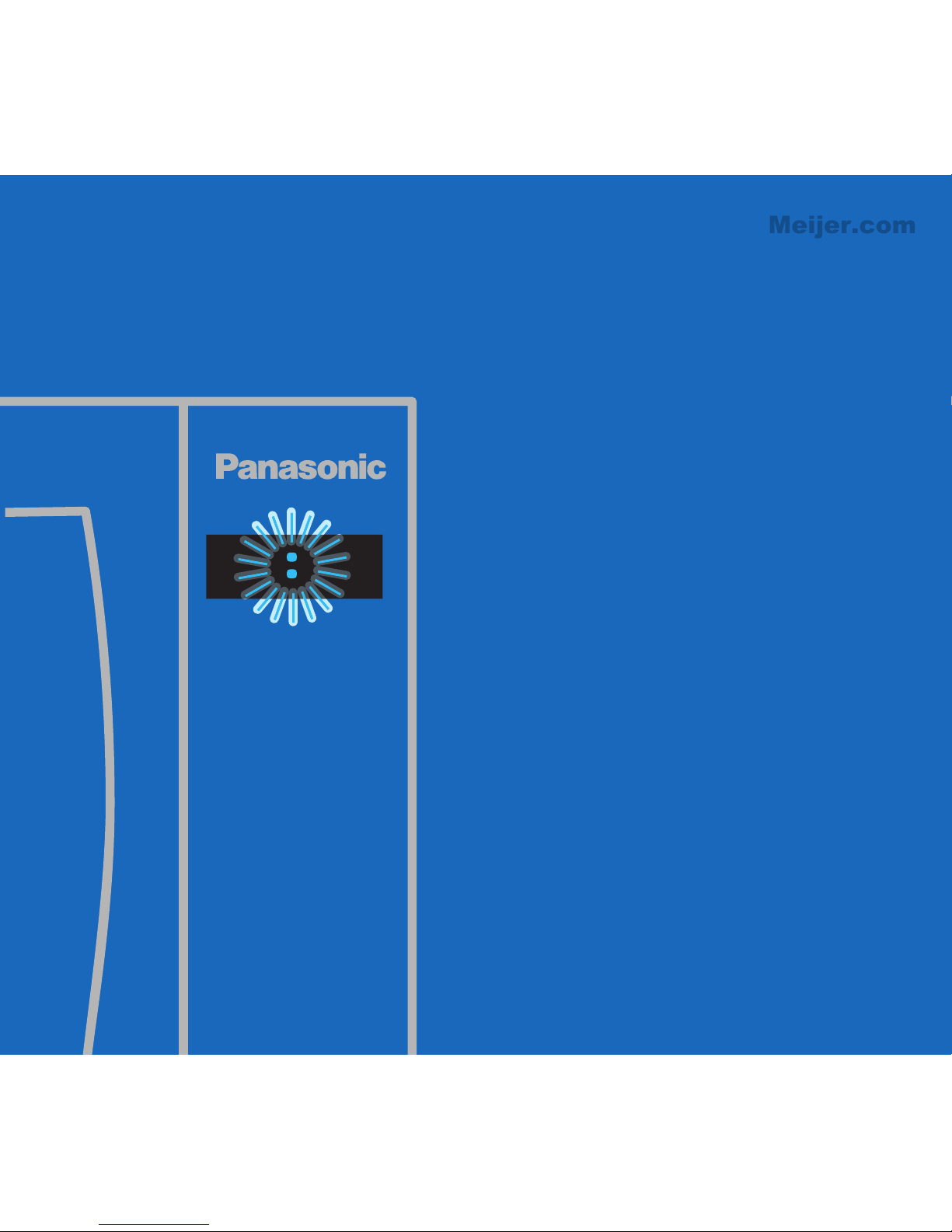

To set the clock, press “Clock” once

or “Timer/Clock” twice (depending

on your keypad).

The colon symbol (:) will ﬂash.

Enter time of day. The time appears

in the window; the colon continues

to ﬂash.

Press “Clock” or “Timer/Clock”

again - colon stops ﬂashing; time of

day is set.

You are now ready to use your

new Panasonic Microwave Oven.

Note:

—Clock is a 12-Hour Display

—Oven will not operate while colon (:) is ﬂashing

4Set Clock

Meijer.com

Safety Options

tip1

If “DEMO” appears on your display...

Press buttons: “function” ... “0” ... “2”

“Demo Mode” will be turned off.

When you ﬁrst turn on your microwave oven and under normal

operation the “CHILD LOCK” feature is off.

If “LOCK” or “CHILD” appears on your display . . .

Press the “Stop” button three (3) times and the

“CHILD LOCK” will be turned off.

If you want to activate the “CHILD LOCK” feature. . .

Press the “Start” button three (3) times and the

“CHILD LOCK” will be turned on.

For Models that have “FUNCTION” button . . .

To turn Off “CHILD LOCK” Press buttons: “function”. . . “5”. . . “2”

To turn On “CHILD LOCK” Press buttons: “function”. . . “5”. . . “1”

“DEMO” mode is a feature used in stores for demonstration purposes.

It will not be active when you turn on the microwave oven or, for normal operation.

Meijer.com

After placing food/beverage inside the microwave oven, set functions

manually or let the oven set them automatically.

(If your model number starts with a ‘5’ or ‘6’ the light will not turn on when you open the door.)

Cooking Options

tip2

Manual –Basic Cook

Start

PRESS

Start

PRESS

Automatic

(use Dial or Button)

Sensor Technology

Sensor

Cook

(use Dial or Button)

Sensor

Reheat

PRESS PRESS

SELECT

Sensor Cook Menus

(See Operating Instructions for

Sensor Cook Chart)

1. Oatmeal

2. Omelet

3. Soup

4. Frozen Entres

5. Frozen Pizza (single)

6. Potatoes

7. Fresh Vegetables

8. Frozen Vegetables

9. Frozen Dinners

Meijer.com

How to Remove Cooking

Odors

1. In a 2 quart microwave safe bowl

combine 1 to 1-1/2 cups (250 - 375

ml) of water and the juice and peel(s)

of one lemon - stir ingredients.

2. Set Time to “5” minutes.

3. Push the “Start” button.

4. After water ﬁnishes boiling, carefully

remove the bowl.

5. Wipe the interior of the oven with a

cloth.

Removing

Odors

(cont’d) tip3

tip2

Start

PRESS

Select Servings by

tapping the button

SELECT

Start

Serving/Weight

(use Dial or Button)

Automatic Technology

Auto

Cook

PRESS

(use Dial or Button)

SELECT

Auto

Reheat

PRESS

Start

PRESS

Inverter Turbo

Defrost

Serving/Weight

(use Dial or Button)

PRESS

SELECT

Meijer.com

On-line or by Phone

Visit our web site at http://www.panasonic.com/help

and then enter your model number in the box for information

about:

Product Information and Operating Assistance

Nearest Dealer or Service Center

Parts and Accessories

Literature

Customer Service

Or,

You can contact us at:

1-800-211-PANA (1-800-211-7262)

Monday – Friday 9am to 9pm EST

Saturday – Sunday 10am to 7pm EST

Customer Service Contact
