Panasonic NN-C784MF Manuale utente

6/17/2017 s0000000000.html

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

1/3

ServiceManual

TOPNEXT

ORDERNO.SIMMC0408027A3

MicrowaveOven

NNC784MF

NNC784WF

HPE(HongKong)

YPQ(Singapore)

MPQ(Malaysia)

TPE(Thailand,Indonesia)

YTE(Others)

KTE(UAE)

KUE(Egypt)

PTE(Iran)

KPQ(Kuwait,Doha,Qatar,Oman,Bahrain,Pakistan)

STM(SaudiArabia)

ZPE(CISCountries)

PleasefileandusethismanualtogetherwiththeservicemanualforModelNNC781JF(ORDERNO.SIMMC0110022C3).

6/17/2017 s0000000000.html

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

2/3

©2004PanasonicHomeAppliancesMicrowaveOven(Shanghai)Co.,Ltd.

Allrightsreserved.Unauthorizedcopyinganddistributionisaviolationoflaw.

6/17/2017 s0000000000.html

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

3/3

TOPNEXT

6/17/2017 s0100000000x.html

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

1/1

1SCHEMATICDIAGRAM

TOPPREVIOUSNEXT

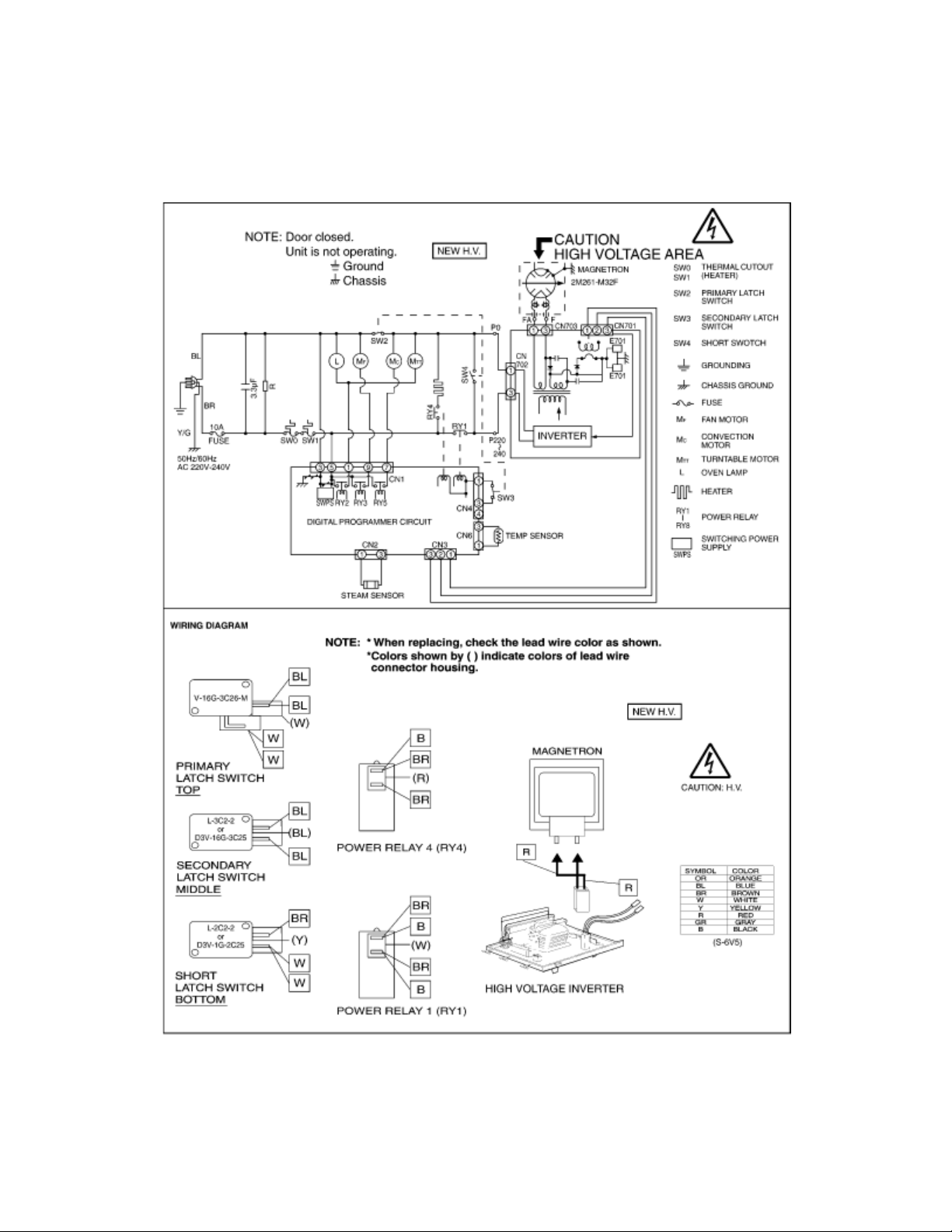

1.1NNC784MF/WF(EXCEPTZPE)

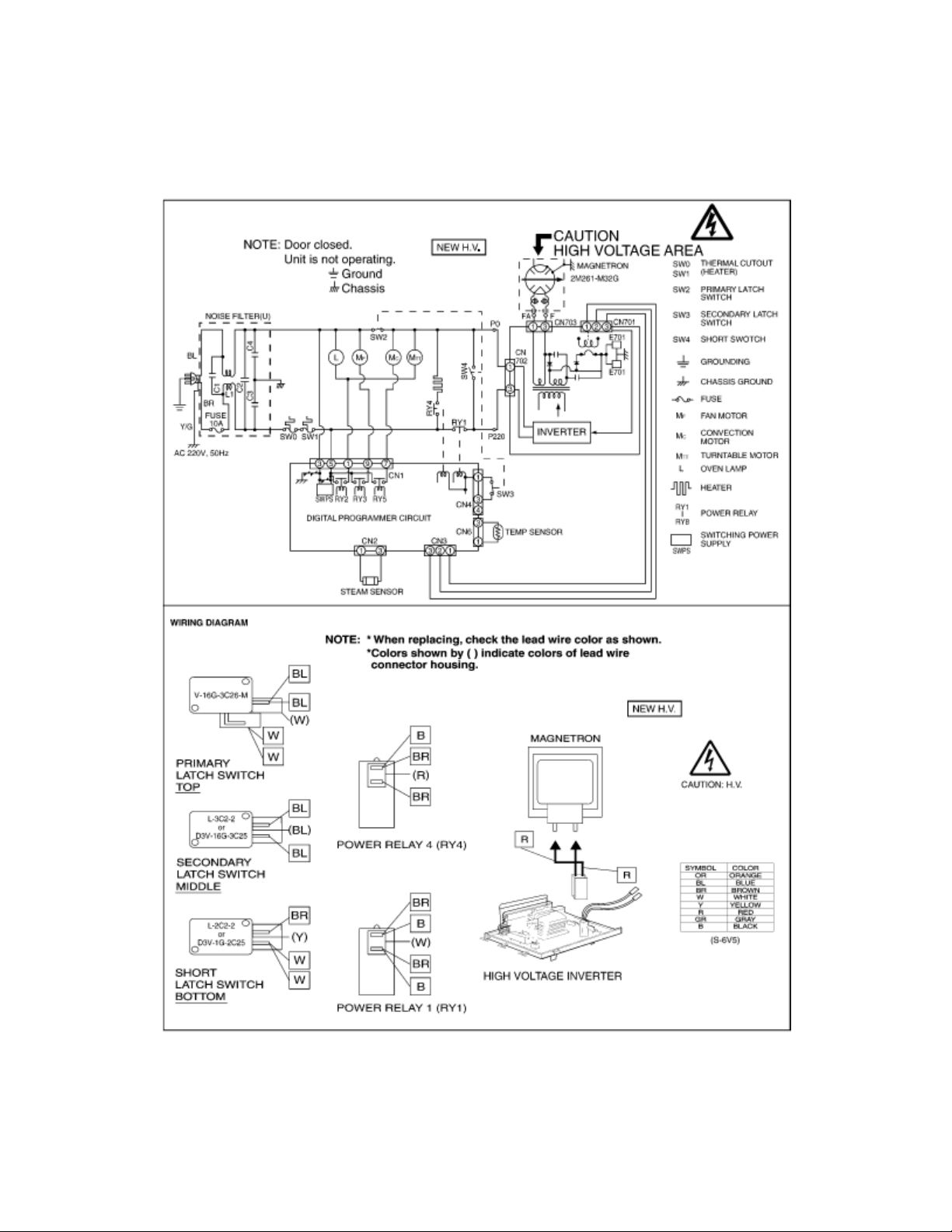

1.2NNC784MF(ZPE)

TOPPREVIOUSNEXT

6/17/2017 SCHEMAT1.gif(538×723)

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

1/1

6/17/2017 SCHEMAT2.gif(538×722)

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

1/1

6/17/2017 s0200000000x.html

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

1/1

2CAUTIONSTOBEOBSERVEDWHEN

TROUBLESHOOTING

TOPPREVIOUSNEXT

Unlikemanyotherappliances,themicrowaveovenisahighvoltage,highcurrentdevice.Itisfreefromdanger

inordinaryuse,thoughextremecareshouldbetakenduringrepair.

Caution

Servicemenshouldremovetheirwatcheswheneverworkingclosetoorreplacingthemagnetron.

2.1Checkthegrounding

2.2Inverterwarnings

2.3Partreplacement.

2.4Whenthe10Afuseisblownduetotheoperationoftheshortswitch:

2.5Avoidinsertingnails,wireetc.throughanyholesintheunitduringoperation.

2.6Confirmafterrepair

2.7Sharpedges

TOPPREVIOUSNEXT

6/17/2017 s0202000000.html

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

1/2

2.2Inverterwarnings

TOPPREVIOUSNEXT

DANGER,HIGHVOLTAGEANDHIGHTEMPERATURE(HOT/LINE)OFTHE

INVERTERPOWERSUPPLY(U)

Thishighvoltageinverterpowersupplyhandlesveryhighvoltageandcurrentforthemagnetrontube.Thoughit

isfreefromdangerinordinaryuse,extremecareshouldbetakenduringrepair.

Thealuminumheatsinkisalsoenergizedwithhighvoltage(HOT),sodonottouchwhentheACinput

terminalsareenergized.ThepowerdevicesCollectorisdirectlyconnectedtothealuminumheatsink.

ThealuminumheatsinkmaybeHOTduetoheatenergy,therefore,extremecareshouldbetakenduring

servicing.

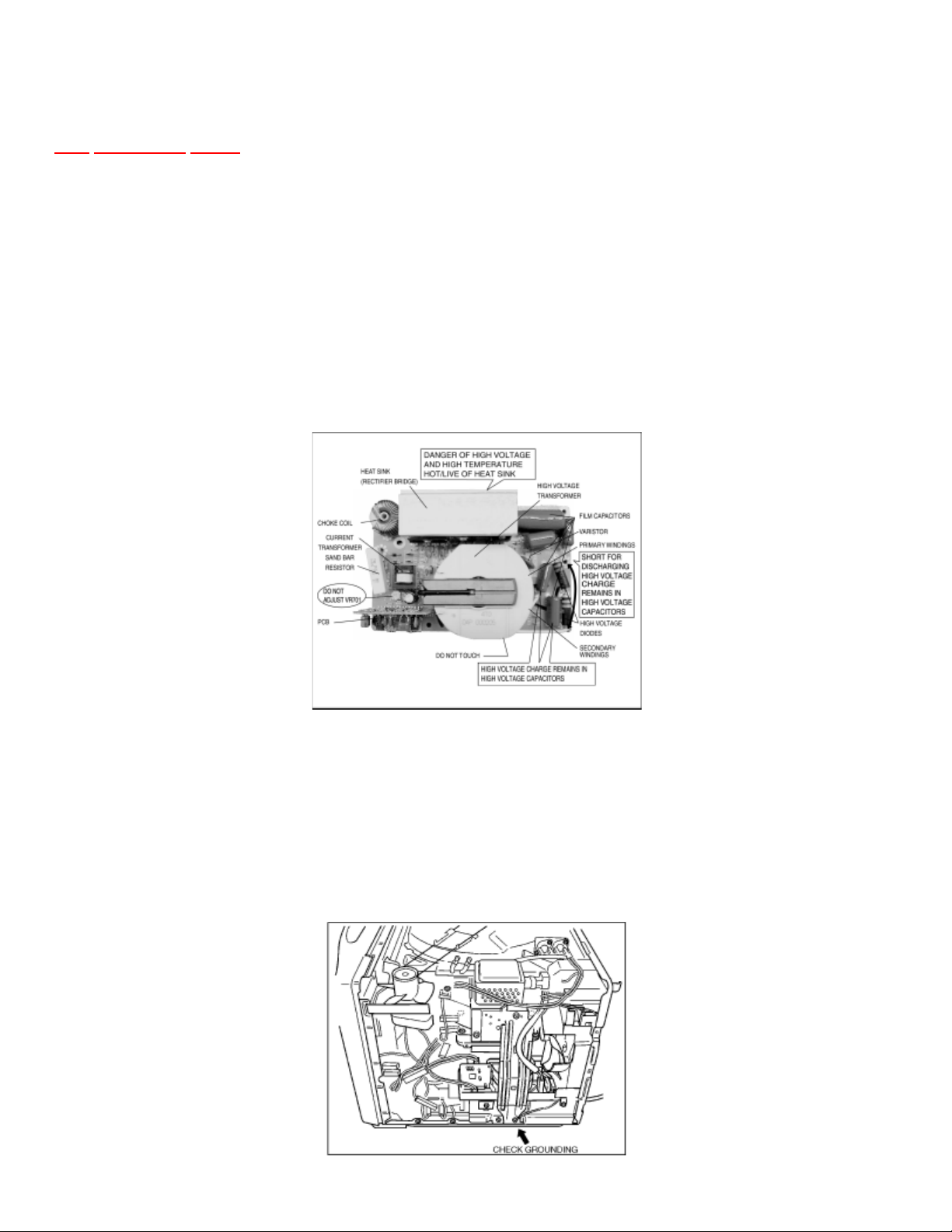

H.V.Inverterwarning

WARNINGFORINVERTERPOWERSUPPLY(U)GROUNDING

Checkthehighvoltageinverterpowersupplycircuitgrounding.Thehighvoltageinverterpowersupplycircuit

boardmusthaveaproperchassisground,theinvertergroundingbracketmustbeconnectedtothechassis.Ifthe

inverterboardisnotgroundeditwillexposetheusertoveryhighvoltagesandcauseextremeDANGER!Be

surethattheinvertercircuitisproperlygroundedviatheinverterearthbracket.

6/17/2017 s0202000000.html

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

2/2

Groundingoftheinvertercircuitboard

WARNING!DISCHARGETHEHIGHVOLATGECAPACITORS

Forabout30secondsaftertheovenisturnedoff,anelectricchargeremainsinthehighvoltagecapacitorsinthe

inverterpowersupplycircuitboard.

Whenreplacingorcheckingparts,removethepowerplugfromtheoutletandshorttheinverteroutputterminal

ofthemagnetronfilamentterminalstothechassisgroundwithaninsulatedhandlescrewdrivertodischarge.

Pleasebesuretotouchthechassisgroundsidefirstandthenshorttotheoutputterminals.

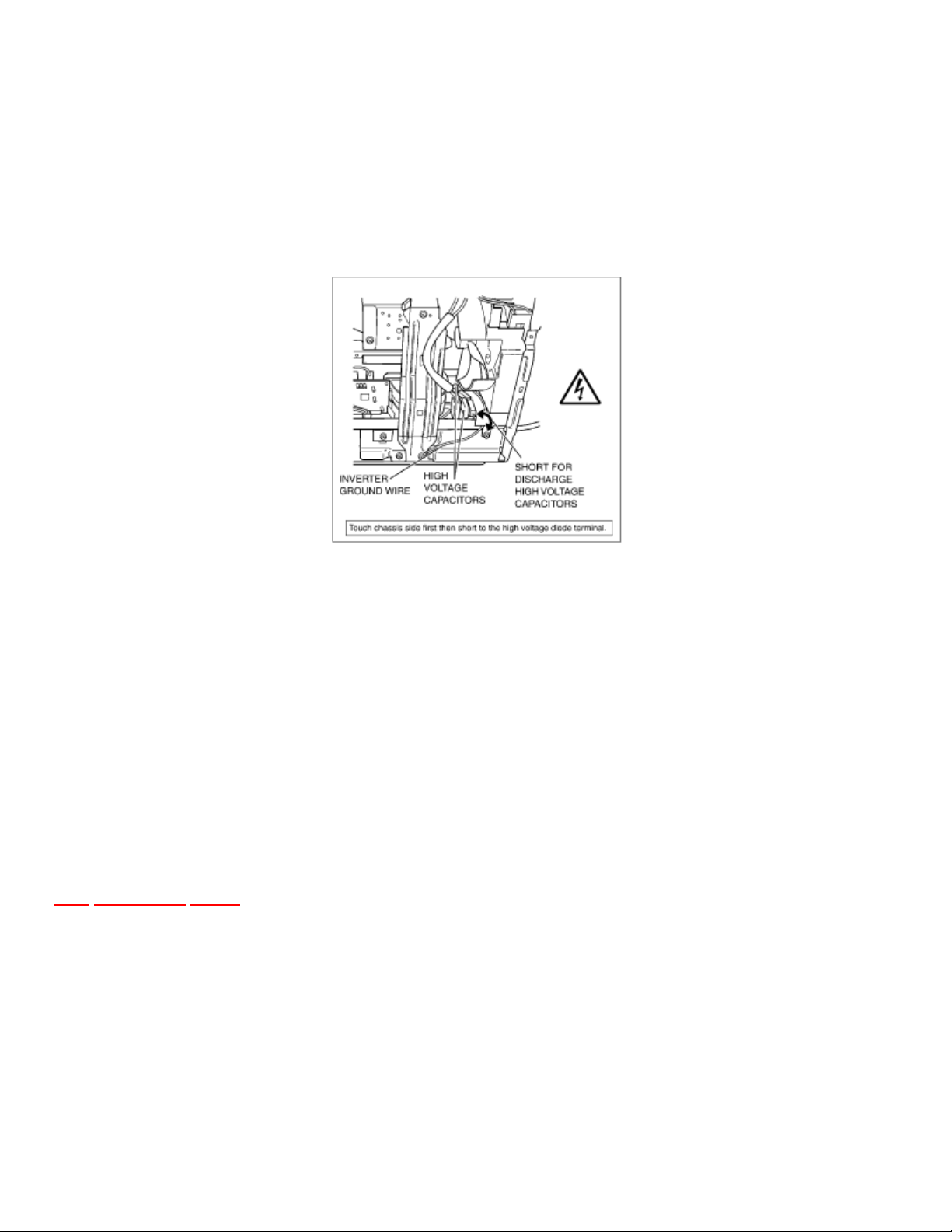

Dischargingthehighvoltagecapacitors

WARNING

Thereishighvoltagepresentwithhighcurrentcapabilitiesinthecircuitsoftheprimaryandsecondary

windings,chokecoilandheatsinkoftheinverter.Itisextremelydangeroustoworkonornearthesecircuits

withtheovenenergized.DONOTmeasurethevoltageinthehighvoltagecircuitincludingthefilamentvoltage

ofthemagnetron.

WARNING

Nevertouchanycircuitwiringwithyourhandorwithaninsulatedtoolduringoperation.

TOPPREVIOUSNEXT

6/17/2017 s0203000000.html

file://royalfs/Service/Technical/ssvvcc/Dehghani%20%20Map/panasonic%20map/macro/cofard%20(E)/nnc784mf/viewing/SGML_VIEW_DATA/OT/NNC784M…

1/1

2.3Partreplacement.

TOPPREVIOUSNEXT

Whenanypartorcomponentistobereplaced,alwaysensurethatthepowercordisremovedfromthewall

outlet.

TOPPREVIOUSNEXT
