Panasonic NN-L750WB Manuale utente

Order Number MOP00100019C2

Microwave Oven

NN-L750WB / NN-L760WB

27L

WHITE

EPG Continental Europe

UPG France

SPECIFICATIONS

1

2

2000 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.

Unauthorized copying and distribution isaviolation of law.

3

1. Inverter Warning

The inverterboardlooks like a regularPCB, however, this PCB drives the magnetron tube using

veryhigh voltages and current.

It has

1. Veryhigh voltage and high current

2. AnAluminium heat sink that becomes veryhot

3. The capacitors on the inverter circuitwill containahigh voltage

charge even when the oven isnot operating.

Donot

1. Donot touch the circuitryas itcontains veryhigh voltages. When

replacing the board please take extreme care to avoidpossible

electricshock. High voltages mayremaininthe circuit.

2. Donot touch the aluminium heat sink as itwill become veryhot. It

also contains high voltages.

3. Donot attempt to repairthe inverter PCB as thiscan be very

dangerous. Replace the high voltage inverter circuitas acomplete

unit. Return the oldunitfullyrepacked inthe original shipping

box and completed paper work.

4. Donot adjust or tamper with the preset volume on the inverter

board. Itisverydangerous to adjust thispreset without proper

test equipment.

5. Donot test the oven whilethe inverter grounding stripor screws

are loose. Itisverydangerous to operate the inverter circuitboard

with out aproper ground connection.

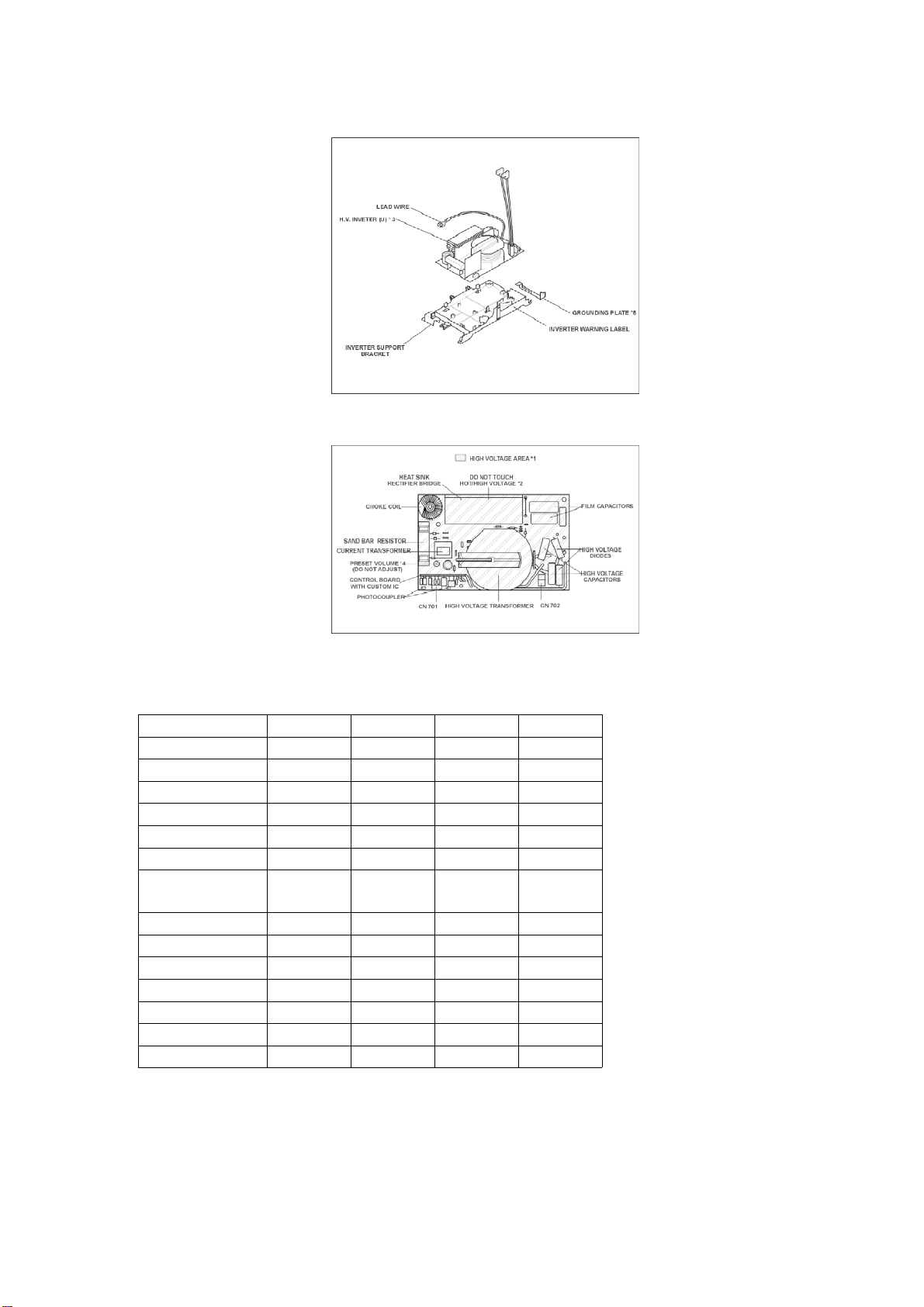

Figure 1

4

InverterPowerSupplyDiagram

Figure 2

InverterLayout

2. Feature Chart

NN-750WB NN-750WB NN-760WB NN-760WB

Function EPG UPG EPG UPG

Microwave 4 4 4 4

Grill 1 1 1 1

Convection 17 17 17 17

Combination Yes Yes Yes Yes

Weight Defrost 2 2 2 2

Weight

Combination 8855

Weight Reheat 1 1 - -

Weight Cook 2 2 2 2

Weight Crisp - - 5 5

Stage Cooking 1 Stage 1 Stage 1 Stage 1 Stage

Delay/ Stand Yes Yes Yes Yes

Clock 24 Hour 24 Hour 24 Hour 24 Hour

WordPrompt *1 French *1 French

*1 None, Italian, Spanish, Dutch, French, Greek, Portuguese, Polish, English

3. Control Panels

5

4. Operation And Digital Programmer Circuit Test

Procedure

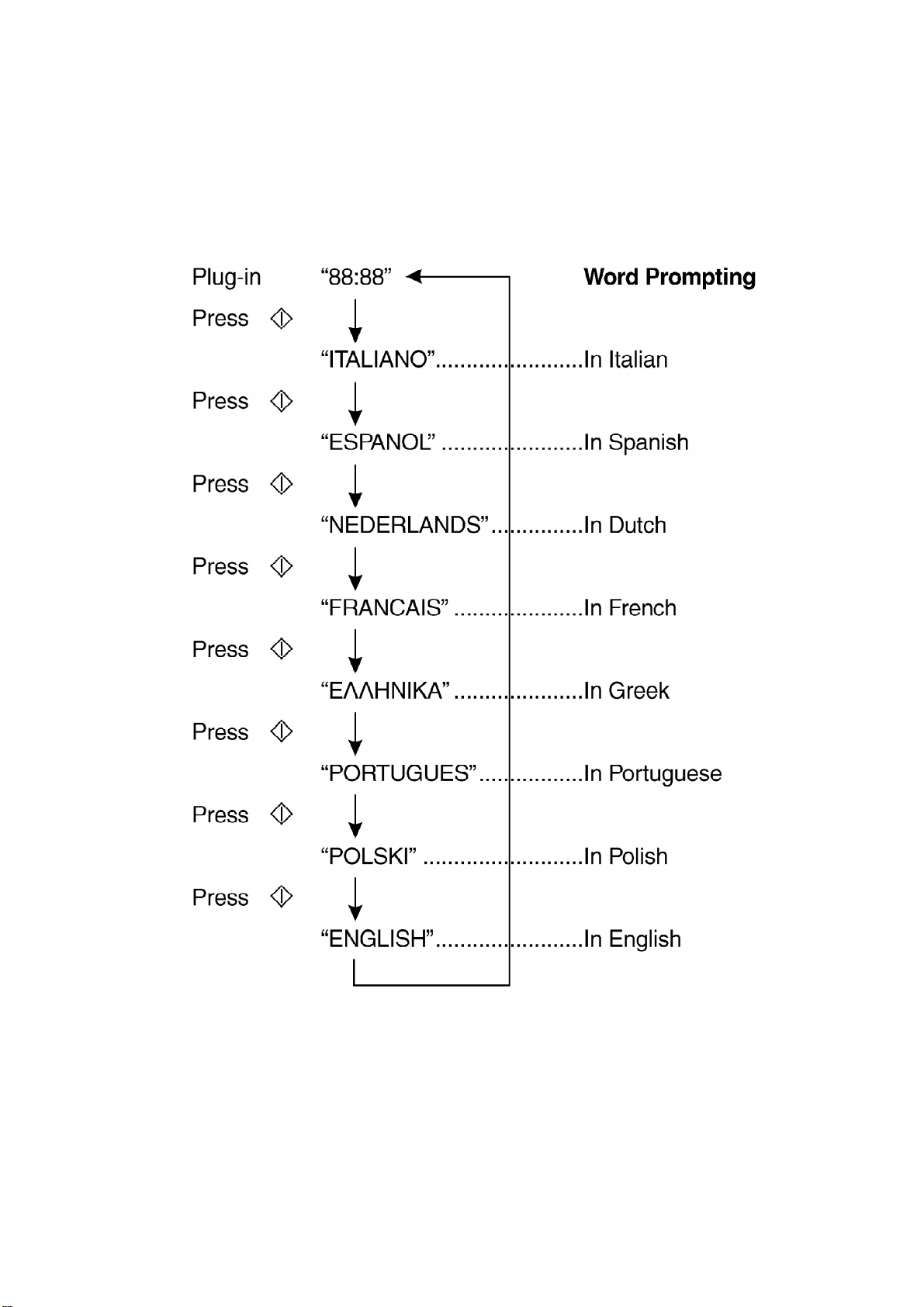

4.1. Word Prompting

4.2. Setting the Clock

6

7

4.3. ChildSafetyLock

4.4. Microwave Cooking and Defrost

8

9

10
