Mechancial Parts List

Model No. : BT-LH80WP/E/MC,BT-YA80G/MC,BT-CS80G/MC

CONTENTS

CASING PARTS ASSEMBLY..........................................................................................................MPL-1

PACKING PARTS ASSEMBLY (BT-LH80WP/E/MC)......................................................................MPL-3

PACKING PARTS ASSEMBLY (BT-YA80G/MC)............................................................................MPL-5

PACKING PARTS ASSEMBLY (BT-CS80G/MC)............................................................................MPL-7

1-1

101

-1

101

11 12

101

24 26

CASING PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

MPL-1

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYP9234 FRONT CASE U 1

1-1 VGM2237 FRONT CASE 1

1-2 VGH4963 OPERATION SHEET 1

1-3 VGL1076 FRONT PANEL LIGHT 2

1-4 XNKV0001 NUT 4

1-5 VMT1839 TALLY SHADING SHEET A 1

2 VKW3356 PROTECT SHEET 1

3 VWJ00H8 FFC 1 40PIN 120MM

4 VEK0L45KIT LCD PANEL KIT 1

4-1 VMT1829 LCD CUSHION SH 2

4-2 VMT1830 LCD CUSHION SV 2

4-3 VMT1832 LCD CUSHION TV 2

4-4 VMT1831 LCD CUSHION TH 2

4-5 VMT1841 LCD SHADING TAPE 1

5 VMT1840 TALLY SHADING SHEET B 1

6 VMT1838 LCD SHADING SHEET 1

7 VMP8867 LCD FRAME B 1

8 VMP8869 LCD FRAME R 1

9 VMP8868 LCS FRAME L 1

10 VMP8875 TALLY SHADING FRAME 1

11 VMP8960 PROTECT SHEET FIXING FRAME 1

12 VMP8866 LCD FRAME T 1

13 VSC5987 BOARD SPRING 1

14 VJF1535 COATING CLIP 1

15 VMP8865 BASE FRAME 1

16 VMT1834 RADIATION SHEET B 1

17 VMT1833 RADIATION SHEET A 1

18 VSC5986 HEAT SINK 1

19 N0GE1C000002 INVERTER U 1

20 VMZ3716 INSULATOR SHEET 1

21 VHN0387 SCREW SPACER 1

22 VGL1247 BACK TALLY 2

23 VGM2238 BACK CASE 1

24 VEE1D88 ANTON CABLE 1

25 J0KG00000032 FERRITE CORE 1

26 VGH4965 BATTERY WIRE SHEET 1

27 VJF1347S ANTON BRACKET 1

101 XYN26+J6FJ SCREW 23

102 XSB3+10FJK SCREW 11

103 XSB26+4FJ SCREW 2

104 XYN26+J8FJ SCREW 2

105 VHD1773 SCREW 2

E1 VEP18118A LCD MAIN P.C.BOARD 1

E2 VEP10128A LCD SW P.C.BOARD 1

E3 VEP10129A LCD TALLY P.C.BOARD 1

CASING PARTS ASSEMBLY

MPL-2

MC only

P only

VQL

LCD Video Monito

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

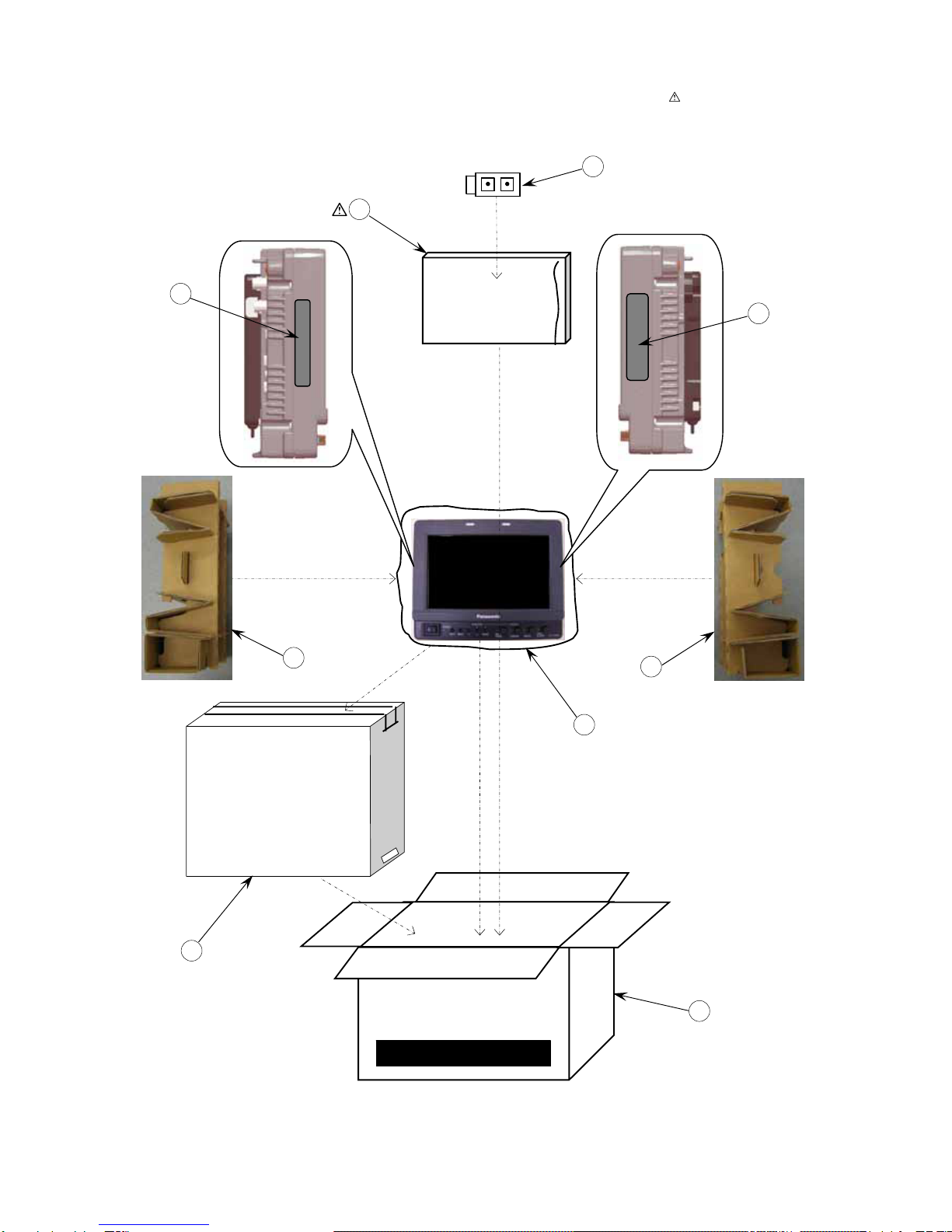

PACKING PARTS ASSEMBLY (BT-LH80WP/E/MC)

MPL-3

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VQT1H75 OPERATING INSTRUCTIONS 1 FOR BT-LH80WP

1 VQT1H76 OPERATING INSTRUCTIONS 1 FOR BT-LH80WE

1 VQT1H77 OPERATING INSTRUCTIONS 1 FOR BT-LH80WMC

2 VEJ2290 BATTERY MOUNT TERMINAL BLOCK 1

3 VPN6594 SHOCK ABSORBING CUSHION L 1

4 VPN6595 SHOCK ABSORBING CUSHION R 1

5 VPF0672 CUSHION 1

6 VQL1P70 MERCURY CONTENT WARNING LABEL 1

7 VPG1N96 PACKING CASE 1 FOR BT-LH80WP

7 VPG1N95 PACKING CASE 1 FOR BT-LH80WE

7 VPG1N90 PACKING CASE 1 FOR BT-LH80WMC

8 VQL1P69 FCC/DOC/PRO LABEL 1 FOR BT-LH80WP ONLY

9 VPG1N89 PACKING CASE 1 FOR BT-LH80WMC ONLY

PACKING PARTS ASSEMBLY (BT-LH80WP/E/MC)

MPL-4

MC ONLY

MPL-5

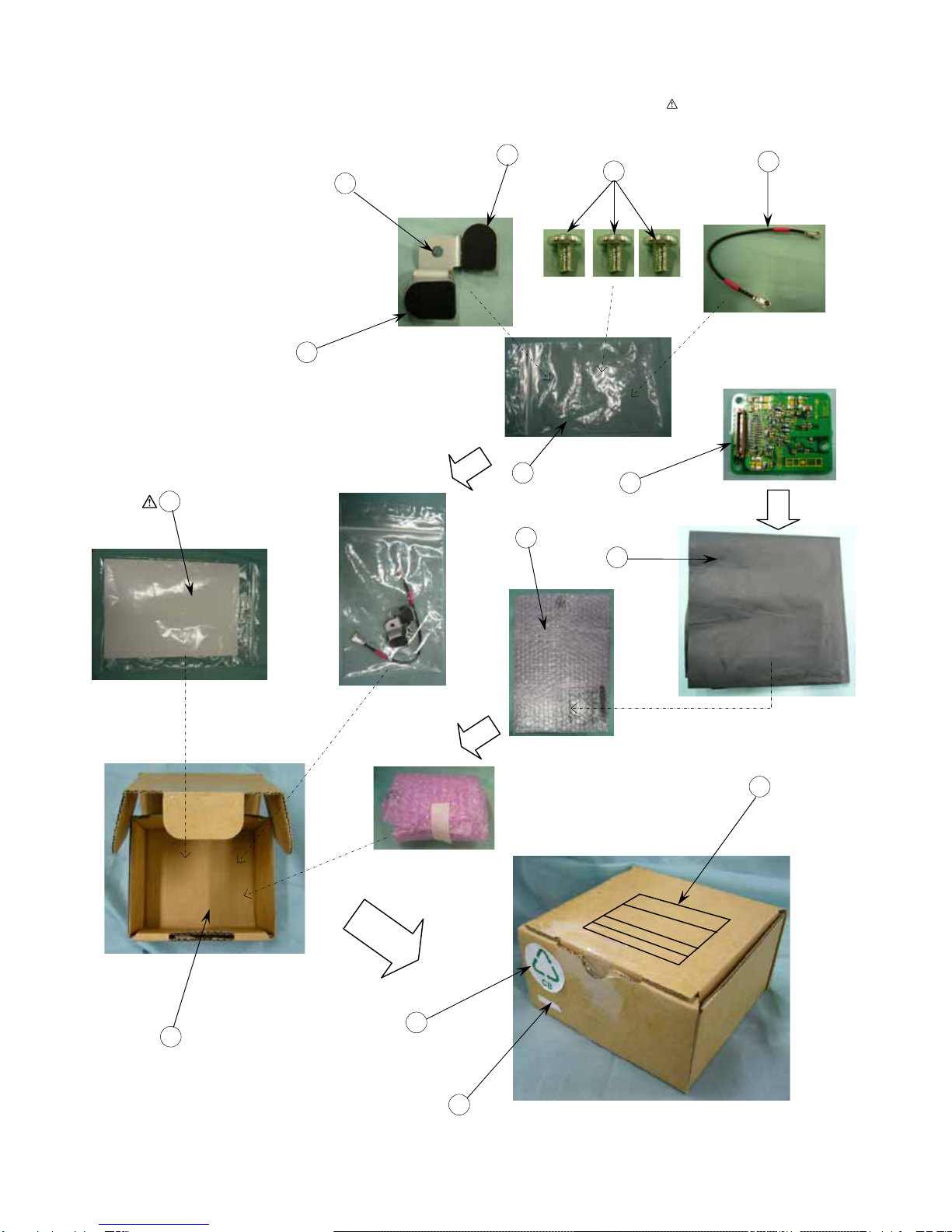

PACKING PARTS ASSEMBLY (BT-YA80G/MC)

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VMP8878 SDI WIRE STOPPER FRAME 1

2 VMT1435 CONNECTOR CUSHION 2

3 K1TZB9A00049 SDI CABLE (RED) 1

4 XSB26+4FJ SCREW 3

5 VPF1016 POLYETHYLENE BAG 1

6 VPF0462 POLYETHYLENE BAG 1

7 VPF0678 AIR CAP 1

8 VQT1H78 OPERATING INSTRUCTIONS 1 FOR BT-YA80G

8 VQT1H79 OPERATING INSTRUCTIONS 1 FOR BT-YA80MC

9 VPG3121 PACKING CASE 1

10 VQL1N86 PACKING LABEL 1 FOR BT-YA80G

10 VQL1N94 PACKING LABEL 1 FOR BT-YA80MC

11 VQL4821 PACKING LABEL 1

12 VQL1N13 CB LABEL 1 FOR BT-YA80MC ONLY

E1 SDU OPTION P.C.BOARD 1

PACKING PARTS ASSEMBLY (BT-YA80G/MC)

MPL-6

MC ONLY

PACKING PARTS ASSEMBLY (BT-CS80G/MC)

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

MPL-7

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VQT1E85 OPERATING INSTRUCTIONS 1 FOR BT-CS80G

1 VQT1E93 OPERATING INSTRUCTIONS 1 FOR BT-CS80MC

2 VQL1N86 PACKING LABEL 1 FOR BT-CS80G

2 VQL1N94 PACKING LABEL 1 FOR BT-CS80MC

3 VPG3121 PACKING CASE 1

4 VQN1N13 CB CABLE 1 FOR BT-CS80MC ONLY

5 VQL4821 PACKING LABEL 1 (OUT)FOR BT-CS80MC ONLY

PACKING PARTS ASSEMBLY (BT-CS80G/MC)

MPL-8
