Natural-like 3D effect

Bright and flicker-free image

Parallax adjustment function

Compatibility with popular 3D formats

Switchable between 2D and 3D

EJ-MDA32E-K

3D Medical Full HD

LCD Monitor

Natural-like 3D eect

Excellent 3D eect and image quality are best suitable for end oscopic surgery allowing quick recognition of aected areas an d

smooth saturation procedures. Bright icker-free images throug h light weight 3D glasses greatly reduce 3D related nausea and

eye fatigue. Fine adjustment of 3D eect is possible with inc luded parallax adjustment function.

Excellent image quality

Advanced IPS (In-Plane-Switching) technology allows accurate co lor reproduction and consistent performance not aected by

environment of usage, which improves eciency in operation p rocedures in combination with better visibility with large scre en and

full-screen display mode function.

Flexible switching to 2D

Panasonic's medical 3D LCD monitor features exible selection from 2D/3D modes and multiple display modes via OSD,

function key, GPI and RS232C interfaces.

Enter the world of Panasonic

3D Medical Images

The new Medical 3D Full HD LCD Monitor makes an

incredible viewing experience for surgeons possible.

Take advantage during more complicated surgeries

as well as medical trainings and increase eciency

through an optimum of three-dimensional orienta-

tion. The natural-like 3D eect and excellent image

quality is suitable for endoscopic surgery as well as

microscopy. Due to light weight polarized glasses a

good wearability is assured in any situation.

Medical 3D LCD Monitor: EJ-MDA series

3D Feature

∙ Technology: Passive 3D with Xpol ®polarization lter

∙ Compatible 3D Input Format:

∙ 3D Input Terminal: HD-SDI / DVI-D

∙ 3D Function: Odd/even line selection / Parallax adjustment

∙ 3D displayable Input Signal:

1080/60p(DVI), 1080/50p(DVI), 1080/30p, 1080/25p, 1080/24p, 1080/24PsF

1080/60i, 1080/50i, 720/60p, 720/50p

Xpol is registered trademark of Arisawa Co., Ltd

Line-by-line Top & bottom

Side-by-side

Dual stream

Authorized Dealer

General EJ-MDA32U-K

Power (Internal) AC100-120/200-240V±10% 50/60Hz

Power Consumption 100V-240V / 1.44A-0.64A

Dimensions (HxWxD) 473 x 776 x 114 mm

Weight 15 kg

Cabinet Color Front: Black / Back: White

Image Specications

Size (Diagonal) 32.0“ (81 cm)

LCD Panel IPS-Pro

View Area 698 x 393 mm

Aspect Ratio 16:9

Pixel 1920 x 1080

Number of Colors 16.77 million

View Angle (2D mode) V:178 H:178; (3D mode) V: 26-28 (typ) H:178

Luminance 400 cd/m2 (typ.)

Contrast 1000:1 (typ.)

Response Speed

Rise: Black > White

Fall: White > Black

8 ms (typ.) / 6 ms (typ.)

Features

IPS Wide view angle with IPS panel

HD Dual Input HD-SDI 2 input / DVI-D 2 input: independent display mode

Reverse Display 180°/90°/270° rotation

Still Mode Temporary still mode

OSD Language English / Spanish / Italian / German / French

Image processing 10bit

Input

HD/SD-SDI 2 input, BNC x 2

DVI-D 2x 24 pin input / input 1: with HDCP; input 2: without HDCP

HD15 1 input, Dsub 15 pin

YPbPr/RGB 1 input, BNC x 5, Y/G, Pb/B, Pr/R, CSYNC/HD, VD

Video 1 input, BNC x 1

Y/C 1 input, miniDin 4 pin x 1

Output

HD/SD-SDI 2 output, BNC x 2

DVI-D 1 output without HDCP

YPbPr/RGB 1 ouput, BNC x 5, Y/G, Pb/B, Pr/R, CSYNC/HD, VD

Video 1 output, BNC x 1

Y/C 1 output, miniDin 4 pin x 1

Remote

RS232C 1 connector, Dsub 9 pin

GPI 1 GPI

Frequency

Frequency Horizontal: 31.4 ~ 75 kHz, Vertical: 56.2 ~ 85.1 kHz

Dot Clock 25.1– 162 MHz

Signal Level

HD/SD-SDI 800 mV ± 10%

DVI-D TMDS single link

HD15 R/G/B: 0.7 Vpp, HD/VD: TTL

YPbPr/RGB R/G/B: 0.7 Vpp, HD/VD: TTL, Y:1 Vpp, Pb: 0.7 Vpp, Pr: 0.7 Vpp

Video Video 1 Vpp

Y/C Y: 1 Vpp, C: 0.286 Vpp (NTSC Burst), 0.3 Vpp (PAL Burst)

Mounting

VESA 200 x 200 mm

Compilance

EN60601-1, EN60601-1-2, CE(MDD)

Attachment

Access AC Cord

Operating Instructions Yes (English / Spanish / Italian / German / French)

3D Glasses Circular polarized glasses (not part of supply)

Data subject to change without notice. as at 2011

Medical 3D LCD Monitor Specication

Terminal

1Power supply

2S-Video-Input (4-pin, Mini, DIN)

3Video-Input (BNC-Type)

4Y/G-Input (BNC-Type)

5Pb/B-Input (BNC-Type)

6Pr/R

7SYNC/HD-Input (BNC-Type)

8VD-Input (BNC-Type)

9GPI-Input (D-Sub 9-pin)

10 HD 15-Input (Mini-D-Sub, 15-pin)

11 RS-232C-Input (D-Sub 9-pin)

12 SDI 1/2-Input (BNC-Type)

13 potential equalisation pin

14 DVI-D 1/2-Input (DVI-D)

15 Loop-Through SDI 1/2

16 Loop-Through DVI-D2

1 2

1615

4 6 83 5 7 9 10 11 12 1413

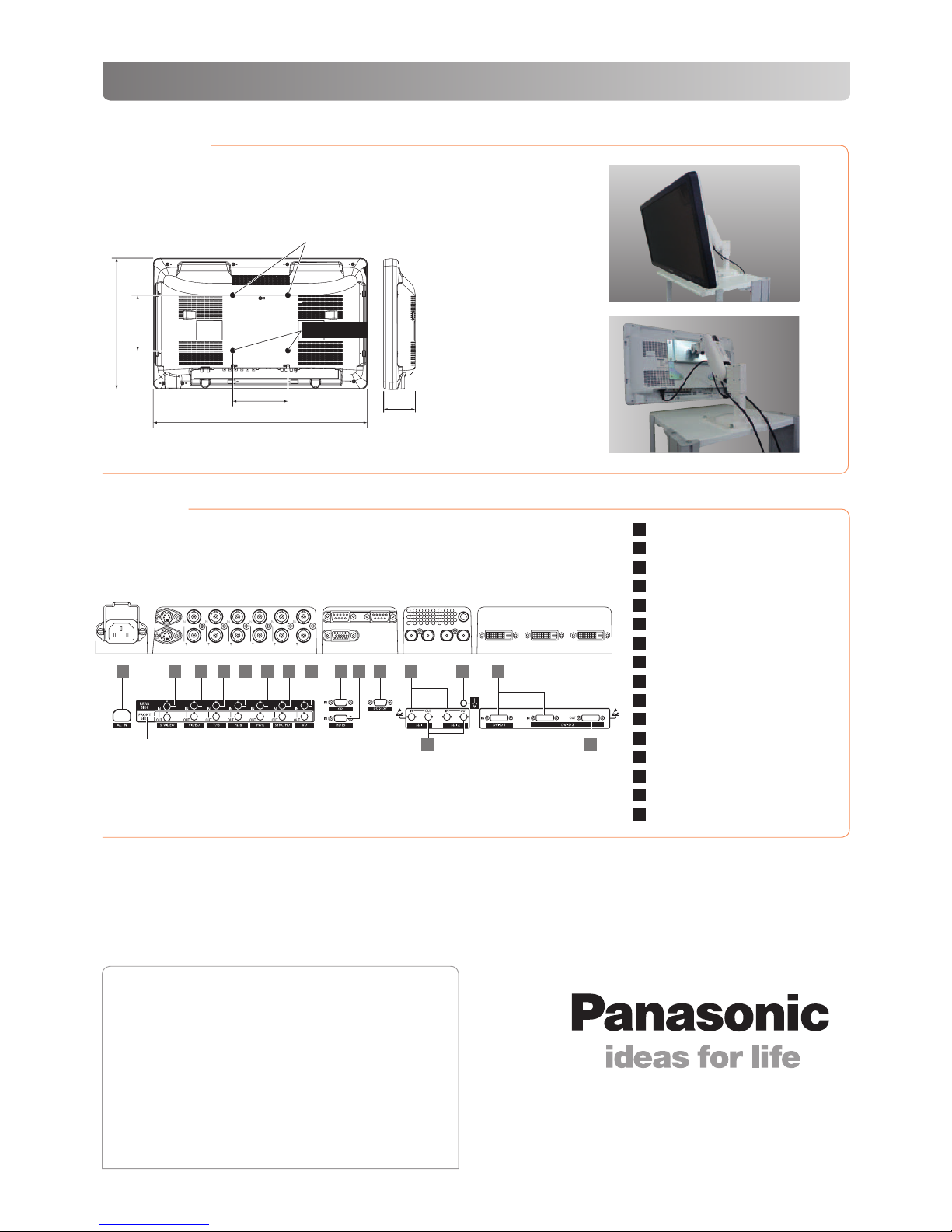

Appearance

Rear SideScrew holes

Screw holes

117

200

896

200

539

Unit: mm Front view

Back view

Authorized Dealer

5770 Ambler Drive 29, Mississauga, Ontario L4W 2T3

Tel: 905 238-2240 Fax: 800 363-3016

www.Panasonic.ca
