Panasonic WV-CK2020A - 20" CRT Display Manuale utente

Simple large screen monitor for a cost effective CCTV solution

Key Features

System Example

Standard Accessory

• CRT size: 55 cm (21") diagonal

• Viewable size: 51 cm (20") diagonal

• Horizontal Resolution: 500 TV lines at center

• Scanning: Interlace, 8 % over scan (typical)

• Color temperature: 9,300 °K (NTSC), 6,500 °K (PAL)

• Composite Video input: 1x Composite Video Input (BNC) with auto

termination loop through output (BNC)

• S-Video input: 1x S-Video input (NTSC only)

• Audio input: 1x –8 dB / Hi-Z, (RCA pin jack) with loop through output

(RCA pin jack)

• Speaker: 0.7 W

• Adjustment using OSD setup menu: BRIGHT, CONTRAST,

PICTURE, COLOR, TINT (NTSC only) by setup menu

• Multi-language setup menus: English, French, German

• Cost effective plastic cabinet

51 cm (20") Color CRT Monitor

WV-CK2020 Series

• Operating Instructions .................. 1 pc.

The WV-CK2020 is a cost effective CRT monitor. The 51 cm viewable size screen allows easier monitoring and multi-

split screen when used with Panasonic digital recorders. With 500 TV lines of horizontal resolution even small details

are clear and faithfully reproduced.

WV-CK2020A (120 V AC) WV-CK2020 (220 ~ 240 V AC)

WV-CP480 Series x 8

WV-CK2020 Series

Digital Disk Recorder

WJ-HD316A LAN/WAN

Internet

Ethernet

(10Base-T/100Base-TX)

CH9 CH16

WV-CW960 Series x 8

CH1 CH8

VIDEO output

WV-CK1420 Series

RGB output

System Controller

WV-CU650

WV-LC1900

http://panasonic.net/security/

Printed in Japan (2A-023AL)

Important

–Safety Precaution: carefully read the operating instructions and installation manual before using this product.

DISTRIBUTED BY:

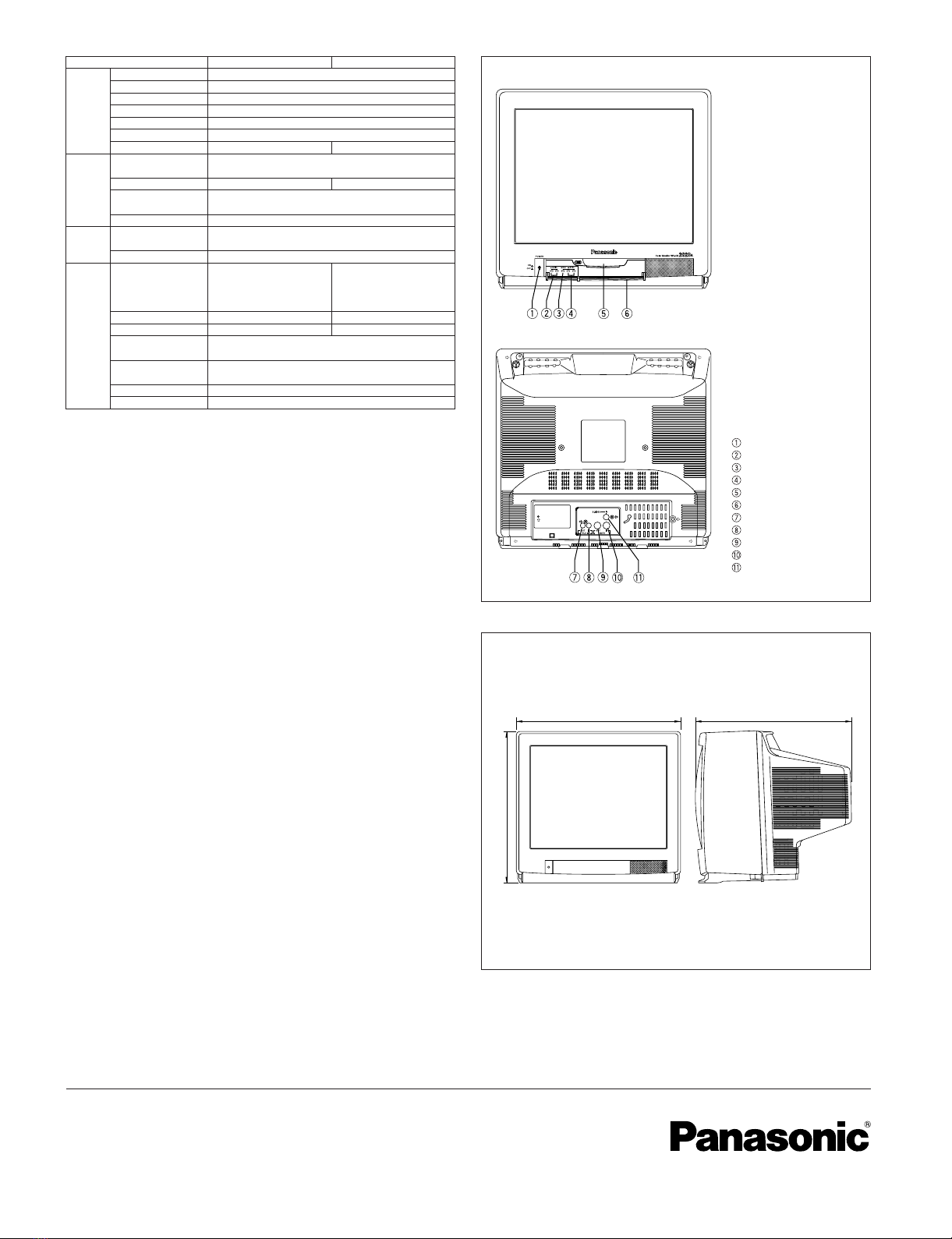

Specifications Part Names and Functions

Appearance

Front View

Rear View

Power Switch

Audio Control Buttons

Menu Button

Level Control Button

Power Indicator

Control Panel Cover

Audio Output Connector

Audio Input Connector

Video Output Connector

Video Intput Connector

S-Video Input Connector

(NTSC only)

TV System NTSC PAL

Display CRT Size 55 cm (21") diagonal

Viewable Size 51 cm (20") diagonal

Horizontal Resolution 500 TV lines at center

Sweep Linearity Horizontal: Less than 5 %, Vertical: Less than 5 %

Sweep Geometry Less than 2 %

Scanning Interlace, 8 % over scan (typical)

Color Temperature 9,300 °K 6,500 °K

Input / Composit Video Input 1x Composite Video Input (BNC) with

Output auto termination loop through output (BNC)

S-Video Input 1x S-Video Input –

Audio Input 1x –8 dB / Hi-Z, (RCA pin jack) with

loop through output (RCA pin jack)

Speaker 0.7 W

Controls Adjustment BRIGHT, CONTRAST, PICTURE, COLOR,

TINT (NTSC only) by setup menu

Setup Menu Language English, French, German

General Safety/EMC Standard UL (1492),

CE (EN60065, EN55022 ClassB,

FCC (Part15 ClassA), EN55024)

C-UL (No.1-94),

DOC (ICES003 ClassA)

Power Source 120 V AC, 60 Hz 220 ~ 240 V AC, 50 Hz

Power Consumption approx. 75 W approx. 80 W

Ambient Operating –10 °C ~ +50 °C (+14 °F ~ +122 °F)

Temperature

Ambient Operating Less than 90 % (without condensation)

Humidity

Dimensions (W x H xD) 509 mm x 467 mm x 480 mm (20-1/16" x 18-3/8" x 18-7/8")

Weight 21 kg (46.3 lbs.)

480(18-7/8")

467(18-3/8")

509(20-1/16")

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

Unit: mm (inches)
