Panasonic WV-CM1020 Manuale utente

Rack-mountable Compact Color CRT Monitor

Key Features

Optional Accessory

EIA19 inch Rack Mount Bracket

WV-Q52A

(up to two monitors)

Standard Accessories

• CRT size: 25 cm (10") diagonal

• Viewable size: 22 cm (9") diagonal

• Horizontal Resolution: 300 TV lines at center

• Scanning: Interlace, Horizontal 8 %, Vertical 6 % over scan (typical)

• Color temperature: 9,300 °K (NTSC), 6,500 °K (PAL)

• Composite Video input: 2x Composite Video Inputs (BNC) with auto

termination loop through outputs (BNC)

• Audio input: 1x –8 dB / Hi-Z, (RCA pin jack) with loop through output

(RCA pin jack)

• Speaker: 0.5 W

• Adjustment using OSD setup menu: BRIGHT, CONTRAST,

PICTURE, COLOR, TINT (NTSC only) by setup menu

• Multi-language setup menus: English, French, German (PAL only),

Spanish (NTSC only)

• Heavy duty metal cabinet

• Rack-mountable using optional rack mount bracket WV-Q52A.

22 cm (9") Color CRT Monitor

WV-CM1020

• Operating Instructions .................. 1 pc.

• Power Cord .................................. 1 pc.

The WV-CM1020 is a compact CRT monitor offering a 22 cm viewable size screen and 300 TV lines of horizontal

resolution. Using multiple units can form a Multiscreen with superior picture quality to Quad or 16 split screen using a

digital screen splitter. It is also a perfect choice for a console-mounted monitor, a space-saving solution for multi-

camera installations. The metal cabinet is ideal for heavy-duty environments, and with the optional Rack Mount

Bracket WV-Q52A, it fits perfectly into an EIA 19 inch Rack, enabling use in a machine room for maintenances etc.

The On Screen Display makes image adjustment easy with a choice of English, French or German.

Its picture quality, reliability and installation flexibility make it one of the well-accepted CCTV monitors in the market.

WV-CM1020 (120 V AC) WV-CM1020 (220 ~ 240 V AC)

Important

–Safety Precaution: carefully read the operating instructions and installation manual before using this product.

DISTRIBUTED BY:

http://panasonic.net/security/

Printed in Japan (2A-022AA)

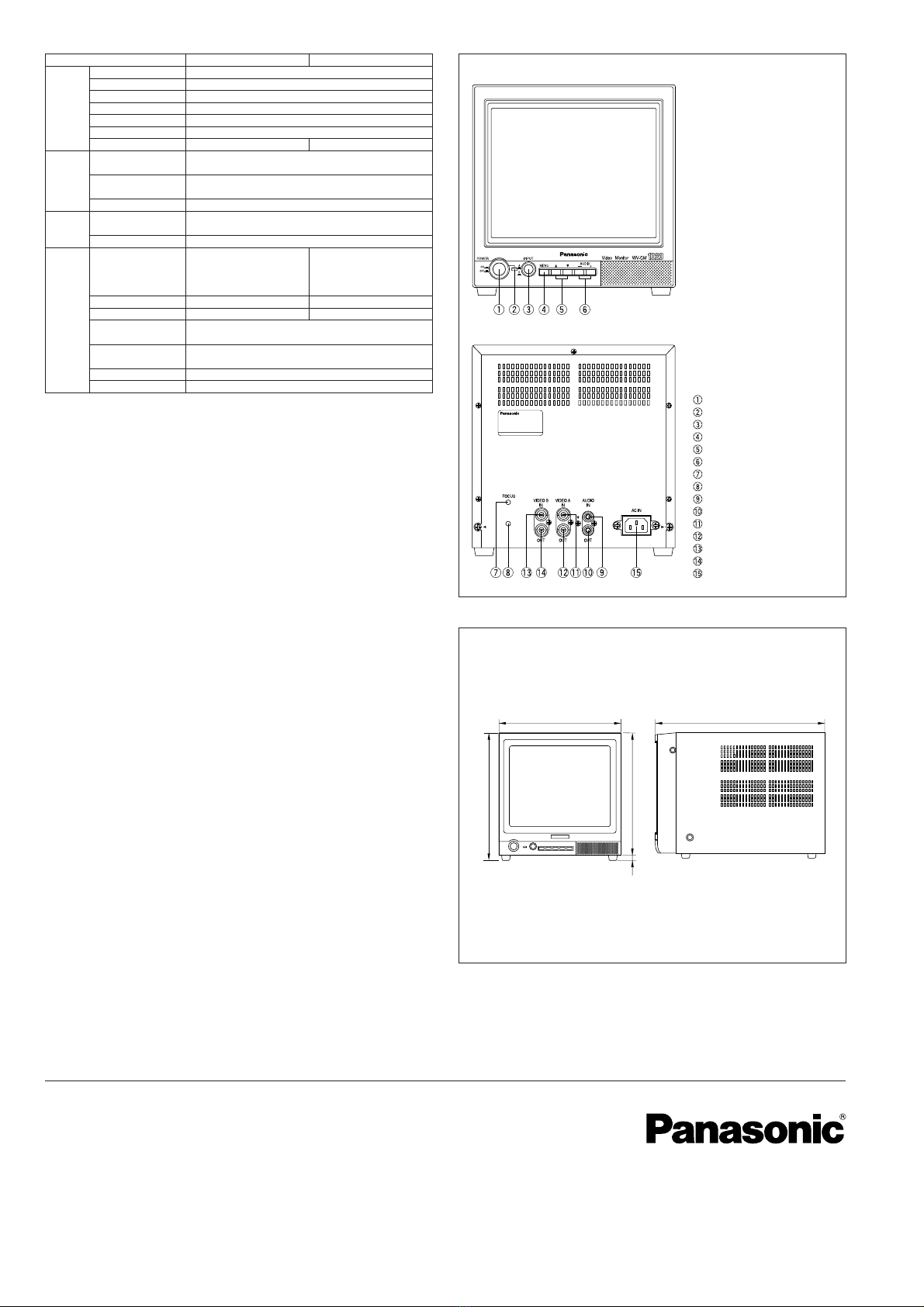

Specifications

Appearance

TV System NTSC PAL

Display CRT Size 25 cm (10") diagonal

Viewable Size 22 cm (9") diagonal

Horizontal Resolution 300 TV lines at center

Sweep Linearity Horizontal: Less than 5 %, Vertical: Less than 5 %

Sweep Geometry Less than 2 %

Scanning Interlace, Horizontal 8 %, Vertical 6 % over scan (typical)

Color Temperature 9,300 °K 6,500 °K

Input / Composit Video Input 2x Composite Video Inputs (BNC) with

Output auto termination loop through outputs (BNC)

Audio Input 1x –8 dB / Hi-Z, (RCA pin jack) with

loop through output (RCA pin jack)

Speaker 0.5 W

Controls Adjustment BRIGHT, CONTRAST, PICTURE, COLOR,

TINT (NTSC only) by setup menu

Setup Menu Language English, French, German (PAL only), Spanish (NTSC only)

General Safety/EMC Standard UL (6500),

CE (EN60065, EN55022 ClassB,

FCC (Part15 ClassA), EN55024)

C-UL (E60065),

DOC (ICES003 ClassA)

Power Source 120 V AC, 60 Hz 220 ~ 240 V AC, 50 Hz

Power Consumption approx. 48 W approx. 47 W

Ambient Operating –10 °C ~ +50 °C (+14 °F ~ +122 °F)

Temperature

Ambient Operating Less than 90 % (without condensation)

Humidity

Dimensions (W x H x D) 220 mm x 229 mm x 309 mm (8-11/16" x 9-1/32" x 12-3/16")

Weight 6.5 kg (14.3 lbs.)

220(8-11/16")

229(9-1/32")

220(8-11/16")

9(3/8")

309(12-3/16")

Part Names and Functions

Front View

Rear View

Power Switch

Power Indicator

Input Signal Select Switch

Menu Button

Cursor Buttons

Increment/Decrement Buttons

Focus Control

Screen Control

Audio Input Connector

Audio Output Connector

Video A Input Connector

Video A Output Connector

Video B Input Connector

Video B Output Connector

AC Connector

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

Unit: mm (inches)
