Panasonic CQ-C3302N Manuale utente

ORDER NO. ACED060611C3

AUTOMOTIVE AFTERMARKET

CQ-C3302N

WMA MP3 CD Player/Receiver

SPECIFICATIONS

Specifications*

General

Power Supply DC 12V (11V - 16V),

Test Voltage 14.4V

Negative Ground

Current Consumption Less than 2.2A (CD mode ; 0.5W

4-channels)

Maximum Power Output 50W×4 (at 4 )

Power Output 22Wx4 (DIN45 324, at 4 )

Tone Adjustment Range Bass ; ±12dB at 100Hz

Treble ; ±12dB at 10kHz

Speaker Impedance 4-8

Pre-Amp Output Voltage 2.5V (CD mode)

Pre-Amp Output Impedance 200

FM Stereo Radio

Frequency Range 87.5MHz - 108MHz

Usable Sensitivity 6dB/ V (S/N 30dB)

Stereo Separation 35db (at 1kHz)

AM (MW) Radio

Frequency Range 531kHz - 1,602kHz

Usable Sensitivity 27dB/ V (S/N 20dB)

AM (LW) Radio

Frequency Range 153kHz - 279kHz

Usable Sensitivity 32dB/ V (S/N 20dB)

CD Player

Sampling Frequency 8 Times Oversampling

DA Converter 1bit DAC System

Pick-Up Type Astigma 3-beam

Light Source Semiconductor Laser

Wave Length 790nm

Frequency Response 20Hz to 20kHz (±1dB)

Signal to Noise Ratio 96dB

Total Harmonic Distortion 0.01% (1kHz)

Wow and Flutter Below measurable limits

Channel Separation 75dB

Dimensions** 178×50×160mm

Weight** 1.4kg

* Specifications and the design are subject to possible

modification without notice due to improvements.

** Dimensions and Weight shown are approximate.

-Above specifications comply with EIA standards.

Unauthorized copying and distribution is a violation of law.

1. ABOUT LEAD FREE SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF stamp on the PCB.

Caution :

- Pb free solder has a higher melting point than standard solder; Typically

the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering

iron with temperature control and adjust it to 700 ± 20°F (370 ± 10°C). In

case of using high temperature soldering iron, please be careful not to

heat too long.

- Pb free solder will tend to splash when heated too high (about 1100°F/

600°C)

- This lead free solder will be used for the products after serial No.

1,000,001.

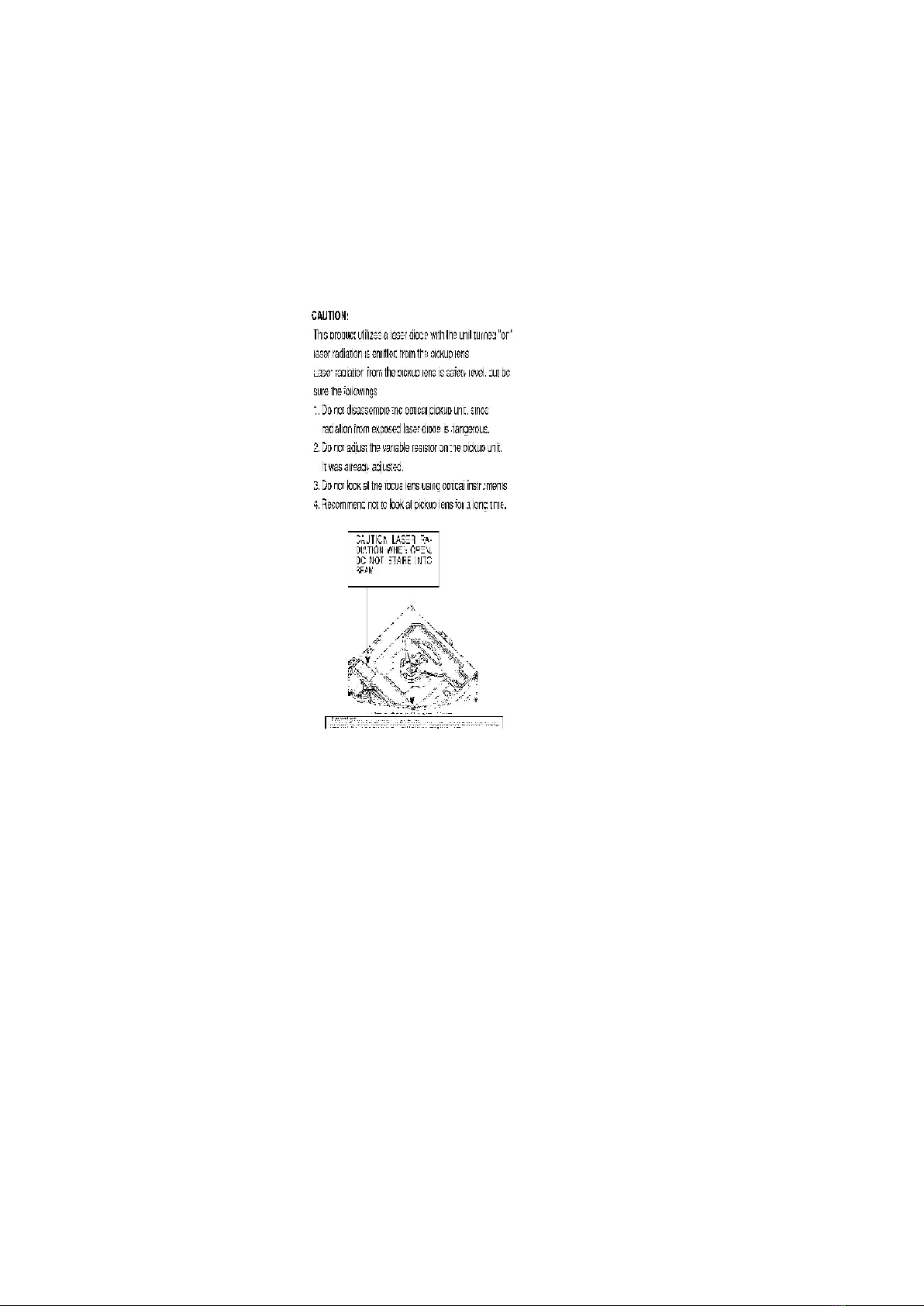

2. LASER PRODUCTS

3. FEATUERS

- Digital servo for reliable playback.

- PLL (Phase Locked Loop) synthesized tuning.

- 18-FM, 6-AM presets with preset scan.

- Removable face plate.

- MP3/WMA Playback from CD-R/RW.

4. REPLACING THE FUSE

Use fuses of the same specified rating (15amps). Using different substitutes or fuses with higher

ratings, or connecting the product directly without a fuse, could cause fire or damage to the stereo unit.

5. MAINTENANCE

Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry, a soft

cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

6. NOTES

[RADIO BLOCK]

Do not align the AM/FM package block. When the package block is necessary, it will be supplied already

aligned at the factory.

[CD DECK BLOCK]

This model has no servo alignment points because microcomputer controls the servo circuit.

7. DIMENSIONS

8. WIRING CONNECTION

9. TERMINALS DESCRIPTION

9.1. Main Block

IC601 : YESAM285

No.

Port Description I/O (V)

FM AM CD

1 (NC) - - - - -

2 VSM Radio signal

strength

I 0 0 0

3 SD/ST Radio station

detect

I 0.3 0 0.8

4 AVSS Ground - 0 0 0

5 SCL Audio control serial

clock

O 4.9 4.9 4.9

6 SDA Audio control data O 4.9 4.9 4.9

7 AVREF (Conecting to +5V) - 4.9 4.9 4.9

8 CD SO CD data output I 2.1 2.3 1.7

9 CD SI CD data input O 0 0 3.3

10 CD SCK CD clock O 4.7 4.7 4.7

11 CDC DATA/

XM-TX SO

CD changer data/

XM radio TX signal

I 0 0 0

12 XM-RX SI XM radio RX signal O 4.8 4.8 4.8

13 CDC CLK CD changer clock I 0 0 0

14 CDC REM CD changer remote O 4.8 4.8 4.8

15 BZ OUT Buzzer out O 4.4 4.4 4.4

16 LCD DO LCD data I 4.8 4.8 4.8

17 LCD DI LCD data O 4.7 4.7 4.7

18 LCD CLK LCD Clock O 4.8 4.8 4.8

19 CD AO CD mute I 0 0 4.8

20 CD RST CD reset O 4.8 4.8 4.8

21 CD STB CD strobe I 3.7 3.7 3.7

22 CDC SENS

(NC)

- - - - -

23 PLL DO PLL data I 4.9 4.9 4.9

24 PLL CLK PLL data clock O 4.8 4.8 4.8

25 PLL DI PLL data O 0 0 0

26 PLL CE PLL chip select O 0 0 0

27 (NC) - - - - -

28 (NC) - - - - -

29 (NC) - - - - -

30 (NC) - - - - -

31 (NC) - - - - -

32 (NC) - - - - -

33 VSS1 Ground - 0 0 0

34 RDS DATA RDS data I 2.8 0 0

35 S-LED LED control O 0 0 0

36 LCD CE LCD chip enable O 0 0 0

No.

Port Description I/O (V)

FM AM CD

37 LCD 5V

CNT

Display 5V control O 0 0 0

38 EJ ILL LED control (EJ/ILL) O 4.8 4.8 4.8

39 OP/CL Panel open/close

detect

I 4.9 4.9 4.9

40 (NC) - - - - -

41 EJECT EJECT switch I 4.9 4.9 4.9

42 ROTARY 1 Rotary encoder

input 1

I 4.8 4.8 4.8

43 ROTARY 2 Rotary encoder

input 2

I 4.7 4.7 4.7

44 (NC) - - - - -

45 (NC) - - - - -

46 PANEL Panel detection I 4.6 4.6 4.6

47 STBY Power IC stundby

control

O 4.8 4.8 4.8

48 EEPROM

(Not Used) - - - -

49 EEPROM

SK (NC)

- - - - -

50 EEPROM

DI (NC)

- - - - -

51 EEPROM

(Not Used) - - - -

52 CDC1/2

(NC)

- - - - -

53 INV CNT Illumination control O 4.8 4.8 4.8

54 AMP CNT Amp power control O 4.8 4.8 4.8

55 ANT CNT Antenna power

control

O 4.8 4.8 4.8

56 EXT.MUTE External mute O 4.8 4.8 4.8

57 MAIN CNT Main power control O 4.8 4.8 4.8

58 AMP MUTE Amp mute control O 4.8 4.8 4.8

59 AF MUTE AF mute control O 4.8 4.8 4.8

60 RESET Reset I 4.8 4.8 4.8

61 RDS CLK RDS clock I 2.8 2.8 2.8

62 (NC) - - - - -

63 (NC) - - - - -

64 RM DATA Remote control

data

I 4.8 4.8 4.8

65 BATT Battery voltage

detection

I 4.5 4.5 4.5

66 CDC STB/

/ XM DET

CD Changer strobe/

XM receiver

detection

I 4.8 4.8 4.8

67 VSS0 Ground - 0 0 0

68 VDD1 +5V power supply - 4.8 4.8 4.8

69 X2 Crystal oscillator - 2.9 2.9 2.9

No.

Port Description I/O (V)

FM AM CD

70 X1 Crystal oscillator - 2.3 2.3 2.3

71 TEST (TEST terminal) - 0 0 0

72 XT2 Crystal oscillator - 2.7 2.7 2.7

73 XT1 Crystal oscillator - 2 2 2

74 VDD0 +5V power supply - 4.9 4.9 4.9

75 AVDD +5V power supply - 4.8 4.8 4.8

76 INI A Mode setting A I 0 0 0

77 INI B Mode setting B I 4.8 4.8 4.8

78 ACC ACC detection I 4.9 4.9 4.9

79 (NC) (Connecting to

ground)

- 0 0 0

80 LEVEL Audio signal I 0 0 0

9.2. Display Block

IC901 : YEAMLC75854T

No.

Port Description I/O (V)

1-16 SEG1-16 LCD segment data O 2.5

17-

SEG19-41 LCD segment data O 2.5

40-

COM1-4 LCD common O 2.5

44,45 SEG17,18 LCD segement data O 2.5

46-

KS3-6 Key scan O 5.0

50-

Kl1-5 Key data I 0

55 TEST (Connecting to ground) - 0

56 VDD +5V power supply - 5.0

57 VDD1 VDD1 filter terminal - 3.3

58 VDD2 VDD2 filter terminal - 1.7

59 VSS Ground - 0

60 OSC Oscillator terminal - 3.9

61 DO Key data output O 5.0

62 CE LCD driver chip enable I 0

63 CLK LCD clock I 4.9

64 DI LCD data I 4.9

9.3. CD Servo Block

IC401 : YESAM348

No.

Port Descriptions I/O (V)

1 CVSS1 GND - 0

2 - - - -

3 CVSS2 GND - 0

4 DVDD1 I/O system (3.3V) power

supply

- 3.3

5 A10 Address bus of FLASH ROM O 0

6 - - - -

7 A11 Address bus of FLASH ROM O 3.3

8 A12 O 3.3

9 A13 O 3.3

10 A14 O 3.3

11 A15 O 3.3

12 /

CVDD1

CORE CPU system (1.6V)

power supply

- 1.6

13 - - - -

14 DVSS1 GND - 0

15 CVSS3 GND - 0

16 /

CVDD2

I/O system (3.3V) power

supply

- 1.6

17 - - - -

18 - - - -

19 READY - - 3.3

20 /PS FLASH ROM selection

signal

O 3.3

21 - - - -

22 - - - -

23 R/W Lead/light signal to FLASH

ROM

O 3.3

24 /

MSTRB

Memory access signal O 3.3

25 - - - -

26 /MSC - - 3.3

27 MUTE Mute signal output (H:Mute

on)

O 0

28 - - - -

29 - - - -

30 /HOLD - - 3.3

31 BIO SUBO input I 0

32 MP/MC Operation mode setting

(external pull-up)

I 3.3

33 DVDD2 I/O system (3.3V) power

supply

- 3.3

34 CVSS4 GND - 0

35 BD R1 GND I 0

36 - - - -

37 CVSS5 GND - 0

38 - - - -

No.

Port Descriptions I/O (V)

39 - - - -

40 DVSS2 GND - 0

41 CLK C

AUDIO bit clock input I 1.6

42 SCK Clock input I 3.3

43 LRCK

C M

AUDIO L/R identifying

signal input

I 1.6

44 CDFS Serial frame sink signal

input

I 2.6

45 DATA

AUDIO serial data input I 1.6

46 - - - -

47 SI Serial data input I 0

48 CLK M

AUDIO bit clock output O 1.6

49 SCK Clock input I 3.3

50 CVSS6 GND - 0

51 - - - -

52 CVDD3 CORE CPU system (1.6V)

power supply

- 1.6

53 LRCK

M C

AUDIO L/R identifying

signal output

O 1.6

54 CDFS Serial frame sink signal

input

I 2.4

55 - - - -

56 DVDD3 I/O system (3.3V) power

supply

- 3.3

57 DVSS3 GND - 0

58 REST

Mechanics deck REST SW

input

I 3.3

59 DATA

M C

AUDIO serial data output O 1.6

60 SO Serial data output O 1.2

61 - - - -

62 - - - -

63 /NMI - - 3.3

64 /INT0 - - 3.3

65 /INT1 - - 3.3

66 BLKCK Subcode block clock pulse

input

I 0

67 /INT3 - - 3.3

68 CV

DD4

CORE CPU system (1.6V)

power supply

- 1.6

69 SW1 Mechanics deck SW1 input I 0

70 CVSS7 GND - 0

71 MCLK Clock output (To Servo

DSP)

O 3.3

72 DVSS4 GND - 0
