Panasonic EH2851-A3 Manuale utente
ORDER NO. PCD0512A66C3
Steam Foot Spa
EH2851-A3
SPECIFICATIONS
SPECIFICATIONS
Power supply AC110V, 60Hz AC220V, 50-60Hz
Power consumption 500W
User's foot size Up tp 28cm (actual length of foot)
Dimensions (H x W x D) 39 x 40 x 51cm (with lid)
Weight Approx. 4.8kg (with lid)
* Only available in Taiwan
2006 Matsushita Electric Works, Ltd.All rights reserved.
Unauthorized copying and distribution is a violation of law.
1. WIRING SCHEMATICS
1

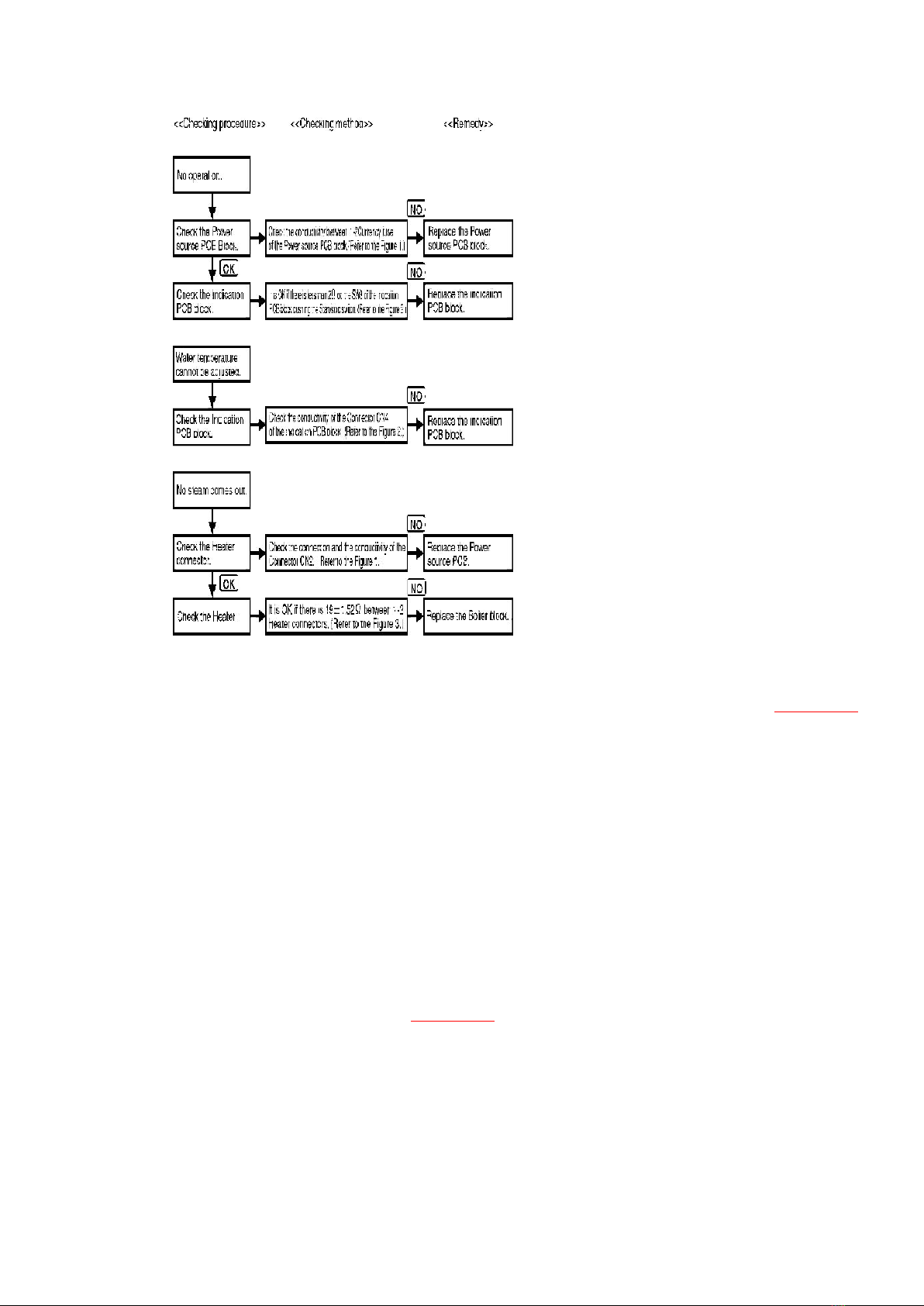

2. CHECKING
(Refer to WIRING SCHEMATICS)
- Check the conductivity of the Power cord and the operation of the
Switch before the investigation.
2
3
4
3. DISASSEMBLY INSTRUCTIONS
1. Remove the Main body lid and the Slide housing. (Refer to the Figure 4.)
Figure 4
2. Unscrew 10 screws as the Figure 5.
Figure 5
5
3. Unscrew three screws as the Figure 6.
Figure 6
4. Unscrew eight screws as the Figure 7.
*When you remove the Inhalation/ventilation duct, be sure to replace with the brand-new Duct rubber
set. (Refer to HOW TO PASTE THE DUCT RUBBER.)
Figure 7
5. Unscrew three screws as the Figure 8.
Figure 8
6. Unscrew two screws as the Figure 9.
Figure 9
6
7. Unscrew three screws as the Figure 10.
Figure 10
8. Unscrew one screw as the Figure 11.
Figure 11
4. HOW TO PASTE THE DUCT RUBBER
1. Put the tips of the Duct rubber on the tips of the Inhalation/ventilation
duct.
2. Be sure to make the Duct rubber and the Inhalation/ventilation duct fit
7
together.
5. CHECKING AFTER REPAIR
- Plug into the Power outlet.
- Steam comes out normally.
- Fan rotates.
- No scratches or taints.
6. EXPLODED VIEW
8
6.1. BOILER DUCT
9
6.2. POWER CORD, BASE
10
