Panasonic TH-37PA20AA Manuale utente

ORDERNO. ITD0312114A3

ProgressivePlasmaTelevision

TH-37PA20AA / TH-37PA20FA/ TH-37PA20HA/ TH-

37PA20MA/ TH-37PA20RA

GP6DAChassis

Please fileand use thismanual togetherwiththeservice manual for

Model No. / TH-42PA20B/E (Main), ORDERNO. ITD0306014C2, / TH-

37PA20E (Simplified), ORDERNO. ITD0308029A2, / TH-37PA20A/F/H/

M/R(Simplified), ORDERNO. ITD0310053A3.

Unauthorizedcopying and distribution isaviolation oflaw.

1. Difference point

1.1. Electrical ReplacementParts List

Ref.No. PartNo. PartName & Description

Remarks

TH-37PA20A/F/H/M/R TH-37PA20AA/FA/HA/

MA/RA

RTL TXN/D1QCSE TZTNP01TTSE CIRCUITBOARD D

IC9702 C3EBJC000038 TVRN210-1 IC

RTL TNPA2874 TNPA3089 CIRCUITBOARD C1

C7103 TCUY1C105ZFN ----- C 1UF, 16V

C7106 ----- TCUY1C105ZFN C 1UF, 16V

C7111 F1K2A1040004 ----- C 0.1UF, 100V

C7113 F1K2A1040004 F1K2A474A006 C 0.47UF100V

C7115 F1K2A1040004 F1K2A474A006 C 0.47UF100V

C7117 ----- F1K2A474A006 C 0.47UF100V

C7135 ----- TCUY1C105ZFN C 1UF, 16V

C7136 ----- ECJ3XB0J106M C 10UF, M,6.3V

C7137 ----- TCUY1C105ZFN C 1UF, 16V

C7138 ----- ECJ3XB0J106M C 10UF, M,6.3V

C7139 ----- TCUY1C105ZFN C 1UF, 16V

C7140 ----- ECJ3XB0J106M C 10UF, M,6.3V

C7147 TCUY1C105ZFN ----- C 1UF, 16V

C7148 ECJ3XB0J106M ----- C 10UF, M,6.3V

C7149 TCUY1C105ZFN ----- C 1UF, 16V

C7150 ECJ3XB0J106M ----- C 10UF, M,6.3V

C7151 TCUY1C105ZFN ----- C 1UF, 16V

C7152 ECJ3XB0J106M ----- C 10UF, M,6.3V

CB1-B3 K1MN80B00004 K1MN48A00002 CONNECTOR

FL7106 ----- ELKE103FA NOISE FILTER

L7106 ELKE103FA ----- NOISE FILTER

L7111-13 ----- J0JHC0000096 CHIPINDUCTOR

R7102,03 ----- ERJ14YJ220 M22 OHMJ 1/4W

R7105 ERJ6GEYJ102 ----- M1KOHMJ 1/10W

R7106,07 ----- ERJ14YJ220 M22 OHMJ 1/4W

R7110 ----- ERJ14YJ220 M22 OHMJ 1/4W

R7112-16 ERJ14YJ220 ----- M22 OHMJ 1/4W

R7117 ERJ14YJ220 ERJ6GEYJ224 M220KOHMJ 1/10W

R7118 ERJ14YJ220 ----- M22 OHMJ 1/4W

R7119 ERJ14YJ220 ERJ6ENF1651 M1.65KOHM1/10W

R7120 ERJ14YJ220 ERJ6GEYJ102 M1KOHMJ 1/10W

R7121 ERJ14YJ220 ----- M22 OHMJ 1/4W

R7125 ----- ERJ6GEYJ102 M1KOHMJ 1/10W

R7137-41 ----- ERJ14YJ220 M22 OHMJ 1/4W

R7162,63 ERJ3GEY0R00 ERJ3GEYJ181 M180 OHMJ 1/16W

R7164,65 ERJ3GEY0R00 ----- M0 OHM1/16W

Ref.No. PartNo. PartName & Description

Remarks

TH-37PA20A/F/H/M/R TH-37PA20AA/FA/HA/

MA/RA

R7166,67 ERJ3GEYJ220 ERJ3GEYJ151 M150 OHMJ 1/16W

R7168,69 ERJ3GEYJ220 ----- M22 OHMJ 1/16W

R7172,73 ERJ3GEYJ121 ----- M120 OHMJ 1/16W

R7175-77 ERJ6GEY0R00 ----- M0 OHM1/10W

R7190 ERJ6GEYJ224 ----- M220KOHMJ 1/10W

RTL TNPA2875 TNPA3090 CIRCUITBOARD C2

C7205 ----- TCUY1C105ZFN C 1UF, 16V

C7211 F1K2A1040004 ECJ3XB2A474K C 0.47UF6.3V

C7213 F1K2A1040004 F1K2A474A006 C 0.47UF100V

C7215 ----- F1K2A474A006 C 0.47UF100V

C7217 F1K2A1040004 F1K2A474A006 C 0.47UF100V

C7219 F1K2A1040004 ----- C 0.1UF, 100V

C7237 ----- TCUY1C105ZFN C 1UF, 16V

C7238 ----- ECJ3XB0J106M C 10UF, M,6.3V

C7239 ----- TCUY1C105ZFN C 1UF, 16V

C7240 ----- ECJ3XB0J106M C 10UF, M,6.3V

C7244 TCUY1C105ZFN ----- C 1UF, 16V

C7246 ECJ3XB0J106M ----- C 10UF, M,6.3V

C7250 ECJ3XB0J106M ----- C 10UF, M,6.3V

C7406 TCUY1C105ZFN ----- C 1UF, 16V

CB4-B7 K1MN80B00004 K1MN48A00002 CONNECTOR

FL7207-09 ----- ELKE103FA NOISE FILTER

L7207-09 ELKE103FA ----- NOISE FILTER

L7214-17 J0JHC0000096 ----- CHIPINDUCTOR

R7202,03 ----- ERJ14YJ220 M22 OHMJ 1/4W

R7205 ERJ6GEYJ102 ----- M1KOHMJ 1/10W

R7206,07 ----- ERJ14YJ220 M22 OHMJ 1/4W

R7210 ----- ERJ14YJ220 M22 OHMJ 1/4W

R7212,13 ERJ14YJ220 ----- M22 OHMJ 1/4W

R7216 ERJ14YJ220 ----- M22 OHMJ 1/4W

R7217 ERJ14YJ220 ERJ6GEYJ224 M220KOHMJ 1/10W

R7218 ERJ14YJ220 ----- M22 OHMJ 1/4W

R7219 ERJ6GEYJ224 ----- M220KOHMJ 1/10W

R7225 ----- ERJ6GEYJ102 M1KOHMJ 1/10W

R7230 TAJAAH0470JV ERJ3GEY0R00 M0 OHM1/16W

R7232 TAJAAH0470JV ERJ3GEY0R00 M0 OHM1/16W

R7268,69 ERJ6GEY0R00 ----- M0 OHM1/10W

R7286,87 ERJ6GEY0R00 ----- M0 OHM1/10W

R7289,90 ERJ3GEYJ181 TAJAAH0101JV M100 OHMJ 1/16W

Ref.No. PartNo. PartName & Description

Remarks

TH-37PA20A/F/H/M/R TH-37PA20AA/FA/HA/

MA/RA

R7291,92 ERJ3GEYJ181 ----- M180 OHMJ 1/16W

R7293 ERJ3GEYJ121 ERJ3GEYJ151 M150 OHMJ 1/16W

R7294,95 ERJ3GEYJ121 ----- M120 OHMJ 1/16W

R7296 ERJ3GEYJ121 ERJ3GEYJ151 M150 OHMJ 1/16W

R7297 ERJ3GEYJ220 ERJ3GEYJ181 M180 OHMJ 1/16W

R7298,99 ERJ3GEYJ220 ----- M22 OHMJ 1/16W

R7300 ERJ3GEYJ220 ERJ3GEYJ181 M180 OHMJ 1/16W

R7301 ERJ3GEY0R00 ERJ3GEYJ221 M220 OHMJ 1/16W

R7302 ERJ3GEY0R00 ----- M0 OHM1/16W

R7303 ERJ3GEY0R00 ----- M0 OHM1/16W

R7304 ERJ3GEY0R00 ERJ3GEYJ221 M220 OHMJ 1/16W

1.2. Mechanical ReplacementParts List

Ref.No. PartNo. PartName & Description

Remarks

TH-37PA20A/F/H/M/R TH-37PA20AA/FA/HA/

MA/RA

MD37S06A1J MD37S06B1J PLASMADISPLAYPANEL

TTEA0136 TTEA0189 ESCUTCHEON

2. Note

1. Plasmadisplaypanel isimprovedfrom TH-37PA20.

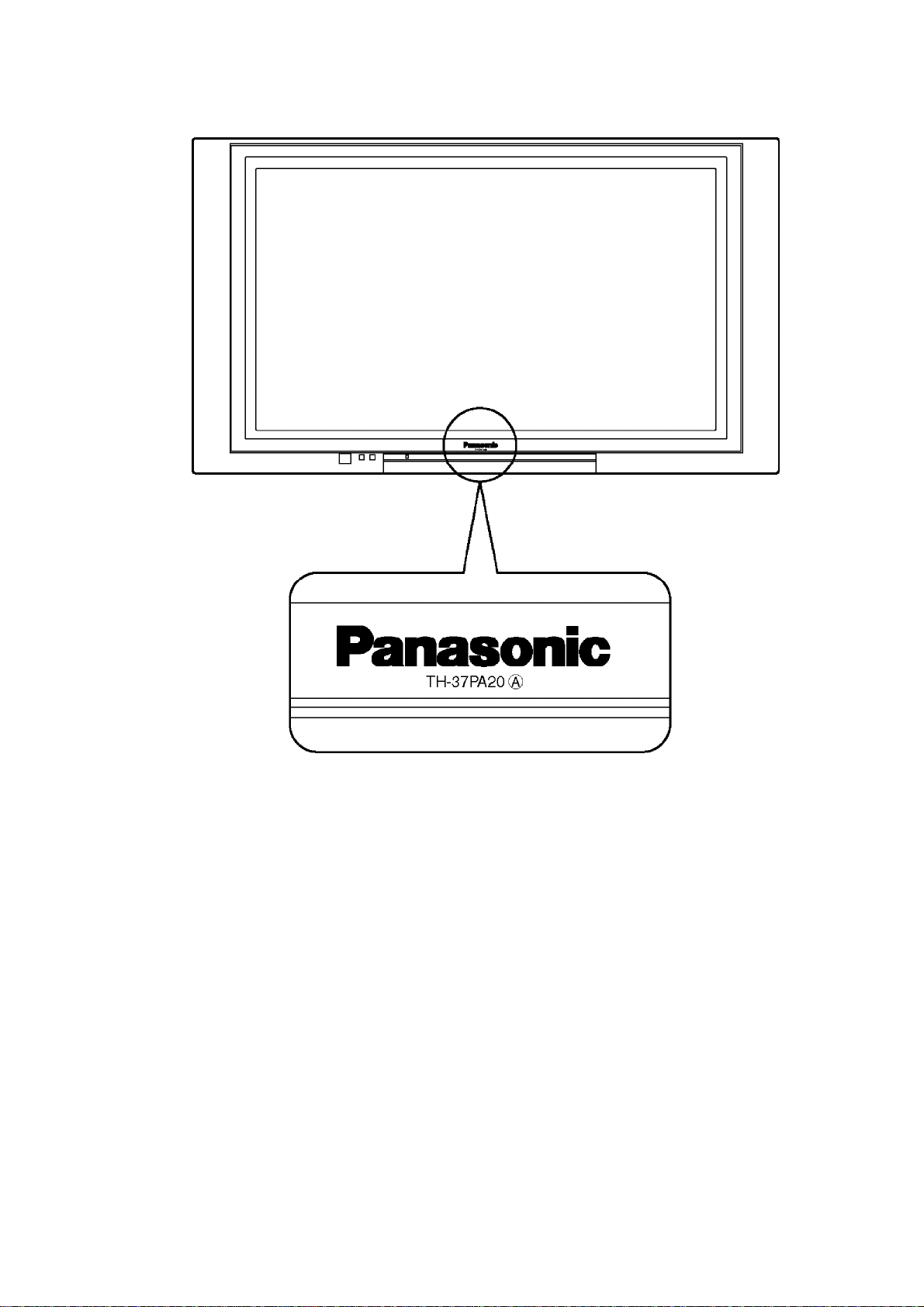

2. Model numberisindicatedinfrontisonly“TH-37PA20 ”onlyin

frontas showninfigure.

3. TH-37PA20 was discontinuedand TH-37PA20 was introduced

from MAR/2004.

3. Conductor Views

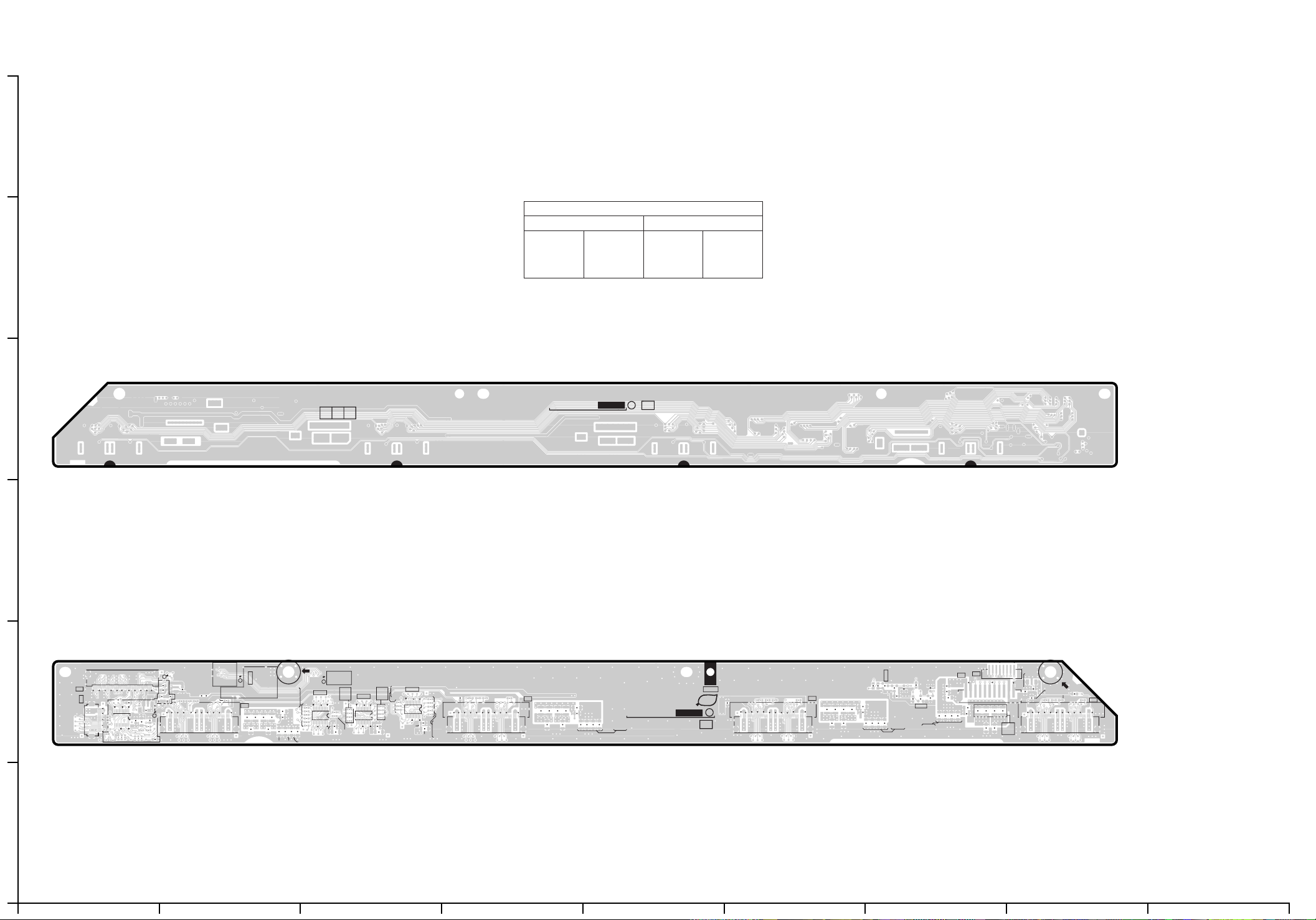

3.1. C1-Board

3.2. C2-Board

4. SchematicDiagram

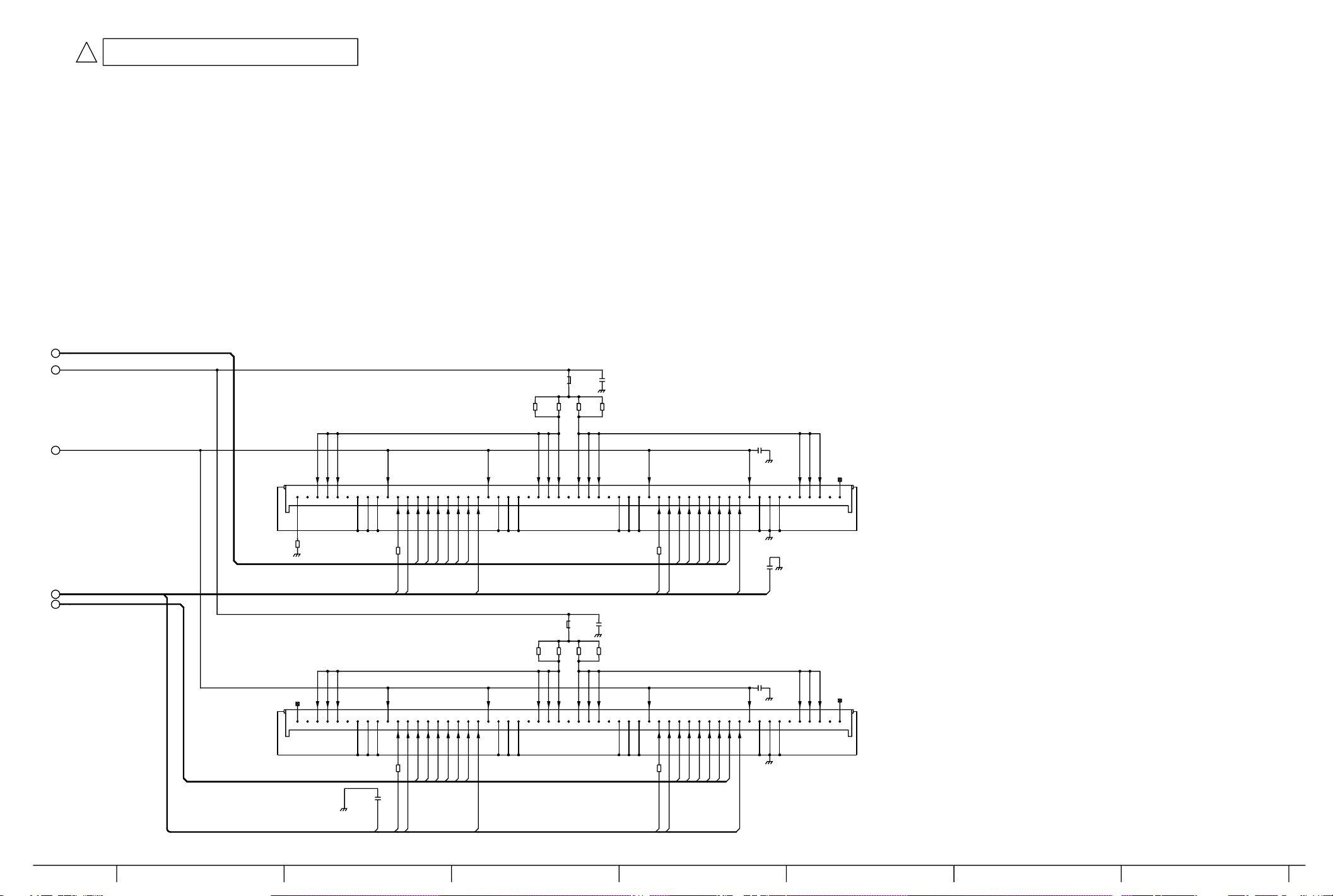

4.1. C1-Board SchematicDiagram

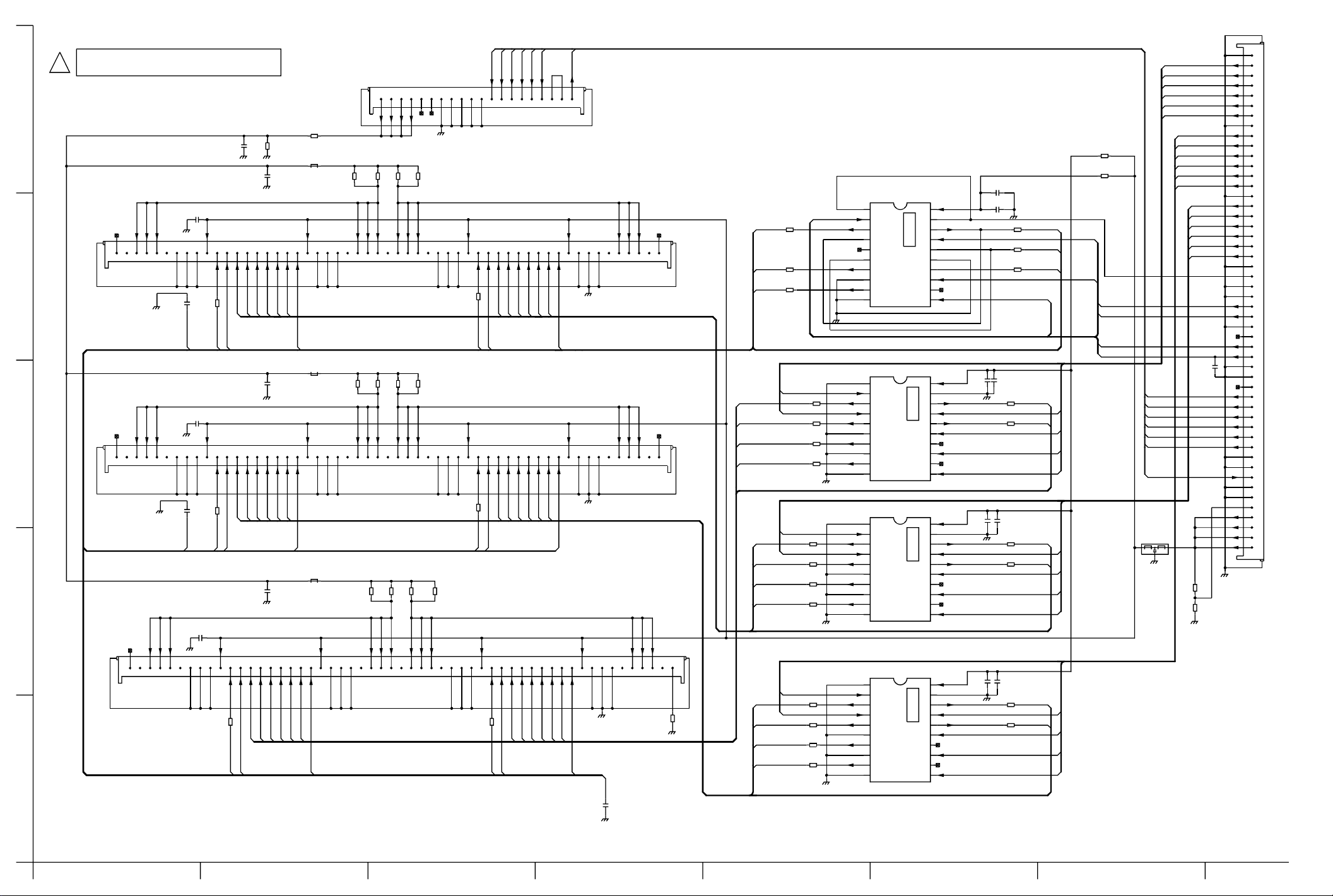

4.2. C2-Board (1 of2) SchematicDiagram

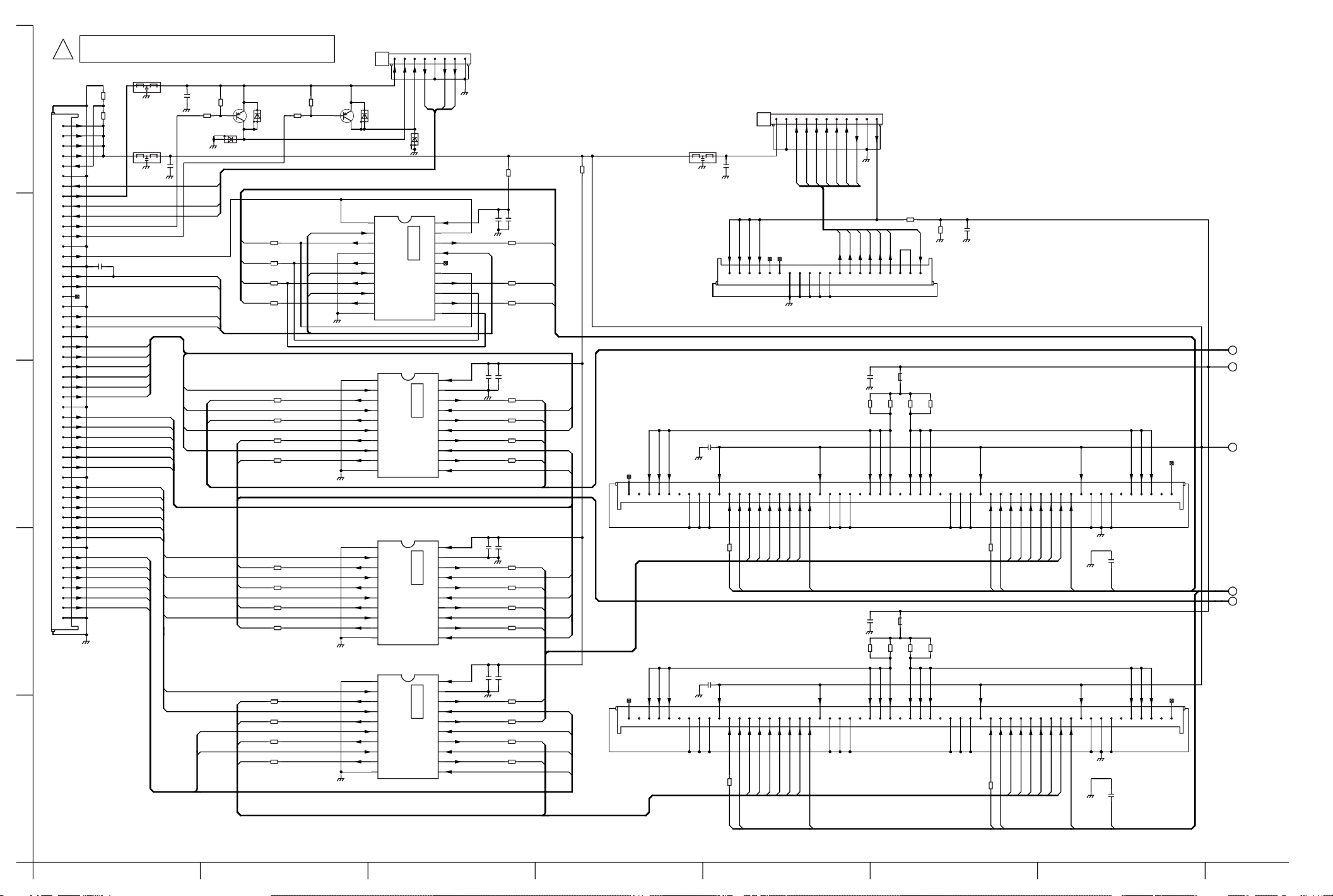

4.3. C2-Board (1 of2) SchematicDiagram

5. SchematicDiagram for printing withA4

6. Cover for printing withA4
