Assembly

Instructions

TY-36SF24M

VIDEO STAND

Important

A study of the assembly instructions will not only save you

time but may prevent possible damage to your new stand.

Assistance may be required for some assembly procedures.

CAUTION: THIS STANDSHOULDBEUSEDWITH CASTERS.

IT IS ALSO DESIGNEDFORUSEWITH

PANASONICTELEVISIONRECEIVERS.

UL APPROVED MODELS: CT-36SF24V, CT-36XF54V

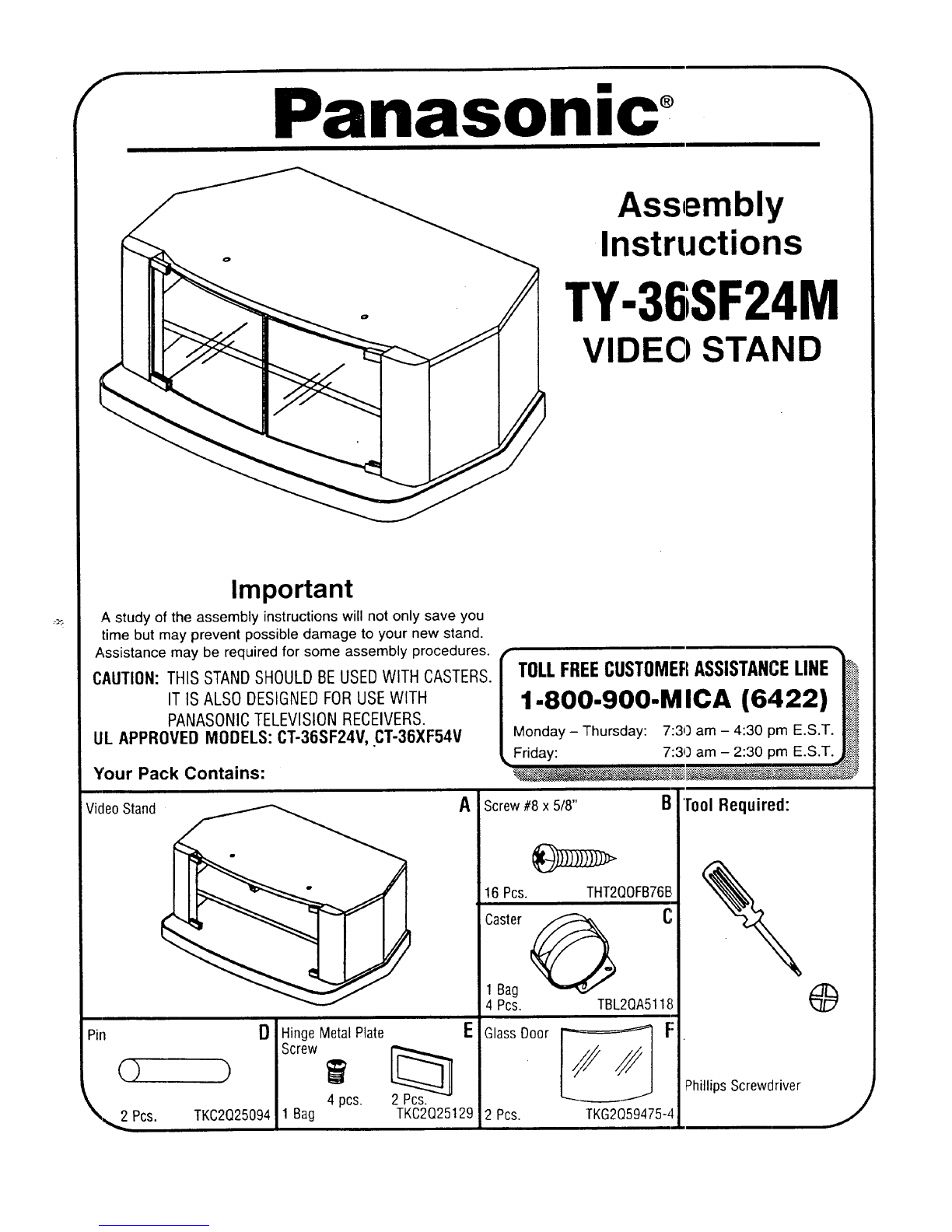

Your Pack Contains:

TOLLFREECUSTOMERASSISTANCELINE

1.800-900-MICA (6422)

Video Stand

Pin O

Hinge Metal Plate E

Screw _

4 pcs.

1 Bag

Screw #8 x 5/8" B

16 Pcs. THT2QOFB76B

Caster _ C

1 Bag

4 Pcs. TBL2QA5118

Glass Door _ F

TKC2Q25129 2 Pcs. TKG2Q59475-4

ToolRequired:

_hillips Screwdriver

STEP 1

STEP2

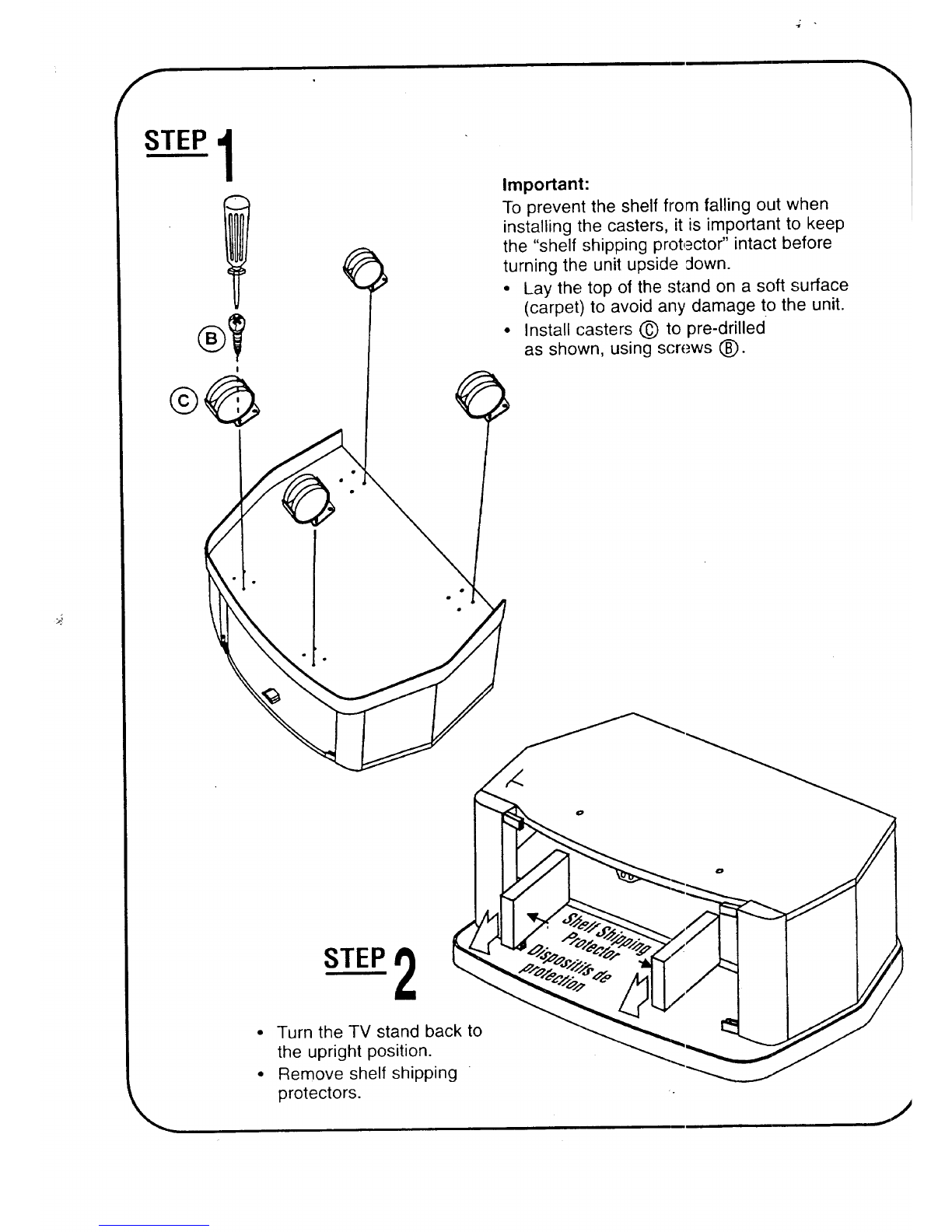

• Turn the TV stand back to

the upright position.

• Remove shelf shipping

protectors.

Important:

To prevent the shelf from falling out when

installing the casters, it is important to keep

the "shelf shipping prot,_=ctor'' intact before

turning the unit upside down.

• Lay the top of the stand on a soft surface

(carpet) to avoid any damage to the unit.

• Install casters (_) to pre-drilled

as shown, using screws (_).

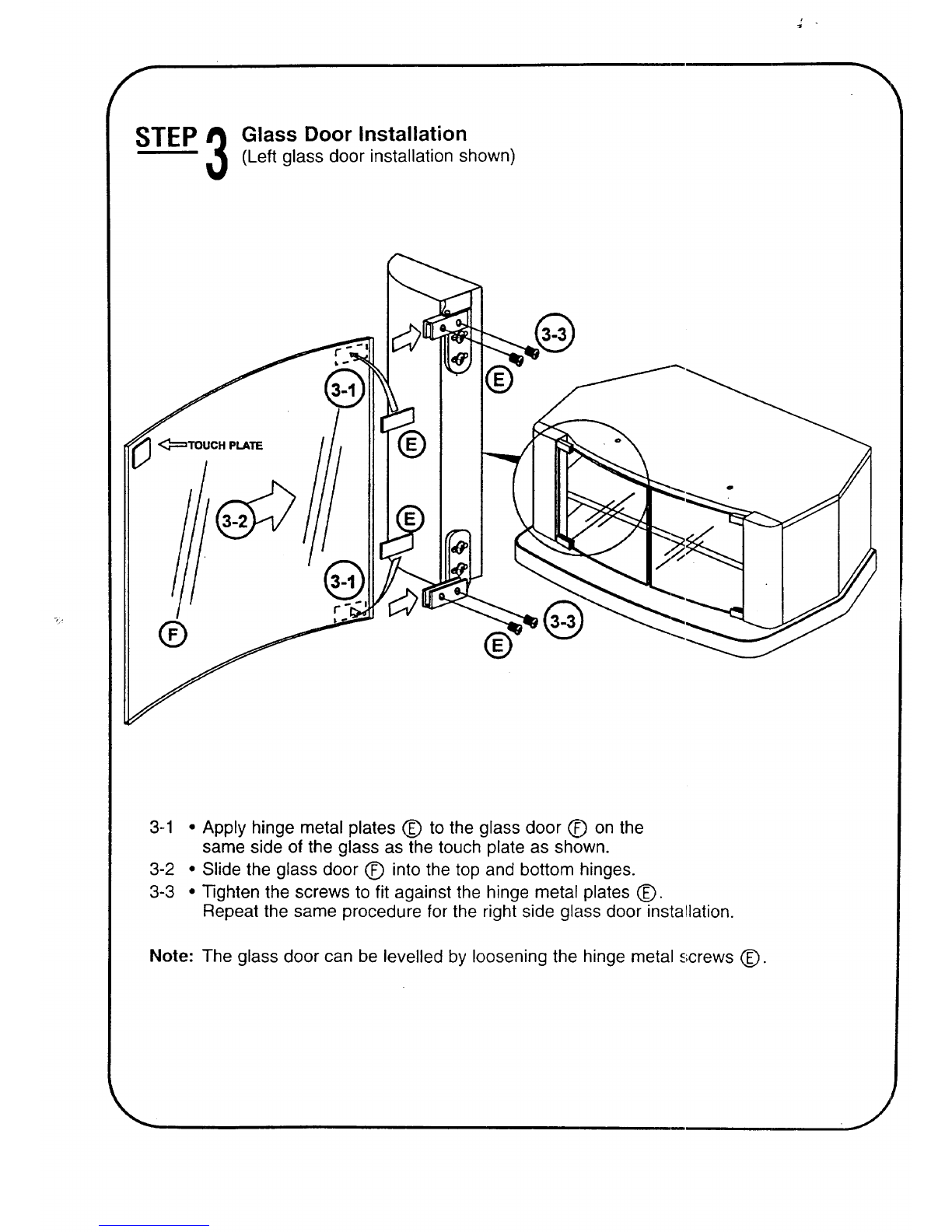

STEP ell Glass Door Installation

(Left glass door installation shown)

'<_==TOUCH PLATE

3-1 •Apply hinge metal plates (_ to the glass door L-_'on the

same side of the glass as the touch plate as shown.

3-2 • Slide the glass door (_) into the top and bottom hinges.

3-3 • Tighten the screws to fit against the hinge metal plates O.

Repeat the same procedure for the right side glass door installation.

Note: The glass door can be levelled by loosening the hinge metal screws O-

Insert pins @ as shown.

Place television set on the

stand making sure the holes

on the bottom of the television

line up with the pins on the stand.

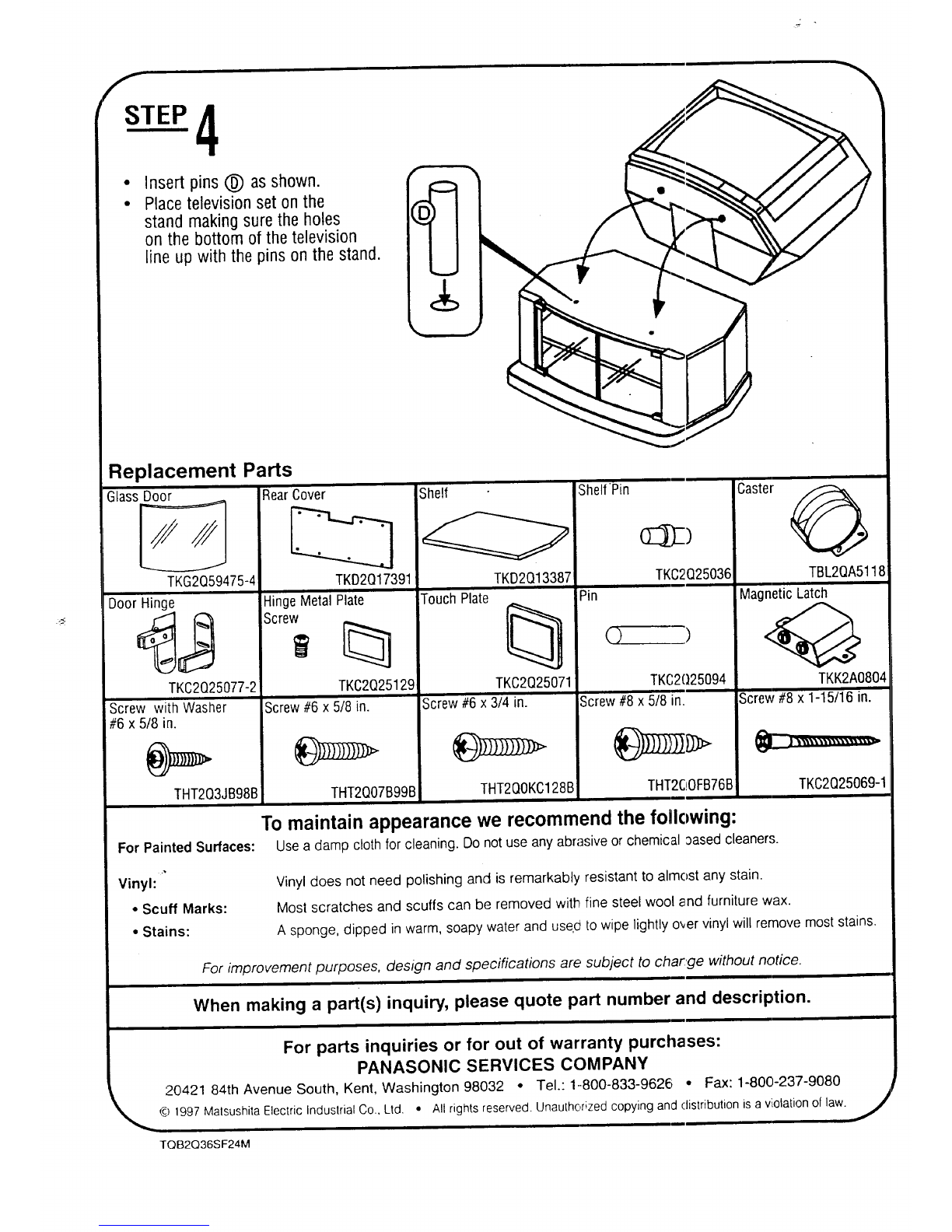

Replacement Parts

Glass Door

////j

TKG2Q59475-4

Door Hinge

IKC2Q25077-2

Screw with Washer

#6 x 5/8 in.

THT2Q3JB98B

RearCover

TKD2Q17391

HingeMetal Plate

Screw

TKC2Q25129

Screw#6 x 5/8 in.

THT2QO7B99B

Shelf

TKD2Q13387

Touch Plate

TKC2Q25071

Screw #6 x g/4in.

THT2QOKC128B

ShelfPin

TKC2Q25036

() _)

TKC2Q25094

Screw#8 x 518in.

THT2C!OFB76B

To maintain appearance we recommend the following:

For Painted Surfaces: Usea damp cloth for cleaning. Do not use any abrasive orchemical3ased cleaners.

Vinyl:

•Scuff Marks:

•Stains:

Caster 1_

TBL2QA5118

Magnetic Latch

TKK2A0804

'Screw#8 x 1-15/16 in'i

TKC2Q25069-1

For parts inquiries or for out of warranty purchases:

PANASONIC SERVICES COMPANY

20421 84th Avenue South, Kent, Washington 98032 • Tel.: 1.-800-833-9626 •Fax: 1-800-237-9080 ,_1

TQB2036SF24M

When making a part(s) inquiry, please quote part number and description.

For improvement purposes, design and specifications are subject to char,ge without notice.

Vinyl does not need polishing and is remarkably resistant to ahnost any stain.

Most scratches and scuffs can be removed with fine steel wool and furniture wax.

A sponge, dipped in warm, soapy water and use.d to wipe lightly o,,er vinyl will remove most stains.
