Order No. PHAI1603537CE

Automatic Rice Cooker

Model No. SR-G06

SR-G06G

SR-G06FG

Destination INDIA (SR-G06)

HONGKONG (SR-G06G/SR-G06FG)

USA-CANADA (SR-G06FG)

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 5

3 Location of Controls and Components ------------------- 6

4 Operating Instructions------------------------------------------ 7

4.1. How to Cook------------------------------------------------ 7

4.2. How to Clean ----------------------------------------------- 8

5 Test Mode ----------------------------------------------------------- 9

5.1. Bubbling Test ----------------------------------------------- 9

5.2. Evaporation Test------------------------------------------- 9

5.3. Switch Lever (Auxiliary Lever Adjustment)---------10

6 Troubleshooting Guide ----------------------------------------11

7 Schematic Diagram ---------------------------------------------12

7.1. Schematic Diagram - Model No. SR-G06

(INDIA) & SR-G06G (WSDN/LSDN) /SR-

G06FG (LSDN) - (HONGKONG)---------------------12

7.2. Schematic Diagram - Model No. SR-G06FG

(LVAN) (USA-CANADA) -------------------------------12

8 Exploded View and Replacement Parts List -----------13

8.1. Model No : SR-G06 (INDIA)--------------------------- 13

8.2. Model No : SR-G06G (WSDN/LSDN)

(HONGKONG)--------------------------------------------16

8.3. Model No : SR-G06FG (LSDN)

(HONGKONG)--------------------------------------------19

8.4. Model No : SR-G06FG (LVAN) (USA-

CANADA) -------------------------------------------------- 22

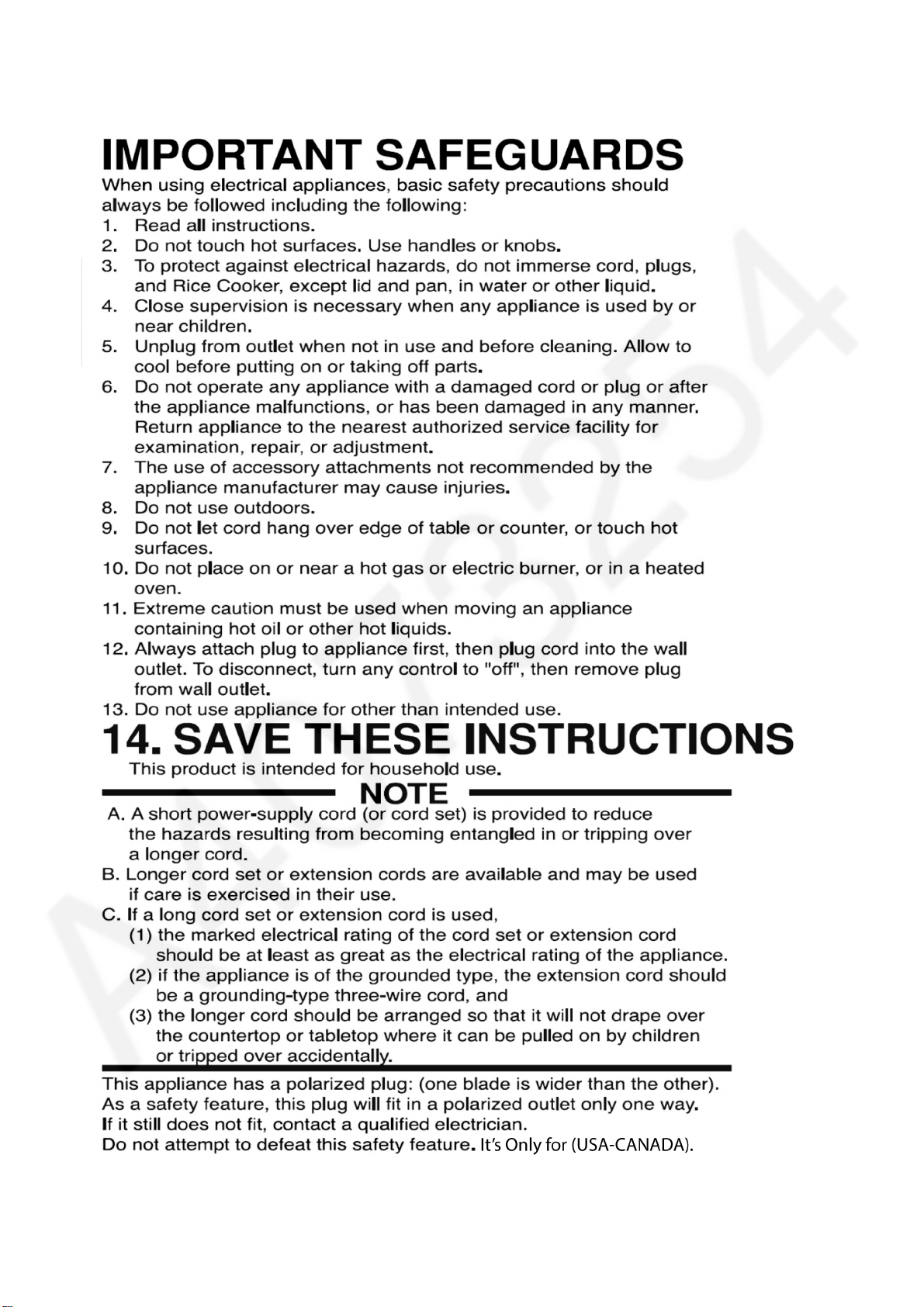

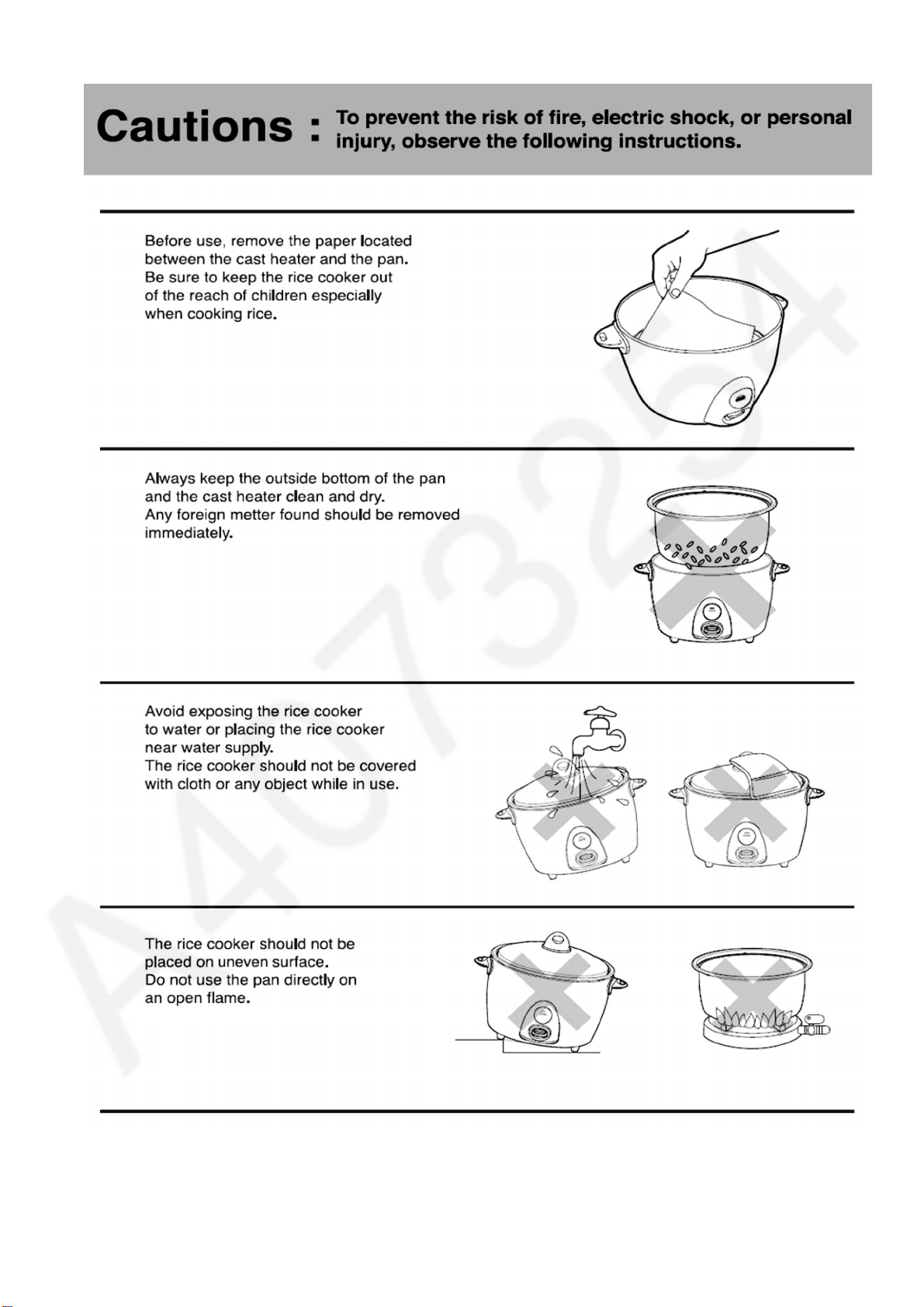

1 Safety Precautions

2 Specifications

3 Location of Controls and Components

4 Operating Instructions

4.1. How to Cook

4.2. How to Clean

5 Test Mode

Judging Method of Defective Parts

5.1. Bubbling Test

Put the pan in the cooker body and turn it lightly right-and-leftwards in order to allow the pan to properly contact the heating plate.

1. Put water in the pan to barely cover the center of the pan bottom, and turn on the cooking switch after the lid is placed.

2. When water has started boiling to issue steam, remove the lid and check the bubbling condition of the pan bottom

immediately.

3. If bubbling takes place uniformly around the circumference of the pan bottom as shown in the figure, the cooker is considered

free from trouble. However, if more than 1/4 of the pan circumference is not bubbling as shown in the righthand figure, the

cooker is considered defective. Since the cause for this defect lies in poor contact of the pan buttom with the cooking heater,

check if no foreign matter exists on the pan bottom or the cooking heater and if foreign matter is found, remove it or replace

the parts.

5.2. Evaporation Test

1. After satisfactory bubbling is confirmed, remove the lid and put a weight on the cooker.

Caution: To prevent heat distortion of plastic parts due to steam, be sure to fully open the lid.

2. Cover the entire pan bottom with 2 or 3 pieces of tissue paper (or gauze), and turn on the switch subsequently.

Caution: To prevent the tissue paper from being lifted by bubbling, make some holes in the paper beforehand.

3. The cooker is considered acceptable it the timing when steam generation comes to a stop after water of the pan bottom has

evaporated, is within 1 minute before and after the cooking switch is turned off.

If these requirments are not satisfied, check the center thermostat as well as the contacted condition between the pan bottom

and the cast heater, and then repair or replace the parts.

5.3. Switch Lever (Auxiliary Lever Adjustment)

The cooking switch turns on and off the micro-switch by means of a switch lever, utilizing the mechanical up/down movements of

the center thermostat. Therefore, check this function in the following procedure.

5.3.1. Checking of Cooking Switch

Put the pan in the body and plug in the cooker through a wattmeter.

1. When the cooking switch is turned on, the rated power consumption for cooking should be indicated on the wattmeter.

Furthermore, even when the cooking button is moved up and down to such as extent that the cooking switch is not turned off

(i.e. even when moved by the lever gap). this rated cooking power should be being consumed.

2. Turning off the cooking switch should indicate “45W” on the wattmeter.

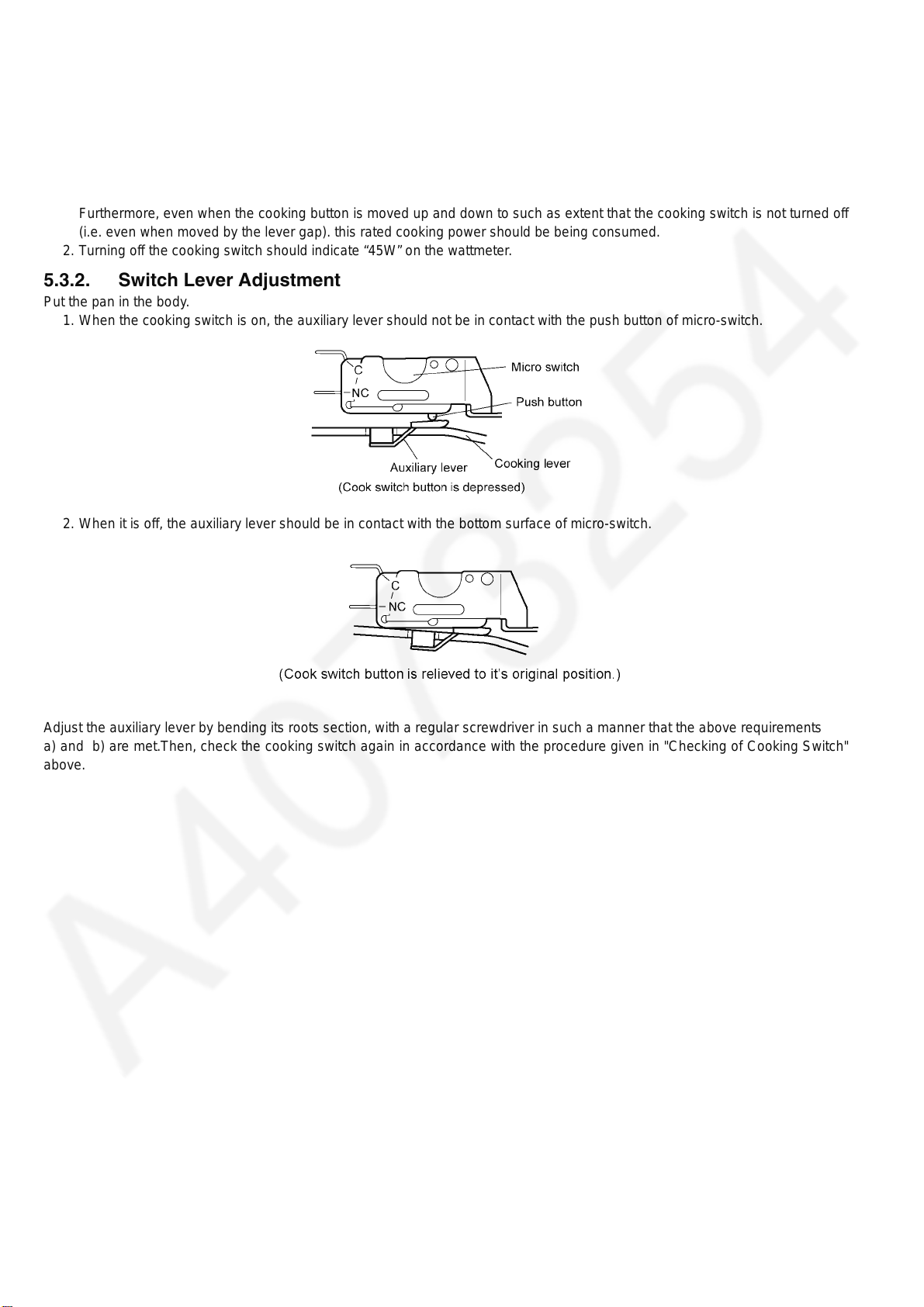

5.3.2. Switch Lever Adjustment

Put the pan in the body.

1. When the cooking switch is on, the auxiliary lever should not be in contact with the push button of micro-switch.

2. When it is off, the auxiliary lever should be in contact with the bottom surface of micro-switch.

Adjust the auxiliary lever by bending its roots section, with a regular screwdriver in such a manner that the above requirements

a) and b) are met.Then, check the cooking switch again in accordance with the procedure given in "Checking of Cooking Switch"

above.
