Panasonic Broadcast

Mechanical Parts List

MODEL: AK-HC1800N/G/MC

Note:

1. *Be sure to make your orders of replacement parts according to this list.

2. Unless otherwise specified, all resistors are in OHMS, K=1,000 OHMS,

all capacitors are in MICROFARADS (µF), P=µµF,

3. The P.C.Board unit marked with " " shown below the main assembled parts.

4. The parts marked with E on the exploded view show the electric parts.

5. IMPORTANT SAFETY NOTICE

Components identified with the mark have the special characteristics for safety.When replacing any

of these components, use only the same type.

6. The marking (RTL) indicates the retention time is limited for this item.

After the discontinuation of this assembly in production, it will no longer be available.

7. "M" in Remark column indicates needed in the periodical maintenance.

CONTENTS

CHASSIS FRAME ASSEMBLY.......................................................................................................PRT-1

REAR CASE ASSEMBLY................................................................................................................PRT-3

FRONT UNIT ASSEMBLY...............................................................................................................PRT-4

PACKAGING PARTS ASSEMBLY ...................................................................................................PRT-5

PRT-1

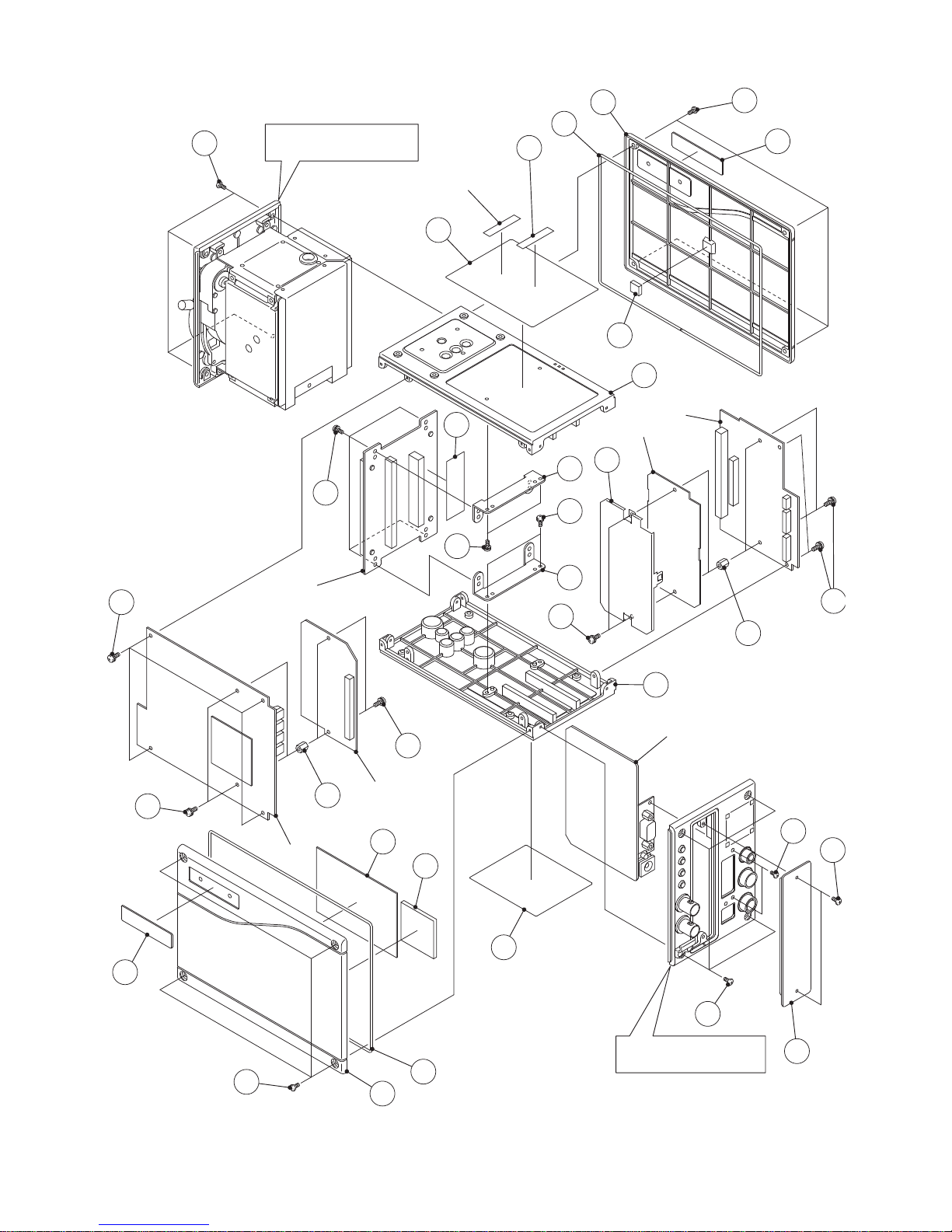

CHASSIS FRAME ASSEMBLY

105

203

Serial No. Label

105

201

108

PCB4

108

PCB2

PCB10

PCB3

202

PCB1

108

PCB8 14

105

106

105

102

108

204

FRONTUNITASSEMBLY

(SeePRT-4)

REARCASEASSEMBLY

(SeePRT-3)

PRT-2

Ref. No. Part No. Part Name & Description

Pcs

Remarks Ref. No. Part No. Part Name & Description

Pcs

Remarks

CHASSIS FRAME ASSEMBLY

1 VGPB0062 BLANK PANEL 1

2 VGQB0117-1 SIDE COVER(R) 1

3 VMTB0119 CUSHION 1

4 VMGB0035 SHIELD PARTS 2

5 VQLB0308 BLANK SHEET 2 (N)

VGB0596 MF BADGE 2 (G,MC)

6 VGQB0185 SIDE COVER(L) 1

7 VSCB0057 HEAT SINK 1

8 VMSB0019 SPACER 2

9 ASU2607 SPACER 2

10 VSCB0058 SPACER 1

11 VGQB0115 BOTTOM CASE 1

12 VGQB0116 TOP CASE 1

13 VMPB0075 MOUNTING ANGLE 2

102 XQN26+A6FJK SCREW 2

105 XSB26+6FJK SCREW 16

106 XSB3+6FJK SCREW 2

108 XYN26+J5FN SCREW 22

201 VQLB0114 FUSE LABEL 1

202 VQLB0110-1 CAUTION LABEL 1

203 VGNB0239 MAIN LABEL 1

204 3PD003497AA PRODUCT DATE LABEL 1 (MC)

304 VEEB0158 CABLE 1

305 VEEB0159-1 CABLE 1

306 VEEB0168 CABLE 1

307 VEEB0182 CABLE 1

308 VEEB0196 CABLE 1

310 K1TZAAA00001 CABLE 2

PCB1 S1VEPB0306B SDI P.C.BOARD 1 (RTL)

PCB2 S1VEPB0308B AUX P.C.BOARD 1 (RTL)

PCB3 S1VEPB0309B POWER P.C.BOARD 1 (RTL)

PCB4 S1VEPB0310A MOTHER P.C.BOARD 1 (RTL)

PCB8 S1VEPB0618A DPRO P.C.BOARD 1 (RTL)

PCB10 S1VEPB0621A CAMSYS P.C.BOARD 1 (RTL)

J0KA00000034 LC FILTER 3

J0KE00000026 LC FILTER 1

PRT-3

REAR CASE ASSEMBLY

309

109

101

1311 4

301

302

303

Ref. No. Part No. Part Name & Description Pcs RemarksRef. No. Part No. Part Name & Description Pcs Remarks

1 VGQB0186 REAR CASE 1

2 VGUB0029 SWITCH BUTTON 1

3 VMAB0132 BUTTON PLATE 1

4 VKFB0005-1 HOLE CAP 1

5 VMGB0034 SHIELD PARTS 2

6 VMGB0036 SHIELD PARTS 1

101 XQN2+A3FN SCREW 2

109 XYN26+J16FN SCREW 4

301 VEEB0155-1 CABLE 1

302 VEEB0156-1 CABLE 1

303 VEEB0157-1 CABLE 1

309 S1VEEB0391-1 FAN ASSY 1

311 K1SYYYYA0002 CABLE 2

PRT-4

FRONT UNIT ASSEMBLY

106

213

108

107 4

108

107 PCB9

PCB6

PCB7

108

Ref. No. Part No. Part Name & Description Pcs Remarks

1 VGQB0113 FRONT CASE 1

2 VMGB0033 SHIELD PARTS 1

3 VMGB0034 SHIELD PARTS 4

4 VMGB0037 GROMMET 1

5 VMPB0073 MOUNTING ANGLE 1

6 VMPB0074 MOUNTING ANGLE 1

7 VSCB0077 SHIELD CASE 1

8 VSCB0060 SHIELD CASE 1

9 VSCB0065 SHIELD GASKET 1

10 VMTB0126 GASKET 1

11 VMTB0127 GASKET 1

12 VMTB0128 GASKET 1

13 S1B9BA0554AN OPTICAL ASSY 1

106 XSB3+6FJK SCREW 4

107 XYN2+J4FN SCREW 8

108 XYN26+J5FN SCREW 16

PCB6 S1VEPB0464B DRIVE P.C.BOARD 1 (RTL)

PCB7 S1VEPB0465B PREAMP P.C.BOARD 1 (RTL)

PCB9 S1VEPB0619A TG P.C.BOARD 1 (RTL)

PRT-5

PACKAGING PARTS ASSEMBLY

MULTI PURPOSE CAMERA

201

Ref. No. Part No. Part Name & Description Pcs Remarks

1 PE26X40C05B POLYETHYLENE BAG 2

2 VQTB0328 OPERATING INSTRUCTIONS 1 (N)

VQTB0321 OPERATING INSTRUCTIONS 1 (G)

VQTB0322 OPERATING INSTRUCTIONS 1 (MC)

3 VQC4626 UL SAFTY INSTRUCTIONS 1 (NORTH AMERICA)

4 VQA0866 WARRANTY CARD 1 (NORTH AMERICA)

5 A8UA0550E2 WARRANTY CARD 1 (JAPAN)

6 J0KG00000032 LC FILTER 2

7 B9CA5443AN PACKAGING ASSY 1 (N,MC)

9C0A0001AA PACKAGING ASSY 1 (G)

8 VQC3614 AREA SHEET 1 (G)

201 VQLB0309-1 PACKAGING LABEL 1 (N,G)

VQLB0301 PACKAGING LABEL 1 (MC)
