Panasonic AWE860 - COLOR CAMERA Manuale utente
Panasonic Broadcast
AW-E860 Mechanical Parts
CONTENTS
CHASSIS FRAME ASSEMBLY (1) ................................................................................................. PRT-1
CHASSIS FRAME ASSEMBLY (2) ................................................................................................. PRT-3
FRONT UNIT ASSEMBLY............................................................................................................... PRT-5
POWER P.C.B ASSEMBLY ............................................................................................................ PRT-7
DSP / DSP-SUB P.C.B ASSEMBLY................................................................................................ PRT-8
PACKAGING PARTS ASSEMBLY .................................................................................................. PRT-9
PRT-1

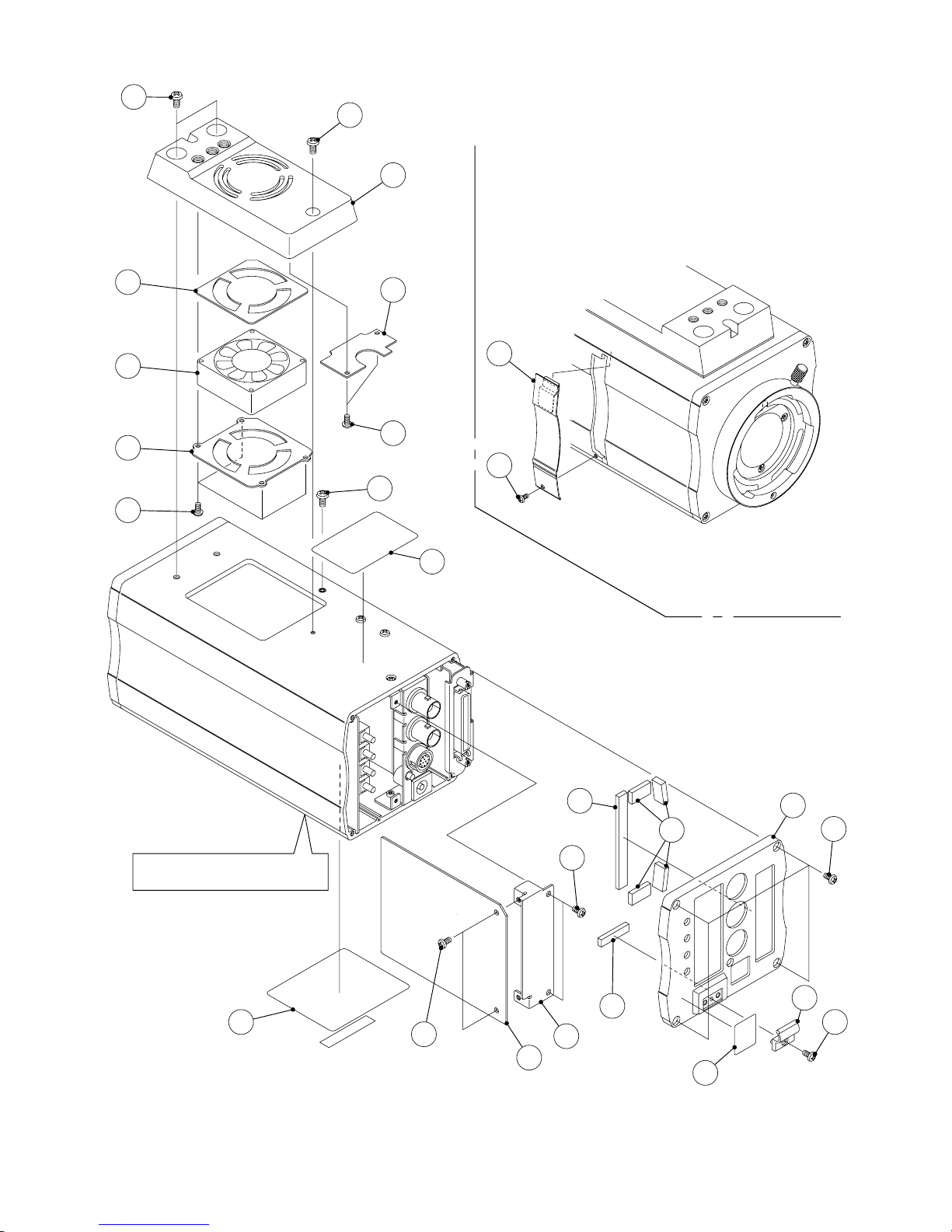

CHASSIS FRAME ASSEMBLY (1)
112
8
113 106
E12
111
14
115
10
12
11
111
104
21
4
6107
7
101
3
105
5
15
13
9
CHASSIS FRAME ASSEMBLY (2)
(See PRT-3)
PRT-2
Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks
CHASSIS FRAME ASSEMBLY (1)
1 1A1A234A BLANK PANEL 1
2 1C1A073A SHIELD PLATE 1
3 4C1A004C REAR ESCUTCHEON 1
4 1C1A112A GASKET (A) 1
5 1C1A113A GASKET (B) 1
6 1C1A130A GASKET (C) 4
7 V2GA0065A4 CABLE CLAMP 1
8 VGQ7831-1 SIDE COVER 1
9 VKM5543-3 FAN MOUNTING BASE 1
10 VMA0G54-1 FAN HOLD PLATE (BOTTOM) 1
11 VMA0G53-1 FAN HOLD PLATE (UPPER) 1
12 L6FAHBAH0003 FAN MOTOR 1
13 VGNB0098 MAIN LABEL 1
14 VQL1B22 CAUTION LABEL 1
15 7G1B018A CAUTION LABEL 1
101 XSB2+4FJK SCREW 1
104 XSB26+4FN SCREW 2
105 XSN26+5FN SCREW 2
106 XYN26+J10FN SCREW 1
107 XSN26+8FN SCREW 4
111 XSB2+4FJ SCREW 6
112 XQN2+C3FN SCREW 1
113 XYN4+J8FN SCREW 2
115 XQG26+A3FN SCREW 1
E12 WE750PKY1A FAN P.C.BOARD 1
PRT-3
CHASSIS FRAME ASSEMBLY (2)
104
21
110
E9
104 22
105
23
105
FRONT UNITASSEMBLY
(See PRT-5)
DSP/DSP-SUB P.C.BASSEMBLY
(See PRT-8)
POWER P.C.BASSEMBLY
(See PRT-7)
PRT-4
Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks
CHASSIS FRAME ASSEMBLY (2)
21 1B1B009A P.C.B GUIDE ANGLE 1
22 VGQ7830-1 MAIN CASE 1
23 VQL1B29 FUSE REPLACEMENT LABEL 1
104 XSB26+4FN SCREW 8
105 XSN26+5FN SCREW 4
110 XSN26+8FJK SCREW 4
E9 WE750PKZ1A PREPROCESS P.C.BOARD 1
PRT-5
FRONT UNIT ASSEMBLY
E3
E2
104
E8
104
54
53
53
104
31
51
38
38
39
40
102
36
35
32
34
33
37 114
E4
E5
E1
104
104
104
104
52
PRT-6
Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks
FRONT UNIT ASSEMBLY
31 V9BA0537AN CCD BLOCK ASS’Y 1
32 4D1A037C FRONT ESCUTCHEON 1
33 V9AB0315A3 2/3” BAYONET MOUNTASS’Y 1
34 IRE800T1R0 IR FILTER 1
35 5S1A006A LOW PASS HOLDER 1
36 LPFE800 LOW PASS FILTER 1
37 WN-0003 CAP 1
38 WE655L02 FLEXIBLE FLAT CABLE 2
39 WE655L04 FLEXIBLE FLAT CABLE 1
40 WE750L01 FLEXIBLE FLAT CABLE 1
51 VMK0597 P.C.B CHASSIS 1
52 VSC5573-1 SHIELD SHEET (WIND) 1
53 WE655L03 FLEXIBLE FLAT CABLE 2
54 WE655L08 FAN CABLE 1
102 XQN2+A3FJK SCREW 3
104 XSB26+4FN SCREW 12
114 XSN3+8FN SCREW 6
E1 WE860PKB1A CCD-R P.C.BOARD 1
E2 WE860PKC1A CCD-G P.C.BOARD 1
E3 WE860PKD1A CCD-B P.C.BOARD 1
E4 WE860PKB4A DRIVE P.C.BOARD 1
E5 WE860PKC4A PREAMP P.C.BOARD 1
E8 WE750PKD2A JOINT P.C.BOARD 1
PRT-7
POWER P.C.B ASSEMBLY
61 VSC5568 POWER SHIELD (BACK) 1
62 VMZ3431 INSULATE SHEET 1
63 VSC5567 POWER SHIELD (FRONT) 1
64 VSCB0001 GASKET 1
65 VQLB0095 BLANK LABEL 1
104 XSB26+4FN SCREW 6
E6 WE750PKB2A POWER P.C.BOARD 1
E7 WE750PKC2A POWER-SUB P.C.BOARD 1
Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks
104
E6
61
62
65
104
E7
64
63
Ref. No. Part No. Part Name & Description Pcs Remarks
PRT-8
DSP / DSP-SUB P.C.B ASSEMBLY
71 VMAB0091 HEAT SINK (A) 1
72 VMXB0010 D-SUB CONNECTOR SCREW 2
73 VMGB0019 SHEET (A) 1
74 VMGB0021 SHEET (B) 1
75 VMGB0022 SHEET (C) 1
76 VMAB0092 HEAT SINK (B) 1
77 VMGB0023 SHEET (D) 1
78 VMXB0039 SPACER 4
103 XSB25+4FN SCREW 2
104 XSB26+4FN SCREW 8
109 XWA25FN WASHER 2
E10 WE860PKZ2A DSP P.C.BOARD 1
E11 WE860PKZ3A DSP-SUB P.C.BOARD 1
Ref. No. Part No. Part Name & Description Pcs Remarks
E11
78
78
73
75
74
77
76
104
72 109
71
103 104
E10
PRT-9
Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks
PACKAGING PARTS ASSEMBLY
1 YWT050803 POLYETHYLENE BAG 1
2 VMG1371 RUBBER SHEET 1
3 VHD1432 MOUNTING SPACER 1
4 XYN4+J8FN SCREW 2
5 YWT10X10C03 POLYETHYLENE BAG 1
6 VKM5550-3 MOUNTING ADAPTER 1
7 VQTB0088 OPERATING INSTRUCTIONS 1
8 VQC4626 SAFETY CARD 1
9 VQA0689 SERVICE CENTER LIST 1
10 VQA0690 WARRANTY CARD 1 (NORTH AMERICA)
11 XZB89X190KG2 WARRANTY CARD BAG 1
12 VQA0855 WARRANTY CARD 1 (JAPAN)
13 PE26X40C05B POLYETHYLENE BAG 2
14 V9CA4933AN PACKAGING ASS’Y 1
15 V8FA1095B4 PACKAGING LABEL 3
16 VQL8185 OPERATION LABEL 1
17 V8FA0070A4 CAUTION LABEL 1
14
14
14
15
17
14
15
13
15
16
13
AW-E860N
2 3 4 5 6
8 9
1
710 11 12
