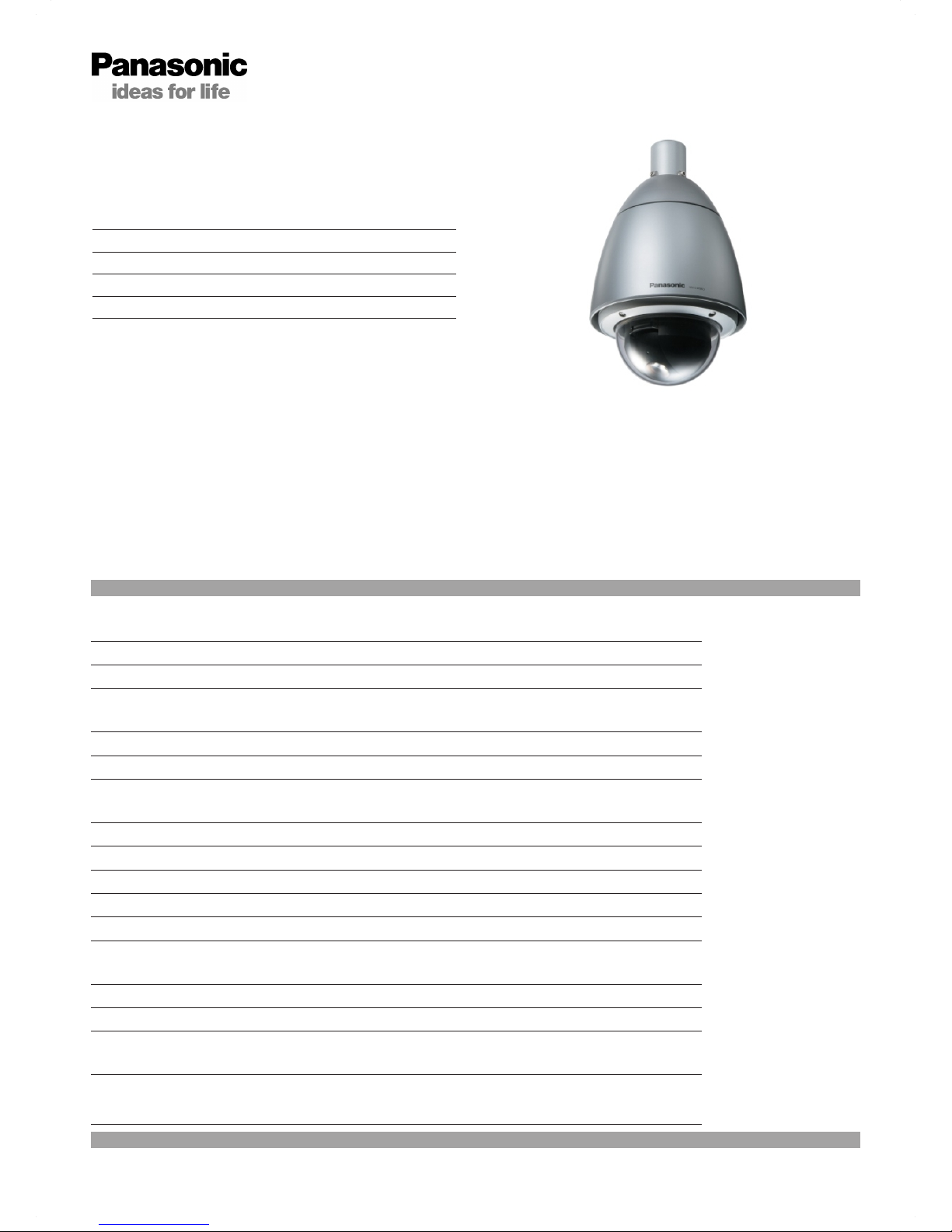

Panasonic Super Dynamic III WV-CW974 Manuale utente

WV-CW974

Dome Camera

Advanced Auto Track with template matching algorithm

IP66 Rated Weather Proof Structure

Super Dynamic III Camera with 160x Dynamic Range

30x Optical Zoom and 300x including Digital Zoom

400 deg/sec Panning Speed

Enhanced Processing of Natural Colour

New advances in Outdoor Surveillance from the Super Dynamic III dome camera with advanced au-

to track

General

Type Weather Proof Super Dynamic III Colour Dome Camera

Pick-up Device 1/4-type interline transfer CCD

Effective Pixels

Horizontal 752.0

Vertical 582.0

Scanning Area [mm]

Horizontal 3.65

Vertical 2.71

Signal PAL

Synchronization Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)

Scanning Mode 2:1 interlace

Scanning Frequency

Horizontal [KHz] 15.625

Vertical [Hz] 50.0

Resolution

Horizontal 480 TV lines minimum (Colour NORMAL mode), 540 TV lines typical.,

520 TV lines minimum (Colour HIGH mode) 570 TV lines minimum (B/

null

Vertical 400 TV lines minimum (Centre)

Dynamic Range 160x

Signal-to-Noise Ratio 50 dB minimum (AGC: OFF)

Minimum Illumination (Colour) 0.5 lux

Minimum Illumination (B/W) 0.04 lux

Weather Protection IP66 protection from water jets from a nozzle (IEC60529/JIS C 0920)

Power Source

Voltage AC [V] 24

Frequency [Hz] 50.0

Power Consumption [W] 77.0

Ambient Operating Temperature [degrees C]

Minimum -40.0

Maximum 50.0

Ambient Operating Humidity [%]

Minimum 0.0

Maximum 90.0

Dimensions [mm]

Diameter 239.0

Height 395.5

Weight [kg] 4.7

Finish Camera: Die cast aluminium, baked on coating (Paint colour: Fine silver

(901)) Sun shield: ASA resin, coated (Paint colour: Fine silver(901)) Do-

me: Clear polycarbonate resin

Main Functions

Controller Interface Coaxial Multiplex System, RS-485

Control Functions Pan and tilt, zoom and focus, 256 preset positions, home position, pa-

trol

Auto Gain Control (AGC) ON (LOW), ON (MID), ON (HIGH), OFF

Zoom Speed approx. 6.0 seconds (TELE ~ WIDE) in manual mode

Focus Speed -

Iris / Light Control ALC (Adjustable OPEN/CLOSE output target level)/MANUAL

Shutter OFF (1/50), AUTO, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000,

1/10,000 s

Motion Detector OFF/MODE1/MODE2

Auto Mode OFF, SEQ, SORT, AUTO PAN, PATROL, AUTO TRACK

Auto Pan SEQ, SORT, AUTO PAN, PATROL, AUTO TRACK

Auto Focus MANUAL/AUTO (PAN, TILT, ZOOM linked)

Back Light Compensation (BLC) -

Sensitivity Enhancement 32x max. (AUTO or FIX)

White Balance -

Adaptive Black Stretch -

Camera Title ON, OFF (Preset ID, camera ID, area title: 16 alphanumeric characters

Image Hold ON/OFF

Digital Flip ON/OFF

Cleaning ON/OFF

Privacy Zone ON/OFF (8 zone settings)

Image Stabilizer ON/OFF

Detail / Aperture Level -

Colour/Mono Switching AUTO/ON/OFF

Patrol STOP/PLAY/LEARN

Scene Select Setting INDOOR (L)/INDOOR (H)/OUTDOOR (L)/OUTDOOR (H)

Password Lock All menus

Language Setting English, German, French, Italian, Spanish, Russian, Chinese, Japanese

Pan and Tilt

Pan Range [360 deg.] endless

Pan Modes Manual, auto, manual position, sequential position

Pan Speed Manual: approx. 0.065 ~ 120 deg/s 8 steps, 16 steps, 64 steps Preset:

approx. 400 deg/s

Tilt Range [-5 ~ 185 deg.] (horizontal - vertical - horizontal) (According to the TILT

ANGLE)

Tilt Modes Manual, manual position, sequential position

Tilt Speed Manual: approx. 0.065 ~ 120 deg/s 8 steps, 16 steps, 64 steps Preset:

approx. 400 deg./s

Lens

Type -

Zoom Ratio 30x (approx. 300x with digital zoom)

Focal Length [mm]

Minimum 3.4

Maximum 114.0

Iris Range / Aperture Ratio f1.4~ f22, Close

Angular Field of View

Horizontal 1.8 degrees (TELE) ~ 52 degrees (WIDE)

Vertical 1.4 degrees (TELE) ~ 40 degrees (WIDE)

Maximum Aperture Ratio 1:1.4 (WIDE) ~ 3.6 (TELE)

Object Distance [m] 1.5

Input/Output

Video Output VBS: 1.0V [p-p]/ 75 Ohms (BNC connector)

Alarm Input x4 (ALARM IN 1 ~ ALARM IN 4)

Alarm Output x2 (ALARM/AUX1, BW/AUX2)
