KEY FEATURES

Panasonic’s new WV-CL270 Series surveillance

cameras combine a 438,000 pixel, 1/2-type CCD

with the high precision of Digital Signal Processing

(DSP). Their design allows you to capture images in

light as low as 0.8 lx (when using an F1.4 lens).

The higher quality output has 480 lines of horizontal

resolution and a signal-to-noise ratio of 50dB. A rich

array of additional features includes Backlight

Compensation (BLC), Aperture Correction, and

Auto Tracing White Balance (ATW), making these

cameras ideal in a wide range of surveillance

environments where applications require clear,

natural, colour images of backlit or low-light scenes.

Combining a wealth of features with high cost-

performance, WV-CL270 Series are the perfect

surveillance solution for small retail stores, hotels,

restaurants, shopping malls, and parking garages.

•1/2-type CCD pick-up element with 752 (H) x 582 (V) pixels.

•480 lines of horizontal resolution.

•Minimum scene illumination of 0.8 lx at F1.4.

•Digital Signal Processing (DSP) minimizes aliasing (the creation of

colour noise) when viewing patterned objects.

•Vertical digital enhancement and digital aperture correction improves

signal strength at the horizontal and vertical edges for sharper images.

•Advanced digital adaptive backlight compensation (BLC) capability.

•Knee circuit effectively expands the dynamic range when viewing

brightly illuminated objects.

•Outstanding 50dB signal-to-noise ratio.

•Accepts both DC and Video voltage for ALC lenses.

•An advanced Electronic Light Control (ELC) enables the use of

inexpensive fixed iris lenses for more cost effective systems.

•Line-lock capability for roll-free picture during systems operation

switching.

•VD2 sync capability with Panasonic system products.

•Optional Panasonic 1/2-type lenses are available to suit various

applications.

•WV-CL270 Camera Series are

WV-CL270 ; 220 - 240 V AC, 50 Hz

WV-CL274 ; 24 V AC, 50 Hz

COLOUR SURVEILLANCE CAMERAS FOR HIGHER

SENSITIVITY, HIGHER QUALITY IMAGES,

AND HIGHER COST PERFORMANCE

Lens: optional

1/2 inch CCD Colour Camera

WV-CL270 Series

Model No. WV-CL270 WV-CL274

Pick-up Device 752 (H) x 582 (V) pixels, Interline Transfer CCD

Scanning Area

6.45 (H) x 4.84 (V) mm (Equivalent to scanning area of 1/2” pick-up tube)

Synchronization Internal, Line-locked or Multiplexed Vertical Drive (VD2), selectable

Scanning System 2 : 1 interlace

Scanning 625 lines / 50 fields / 25 frames

Horizontal 15.625 kHz

Vertical 50 Hz

Horizontal Resolution 480 lines

Video Output 1.0 V[p-p] PAL composite 75 Ω/ BNC connector

Signal-to-Noise Ratio 50 dB (AGC Off, weight On)

Electronic Light Control Equivalent to continuous variable shutter speed between

1/50 s and 1/15,000 s

Minimum Illumination 0.8 lx at F1.4

Detail SHARP or SOFT, selectable

Lens Mount CS-mount

Ambient Operating Temperature

-10 °C - +50 °C

Ambient Operating Humidity Less than 90 %

Power Source and 220V-240V AC, 50Hz 24 V AC, 50 Hz

Power Consumption 3.8W 3.5W

Dimensions (without lens) (W x H x D)

67 x 65 x 123 mm

Weights (without lens) 495 g 350 g

Unit: mm

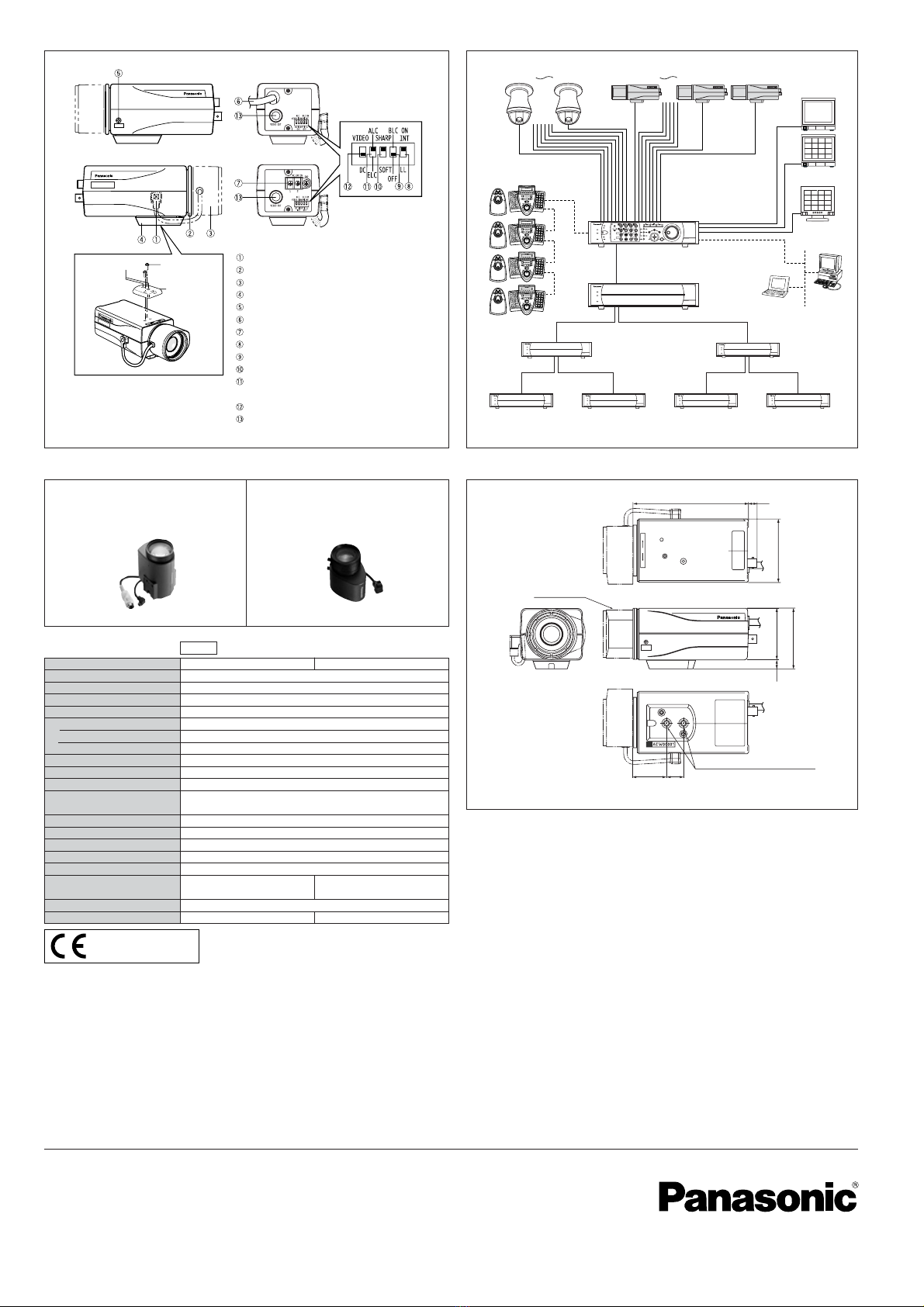

MAJOR OPERATING CONTROLS SYSTEM EXAMPLE

APPEARANCE

SPECIFICATIONS

123 9

1836

2-1/4-20UNC (DEPTH 10mm)

Lens (Option)

SER

NO.

OPTIONAL ACCESSORIES

Zoom Lenses

WV-LZ81/6 (6x)

WV-LZ81/10 (10x)

Variable Focal Lens

WV-LZ80/2

WV-CL270

WV-CL274

Auto Iris Lens Connector

Flange-back Adjusting Ring

Lens (option)

Mount Adapter

Focus Fixing Screw

Power Cord (only for WV-CL270)

AC 24V Input Terminal (only for WV-CL274)

Synchronization Mode Selector

Back Light Compensation Mode Selector

Detail/Aperture Level Selector

Automatic Light Control/

Electronic Light Control Selector

Lens Drive Signal Selector

Video Output Connector

Fixing Screws

Camera Mounting

Screw Holes

Mount Adapter

LOCK

WV-CS950 Series x 8

CH1 CH8

WV-CL270 Series x 8

CH9 CH15 CH16 Colour Monitor

x 2

RGB Monitor

Digital Disk Recorder

WJ-HD316A

2 drive bays

Extension Unit

WJ-HDE300

4 drive bays

Extension Unit

WJ-HDE300

4 drive bays

Extension Unit

WJ-HDE300

4 drive bays

Extension Unit

WJ-HDE300

4 drive bays

LAN/WAN

Internet

Ethernet

(10Base-T/100Base-TX)

System Controllers (Max. 4)

WV-CU650

PS-Data

Extension Unit

WJ-HDE300

4 drive bays

Extension Unit

WJ-HDE300

4 drive bays

Extension Unit

WJ-HDE300

4 drive bays

PAL

This equipment complies with

the EMC Directive 89/336/EEC

http://panasonic.net/security/

Printed in Japan (2N-706A)

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations.
